Floor decking roll forming machine

Supplier: Hangzhou Jingjing Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Frank Bao
Price: $30000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Model Number:	YF-51-240;	Total weight:	15,000kgs;
Supply Ability:	40 Set/Sets per Month;	Total size:	28 X 3.5 X 1.6m;
Port:	Shanghai or Ningbo, China;	Brand Name:	Solar;
color:	As customer;	Place of Origin:	Zhejiang China (Mainland);
Payment Terms:	L/C,T/T;	Packaging Detail:	one 20 GP and one 40 GP;
Delivery Detail:	50;	Certificate:	ISO: 9001;
Total power:	About 20 KW;

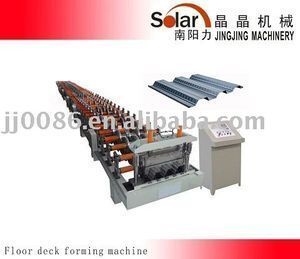

Floor decking forming machine

1, Machine components

The floor deck forming machine includes in unpowered conic decoiler, lubricating device, sheet guiding equipment, roll forming system, cutting equipment, hydraulic station, electric controlling system and supporter.

2. Work Flow

Decoiling the sheet---Sheet guiding ----Lubricating----Roll forming ---- Measure length -----Cutting the panel ----Panels to the supporter

3. Technical Parameters

* Suitable Material: Galvanized steel sheet

Thickness: 0.6 mm to 1.2 mm

Coil width: 1000 mm

Yield Stress: 235Mpa + 50

* Products spec. Panel cover width: 720mm±6

Panel length: Any length

Other tolerance: According to our nation standard and company standard.

* Total motor power: About 26.75 KW

Main motor power: About 18.5 KW

Hydraulic station power: 5.5 KW

Lubricating motor power: 0.75KW

* Working speed: 10-15 m/min

* Unpowered conic decoiler

Capacity: 10 MT

Suitable coil width: 914-1250mm

Suitable coil ID: 500-600mm

Suitable coil OD: 1200mm

* Type of cutting: Roll-formed and length-set cutting

* Installation Dimension: (L X W X H)22 X 3.5 X 1.4 M

* Total Weight: About15,000 kg

4. Material of Main Equipment

* Material of the roller: High grade No.45 carbon wrought steel and coated chrome

* Material of shaft: High grade No.45 carbon quality-promoted steel

* Electric Elements: PLC control panel, transducer and operating screen imported from Mitsubishi. Mini-relay is from Omron, AC contactor and switches are from Schneider. Other elements from famous suppliers in China.

* Material of cutting mould: Cr12 mould steel after being quenched

* Motors and hydraulic valves: Famous suppliers in China.
