500KW 10MW Hydropower Low Flow System Francis Hydrogenerator

Product details
product name:Hydroelectric Generator Low Speed ​​Francis Turbine 500KW 10MWCertification:-
model:HLA-WJ-30(200)payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, Trade Assurance
excitation:Brushless or static excitation systemsSupply capacity:300 sets per month meet customer requirements
port:ShanghaiLayout mode:horizontal or vertical
Packaging Details:standard wooden boxbrand:Wawu Mountain
custom made:yesplace of origin; place of origin:Sichuan, China
strength:50KW-20MWTypes of:Water turbine, Francis turbine
frequency:50Hz/60HzGenerator voltage:400V, 800V, 6300V, 10500V
Material:Stainless steel/ZG0Cr13Ni4MoWarranty:3 years
Head(m):10m-700mPower range:50KW-20MW
life:50 years

Hydroelectric Generator Low Speed ​​Francis Turbine 500KW 10MW

Product Description





water head10m-700m
power range50KW-20MW
frequency50Hz/60Hz
generator voltage400V, 800V, 6300V, 10500V
layout modehorizontal or vertical
MaterialStainless steel ZG0Cr13Ni4Mo
excitationBrushless or static excitation systems
life50 years
Runner diameter0.35m-4m
generator insulationfront/back

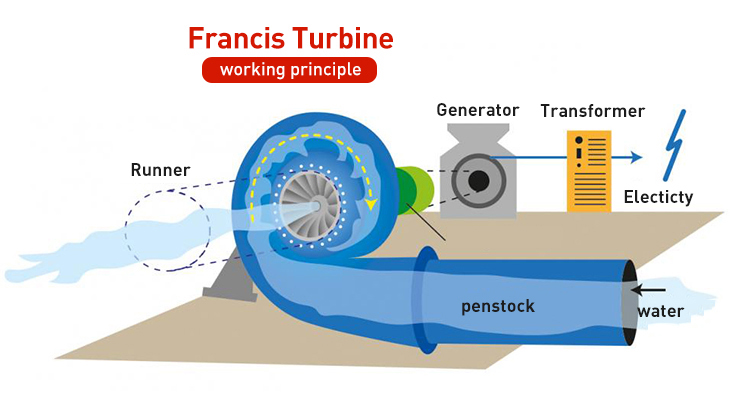

The Francis turbine is a turbine suitable for a water head of 20-300 meters and with a certain flow rate.


Can be divided into vertical arrangement and horizontal arrangement. The Francis turbine has the advantages of high efficiency, small size, and reliable structure.

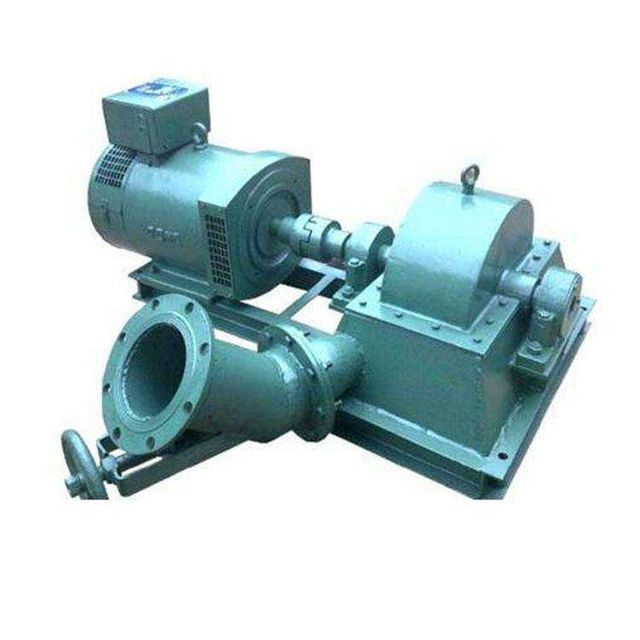

Horizontal Francis turbine unit, horizontal shaft, can be 2 or 3 brackets. This is usually a staircase arrangement. Simple structure, more convenient operation and maintenance.



Vertical Francis turbine unit with vertical shaft, metal volute or concrete volute. With adjustable guide vanes, support rings and other components, it is suitable for flow channel diameters greater than 1000mm. Our engineers will select the most suitable Francis turbine for your hydropower project.



other products



They are used in small and medium hydroelectric or hydropower plants.

From rated output50kW to 20 MWis our advantage.



Here's what we do with hydropower:

1: Hydropower station exploration and design

2: Design and manufacture of steam turbine generator set

3: Electromechanical equipment EPC (water-to-wire system)

4: Pre-sales service for hydropower stations

5: Hydropower station training service

6: Technical consultant for hydropower station operation

7: Installation and commissioning guidance

8: Hydropower station maintenance service
