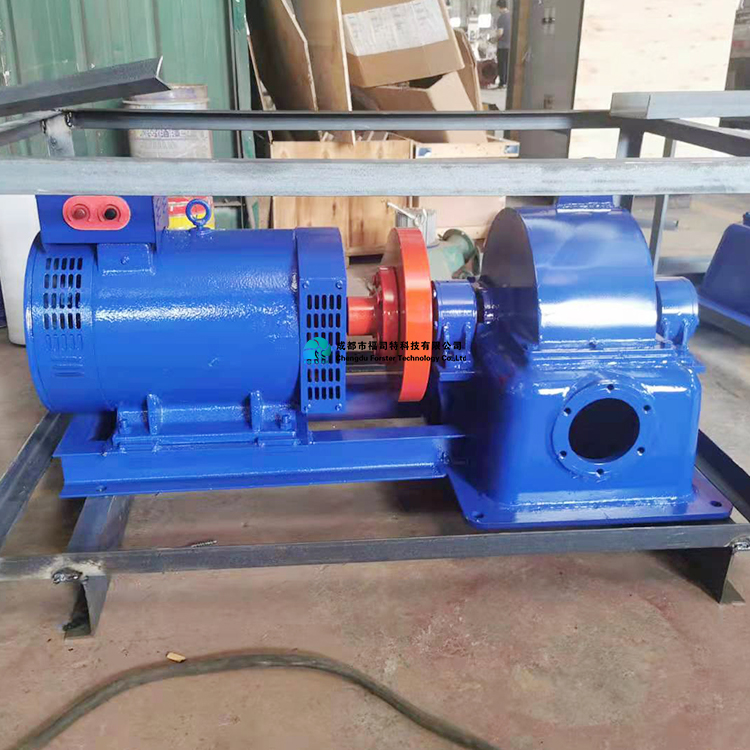

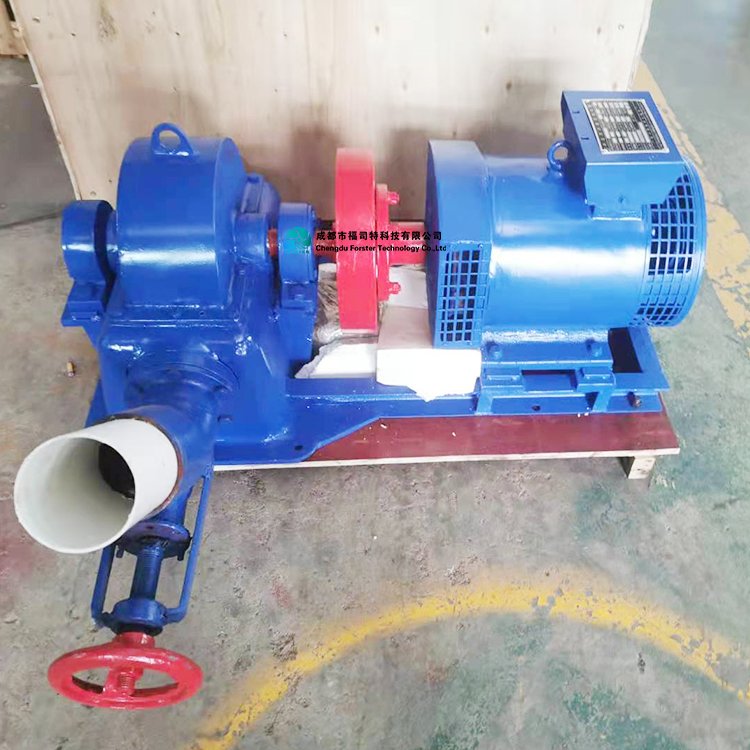

3kw 5kw small hydraulic impact turbine for hydroelectric power generation

Click here to contact

Product details

custom made:	yes	Approach:	CNC processing/constant temperature annealing
Supply capacity:	50 sets per month	Package preview:
Packaging Details:	wooden box	head:	20m-90m
brand:	Foster	strength:	3KW-5KW
Certificate:	ISO9001/CE/TUV	place of origin; place of origin:	Sichuan, China
flow:	0.0075-0.025m3/s, 20m-90m	model:	CJ22-W-20/1*5
Key words:	3kw impact turbine	Warranty:	3 months - 1 year
delivery time:	15~25 days	frequency:	50Hz/60Hz
Voltage:	110v, 220v, 380v, 400v, 220V; 380V; 400V	Certification:	ISO9001;CE;TUV;GB
port:	Shanghai; Guangdong; Ningbo; Shenzhen	Design Leader:	0.008 m3/s - 0.017 m3/s
Rated speed:	1000 rpm	payment terms:	Western Union, T/T
rated power:	3kw-5kw

3kw 5kw small hydraulic impact turbine for hydroelectric power generation

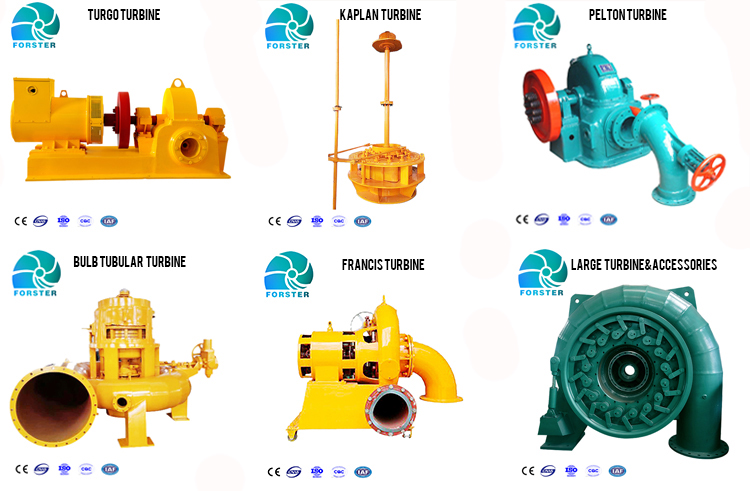

Our main products:

(1) Shaft type hydroelectric generator series.

(2) Turgo hydroelectric generator series, such as vertical and horizontal.

(3) Tubular hydroelectric generator series, such as bulb type and shaft extension type.

(4) Francis turbine generator series.

(5) Impulse turbine generator series, double turbine generator series, etc.

Features:

1. Pelton turbines are suitable for high water head, small flow and flow changes in large runoff hydropower stations.

2. It has the characteristics of small investment in the power station and compact structure of the unit.

3. It has a stable efficiency change and a wide operating range, and the efficiency will decrease even at 15--25% load.

4. It is suitable for high water head and small flow stations in mountainous areas.

5. The construction of unit A has simple restrictions, no cavitation conditions, stable operation, low investment, and large floor area.

Product parameters:

Micro 3kw-5kw impact turbine parameter table
Model	Head(m)	Flow(m³)	Power(kw)	Speed(r/min)	diameter (mm)
XJ-L-13/1*3	18-40 years old	0.015-0.025	3	500-1500	100
XJ-L-13/1*5	40-90	0.015-0.035	5	500-1500	150
For more information, please contact our sales specialists
