weight: | 28kg | Design header: | / |
head: | Homemade generator 220v | Package Size: | 390x330x450mm |
Certification: | CE | custom made: | Yes |
brand: | FLTXNY | Voltage: | 220 volts |
strength: | 800 watts, 800 watts | flow: | / |
The output voltage: | AC 220V | speed: | 500-1500 rpm |
include: | 1x micro hydro generator | type: | Water and electricity |
Warranty: | 10 years | model: | WP-800 |
payment terms: | L/C, Western Union, T/T, MoneyGram | application: | generate electricity |
Place of origin: | Jiangsu, China | flow: | 0.009 cubic meters/second |
Package preview: | | | |
1. Using the best NdFeB permanent magnets and high-grade pure copper windings, the generator can stably produce high power.
efficient. 2. Specially designed rotors and rotors have small starting resistance and good cooling effect. 3. No gears, direct connection
- Driven, low rare earth permanent magnet generator, easy to operate and maintain, safe. 4. Die-cast aluminum
Alloy shell, anti-corrosion, acid and alkali resistance, salt corrosion resistance Application: This unit can be used in remote areas

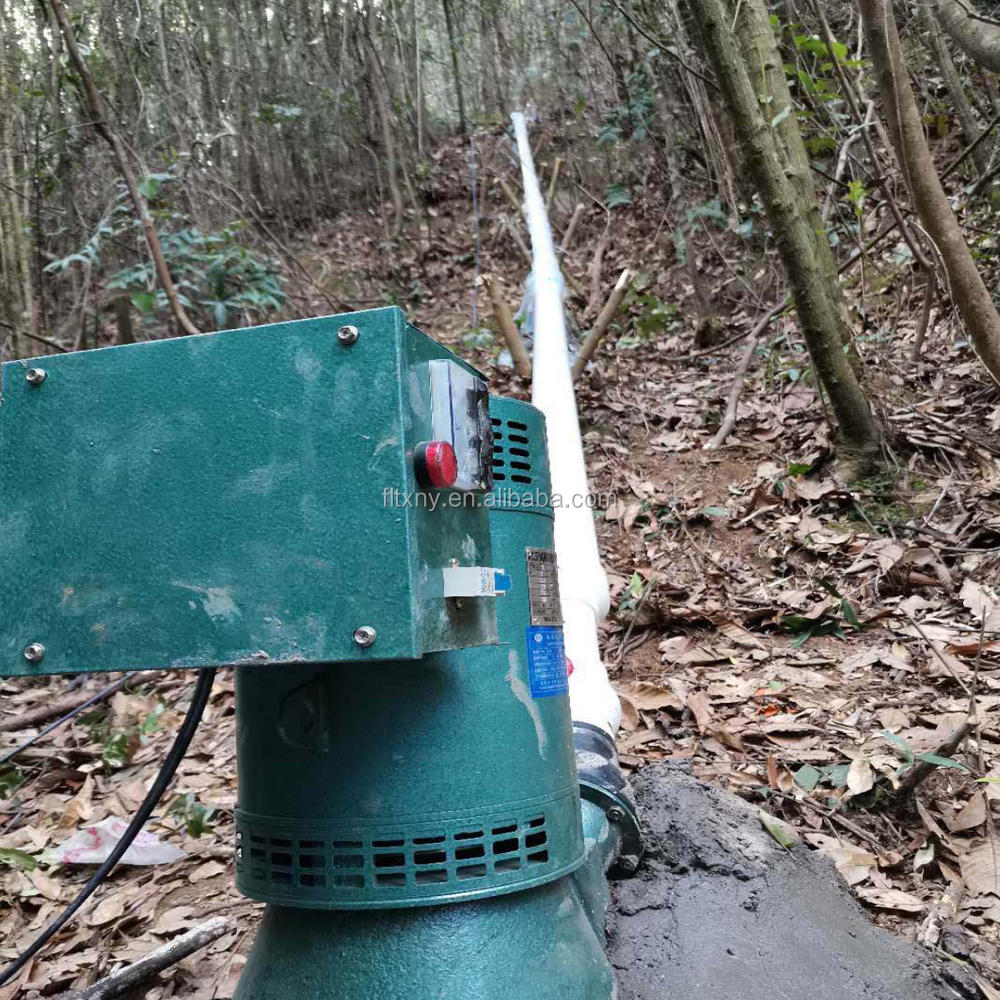

Temporary powers. The customer has connected this unit to a collapsible hose (fire hose) to provide temporary power while camping. suitable
Used for household lighting, televisions, electric stoves and other pure resistance household appliances. Not suitable for household appliances.

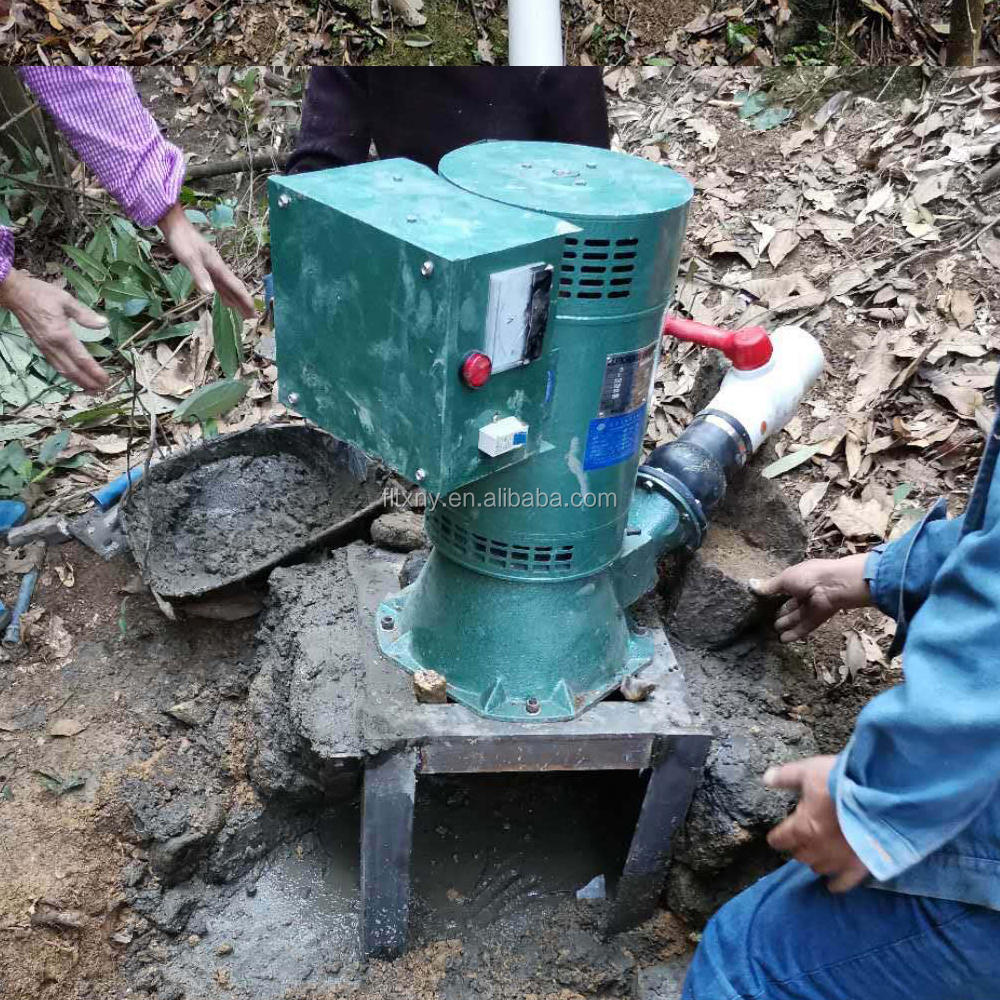

Such as refrigerators, washing machines, water pumps, etc. Installation procedure: After pouring concrete for the unit foundation
After solidification, install the unit in place and then water in sequence. Water level must be measured with water level gauge
Make sure the device is fixed in a horizontal position. The gap between the unit and the ground should be sealed with cement.
No water seepage is allowed. After the unit is installed, check again and turn the turbine shaft of the turbine by hand. if
The machine is flexible and ready to install. Installation requirements: Close contact with the bottom surface of the turbine
with the base plane. Note: The 500w hydroelectric generator can only be used under the following two conditions: 1) Vertical water
The elevation difference between the unit foundation and the turbine generator must be within the range of 7-15M. 2) The water flow must be able to pass through fully.

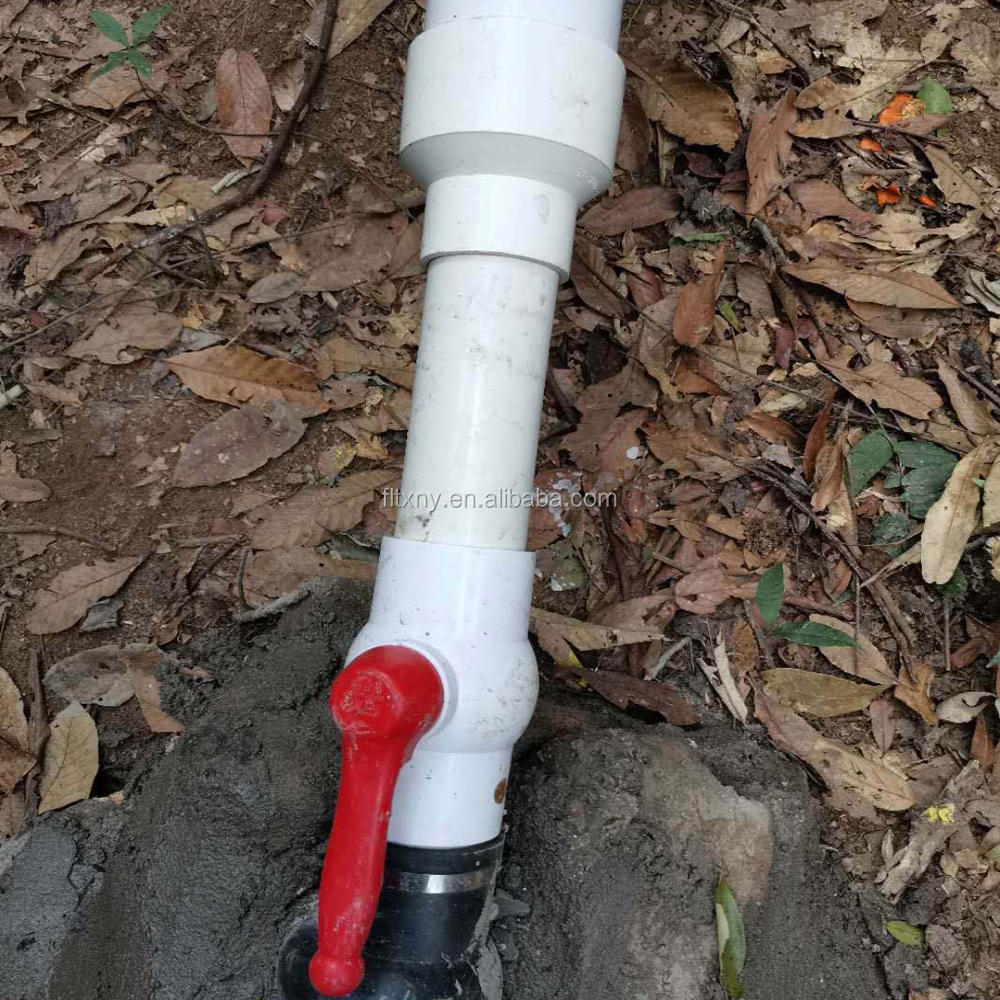

Always fill water pipes with a diameter of more than 7.5cm
strength | 500W | 600W | 800W | 1000W | 1500W | 2000W | 3000W |
Voltage | 220 (volts) | | | | | | |
head | 6-15m | 7-15m | | | 7-20m | 10-25m | 10-30m |
flow | 0.007 cubic meters/second | 0.008 cubic meters/second | 0.009 cubic meters/second | 0.01 cubic meters/second | 0.02 cubic meters/second | 0.03 cubic meters/second | |
speed | 500-1500 rpm | | | | | | |
weight | 23kg | 25kg | 28kg | 35kg | 38kg | 55kg | 58kg |
pack | 39x33x45cm | | | 43x35x45cm | | 48x37x47 cm | 5x4x55cm |
include | 1x micro hydro generator | | | | | | |
strength | 4000W | 5000W Simplex | 5000W Three phases | 10kW | 20kW Simplex | 30kW Three phases | 40kW Three phases |
Voltage | | | | | | 400 (volts)) | 400 (volts) |
head | 10-35m | 15-40m | | 30-60m | 30-70 kilometers | 30-80m | 40-75m |
flow | 0.035 cubic meters/second | 0.04 cubic meters/second | | 0.06 cubic meters/second | 0.073 cubic meters/second | 0.08 cubic meters/second | 0.085 cubic meters/second |
speed | | 1500 rpm | | | | | |
weight | 64kg | 82kg | 82kg | 145kg | 220kg | 235kg | 245kg |
pack | 5x4x55cm | 65x62x65 | | | | 7x65x68 | |
include | | | | | | | |
Advantages of Off-Grid Solar Systems
1.No access to utility grid
Off-grid solar systems are cheaper than extending power lines in some remote areas.
If you are more than 100 yards from the starting line, consider leaving the starting line. The cost of overhead transmission lines ranges from $174,000 per mile for rural construction to $11,000,000 per mile for urban construction.
2.Achieve energy self-sufficiency
It feels good to live off the grid and be self-sufficient. For some, this feeling is worth more than saving money.
Energy self-sufficiency is also a form of security. Off-grid wind systems will not be affected by utility grid outages.
Batteries, on the other hand, can only store a certain amount of energy, and on cloudy days, being connected to the grid is actually where the safety is. You should install a backup generator to handle such situations.
