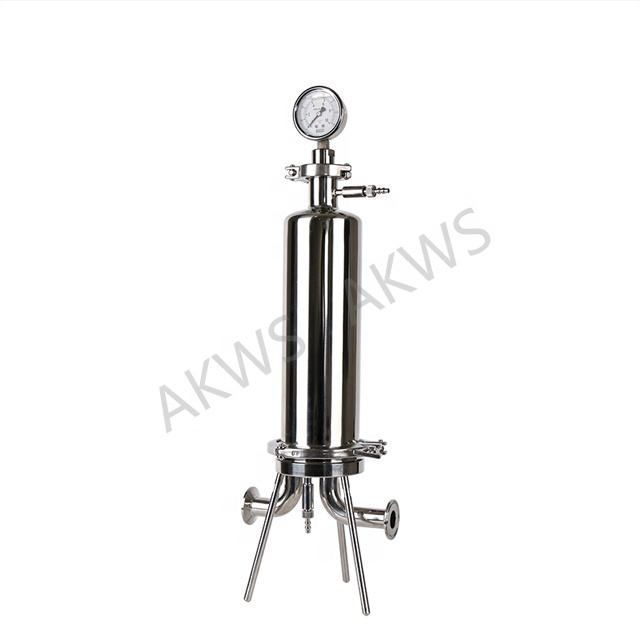

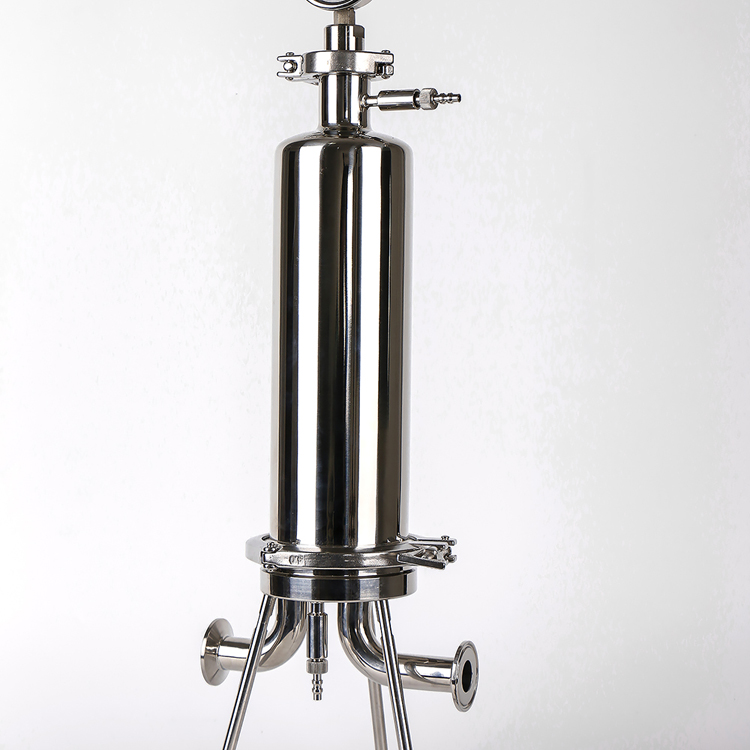

Sanitary 304 or 316 stainless steel cartridge filter housing

Product details
Mounting brackets:304 or 316L stainless steelHead/bowl:304 or 316L stainless steel
Core components:not anyMarketing Type:normal product
Local service location:not anyport:Shanghai
flow away:1/4" NPTState of health:used
Entrance Exit:1"NPT, American standard flangeMechanical test report:not available
product name:Sanitary Cartridge Filter HousingsVents/Gauge:1/4" NPT
Warranty:3 monthsWeight (kg):1 kilograms
After warranty service:online supportConnection Type:JIS, DIN flange, PT, BSP
Core component warranty:not availableMaximum working pressure:150 psig(10.3bar)@200℉(93℃)
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGramAfter-sales service provided:online support
Video shipment inspection:not availableApplicable industries:Manufacturing Plants, Food & Beverage Plants, Home Use, Energy & Mining, Food & Beverage Stores
Cartridge Type:8,7Showroom location:not any
Packaging Details:standard wooden boxplace of origin; place of origin:China Mainland)
productivity:2000L/hourSupply capacity:2000 sets per week
brand:electric carGasket/O-ring:Standard: Optional: EPDM,



Sanitary 304 or 316 stainless steel cartridge filter housing



Features

  • l Can provide single filter element or multi-filter sanitary grade filter housing - 1, 3, 5, 7, 9, 12 round
  • l Available in 10'', 20'', 30'' and 40'' cartridge models
  • l 0.25RA electropolish finish on head and elbow and mirror polished bowl ensures optimum cleanliness in critical areas while remaining cost effective
  • l Inlet and Outlet are connected from 1'' to 3''.
  • l Available in 304 or 316l stainless steel construction materials
  • l The sealing system is suitable for 226 or 222 O-ring filter elements

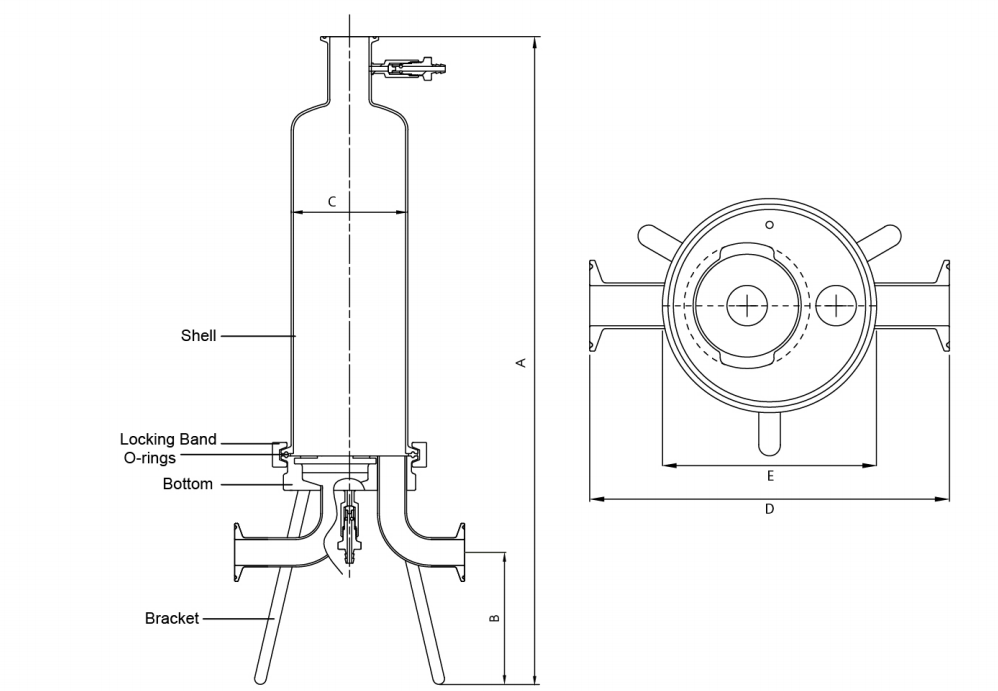

size data:

C

Cartridge number

Inlet/Outlet Connection Dimensions(mm)

size

inch

Cartridge diameter inches

(mm)

A sort of

Second

C

Ding

Second

PDI10-1

1

1”(25.4)

17.1" (434)

2.6”(65)

4"(102)

4.1" (105)

7.4" (188)

2.7”(68)

PDI20-1

1

1”(25.4)

27.1" (688)

PDI30-1

1

1”(25.4)

37.1" (942)

PDI40-1

1

1”(25.4)

56.6" (1438



Ordering Information:

+

product name

Cartridge length

building materials

Inlet/Outlet Connection Dimensions

CB-Triple Clamp Bracket

Cartridge type

PDI

10=10"

20=20"

30=30”

40=40”

A=304 stainless steel

SL=316L stainless steel

1=1”

1.5=1.5”

2=2”



CB= Triple Clamp Bracket

8=single open

222O-ring + fin end

7=single open

ends at

226 O-ring + fin end
