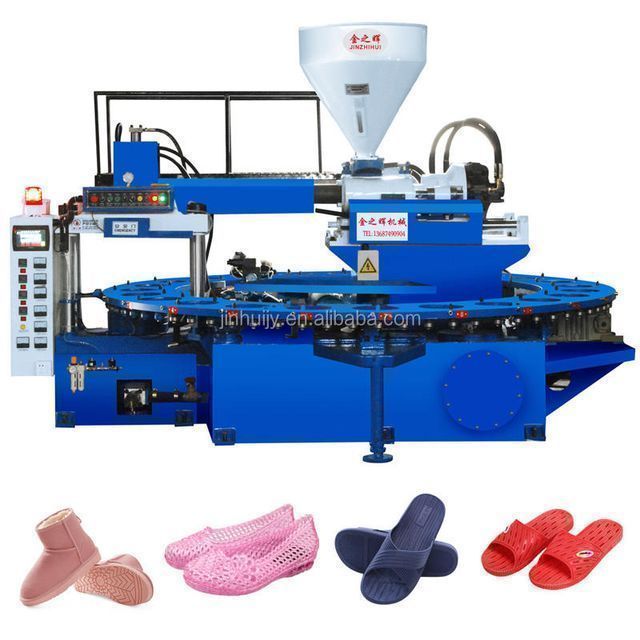

PVC Air Blowing Shoe Injection Mold Machine

Supplier: Jieyang Jinhui Machinery Manufacturing Co., Ltd.
Region: Guangdong, China
Contact: Mr Town Wang
Price: $16000.00 /set
Min. Order: 1 set

Click here to contact

Product details

State of health:	new	port:	Shantou, Shenzhen
Packaging Details:	The machine will be disassembled, the main machine will be tightly fixed with steel wires, and the spare parts will be packed in cartons suitable for sea transportation.	Shipping Details:	40 days after receiving the deposit
Supply capacity:	30 sets per month	Raw materials:	pvc
payment terms:	wire transfer

Fully automatic thermoforming machine

feature
1. This machine is suitable for producing casual soles, men's and women's slippers and sandals, and inflatable shoes made of PVC, TPR, TPU, PP and other materials.
2. PLC control, humanized interface, simple operation screen.
3. The operation is simple and safe, without professional operators.
4. Large injection volume and strong clamping force ensure product quality.
5. The machine is equipped with a feed nozzle switch, which saves the working cycle time and has high output.
6. The machine adopts dual proportional control, and the speed, material volume and pressure can be adjusted independently to ensure stable product quality.
7. Production can be arranged according to needs.

Technical Parameters

thing	unit	Measurement
raw material	type	PVC,TPR
workstation	pieces	20,24,30
Bolt diameter	mm	φ65, φ70
Bolt rotation speed	Rotating speed	0-200
Maximum injection volume	cubic centimeter	650,750
Rated injection pressure	MPa	6
Clamping force	kilogram	600
Motor Power	kilowatt	18.5
Heater power	kilowatt	10
temperature control section number	View	4
Machine size	mm	4000×3600×2300
machine weight	Kilogram	about 5500
