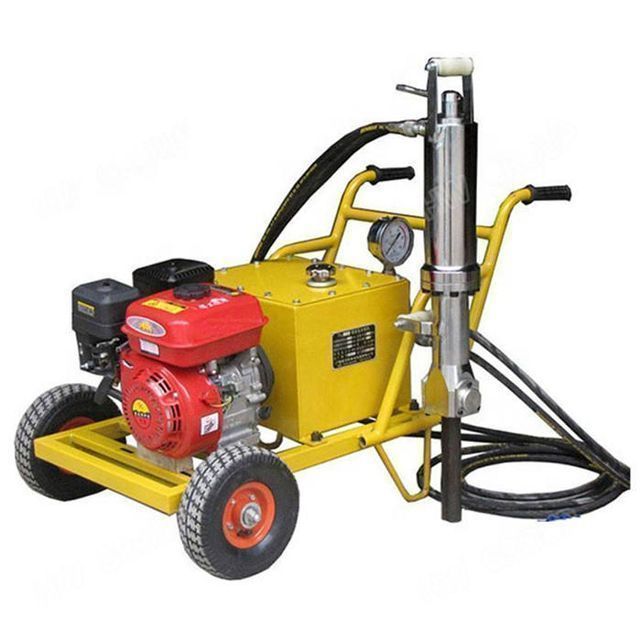

hydraulic rock splitter

Product details
Split time:10-15 secondsTypes of:stone crusher
Core component warranty:1 yearTheoretical chopping force:500 tons
Dimensions (L*W*H):450*410*700MMPackaging Details:wooden box
Supply capacity:200 sets per monthMotor type:AC motor
Showroom location:not anyCore components:Pump
payment terms:L/C, Western Union, T/T, MoneyGramMechanical test report:if
Shunt width(mm):50--60mmDrilling depth (mm):500-900mm
Power supplier:hydraulicWork pressure:63Mpa stone crusher
Video shipment inspection:ifApplicable industries:Building materials stores, machinery repair shops, construction, energy and mining
Marketing Type:normal productport:Qingdao/Shanghai
Weight (kg):200Warranty:1 year
feature:Quick CrusherState of health:new
place of origin; place of origin:Shandong Chinaproduct name:hydraulic rock splitter
brand:NKapplication:split stone, concrete, stone, concrete
Wedge length:250-450mm
Product Description
The Rock Splitter is our newly developed product which is a powerful and very cost-effective alternative to other traditional demolition tools. The rock splitter generates a very large splitting force (up to 1000T) when placed into a pre-drilled hole in rock or concrete, and breaks it into pieces within seconds.
It has been widely used in mineral mining (cave mining), civil engineering construction and demolition.
It is also an indispensable tool for construction, river dredging, emergency rescue and disaster relief.
The pump and cylinder are as follows.
Rock Crusher Specifications
rock splitter cylinder
Model
NK80-250
NK80-350
NK80-450
NK90-250
NK90-350
NK90-450
Piston diameter
80mm
80mm
80mm
90mm
90mm
90mm
Drilling diameter
Φ42mm
Φ45mm
Φ50mm
Φ42mm
Φ45mm
Φ50mm
Drilling depth
≧500mm
≧550mm
≧600mm
≧500mm
≧550mm
≧600mm
cheese block length
250mm
350mm
450mm
250mm
350mm
450mm
crack width
10~40mm
split time
5~15 seconds
Separatist theory
600 tons
600 tons
600 tons
800 tons
800 tons
800 tons
actual splitting force
480 tons
Hydraulic rock splitting pump station
engine
electric engine
Diesel engines
Fuel tank capacity
15L
40L
88L
45L
65L
90L
Motor Power
1.5KW
4KW
7.5KW
4 hp
7 hp
7.5 hp
Working pressure (Mpa)
55-60
Working flow(L/min)
2-13
Diesel power
electricity
gasoline powered
