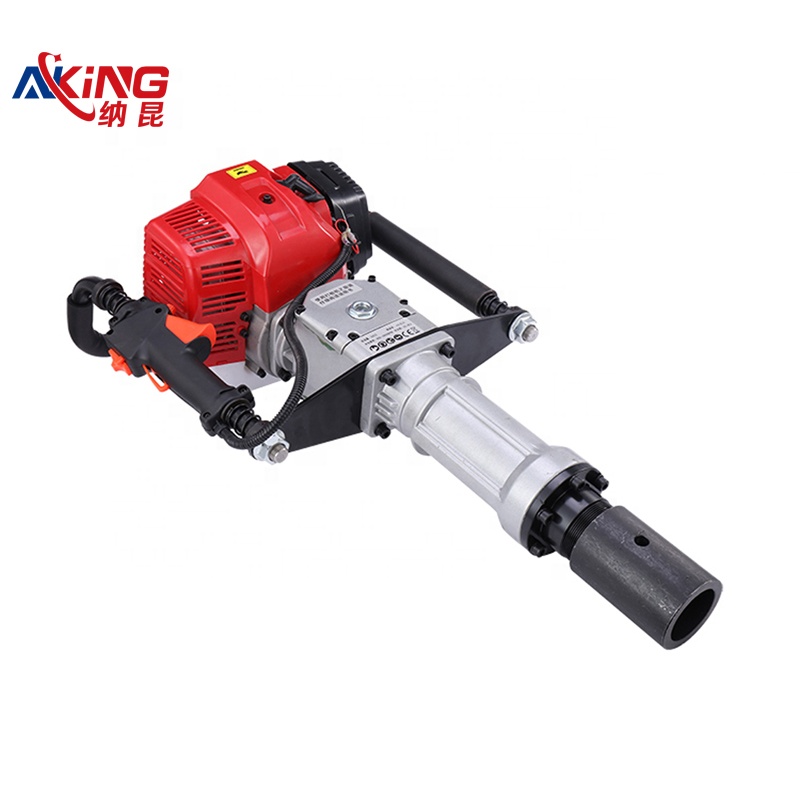

23kg Lightweight Handheld Gasoline Fence Pile Driver for Fence

Click here to contact
Product details
Marketing Type:normal productFuel consumption rate:≤0.6L/h
Mechanical test report:ifFuel tank capacity:1.3L
Pile driving speed (m/min):2m/minAffect frequency:1300-3000BPM
Packaging Preview:Dimensions (L*W*H):74*34*26cm
place of origin; place of origin:ChinaPackaging Details:Standard export packaging
Core Components Warranty:1 yearpayment terms:Western Union, T/T, MoneyGram
Core components:engineApplicable industries:Building material stores, mechanical repair shops, manufacturing plants, farms, construction works, energy and mining
weight:26.5 kgPlug Type:BM6A
Supply capacity:2000 sets per monthport:Qingdao Yiwu Guangzhou
Unique Selling Points:High operating efficiencyShift:52cc
Warranty:1 yearmaximum. Power and Speed:1900W(2.3HP)/6500r/min
Impact energy:30-65JVideo external inspection:if
Showroom location:not anyHealth status:new
Carburetor Type:MZ15-048efficiency:52cc
maximum. Torque and Speed:3.5Nm/5000r/minStart the system:hand pull start
Hydraulic Solar Fence Pile Driver
product description
pile driver

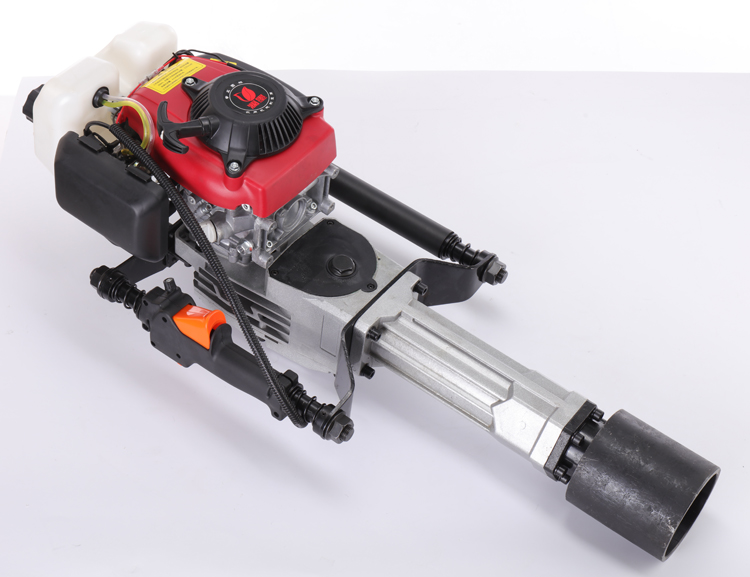

Congratulations on choosing our gasoline pile driver. This gasoline pile driver is a lightweight, low-displacement version of small construction machinery.
Function list
1 The world's lightest, smallest displacement engine-operated hand-held gasoline pile driver.
2 Ergonomic design, minimize hand vibration, easy and comfortable control,
The operator can rotate the shovel 360 degrees to dig.
3 Adjustable impact energy and impact times, suitable for all kinds of piles with a diameter of less than 65mm.
4 Advantages: If you use our machine, then you can ignore the trouble of heavy equipment such as diesel engine, air compressor,
truck truck.
5 The machine handle adopts rubber sponge, which greatly reduces the recoil of the machine and improves the comfort
user.

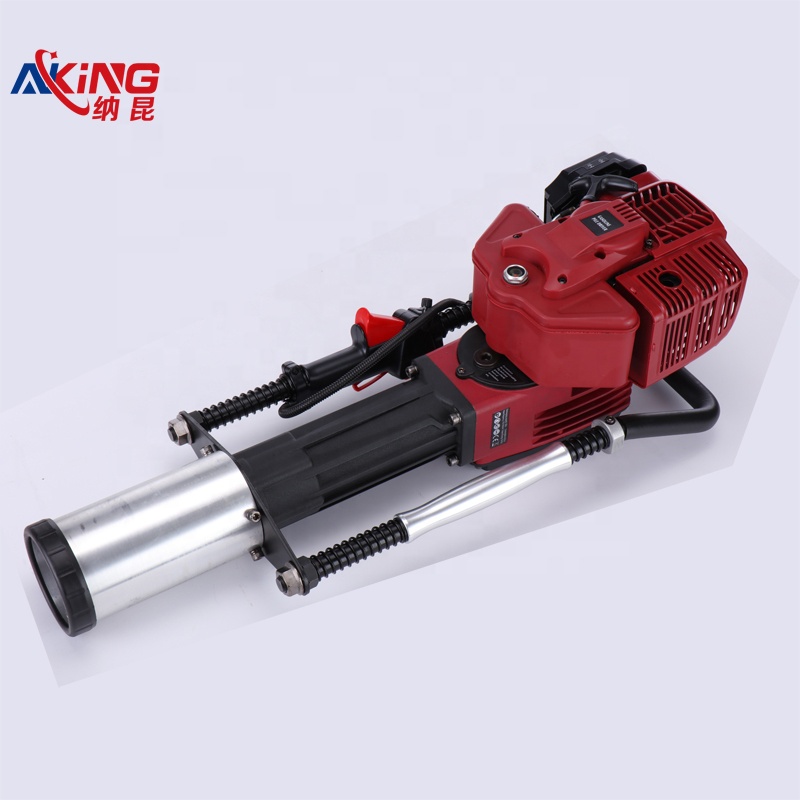

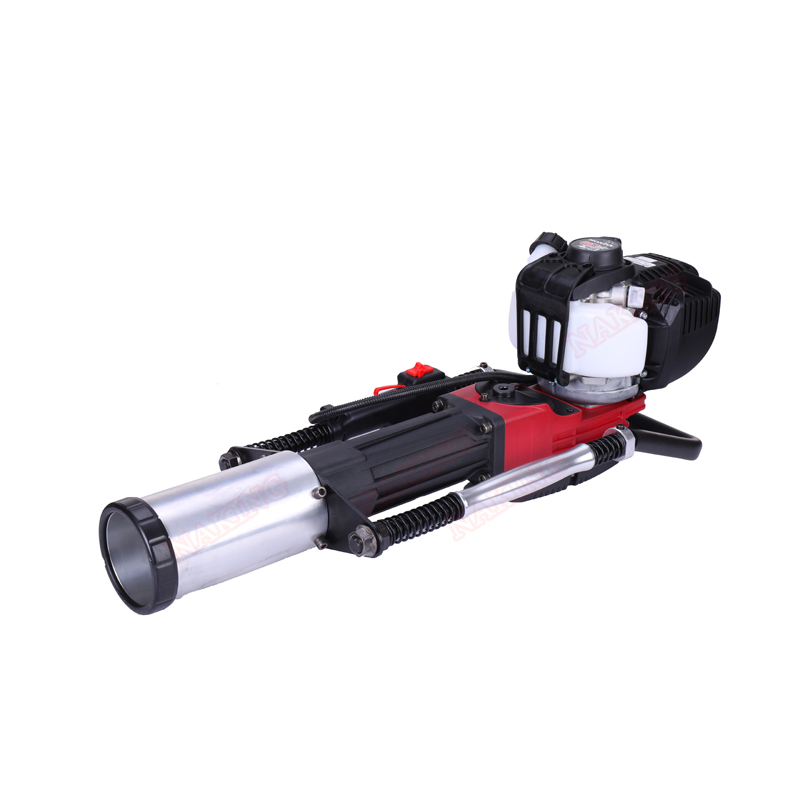

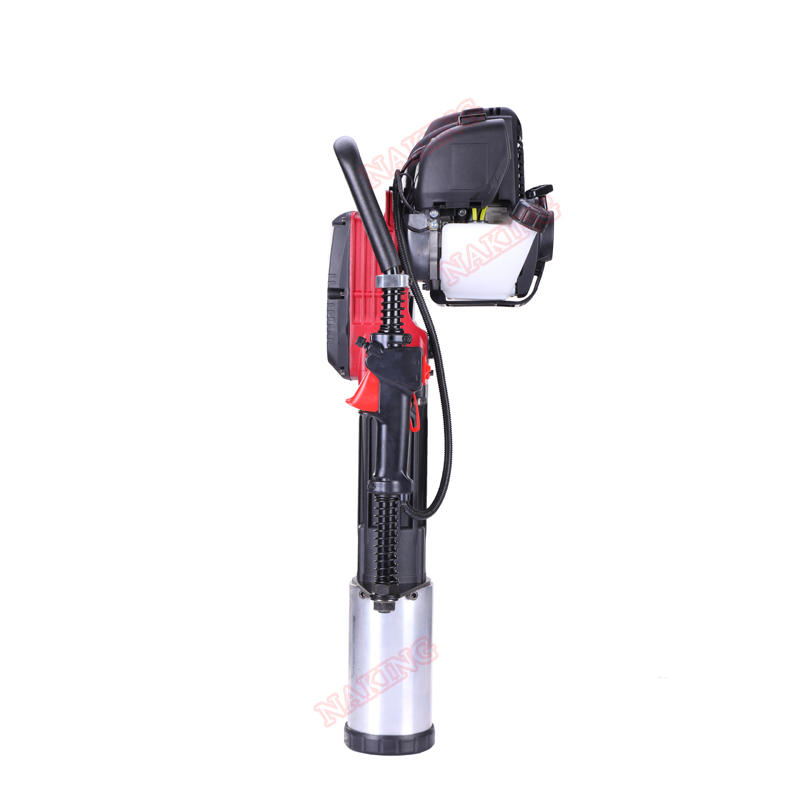

right façade

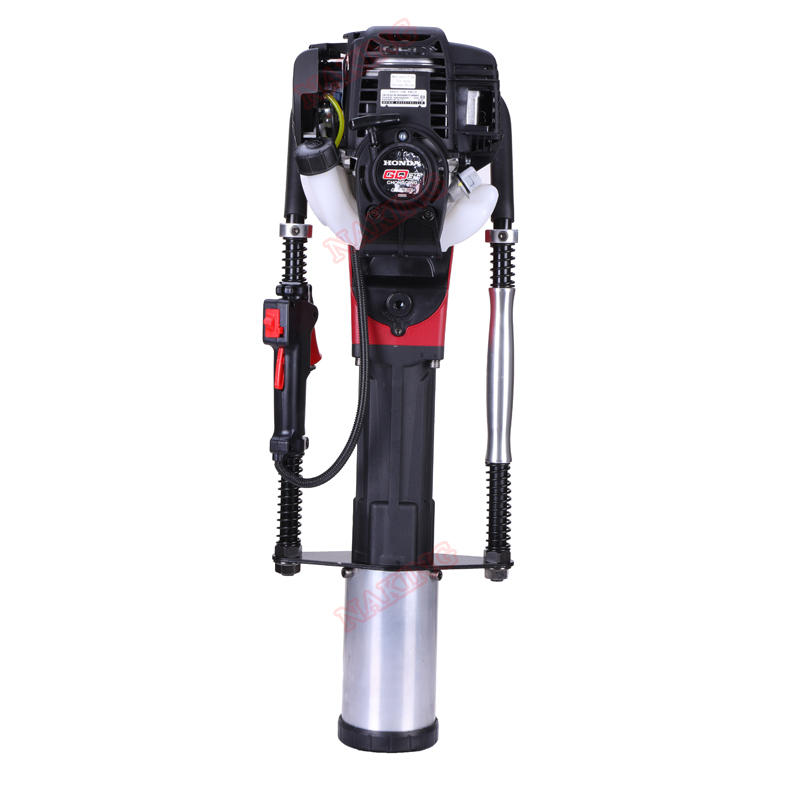

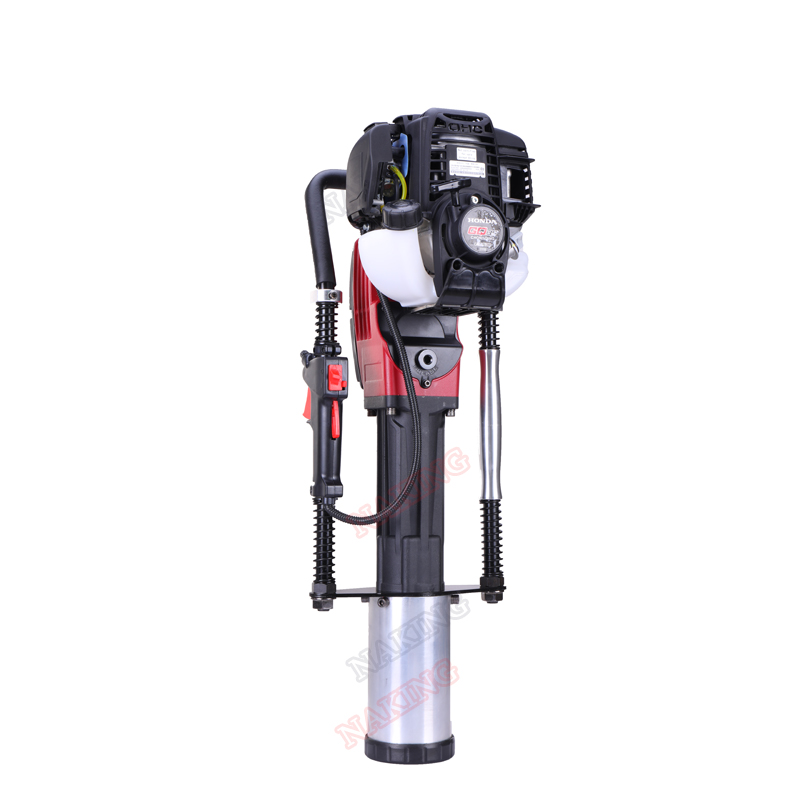

Front view

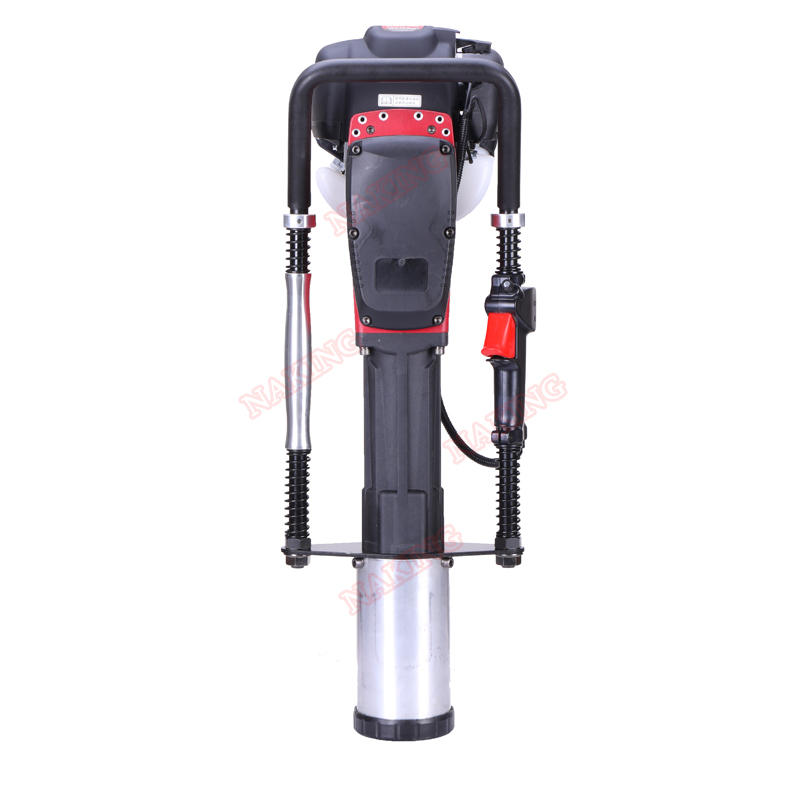

behind the facade
Product Specifications
Model
thing
data

95GPD
engine type
Honda engine, 4 stroke
shift
37.7CC
gasoline
gasoline
Fuel tank capacity
0.9L
Maximum power and speed
1000W/6000r/min
Maximum torque and speed
1.8Nm/5000r/min
fuel consumption rate
<=0.6L/h
Influence frequency
700-1350
impact energy
20-55J
engine oil
65ml
start the system
hand pull start
Weight (N/G)
20.2kg/32kg
Product Size
80.5*30.5*27.0cm
Package dimensions
98*42*35
Model
thing
data
PD95
engine type
44*34mm, single cylinder, air cooling, 2 stroke
shift
52CC
gasoline
Mixed oil (25gasoline:1motor oil)
Fuel tank capacity
1.3L
Maximum power and speed
1500W/9000r/min
Maximum torque and speed
2.5Nm/5000r/min
fuel consumption rate
<=0.6L/h
Influence frequency
700-1350
impact energy
20-55J
carburetor type
H119-6A-210
spark plug type
Flashlight BM6A
start the system
hand pull start
weight
20.2 kg
Product Size
80.5*30.5*27.0cm
standard
CE and Euro5
Model
thing
data
PD100
engine type
36*32mm, single cylinder, air cooling, 2 stroke
shift
33CC
gasoline
Mixed oil (25gasoline:1motor oil)
Fuel tank capacity
1L
Maximum power and speed
1000W/7000r/min
Maximum torque and speed
1.45Nm/5300r/min
fuel consumption rate
<=0.5L/h
Influence frequency
800-2800BPM
impact energy
25-45J
carburetor type
MZ15-048
spark plug type
Flashlight BM6A
start the system
hand pull start
Product Size
76.5*26*39.5cm
Package dimensions
74*44*30cm
Model
thing
data
PD150
engine type
44*34mm, single cylinder, air cooling, 2 stroke
shift
52CC
gasoline
Mixed oil (25gasoline:1motor oil)
Fuel tank capacity
1.3L
Maximum power and speed
1900W/6500r/min
Maximum torque and speed
3.5Nm/5000r/min
fuel consumption rate
<=0.6L/h
Influence frequency
1300-3000BPM
impact energy
30-65J
carburetor type
MZ15-048
spark plug type
Flashlight BM6A
start the system
hand pull start
Pilling socket size
150mm
Package dimensions
74.5*40*34cm
Model
thing
data
PD4S
engine type
JH144F air-cooled, 4-stroke
shift
68CC
gasoline
gasoline 92
Fuel tank capacity
1.2L
Maximum power and speed
2400W/6800r/min
Maximum torque and speed
3.5Nm/5000r/min
fuel consumption rate
<=0.48L/h
Influence frequency
1300-3200BPM
impact energy
20-85J
spark plug type
A5TC
start the system
hand pull start
Pilling socket size
150mm
Package dimensions
780*336*306mm
weight
21.5kg
Product configuration

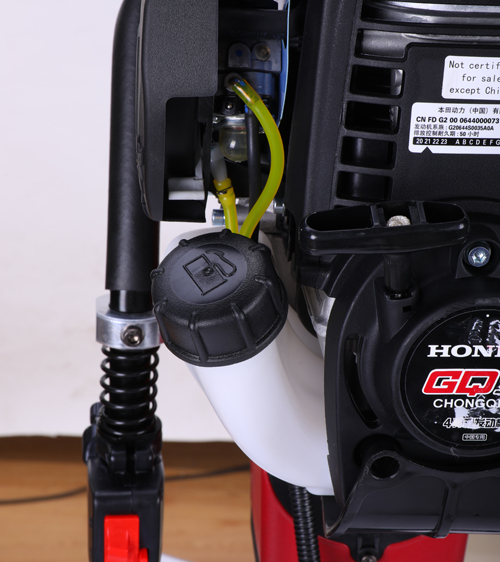

The refueling port is reserved, the design position is more reasonable, and the refueling port logo is attached, which is convenient for users to refuel, increase the sealing, and prevent gasoline from overflowing
The engine uses pure gasoline as fuel, which saves time for blending oil and makes the machine more durable

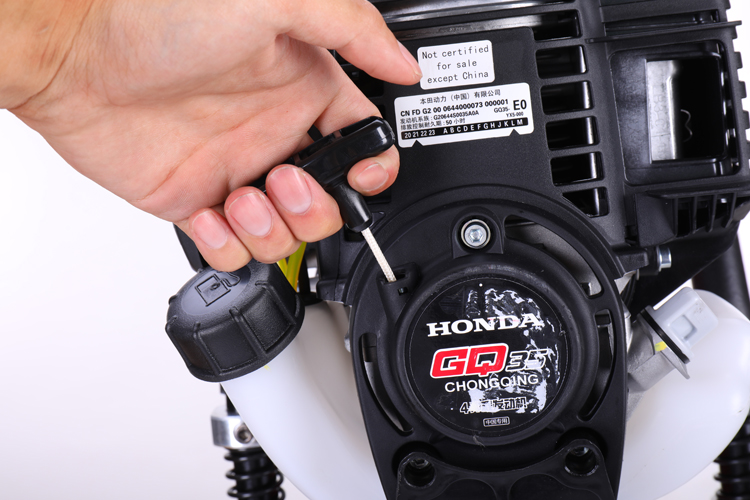

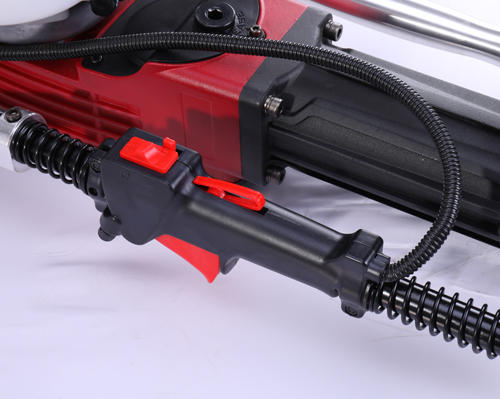

start the system
Start by handle, safe and easy to operate
off/on
Buttons can operate the machine powerful, fast or slow

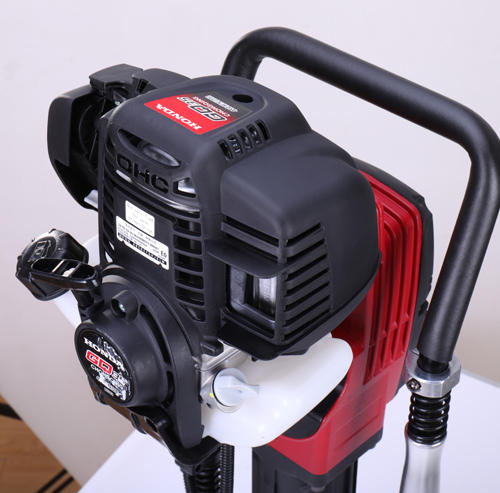

engine
Using the best engine in Japan, the machine is stable.

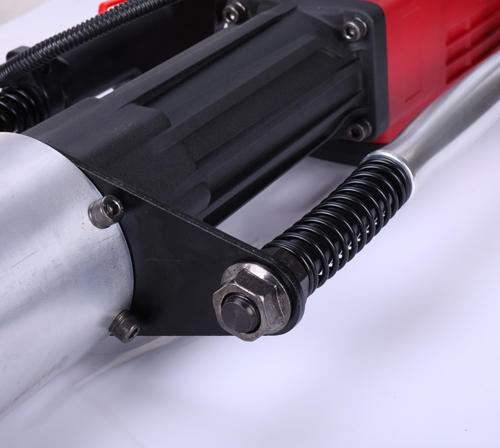

shock spring
More ergonomic with shock springs
Sales and Service Network

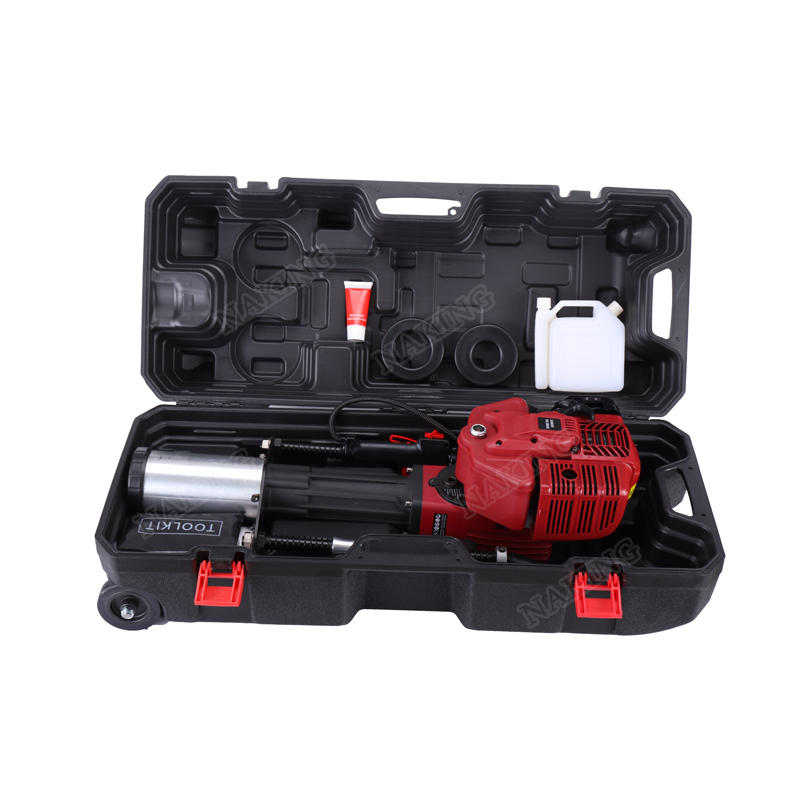

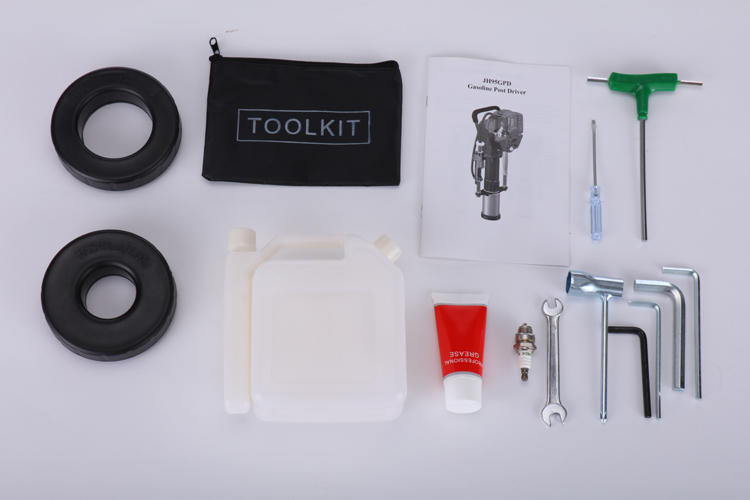

Product packaging
1 x petrol column driver

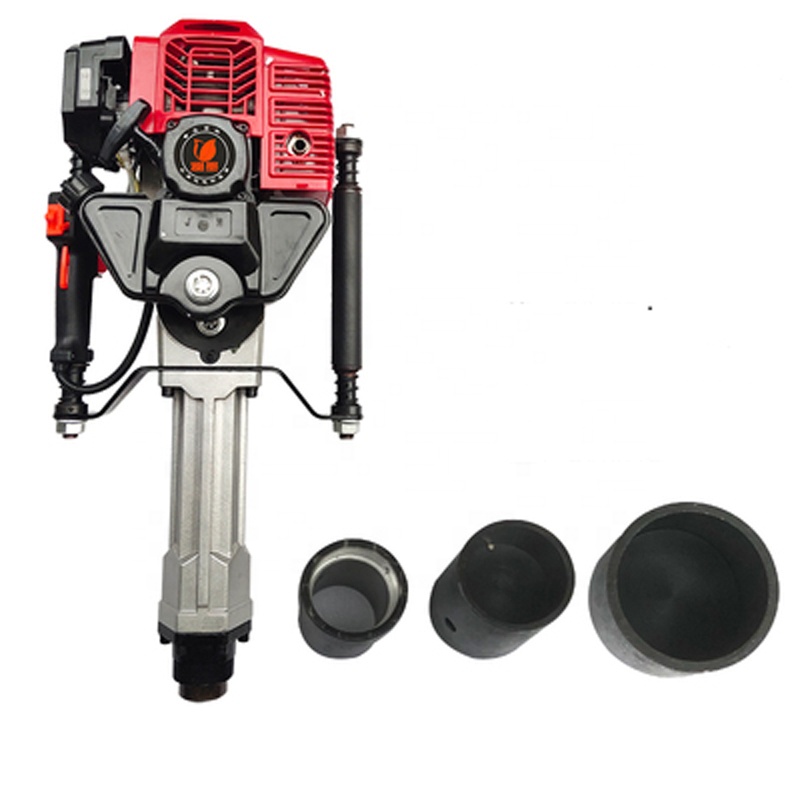

2 x rear drive heads
1 mixing oil bottle
1 x Tool Kit

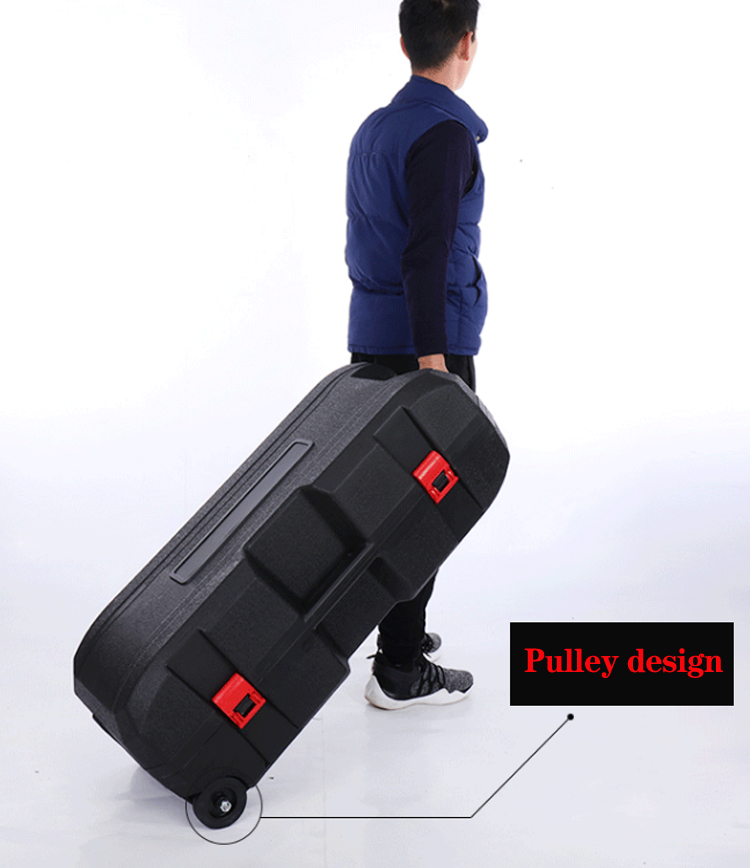

PVC packaging
Protecting Machines During Shipping by Freight Forwarders
tool
With some tools, the user can use the tool to replace the adapter
