Orbital welding machine for pipe welding automatic orbital pipe welding machine

Supplier: Luoyang Deping Technology Co., Ltd.
Region: Henan, China
Contact: Ms Carrie Wan
Price: $11999.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Voltage:	220V	Main selling points:	automatic
After-sales service provided:	On-site installation, commissioning and training, on-site maintenance and repair services, online support, video technical support	Packaging Details:	Option 1: Poly wooden box suitable for sea shipment Option 2: Wooden box suitable for air shipment
strength:	1.5KW -2.38KW	Name:	Pipeline Orbital Welding MachineAutomatic Orbital Pipeline Welding Machine
Mechanical test report:	if	Marketing Type:	New Products 2020
Warranty:	1 year, 1 year	Local service location:	not any
Pipe size:	custom made	Weight (kg):	16 kg
Welding method:	Single/double flashlight	Video shipment inspection:	if
After warranty service:	Video technical support, online support, on-site maintenance and repair services	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
application:	Fully automatic orbital pipe welding machine for pipe welding	Supply capacity:	200 units per year
Showroom location:	not any	Core components:	Engines, motors, pressure vessels, pumps
Certification:	ISO & CE, ISO & CE	Core component warranty:	1 year
Power (kW):	1500	Operation:	remote control
weight:	to see	usage:	pipe welding
color:	custom color	port:	Shanghai, Qingdao, Tianjin
aspect:	custom made	State of health:	new
Diameter:	custom made	Function:	Fully automatic orbital pipe welding machine
brand:	Deping	Package preview:
MOQ:	1	Applicable industries:	Construction Engineering, Energy and Mining
place of origin; place of origin:	Henan, China

Product Description

Pipeline Construction Orbital Welding Machine Automatic Orbital Pipeline Welding Machine

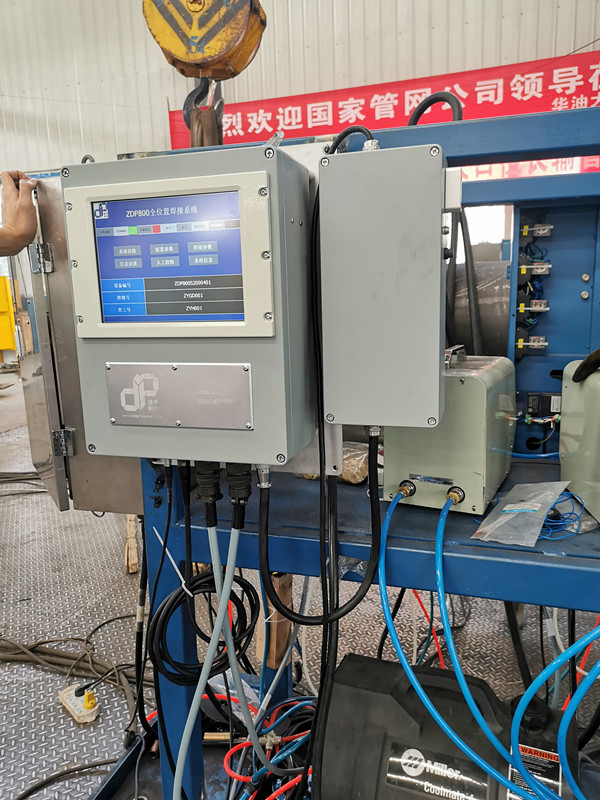

HMI

The controller has both water cooling and heating systems to achieve temperature self-regulation and is highly adaptable to the environment.

The whole control system is easy to operate and has self-diagnosis function to ensure the reliability of all operations. Equipped with multiple access restrictions to ensure the stability and consistency of the welding process.

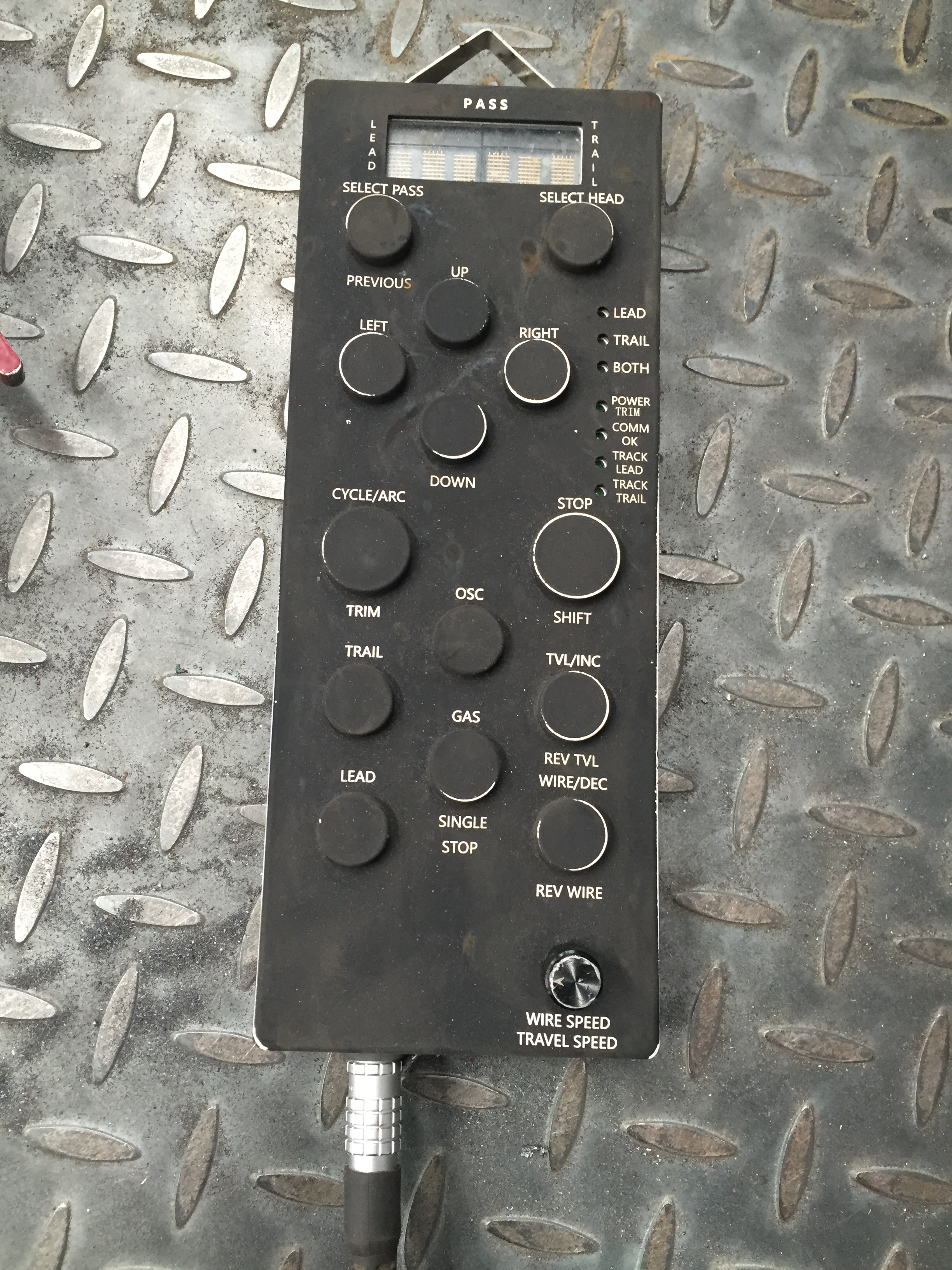

multifunction remote control

The micro-dot matrix screen of the well-protected enterprise handheld remote control can be clearly displayed under extreme weather conditions. The basic functions include:

1. Select radial weld bead

2. Choose a radial welding torch

3. Swing adjustment

4. Wire feeding speed adjustment

5. Welding parameters

6. Bug travel speed

7. Traversing speed

8. Arc length correction

9. Up/down left/right movement for manual setting

Specification

ZDP800D welding bug configuration

- 2 microcontrollers

- 2 bugs (4 flashlights)

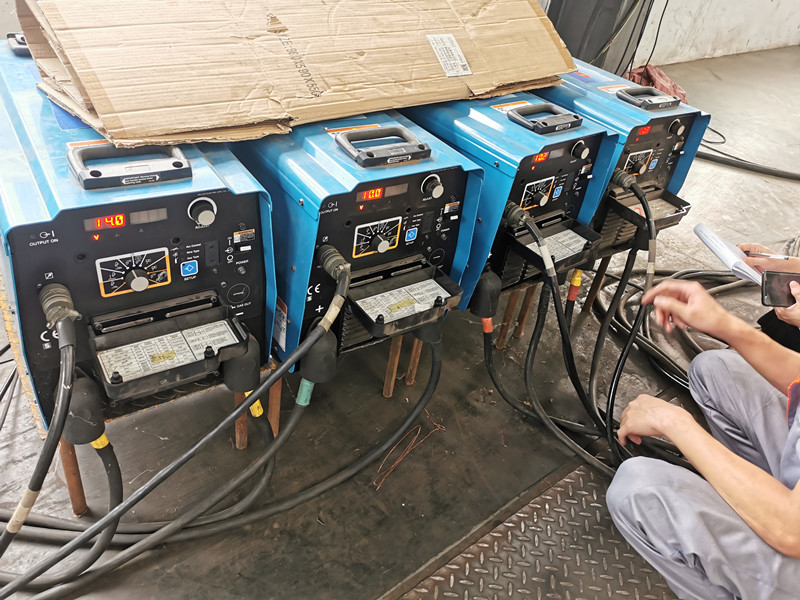

- 4 welding power sources

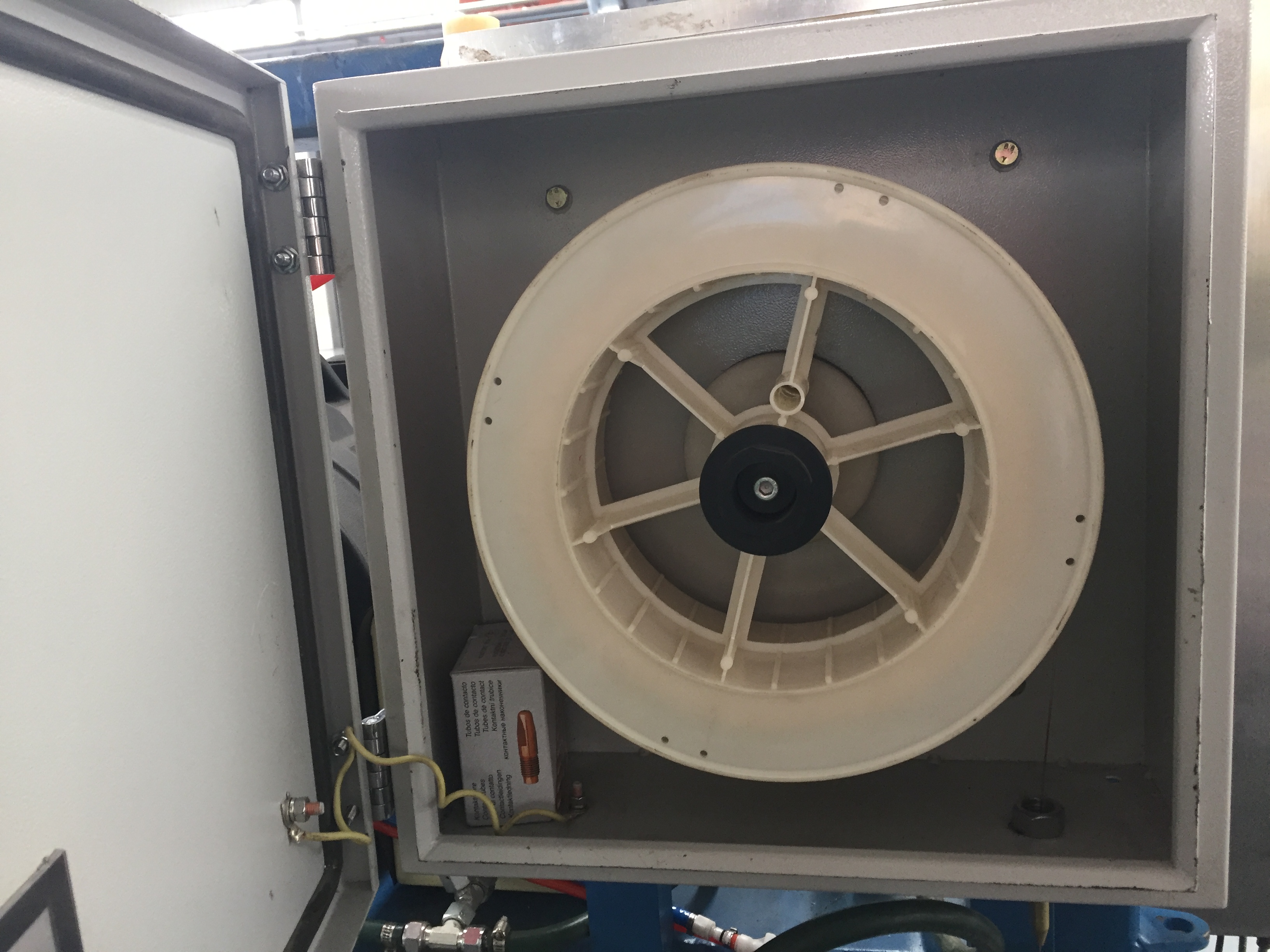

- 4 wire feeders

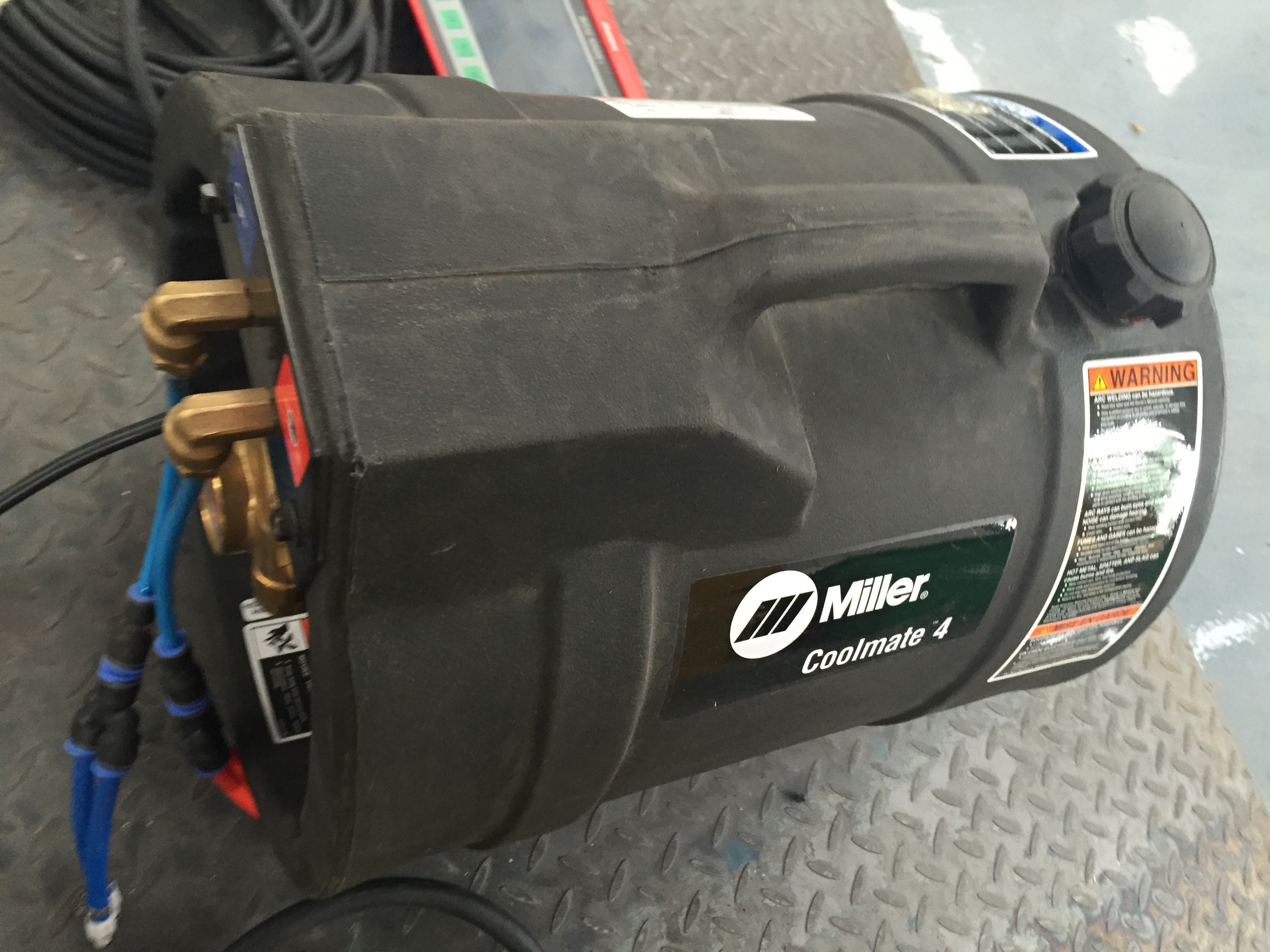

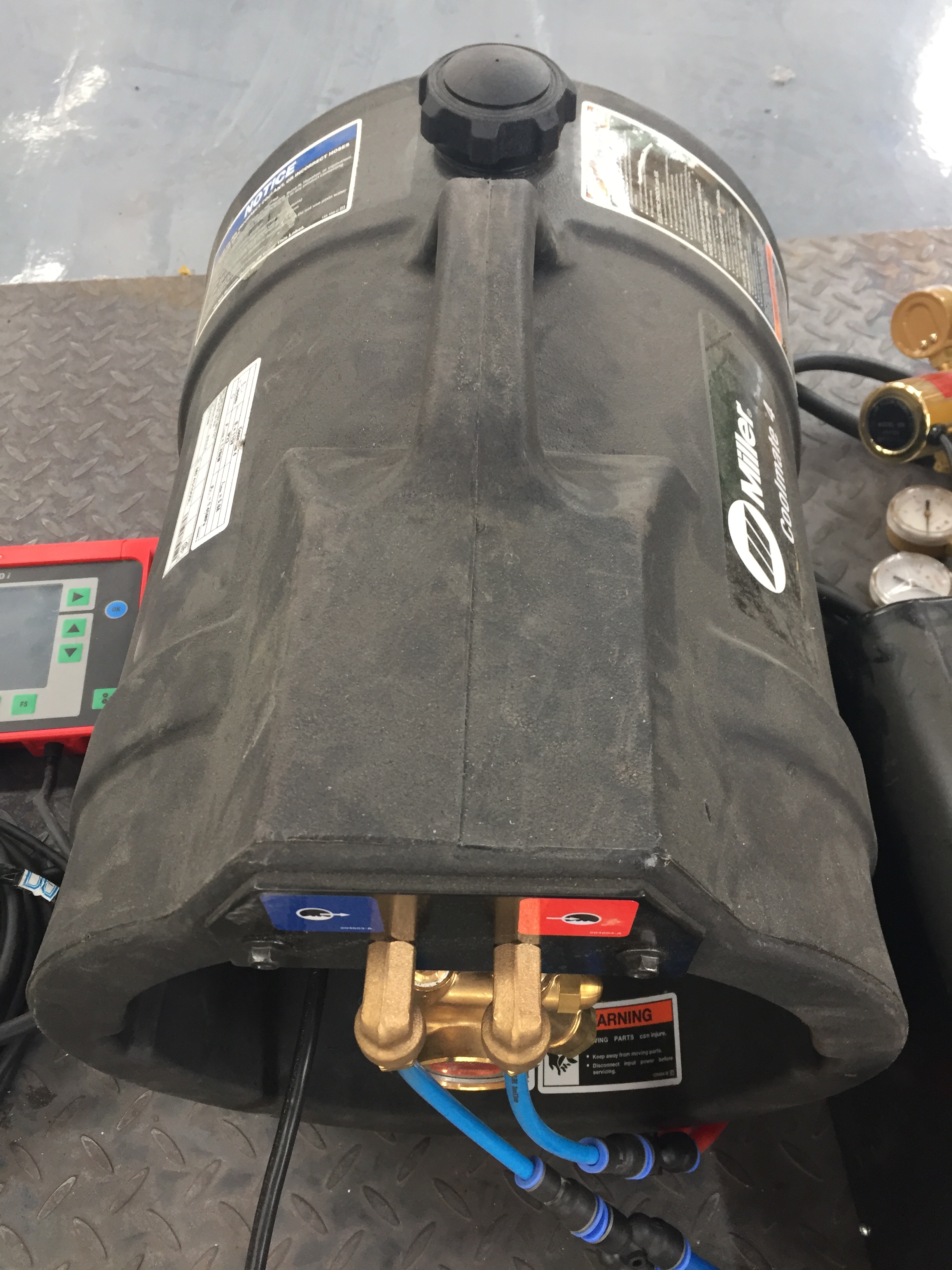

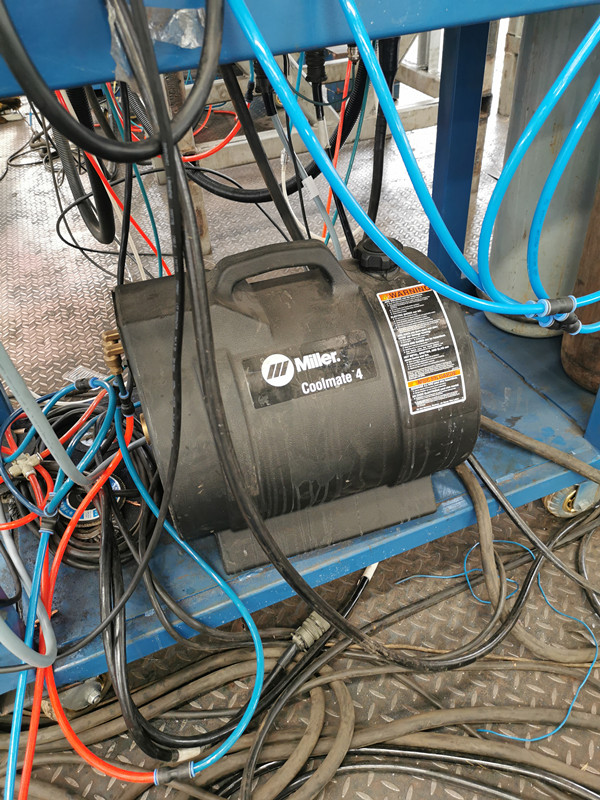

- 2 Miller large capacity water coolers

- 2 gas mixing ratio devices

Specification

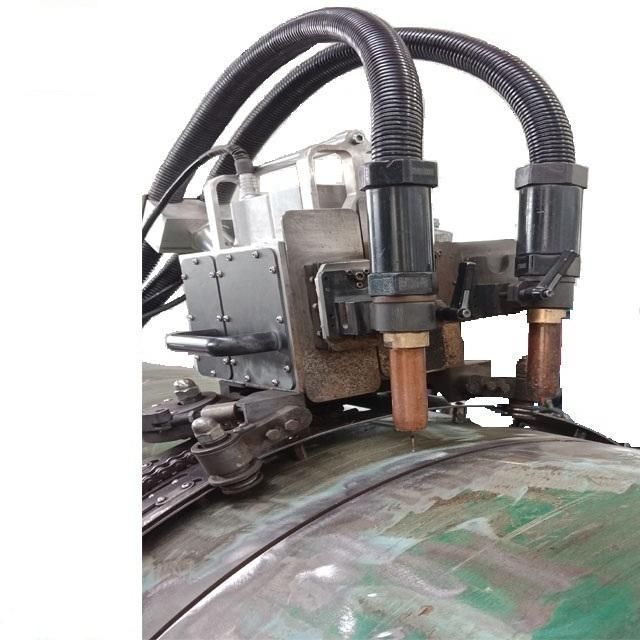

Automatic welding system ZDP800D:
Insect size: 488 x 453 x 315mm
Weight including flashlight: 15.3kg
Vertical working capacity: 50mm
Horizontal working capacity: 50mm
Angle adjustment range: 0~10
Wobble frequency: 240 OSC/min
Swing adjustment: 0~50mm
Swing waveform ratio: 0~1
Left or right stay time: 0~2S
Wire feeding speed: 0~15m/min
Walking speed: 0~2m/min
Angle sensor: 360°±0.1
Wire Feeding Motor: Code Control
Travel motor: code control
Horizontal motor: stepper motor
Minimum applicable pipe diameter: 114mm
Welding method: single welding torch/double welding torch
Working temperature: -40°C ~+75°C

detailed image

Features

1. ZDP800 series pipeline automatic external welding machine is a boutique of Luoyang Deping, which integrates cutting-edge automatic welding technology. Pipe grade X65X120 and above, pipe diameter 4" and above are applicable. It has excellent adaptability to high and low temperature conditions.

2. The system is equipped with water cooling system and heating system to ensure its adaptability to extreme weather.

3. The computerized welding arc waveform tracking system keeps the molten pool in the best position.

4. The control system can be used for single welding gun double wire welding system (ZDP800S) and double welding gun single wire welding system (ZDP800D)

4. ZDP800 is suitable for single welding torch and double torch welding, both of which can realize the flat characteristics of GMAW and pulse GMAW welding.

5. Working parameters can be edited through PC and man-machine interface; parameters can also be uploaded to the computer. A daily logging function is another feature that comes standard.
