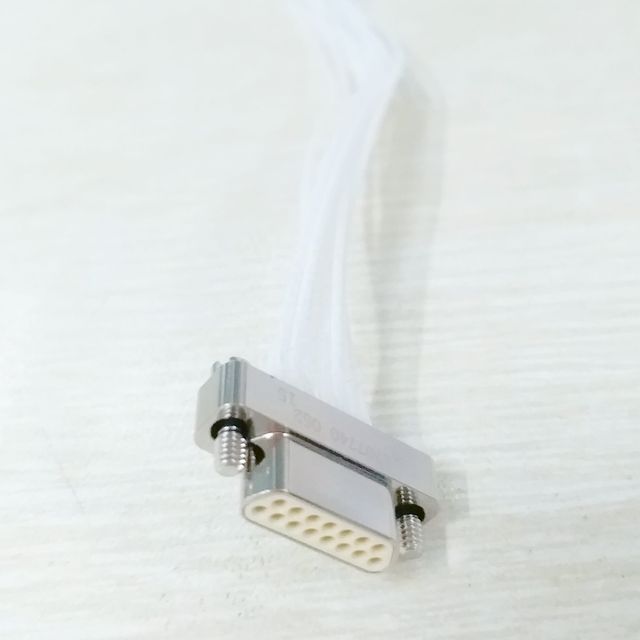

Military quality low mating force reduced micro-d 15 pin male connector for J30JZXN15TJCAL01

Click here to contact

Product details

place of origin; place of origin:	China	Connector type:	plug
Military quality:	GJB2446	shape:	rectangle
shell:	aluminum alloy	Types of:	D-Sub Micro-D Connector
model:	J30JZ/XN15TJCAL01	termination:	Crimp
Shell finish:	nickel plated	Supply capacity:	1,000,000 pieces per month
touch:	gilded	Packaging Details:	carton
payment terms:	wire transfer	custom made:	accepted
Contact information:	15	brand:	Feiyu
metallic line:	Insulation

True military quality! True connector and cable assembly manufacturer with full military qualification since 2010

J30JZ series connector features

Optional contacts: 9, 15, 21, 25, 37, 51, 66, 74, 100
Contact space: 1.27mm, row space: 1.1mm
Twist pin contact system, low insertion force, high reliability contact, durable
Smaller size than standard micro-d
Termination: crimp, solder, PCB
Qualified GJB2446

Main technical performance

ambient temperature	-55⁰C~+125⁰C	Contact resistance	≤ 10mΩ
vibration	10 ~ 2000Hz 196m/s²	Insulation resistance	≥5000MΩ
random vibration	Power spectral density 0.4G²/Hz, the effective value of the total acceleration is 23.1G	Dielectric withstand voltage	600V
influences	735 m/s²11 milliseconds	durability	2000 cycles
rated current	3A

Our advantage

Feiyu is a qualified supplier of key member institutions of China's top ten military industrial groups
FeiyucertifiedNational High-Tech Enterprise issued by the government
Feiyube awardedIntellectual property pilot unitby the government
Feiyuqualifiedinnovative enterpriseGranted by the government
FeiyuhaveNational level two confidentiality qualification
FeiyuhaveWeapons and equipment scientific research and production license Issued by National Defense Industry Science and Technology Bureau
FeiyuhaveEquipment Contracting Qualification Authorized by the Equipment Department of the Central Military Commission
Quality Standard:ISO 9001 & GJB 9001 C Military Quality System Certification
lifetime responsibility For product quality
competitive price: asmanufacturer (factory), Independent research and development, independent production, independent sales, eliminating intermediate links
If you don't know how to choose related products, please contact us and tell us your requirements,We can help and recommend the best solution
In addition to our regular model,customized productToowelcome
