Packaging Detail: | Exporting Wooden Package; | Usage: | Milk Powder, Orange Juice, Instant Coffee Powder, etc; |
Voltage: | 220V; | Type: | Spray Drying Equipment; |
Capacity: | Lab Type, Pilot Type, Industry Type Available; | Condition: | New; |
Weight: | 180kg; | Brand Name: | OLLITAL; |
Spray Dryer OEM: | Please contact; | Payment Terms: | L/C,T/T; |
Dimension(L*W*H): | 880*810*1460mm; | Heating Source: | Electricity; |
Power(W): | 3KW; | Application: | Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing; |
Color: | White; | Material: | Stainless Steel; |
After-sales Service Provided: | Online support,Video technical support,Free spare parts; | Place of Origin: | Fujian China (Mainland); |
Application: | Liquid To Powder Machine; | Certification: | CE; |
Warranty: | 1 Year; | Port: | Xiamen; |
Spray Drying Machine Factory Visit: | Please Contact; | Installation: | Engineer's Guidance; |

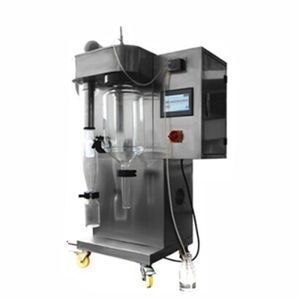

Spray drying machine is especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.
Item | Unit | OLT-SD15 | OLT-SD30 |
Max capacity | ml/h | 1500-2000 | 3000 |
Temperature range of inlet air | ℃ | 40℃ ~ 300℃ | 30℃ ~ 300℃ |
Temperature range of outlet air | ℃ | 40℃ ~ 140℃ | 30℃ ~ 140℃ |
Spray system | / | Two-fluid nozzle | Two-fluid nozzle |
Precision of temp | ℃ | ±1 | |
Dryer time | S | 1.0 ~ 1.5 | |
Speed of squirt pump | ml/h | 50 ~ 2000 | 3000 |
Nozzle size | mm | 0.5/0.7/0.75/1.0/1.5/2.0 | |
Spray direction | / | Downwards co-current | |
Heater Power | / | 3500W | 4500W |
Total power | / | 4500W 220V | 5500W 220V |
Heat source | / | Electric | |
Air compressor | / | Built-in oil-free air compressor | |
Dried powder restoring rate | % | ≥92 (Maltodextrin>92) | |
Dimension | mm | 940*850*1500 | 1700*1100*150 |
Maximum moisture evaporation | Kg/h | 2 | 3 |
