Lab Desktop High Power Rotary Stage DC Magnetron Sputtering Coater System For Coating All Metallic Films

Supplier: Xiamen Ollital Technology Co., Ltd.
Region: Fujian, China
Contact: Mr Jack Lin
Price: $3500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Port:	Xiamen;	After-sales Service Provided:	No after-sales service,Field installation, commissioning and training,Field maintenance and repair service;
Type:	Coating Spray Gun;	Certification:	CE;
Power(W):	250W;	Brand Name:	OLLITAL;
Packaging Detail:	Exporting Wooden Package;	Warranty:	1 Year;
Dimension(LWH):	L 440 mmW 330 mm H 290 mm;	Condition:	New;
Substrate:	Ceramic;	Payment Terms:	L/C,T/T;
Coating:	Vacuum Coating;	Voltage:	108V~240V/AC;
Place of Origin:	Fujian China (Mainland);	Weight:	20KG;

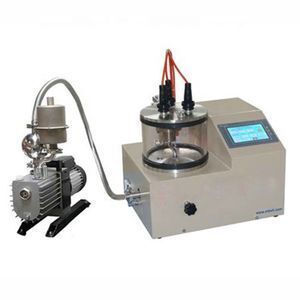

OLT-SC-16 is a High Power Desktop Magnetron Plasma Sputtering Coater with a water cooling 2" target head, water chiller and rotatable sample holder. The coating unit is designed for coating all metallic films up to 4" diameter wafer including Zn, Al, Ti and carbon light film at an affordable cost. One Altarget is included for immediate use.

Input Voltage	220 VAC 50/60Hz
Input Voltage	110 V power is available by using a 1000 W transformer (15 A fuse). The transformer is sold separately.
Output Poer	1600 VDC
	250 W
	150 mA max.
	Built-in over current protection (>150 mA)
Specimen Chamber	Quartz glass tube, 165 mm OD. X 150 mm ID x 250 mm Height
Specimen Chamber	Please click here to order the Quartz Chamber replacement.
Sputtering Head & Specimen Stage	2“ flexible magnetron sputtering head with water cooling jacket is included (Fig.1)

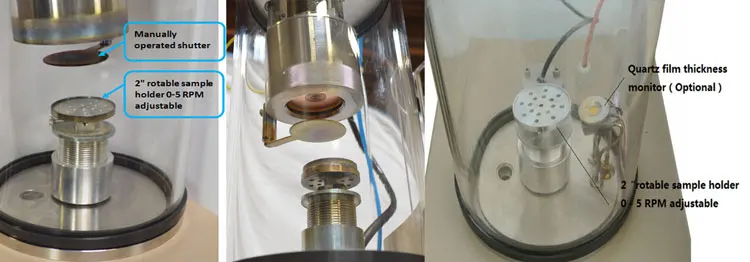

	One 50 mm Dia stainless steel sample stage is rotatable from 0 - 5 RPM
	One manually operated shutter for target protection. (Fig.2)
	Sputtering head holder is available for holding sputtering head while non-operation.
	The distance between the sputtering head and sample stage is adjustable from 60 - 100 mm.
	Max Coating area: 4" diameter max.
	One Air Cold Recirculating Water Chiller 10 L/min Flow for cooling sputtering head, the water chiller is optional . (Fig.6)
Control Panel	6" color touch-screen control panel with PLC integration for easy operation
Control Panel	One panel for all parameters monitor and control: vacuum, current.
Ultimate Vacuum Pressure	Built-in KF25 vacuum port

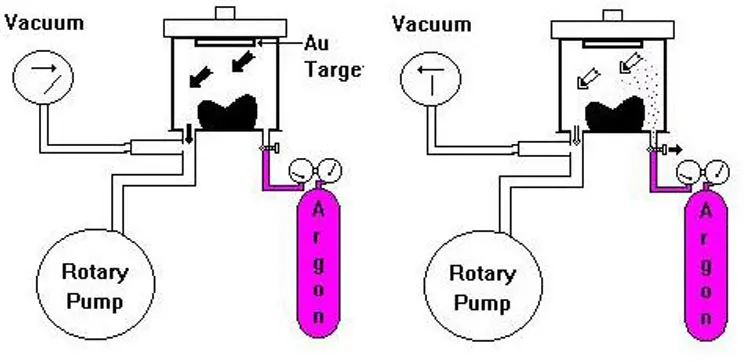

	The system requires an Ar gas tank with pressure regulator. (not included)
	< 1.0E-2 Torr by Vane vacuum pump (not included) for Au, Ag, Pt, Cu, Mo targets (not sensitive to air)
	< 1.0E-5 Torr by Turbomolecular pump (not included) for Al, Mg, Li, Lr, Ti, Zn targets (sensitive to air)
	The lowest vacuum may reach < 4.0E-6 Torr by pumping overnight and baking
Gas Atmosphere	One needle valve installed to allow Ar gas inlet to achieve better plasma coating
Gas Atmosphere	The system requires an Ar gas tank with pressure regulator (not included)
Target	One 2" Copper target is included for testing, Target size: 2" Dia.x 2.5mm.
	It also can coat Ag, Al, Cr, Ni, Pt, Ti, Sn, Li, Mg, etc. almost every kind of metallic material.
	Warning : Aluminum ,Chromium or Nickel Target can be coating by this machine, but please view the Recommend Coating Method before using.Please using RF Plasma Magnetron Sputtering for coating Alumina

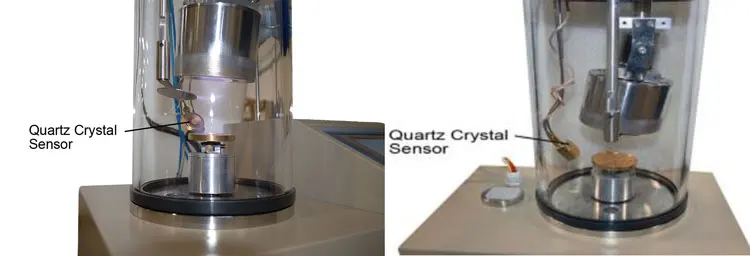

Optional Film Thickness Monitor	Film thickness monitor is optional at extra cost
	Heatable sample stage up to 500°C is available upon request at extra cost
	Flowmeter for accurate control gas inlet is available upon request at extra cost.
Overall Dimension	L 440 mm×W 330 mm × H 290 mm
Net Weight	20 kg
Shipping Weight & Dimension	160 lbs
Shipping Weight & Dimension	45" x 45" x 40"
Compliance	CE approval
Compliance	MET Certification (UL 1450) is available upon request at extra cost, please contact our sales representative for quote.
Warranty	One year limited with lifetime support
Application Notes	Warning: Sputtering head connects to HIGH voltage. The operator must wear gloves during operation
Application Notes	Make sure the target, sputtering head, substrate, and heating stage are clean before coating, need to use the sandpaper and alcohol to clean and fresh the Al or Nickel target each time using.

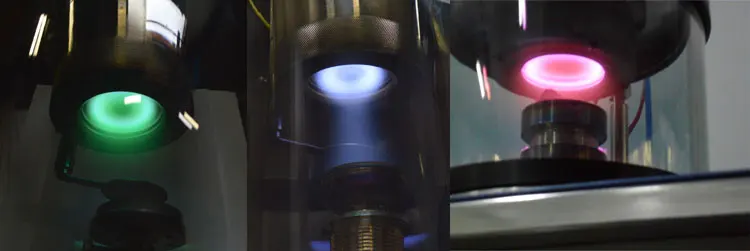

Experimental results

Packing and Shipping

-The main parts will be wrapped with foam,then put into the carton; the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.

-We can ship the goods to you by International Express such as DHL,UPS,TNT,EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides,you can choose to use your own shipping agent
