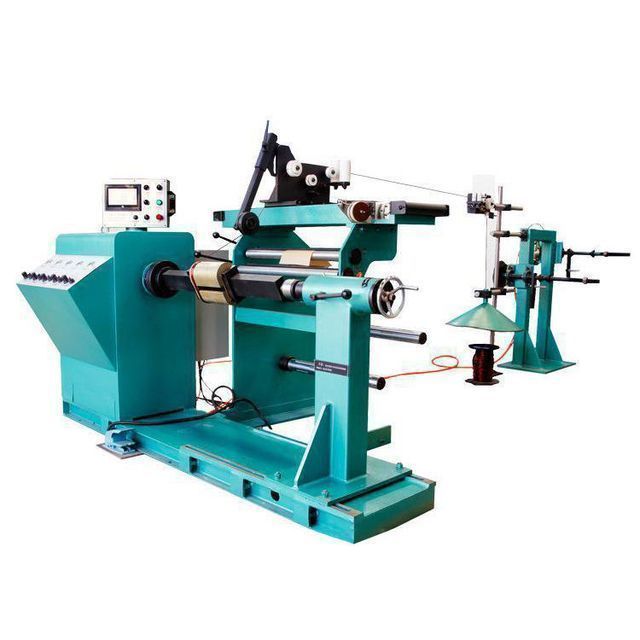

Automatic motor copper winding machine

Supplier: Shanghai Trihope International Co., Ltd.
Region: Shanghai, China
Contact: Ms Vicky Li
Price: $5000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Number of uncoilers:	1	State of health:	new
Maximum winding width (mm):	800	Cutting method:	car
Counting accuracy:	0.001	Packaging Details:	Shipping package, standard package.
Outside diameter (with lead):	Maximum 700	Applicable industries:	manufacturing plant
Welding method:	Argon arc welding	Dimensions (LWH):	470032002200mm
aluminum:	0.6~3mm	Package preview:
Uncoiler loading:	2000	Reel inner diameter:	500
Roll outer diameter:	Maximum 1000	Material:	copper, aluminum
brand:	sentinel	width:	180~600mm
Material:	other	Shaft length (mm):	800
Warranty:	1 year	port:	Shanghai
Weight (kg):	10000	CNC system:	servo motor
Coil Type:	round, rectangular	CNC or not:	CNC
Supply capacity:	30 sets per month	copper:	0.35~2mm
After-sales service provided:	On-site maintenance and repair services, on-site installation, commissioning and training, video technical support, online support	Coil Type:	round, rectangular
Insulation Quantity:	2	Winding speed (rpm):	20
place of origin; place of origin:	Zhejiang, China	payment terms:	L/C, T/T
Loading bucket length:	650mm	Axial length:	180~600mm

Product Description

1. General introduction

The winding machine is suitable for winding foil coils in the transformer and electrical industry.

2. Technical Specifications and Parameters

2.1 Coil processing range

Axial length 180~600mm

Axial length (with lead) 330~750mm

Outer diameter (lead-free) Φ600

Outer diameter (with lead) MaxΦ700

Coil Type Round, Rectangular

2.2 Coil material

Material copper, aluminum

Width 180~600mm

Thickness (total thickness)

Copper: 0.35~2mm

Aluminum: 0.6~3mm

Reel diameter Φ500

Reel outer diameter MaxΦ1000

3. Detailed photos

4. Coil production
