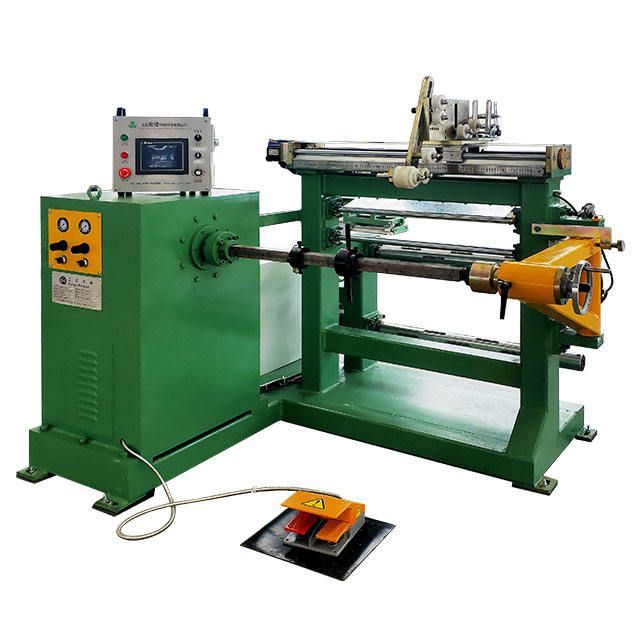

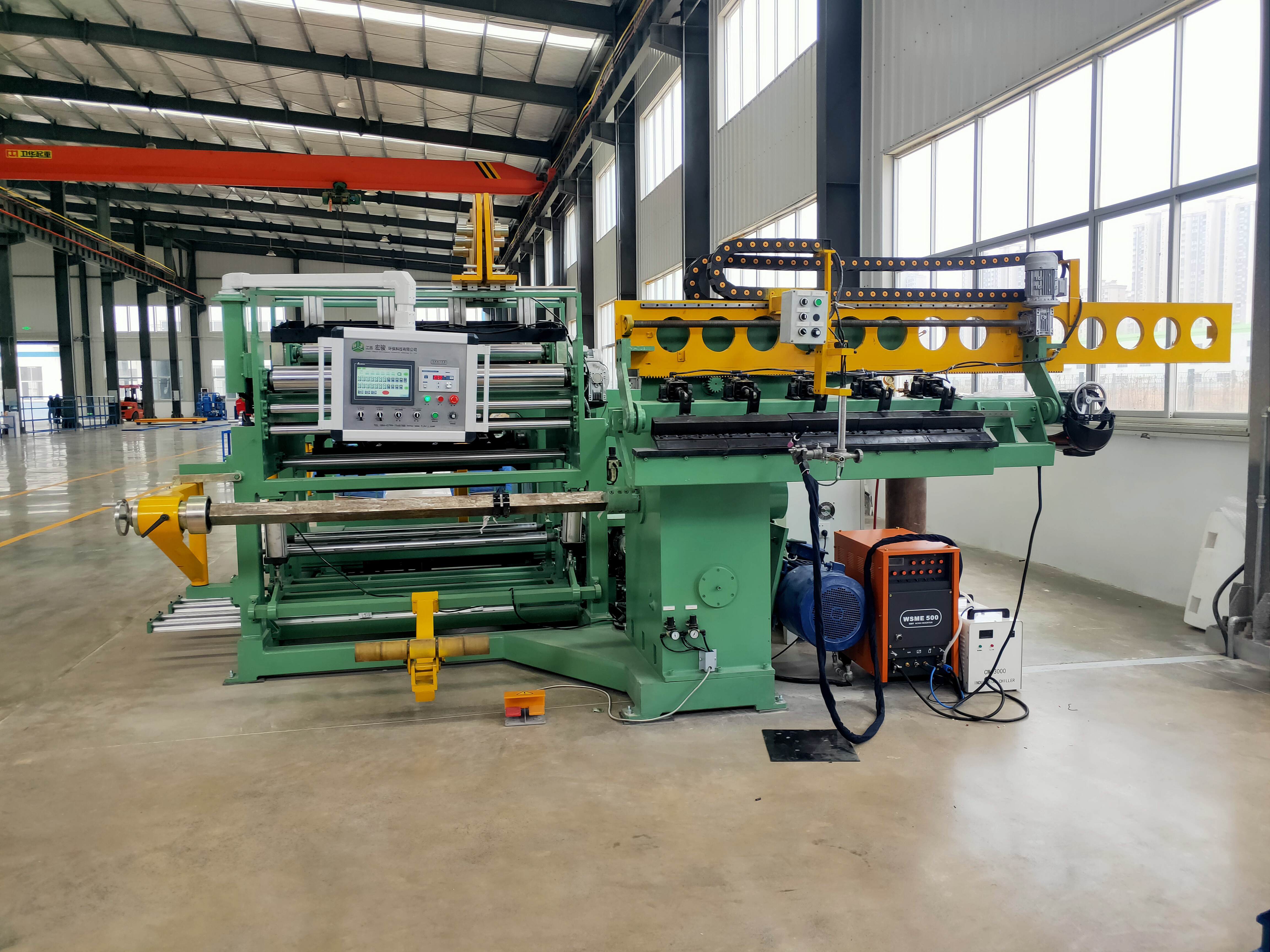

BRJ-600-2 Distribution Transformer Winding Machine Foil Type Winding Machine

1. Introduction:
BRJ-600-2 automatic low-voltage dry-type transformer winding machine is used for winding copper or aluminum foil coils. This automatic transformer foil transverse winding machine can handle one or two layers of conductor foil and one or two layers of insulating material such as paper or similar. The bus bar is welded by TIG welding process. Automatic foil edge alignment will ensure that coil edges are straight and smooth. Programming of the machine is done through a touch screen user interface.

2. Main features:Distribution transformer winding machine hot stamping equipment
1) The tension system can avoid loss, adjust the air pressure, and ensure the stability of the entire winding tension.
2) The adjustment system adopts a photoelectric sensor, and through the dynamic action of the motor, the system has high precision and fast response speed, which can ensure that the end face of the winding coil is neat.
3) Parameters such as foil tension, insulation layer and winding tension state, digital setting and
Display, intuitive and accurate.
4) The decoiling brake motor (linkage) can feed back the tension of the foil to the winding machine or the grid control, and the brake generates tension, which is stable and reliable.
5) Due to the use of compressed air to generate tension, the hydraulic system of the whole machine, the whole machine has no
Vulnerable and vulnerable parts, fewer failure points, lower maintenance costs, fewer mechanical adjustment points, higher production efficiency, low noise, no pollution from hydraulic mechanical friction, and environmental protection.

3. The main part of the equipment:
1. Unwinding correction device: (1 set)
2. Loading and pressing device; (1 set)
3. Cleaning device; (1 set)
4. Deviation correction sensor device; (1 set)
5. Scissors device; 5. (1 set)
6. (Insulation layer and winding device: (2 sets)
7. End insulation unwinding device; (left 3 groups, right 3 groups)
8. Welding device; (1 set)
9. Winding device; (1 set)
10. Rolling device; (1 set)
11. Insulation layer unwinding device; (2 sets) /Distribution transformer winding machine hot stamping equipment
