Fully automatic TIG welding PLC control low voltage transformer foil winding machine
-
Supplier: Hefei Zhu Tang Technology Co., Ltd. -
Region: Anhui, China -
Contact: Mr Jack Liao -
Price: $30000.00 /set -
Min. Order: 1 set
Product details
| Warranty: | 12 months, 1 year | Counting accuracy: | 0.01 |
| Number of uncoilers: | 2 | Dimensions (L*W*H): | 4800x3100x2500mm |
| CNC or not: | CNC | brand: | bamboo pond |
| Showroom location: | not any | Health status: | new |
| Origin: | Anhui, China | Copper foil thickness: | 0.2～2.0mm |
| Applicable industries: | Machinery repair shop, manufacturing plant | Supply capacity: | 100 sets per year |
| Thickness range (mm): | 0.2 ~ 3.0 | port: | Shanghai |
| Core component warranty: | 1 year | Uncoiler loading: | 2000 kg |
| Package preview: | Weight (kg): | 10000 | |
| Welding method: | Argon arc welding | payment terms: | L/C, T/T |
| Coil Type: | round, oval, rectangular | Main selling points: | low maintenance cost |
| Winding speed (rpm): | 16 | Maximum winding width (mm): | 1600 |
| Packaging Details: | Seaworthy packaging | Function: | automatic winding |
| Marketing Type: | normal product | Cutting method: | electric scissors |
| Aluminum foil thickness: | 0.3～3.0mm | Mechanical test report: | if |
| Video shipment inspection: | if | product name: | Transformer foil winding machine |
| Shaft length (mm): | 1950 | CNC system: | Programmable Controllers |
| delivery time: | 45 days | Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump |
| Control System: | Programmable Controllers | Material: | other |
| Insulation Quantity: | 2 | Winding speed: | 0 ~ 16 turns |
| application: | foil wound coil | Maximum foil width: | 1600mm |
Product Description

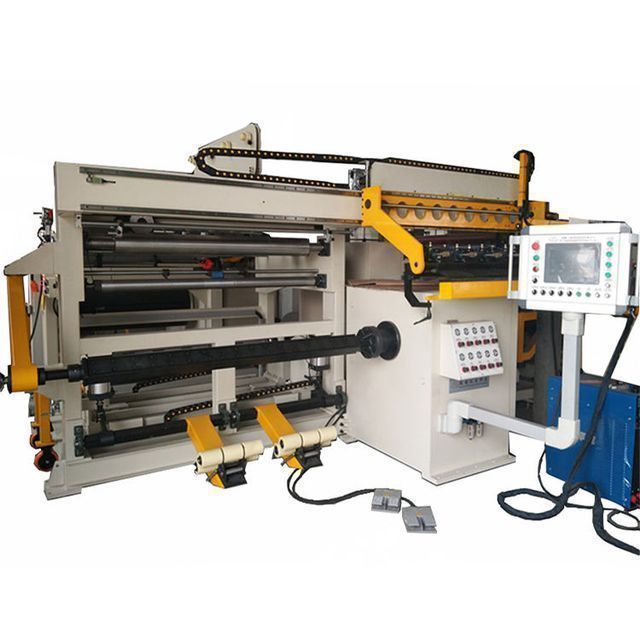

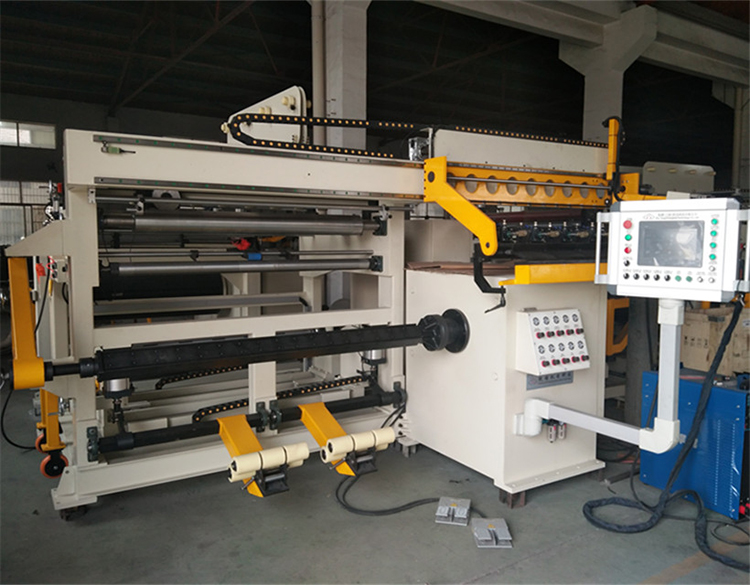

Fully automatic TIG welding PLC control low voltage transformer foil winding machine
introduce
Automatic transformer foil winding machine BRJ1600-2 is a special equipment for winding transformer coils and other similar products. This foil winding machine can handle one or two layers of foil conductors and one or two layers of insulating paper. The foil winding machine adopts a PLC-based control system, which has a high degree of automation and is easy to operate.
main ingredient
1. Main frame
2. Winding unit
3. Fully automatic TIG welding unit
4. Insulation uncoiler
5. Electric control system
6. Pneumatic system
Technical Parameters
typicalstandard specificationSecond BRJ1600-2 is shown below, but machines can also be madeas requested.
| Center height | 900mm |
| maximum. Aluminum foil width | 1600mm |
| Winding power | 30 kW |
| Winding speed | 0～16rpm |
| Speed regulation | Stepless |
| Copper foil thickness | 0.2～2.0mm |
| Aluminum foil thickness |
0.3～3.0mm |
| maximum. Outer diameter of finished foil roll | 1000mm |
| maximum. capacity | 2000 kg |
| warranty period | 12 months |
