LPG cylinder factory, LPG cylinder production line

Product details
payment terms:letter of creditCore component warranty:1 year
brand:ATMPackaging Details:Requires four 40" OT containers
Core components:PLC, bearings, motors, gearsMarketing Type:normal product
port:Mersinplace of origin; place of origin:Germany
Mechanical test report:ifShowroom location:Turkey, Kenya, Bangladesh, Nigeria
After-sales service provided:Provide overseas third-party support, free spare parts, online supportWarranty:1 year
State of health:newAfter warranty service:No service, online support, spare parts, on-site maintenance and repair services
Local service location:Turkey, Germany, VietnamVideo shipment inspection:if
Applicable industries:manufacturing plant

LPG production line machine list:This production line can produce 12 kg of LPG.

Materials used:

  • Suitable for steel coils according to P245 NB-EN 10120.
  • The blank diameter is 590 mm (adjustable).
  • The operation type is sequential.
  • The system has a capacity of up to 200.000 discs/year, 8 hours per day.
  • The steel coils used are as follows:
    • Thickness is 2.5 – 4 mm.
    • The inner diameter of the coil is 460 – 610 mm.
    • Widths up to 1250 mm.
    • Maximum outer diameter: 1300 mm
    • Coil weights up to 9 tons

The system includes:

  1. Round billet blanking line
  2. Drawing wire for the production of ½ tubes
  3. Drilling and Guylines: Used to make holes to install valves and drawstrings around edges.
  4. ring cutting line
  5. ring molding line,
  6. Welding for welded pipes, rings and valves
  7. Cylinder heating wire
  8. Cleaning - cylinder blasting line
  9. Inspection line; Cylinder ultrasonic inspection
  10. Marking lines for signs and labels
  11. LPG cylinder painting line.

1. Round billet blanking line: manufacture disc

1.1. Uncoiler

1.2. Hair straightener

1.3. Hydraulic press

1.4. Mold



2. ½ tube drawing line:



2.1. Hydraulic deep drawing machine

2.2. Robot feeding KR-6-2

2.3. Deep drawing die



3. Drill wire:For punching holes in the edges to install valves and ropes.

3.1. Mechanical press EEP300

3.2. Pipe edge rope making machine



4. Scissor ring sheet metal cutting line

5. Molding line

5.1. Compact uncoiler, straightener and servo system feeder.

5.2. Eccentric stamping machine

5.3. Hydroforming machine

5.4. Ring rolling machine

5.6. Mold



6. Welding of pipes, rings and valves

6.1. Seat upper part welding machine

6.2. Machine for welding the shield to the upper half
6.3. Welding machine for the lower part of the foot ring

6.4. Half cylinder ring welding machine



7. Cylinder heating line



7.1. Heating wire

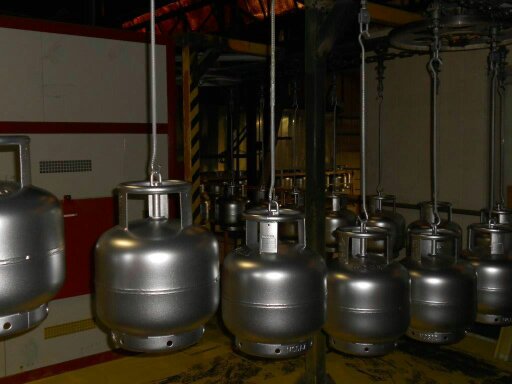

8. Sand blasting machine-> After the heating cylinder is processed in the blasting machine

8.1. Sandblasting machine-line -> Heating cylinder after treatment in the sandblasting machine

8.2. Cleaning machine -> Clean the cylinder after sandblasting machine treatment.





9. Detection line; Cylinder ultrasonic detection

10. Marking lines for signs and labels

11. Liquefied petroleum gas cylinder painting line
