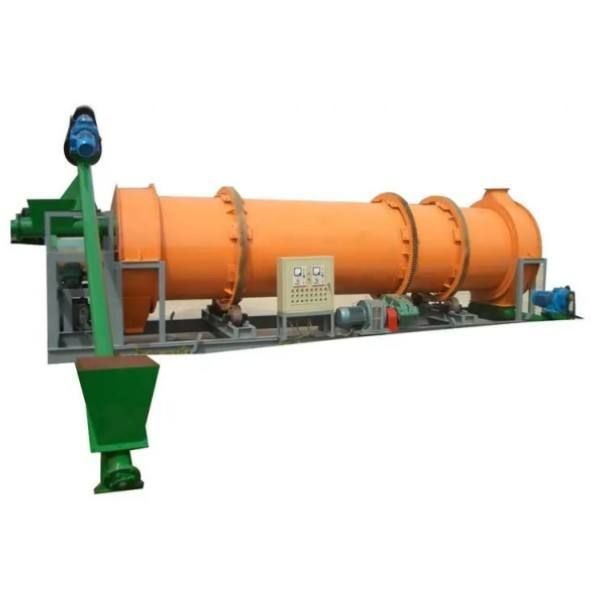

Efficient Wood Processing Sawdust Rotary Drum Dryer Sawdust Dryer

Product details
Install:arrangeWarranty:1 year
Dimensions (L*W*H):1.2*1.5*1.5mApplicable industries:Manufacturing plants, machine repair shops, farms, construction, energy and mining, wood chip drying, biomass drying
State of health:newproduct name:drying equipment
Application materials:Wide range of applicationsMarketing Type:New Products 2023
name:Biomass Rotary DryerMechanical test report:if
Core component warranty:1 yearfeature:swirling air
Key words:Sawdust Air Dryerweight:11000 kg
Showroom location:not anycolor:customer request
brand:CGMProduct Category:air drying system
Main selling points:3 cylindersCore components:Engines, bearings, chains, ring gears, drums
Features:dry sawdustVoltage:380v
Supply capacity:50 sets per monthplace of origin; place of origin:China
Drying material:Biomass pelletsProduction capacity:100%
Video shipment inspection:ifpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Package preview:application:biomass drying
Advantage:Low consumption and high efficiency
Product Description

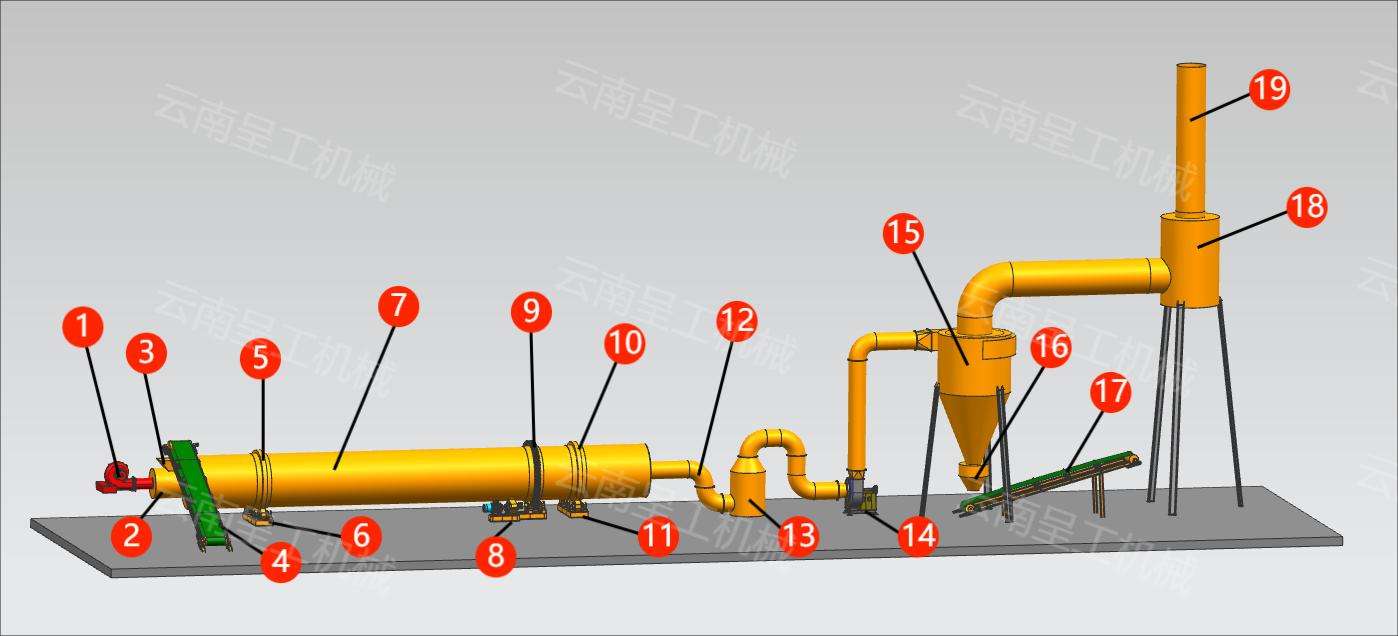

1 heat source 2Cylinder 3Hopper
4Feeding Conveyor 5roller ring 6Roller
7 daysDryer 8drive axle 9Large ring gear
10roller ring 11Roller 12pipes
13Settlers 14Blower 15Cyclone
16Outlet 17 dUnloading conveyor belt 18 dustin tower
19chimney
Note: The heat source can be hot air stove, biomass pellet burner, natural gas burner, steam generator, etc.
Rotary drum dryer, also known as drum drying equipment or rotary drum dryer, is the most common and widely used equipment in industrial equipment. of dry, powdered material. The cylinder of the rotary drum dryer is a horizontal rotary cylinder, and various lifting plates of different angles are welded in a staggered arrangement from front to back inside. When drying, hot air or hot gas transfers heat to the material to make the moisture Evaporation, at the same time relying on the action of ventilation equipment, the drying equipment is constantly updated in the drying medium to eliminate water vapor, which has the advantages of reasonable structure, high output, low energy consumption, stable operation, and convenient operation.
Specification
Model
Dimensions (mm)
layers
fan type
Fan power
Rotary power
Rotating speed
CGM-1010
1000*10000
2
TW-6C
15 kW
4 kW
2-9 rpm
CGM-1212
1200*12000
2
TW-7C
22kw
5.5kw
2-9 rpm
CGM-1515
1500*15000
3
TW-8C
30 kW
15 kW
2-9 rpm
CGM-1616
1600*16000
3
TW-8C
37 kW
15 kW
2-9 rpm
CGM-1816
1800*16000
3
TW-8C
37 kW
15 kW
2-9 rpm
CGM-2018
2000*18000
4
TW-10C
45kw
15 kW
2-9 rpm
CGM-2218
2200*18000
4
TW-10C
75 kW
15 kW
2-9 rpm
Custom acceptance
