Mechanical test report: | if | Heating source: | gas |
Function: | dry sawdust | color: | customer request |
Core component warranty: | 3 years | Marketing Type: | New Products 2020 |
Drying material: | Biomass pellets | Video shipment inspection: | if |
Applicable industries: | Manufacturing plants, energy and mining | raw material: | Sawdust Rice Husk |
Packaging Details: | wooden box | Health status: | new |
usage: | Biomass Energy Industry | feature: | easy to use |
Voltage: | 220V | Core components: | engine |
Main selling points: | high quality | Showroom location: | not any |
weight: | 500 kg | product name: | Air tube dryer |
Application raw materials: | Leaves | Origin: | Henan, China |
Key words: | Biomass drying equipment | Warranty: | 3 years |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | brand: | Pines and cypresses |
port: | Qingdao\Shanghai\Tianjin | Name: | Biomass Rotary Dryer |
application: | factory | | |
Product Description

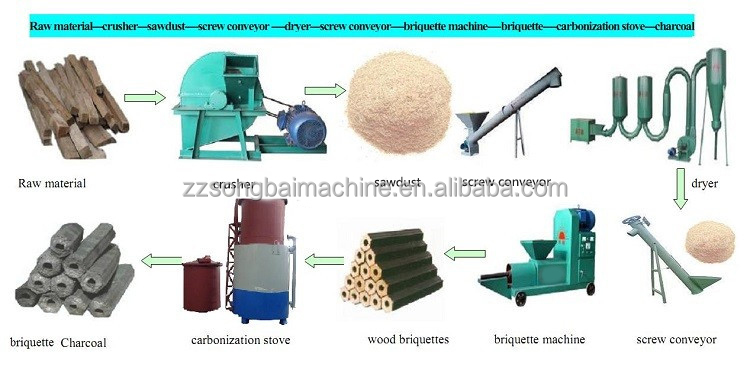

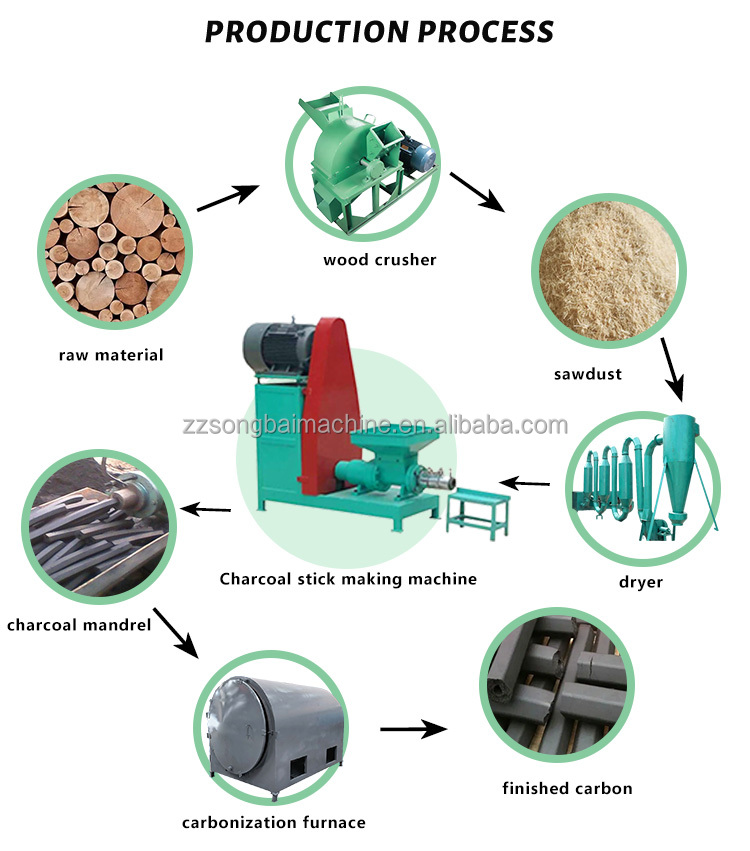

The whole production line for making charcoal:
1. Crush the raw material into small pieces (about 3-5mm in diameter).
2. Machine dry the material or dry it in the sun until the moisture is less than 12%.
3. Put the material into the feed port of the briquetting machine.
4. Coal sticks produced from biomass raw materials do not add any additives.
5. Carbonize the coal rod.

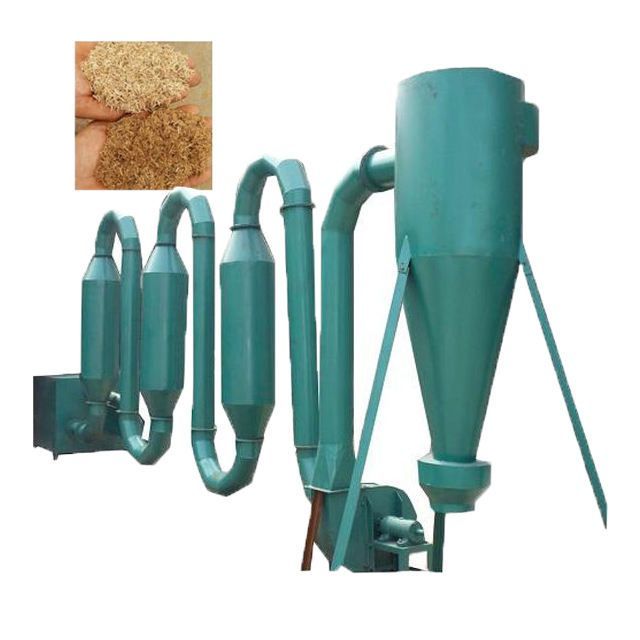

Sawdust dryer is the latest drying equipment successfully developed by our company. Mainly use the hot air generated by the hot blast stove to dry the materials. This machine is suitable for materials in a dispersed state with high moisture content, such as sawdust, grain or straw, etc.
feature:1. This air-flow sawdust dryer can reduce the moisture of raw materials by 8-12% at one time, and has the advantages of low energy consumption and high output. 2. Air-flow sawdust dryer is considered to be the cheapest sawdust dryer, and its production capacity Up to 200- 1500kg/h, we can manufacture machines according to your requirements on color, capacity, heat source, design, etc. 3. For transportation, this wood chip dryer can be disassembled and reassembled after the machine arrives at the customer's factory, this machine is easy to install
Technical Parameters
Model | 219 | 300 | 350 | 400 |
initial moisture | 25%-40% | 25%-40% | 20%-40% | 20%-40% |
final moisture | 10%-15% | 10%-15% | 10%-15% | 10%-15% |
main power | 4 kW | 7.5 kW | 11 kW | 15 kW |
drying speed | 200-250kg/hour | 300-400kg/hour | 600-800kg/hour | 800-1000kg/hour |
pipe diameter | 260mm | 300mm | 350mm | 400mm |
Cyclone diameter | 780mm | 900mm | 1050mm | 1200mm |
Fuel consumption | 40-50kg/hour | 60-80kg/hour | 80-100kg/hour | 100-150kg/hour |
aspect | 9*2.5*3.1m | 16*2.5*3.2m | 18*3*3.3m | 20*3*3.5m |
weight | 1760 kg | 2660 kg | 3200 kg | 4000 kg |
Working Standards:
A screw conveyor is used to continuously feed the wet wood chips into the air drying drum. After the hot air generated by the oil-fired boiler is mixed with the wet material, it is quickly sucked into the pipeline by the exhaust fan (fan). Then the hot air flows through the curved pipe of the dryer and the buffer (drying chamber), thus completing the drying of the wet material, and the dried material is discharged from the outlet with an air lock.
Function and use:
1. Use a wood shredder to crush the wood into sawdust;
2. Use a sawdust dryer to remove the moisture in the sawdust;
3. Use a sawdust forming machine to press the sawdust into sticks;
4. Grill the sticks into charcoal with a charcoal oven;5. Use a wood chipper to break the charcoal into powder;
6. Press the charcoal powder into various shapes with a powder molding machine (various molds can be made);
7. Pack the formed charcoal with a packing machine.

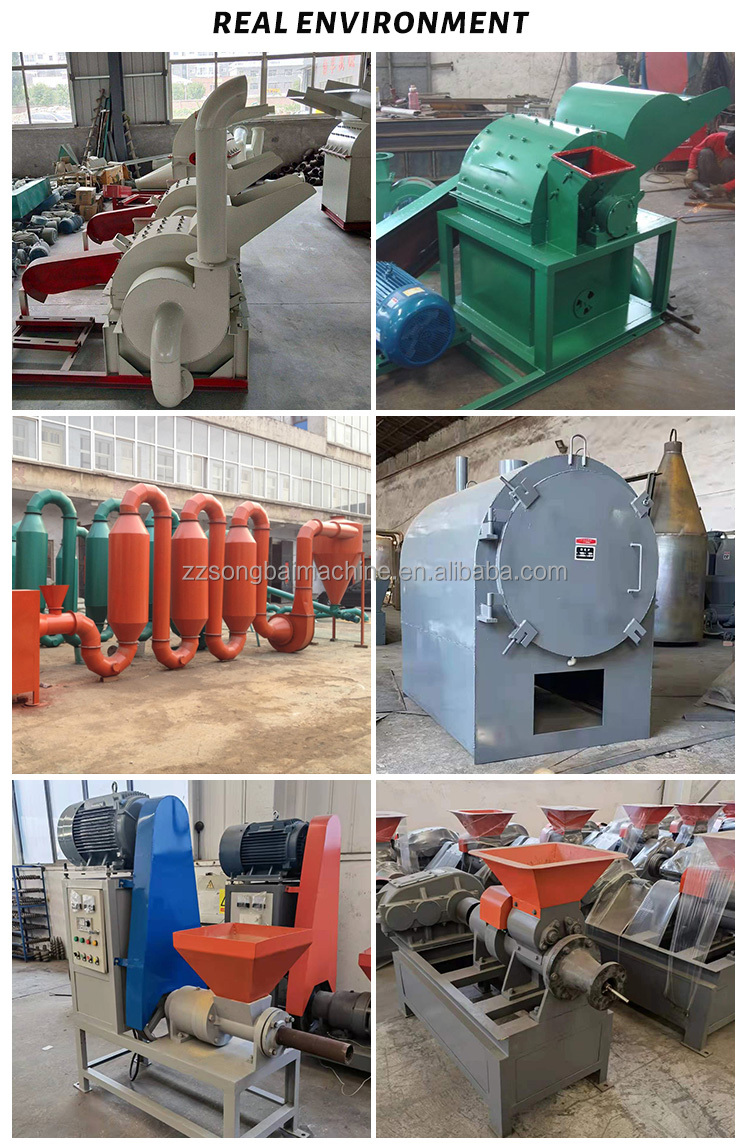

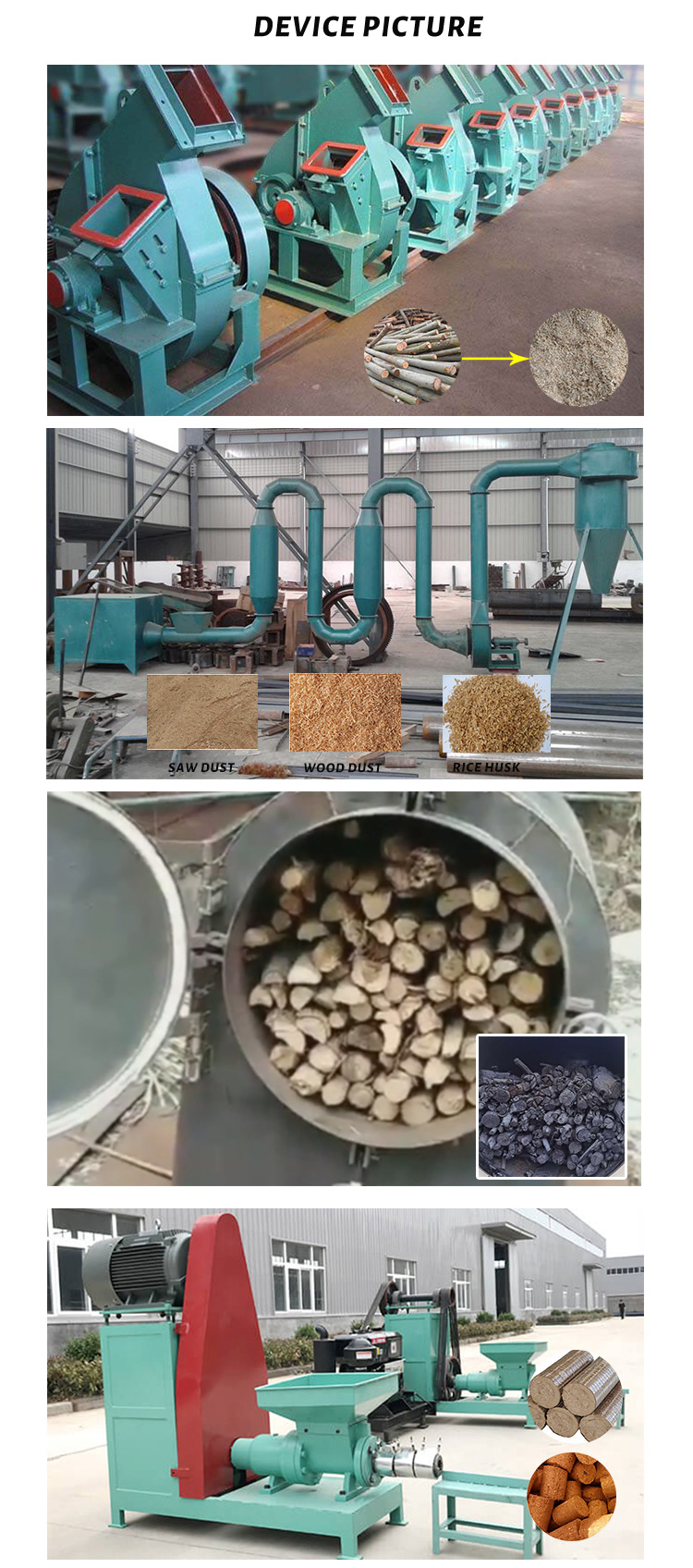

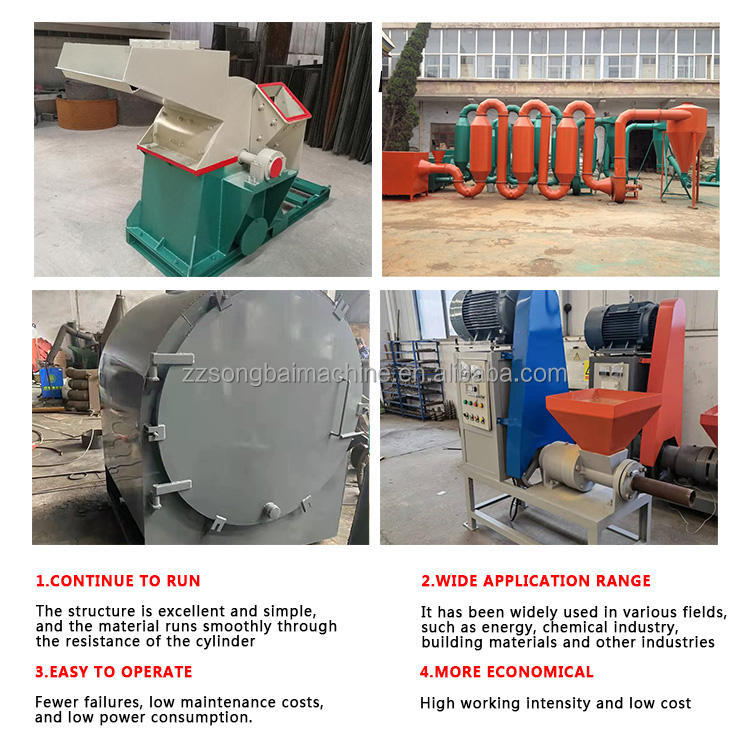

product display

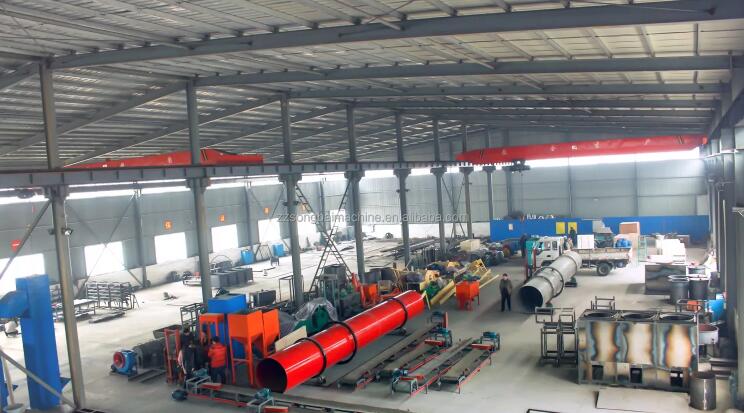

about Us

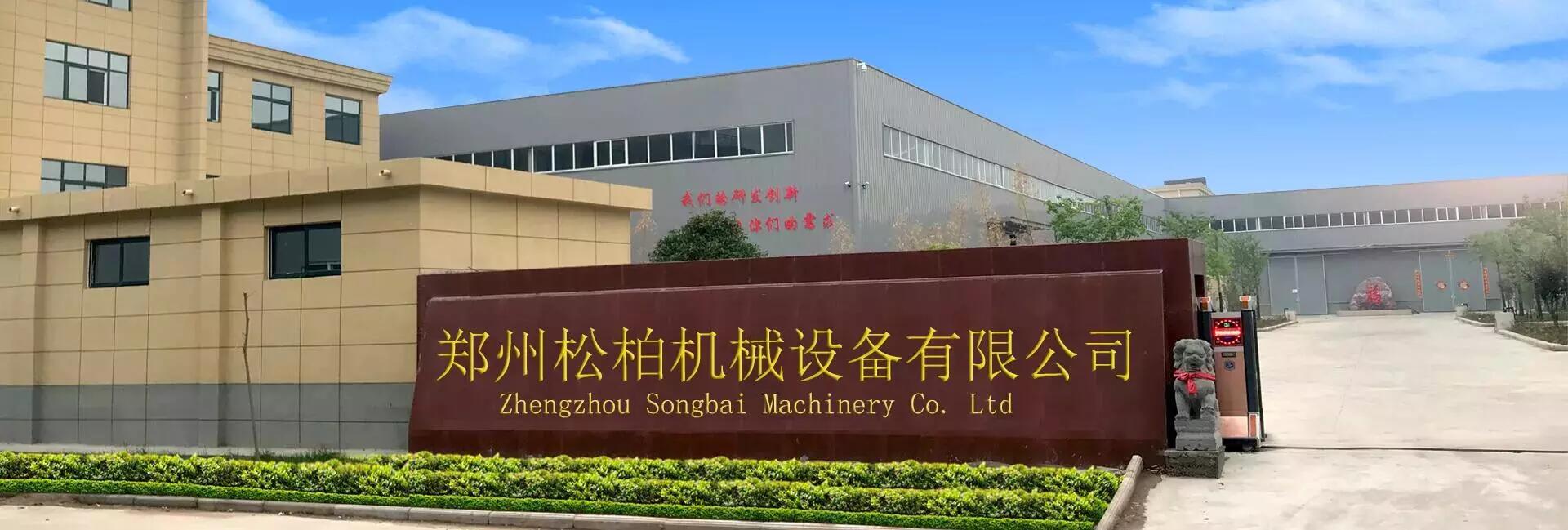

Zhengzhou Songbai Machinery Co., Ltd.Committed to providing biomass pellet machine series, carbonization furnace series, mobile gas heaters, organic fertilizer production series and animal feed production series. We can provide multiple solutions for different raw materials to meet market demands. We have passed the IS09001 quality system and got CE certification for all our machines.
