3 Tons Per Hour Wet Rotary Biomass Conveyor Pneumatic Ring Dryer Biomass Wood Pellet Dryer

Supplier: Henan Zhangsheng Environmental Protection Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Zhangsheng Machinery
Price: $8848.00 /set
Min. Order: 1 set

Click here to contact

Product details

brand:	Zhang Sheng	Drying material:	sawdust
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Showroom location:	Philippines, Indonesia, Argentina, Chile, South Africa
Health status:	new	capacity:	0.6-2.5 tons/hour
Advantage:	Low consumption and high efficiency	Core components:	bearing
Video shipment inspection:	if	MOQ:	1 set
color:	customer request	product name:	rotary dryer
Key words:	Biomass pellet dryer	Origin:	Henan, China

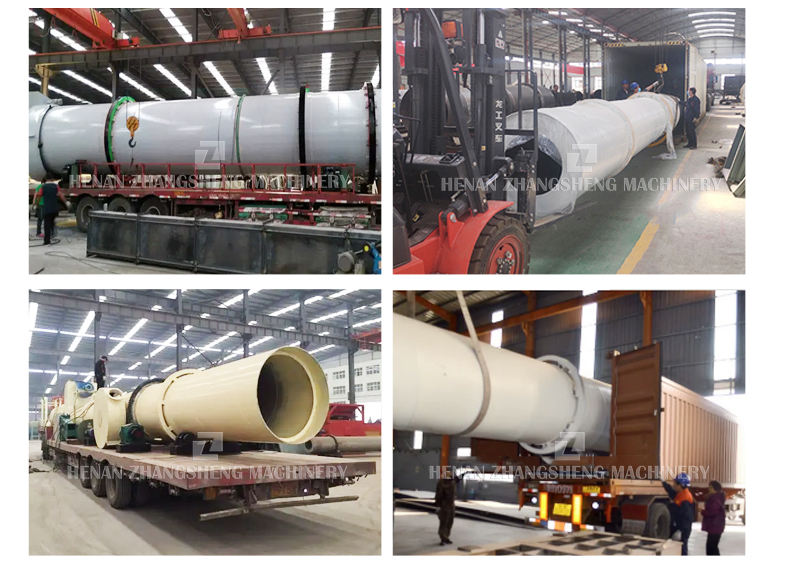

Packaging Details:	Standard shipping packaging for Industrial Rotary Dryers.	Mechanical test report:	if
Applicable industries:	Manufacturing plants, farms, retail, food stores, other	Core component warranty:	1 year
application:	Granule dryer	Heating source:	heat
Supply capacity:	30 sets per month	port:	Qingdao/Tianjin industrial rotary dryer
Production capacity:	600-2500kg/hour	Main selling points:	high efficiency
Warranty:	1 year	After warranty service:	technical assistance
weight:	3800 kg	feature:	rotary dryer
Marketing Type:	New Products 2020	Applicable materials:	Wood chips, sawdust, sand, mine dust, agricultural waste, etc.

The rotary dryer is used to dry fine, powdery or granular wet materials, such as sawdust, sawdust, sand, mine dust, agricultural waste, etc. The raw materials are transported to the inside and front of the rotary dryer by a scraper conveyor. Equipped with hot air stove. The generated hot air enters the dryer through the fire distribution device, and the material is dispersed by the low-speed rotary bending plate, so that the high-temperature air passes through the material for heat exchange. The rotary dryer has a certain inclination angle, and sufficient air volume drives the material forward. Finally, the dried material is discharged from the discharge port.

Model	Main motor(kw)	Production capacity (tons/hour)	Fan(kw)	Airlock(kw)	Diameter (m)
ZSHG1.0-10	5.5	0.2～0.4	7.5	1.5	Φ1.0*10
ZSHG1.2-12	5.5	0.3～0.6	7.5	1.5	Φ1.2*12
ZSHG1.5-12	7.5	0.4～1.0	15	2.2	Φ1.5*12
ZSHG1.5-15	11	0.5～1.2	18.5	2.2	Φ1.5*15
ZSHG1.6-18	15	0.7-1.8	twenty two	3	Φ1.6*18
ZSHG1.8-18	15	0.9～2.1	twenty two	3	Φ1.8*18
ZSHG2.0-20	18.5	1.2～2.8	30	3	Φ2.0*20
ZSHG2.2-24	18.5	1.7～3.8	30	4	Φ2.2*24

The sawdust dryer is widely used for drying fiber materials such as straw briquettes, charcoal, wood pellet fuel, wood briquettes, corn stalks, soybean stalks, cotton stalks, wheat straw, sorghum stalks, wood shavings, ginkgo leaves, mulberry leaves, etc.

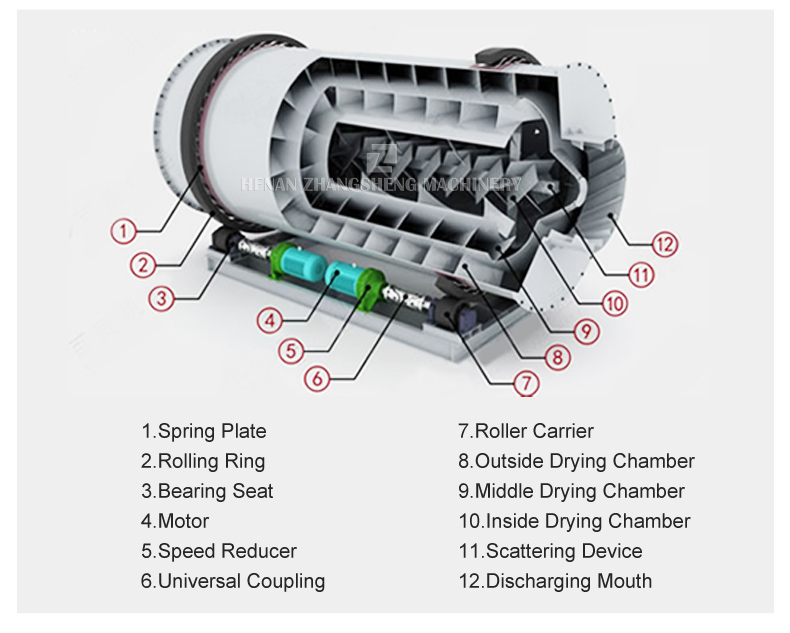

According to your raw materials, we also provide three-layer rotary drum dryer. The three-layer rotary drum dryer improves the internal structure of the original single drum dryer, increases the pre-drying of wet materials before entering the machine, and prolongs the drying time. The drying time of wet materials in the machine, combined with sealing, heat preservation and reasonable supporting measures, makes the production capacity of the dryer 48-80% higher than that of the original single cylinder dryer, and the evaporation intensity per unit volume can reach 120-180kg/m3 , standard coal consumption is only 6-8kg/t. Moreover, it effectively reduces the occupied area, and the smaller volume is convenient for sea transportation.

Install temperature measuring sensors and digital display instruments at the high and low temperature pipelines of the drying system to achieve the best drying effect and ensure the safe operation of the system.

It can be equipped with a mechanical chain coal-fired hot air stove, which has strong adaptability to coal types, and the comprehensive thermal efficiency can reach more than 80%. The average coal consumption per ton of precipitation does not exceed 176 kg of standard coal.

The machine also has a gas cleaning system. With cyclone separator, fan, wet dust collector. No pollution.

The barrel adopts a screw + plate structure, and the double-layer plates and flaps are constantly turned up and down to make the materials fully contact with the hot air, promote heat exchange, and ensure drying efficiency.

After receiving your inquiry, we will provide you with professional and detailed 3D drawings and production plans.

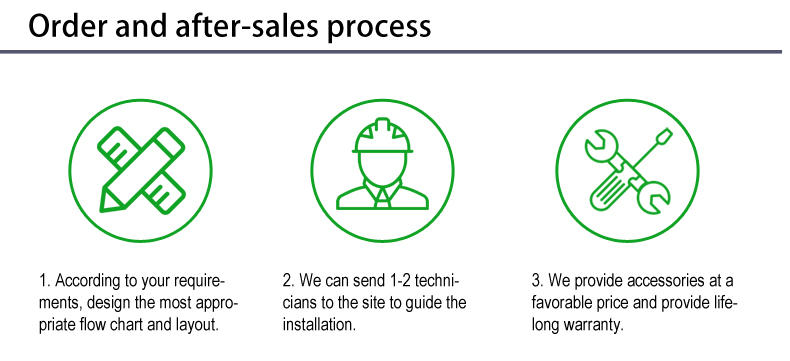

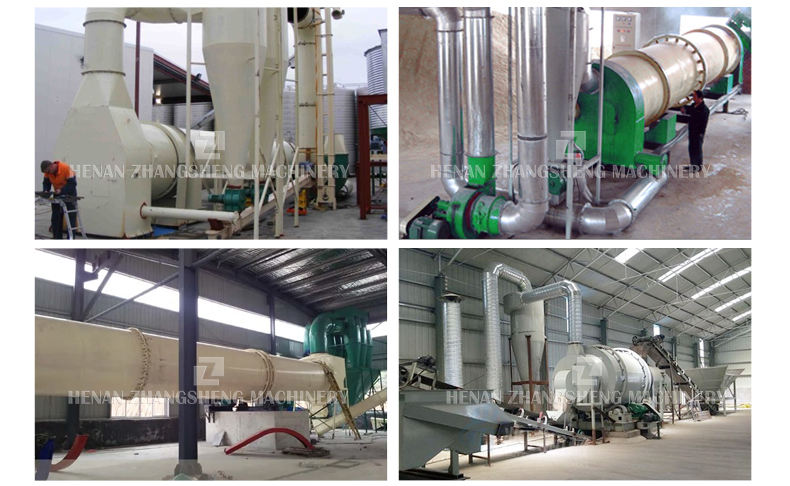

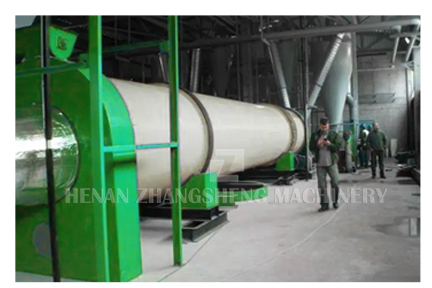

Here are the installation locations for our customers:After the transaction is completed, Zhang Sheng engineer will fly to your address, install and debug the machine for you free of charge, and train your operation skills until you are satisfied.

4-5t/h wood waste drying pellet plant

Capacity: 4-5t/h Pellet Size: 6/8mm Pellet Host: Wood Chipper, Hammer Mill, Wood Drying Equipment, Wood Pellet Machine, Cooler and Packaging Machine Delivery Time: 40-50 working days Production Line: Morroco

2-3t/h wood waste drying and pelletizing plant

Capacity: 2-3t/h Pellet Size: 8/10mm Pellet Host: Wood Chipper, Hammer Mill, Wood Drying Equipment, Wood Pellet Machine, Cooler and Packaging Machine Delivery Time: 35 working days Production Line: Russia

Zhangsheng dryer production line has been exported to more than 80 countries, and has more than 300 foreign partners such as Germany, the United Kingdom, the United States, Italy, Israel, Chile, Russia, Vietnam, India, Cambodia, Indonesia, Malaysia, and Thailand

As a professional dryer OEM and exporter, Zhangsheng has exported to more than 45 countries. We have a full line of dryers. All air dryers are CE certified by TUV-SUD and TUV-Rheinland. The total number of dryers exported to Europe and North America exceeds 1500 units every year.

1. What information do you need to provide for quotation and solution?
1) What is your raw material?
2) What is the moisture content of your raw materials?
3) How much output capacity do you want (hourly/monthly/yearly)? 4) What is your country voltage?

2. Besides professional drying equipment, what other products and services can you provide?

We will also provide you with a wood pellet production line, even if you are a beginner, just tell us your raw material, capacity (t/h) and the size of the final pellet product, we will choose according to your specific situation for you Provide machines. We also provide installation and arrange workshop layout, train workers.

3. Are you a factory or trading company?
we have our own factory. We have more than 15 years of experience in pellet production line manufacturing. "Sell your own products", reducing the cost of intermediate links. OEM is available according to your raw materials and output.
