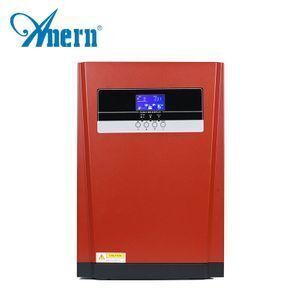

Panel solar inverter 30 kw 200kw 100kw 500kw

Supplier: Guangzhou Anern Energy Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Celine Huang
Price: $95.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

MPPT Accuracy:	>99.5%;	Efficiency:	>97%;
Port:	Guangzhou;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Alipay,PayPal;
Output Frequency:	50Hz/60Hz;	Size:	28222173mm;
Inverter Output Frequency:	50Hz/60Hzd1%;	Output waveform:	Simulated Sine Wave;
Type:	DC/AC Inverters;	Place of Origin:	Guangdong China (Mainland);
Output Current:	20A;	NO.of MPPT:	2;
Brand Name:	Anern;	Output Voltage:	110V/220V/230V/240V;
Operating Temperature:	0°C - 55°C;	Maximum Charging Current:	40A;
Output Type:	Single;	Supply Ability:	10000 Piece/Pieces per Month;
Battery Voltage:	12/24 VDC;	Output Voltage:	220VAC;
Packaging Detail:	standard export package suitable for long seavoyage and tough handling;	Control Method:	MPPT;
Weight:	3.2kgs;	Input Voltage:	12V/24V/48V;
Model Number:	AN-SCI03-2400W;

Panel solar inverter 30 kw 200kw 100kw 500kw

Advantages

Feature of solar inverter:

1.High effciency pure sine wave inverter(PF=1);Wide PV input range (12V dc -50V dc) 80A MPPT SCC;Intelligent 3stage 80A AC battery charger.
2. Surges to 2X continuous power for 5 seconds for motor loads.
3. Intelligent functionality enables utility and solar input prioritization.
4. Wide ulility input range (90Vac _280Vac) for unreliable grid even in the most challenging environments.
5. Field serviceable with replacement boards and spare parts.
6. Monitor, troubleshoot, or communication with USB/RS 232.
7. System configures quickly into compact, wall-mounted system

Product Description

Description of solar inverter:

The AN-SCI02 series all in one solar system is the perfect go-to solution for off-grid, backup power for homes, small business, and it also delivers a value added. Inverter running without batteries also can help to reduce cost in solar power system..

Model	SCI02-3200	SCI02-5000
RATED POWER	3200W	5000W
INPUT
Voltage	230 VAC
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (PV Mode)	230VAC ± 5%
Surge Power	6000VA	10000VA
Efficiency (Peak) PV to INV.	97%
Efficiency (Peak) Battery to INV.	94%
Waveform	Pure sine wave
BATTERY & AC CHARGER
Battery Voltage	24VDC	48VDC
Floating Charge Voltage	27VDC	54VDC
Overcharge Protection	33VDC	63VDC
Maximum Charge Current	80A	60A
SOLAR CHARGER
Maximum PV Array Power	4000 W	4000 W
MPPT Range @ Operating Voltage	120 ~ 450 VDC
Maximum PV Array Open Circuit Voltage	500 VDC
Maximum Efficiency	98%
