1kW 100RPM Low Speed Coreless Disk Axial Flux Generator for Vertical Wind Turbines

Supplier: Qingdao Bluesky New Energy Co., Ltd.
Region: Shandong, China
Contact: Ms Jenner J.
Price: $200.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

speed:	100rpm-500rpm	brand:	BLSK
rated power:	200W-100kW	frequency:	20Hz-50Hz
Stator material:	Coreless	Supply capacity:	3000 units per year
Rated voltage:	12-440V	place of origin; place of origin:	Shandong China
shell material:	aluminum alloy	Package preview:
Rotor material:	Rare earth permanent magnet	payment terms:	wire transfer
Shaft material:	steel	Rated speed:	60RPM-500RPM
Winding method:	yes	Starting torque:	0.03Nm~1Nm
Leakage class:	<20mA	Operation method:	Outer and Inner Rotors

Product Description

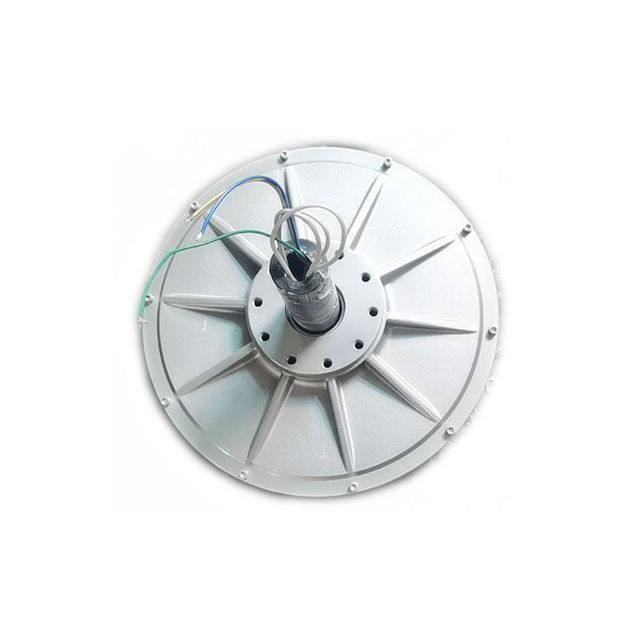

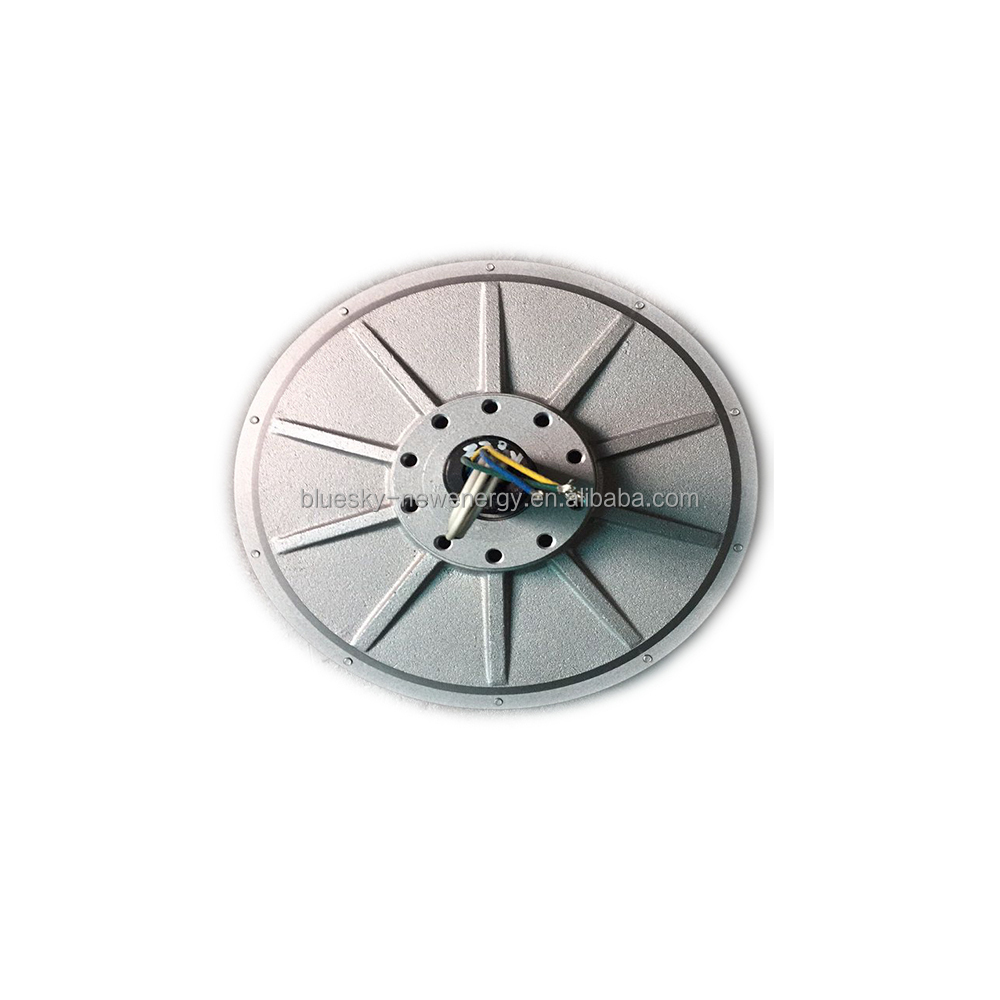

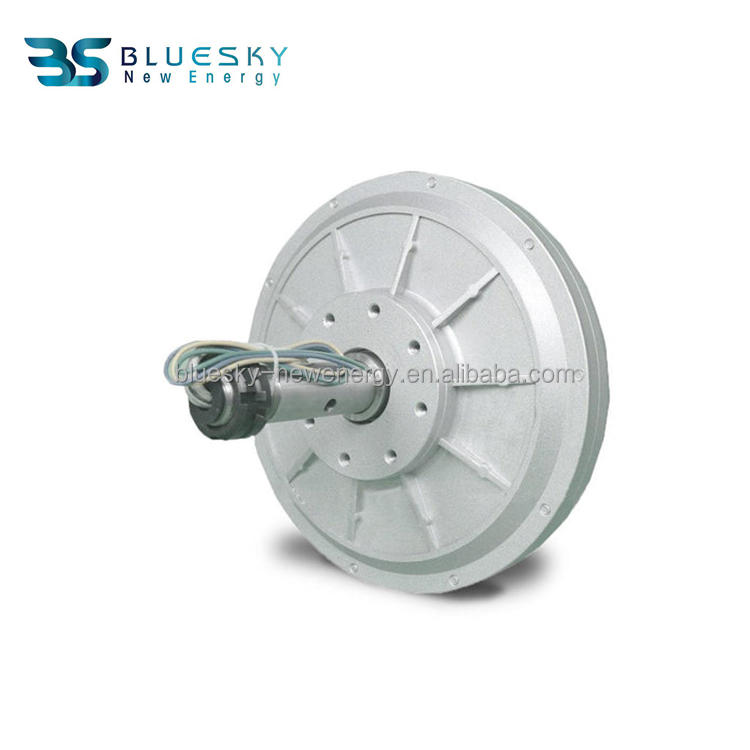

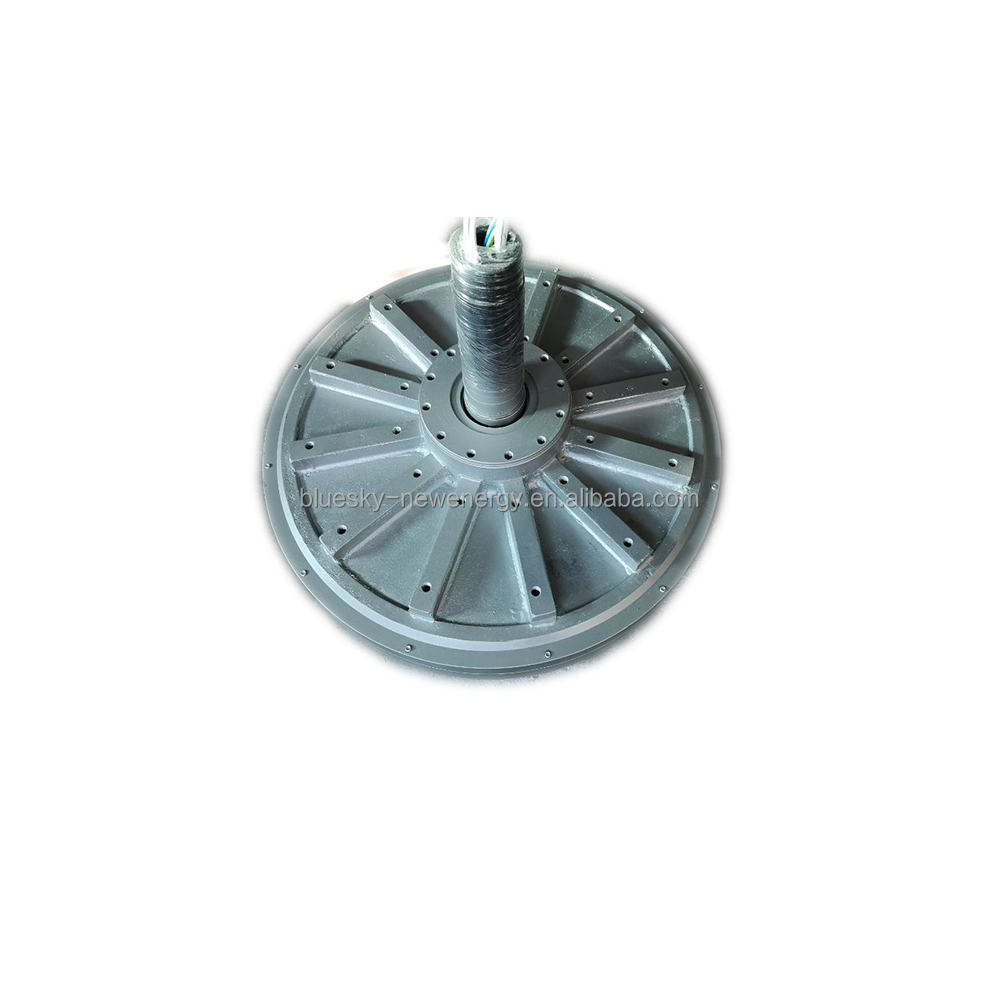

outer rotor

The outer rotor is a coreless disc axial flux permanent magnet generator, the shaft is fixed, the generator rotates through the casing to generate electricity, and the three-phase line is drawn from the shaft.

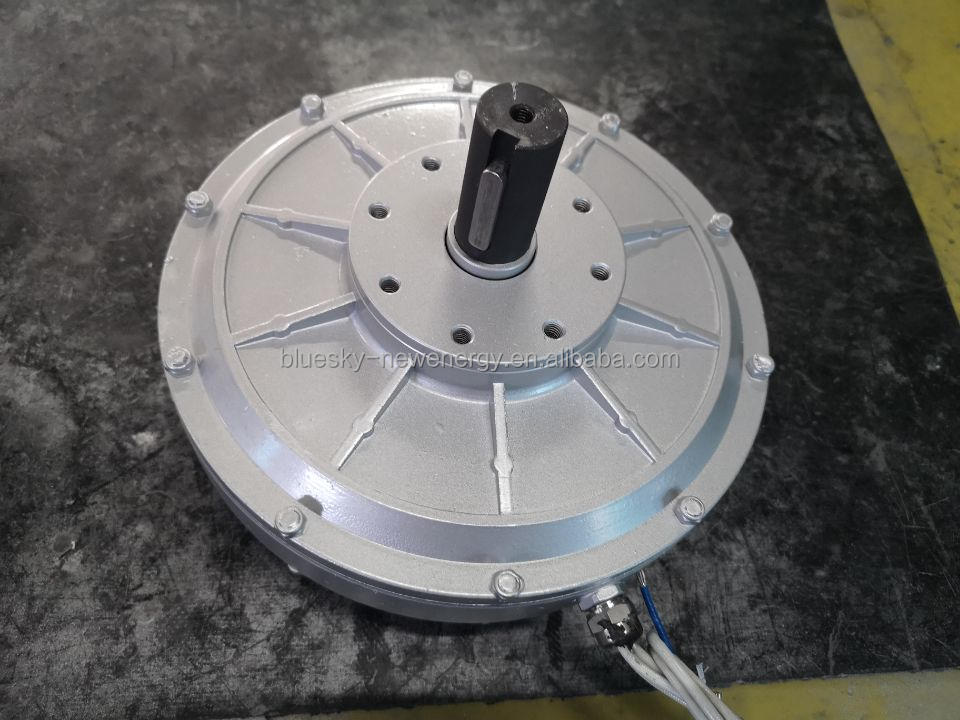

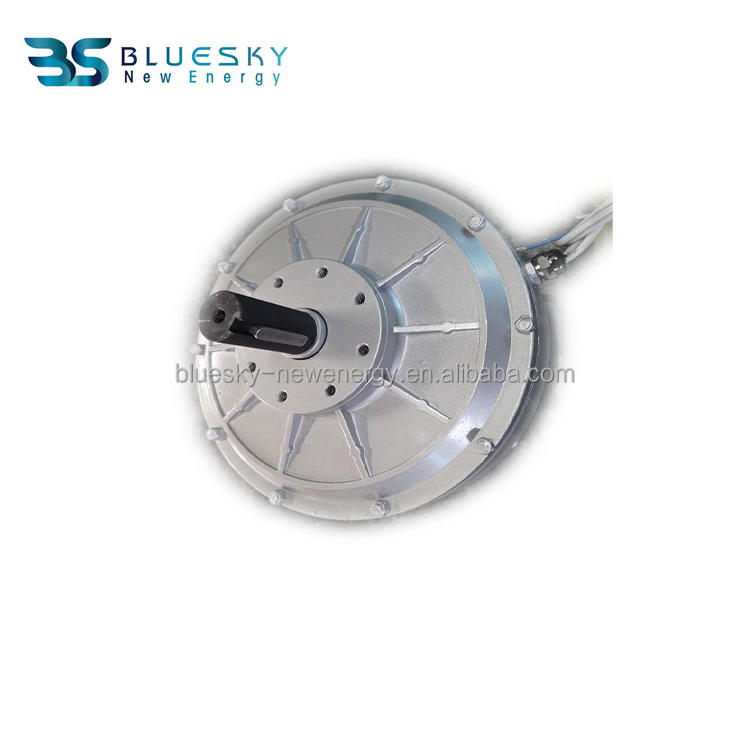

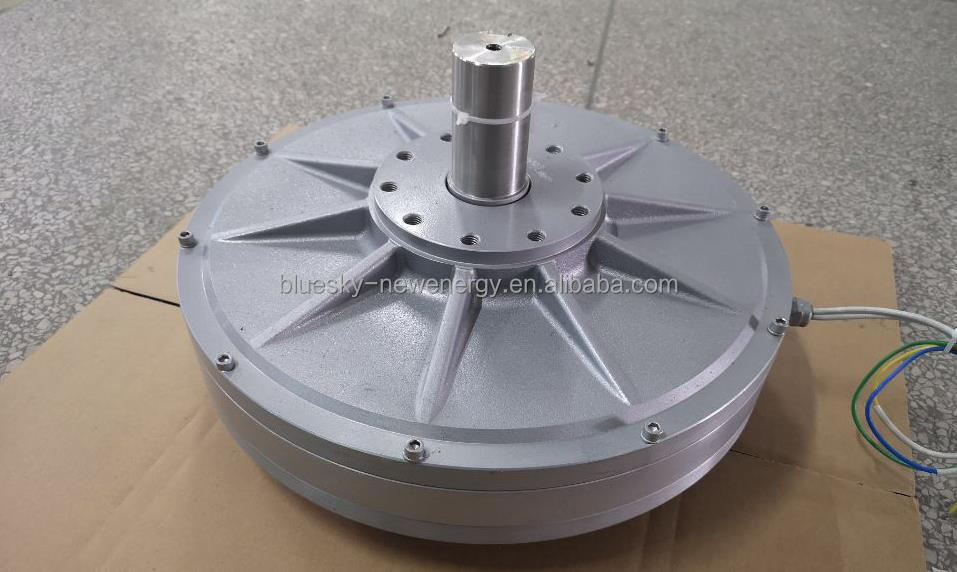

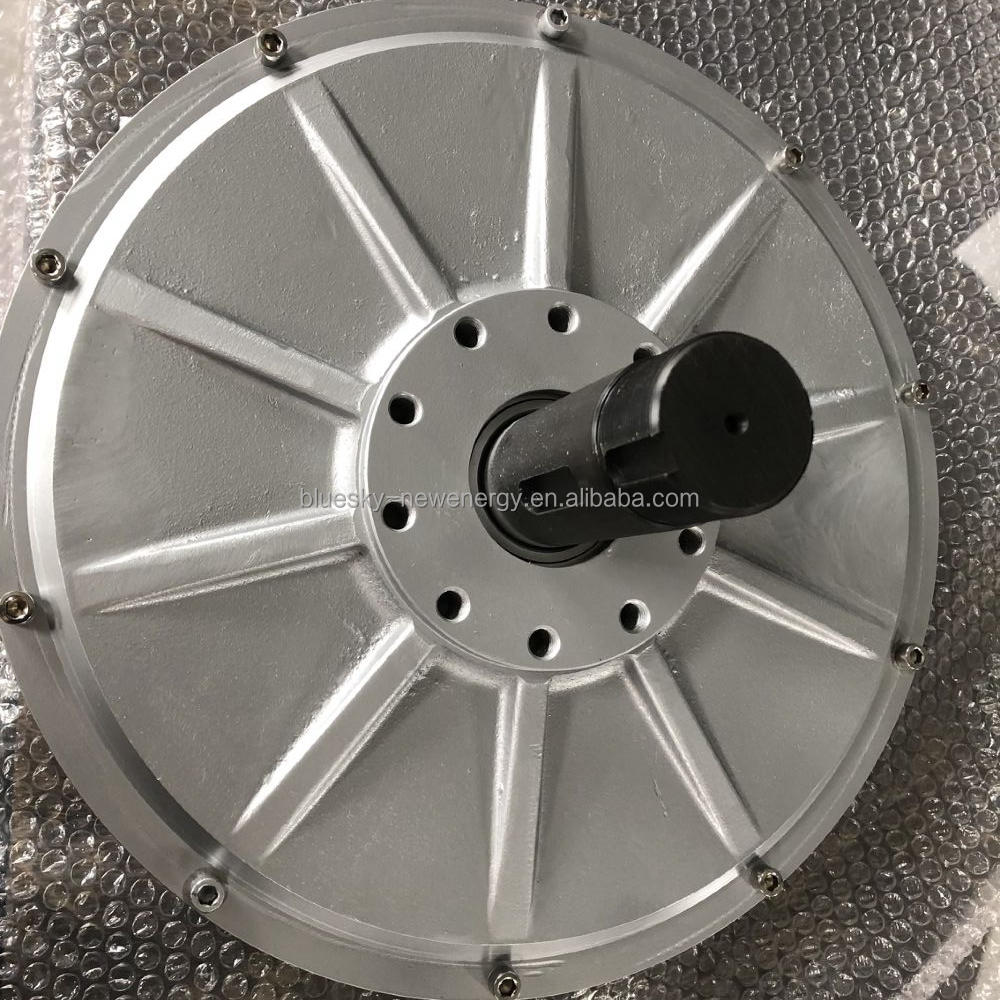

inner rotor

Inner rotor coreless disk axial flux permanent magnet generator, the casing is fixed, the generator generates electricity through the rotation of the shaft, and the three-phase line is drawn out from the casing.

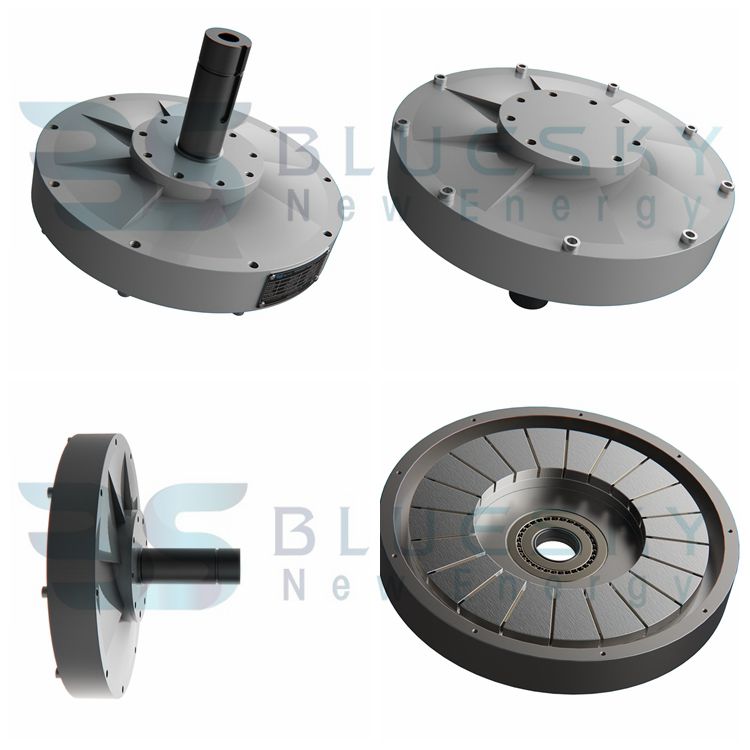

Ironless Disc Axial Flux Permanent Magnet Generator (AFPMG) has basically the same efficiency and performance whether it is an outer rotor or an inner rotor, but it operates in a different way. Different designs for customers,We can extend the shaft of the generator to the other endto suit customer's design.

Specification

Model (casing diameter) mm	rated power Rated speed	Optional rated voltage range three-phase alternating current	starting torque	Rated torque	efficiency (full load)
BLSK-160	50W 250 rpm	12V-24Vac	<0.05nm	2.1 Nm	>85%
		100W 450RPM	12V-24Vac	<0.05nm	2.4 Nm	>85%
		200W 850 rpm	12V-48Vac	<0.05nm	2.5 Nm	>85%
BLSK-200	100W 250RPM	12V-48Vac	<0.1 Nm	4.2 Nm	>85%
		200W 450RPM	12V-48Vac	<0.1 Nm	4.7 Nm	>85%
		300W 700RPM	12V-48Vac	<0.1 Nm	4.5 Nm	>85%
BLSK-220	50W 150RPM	12Vac-48Vac	<0.1 Nm	3.5 Nm	>85%
BLSK-220		100W 200RPM	12Vac-48Vac	<0.1 Nm	5.3 Nm	>85%
BLSK-260	100W 150RPM	12Vac-48Vac	<0.1 Nm	7.1 Nm	>85%
		200W 200RPM	12Vac-48Vac	<0.1 Nm	10.6 Nm	>85%
		300W 250 rpm	12Vac-48Vac	<0.1 Nm	12.7 Nm	>85%
		300W 200 rpm	12Vac-48Vac	<0.1 Nm	15.9 Nm	>85%
		500W 350RPM	12Vac-48Vac	<0.1 Nm	15.2 Nm	>88%
		500W 300 rpm	24Vac-48Vac	<0.1 Nm	17.7 Nm	>88%

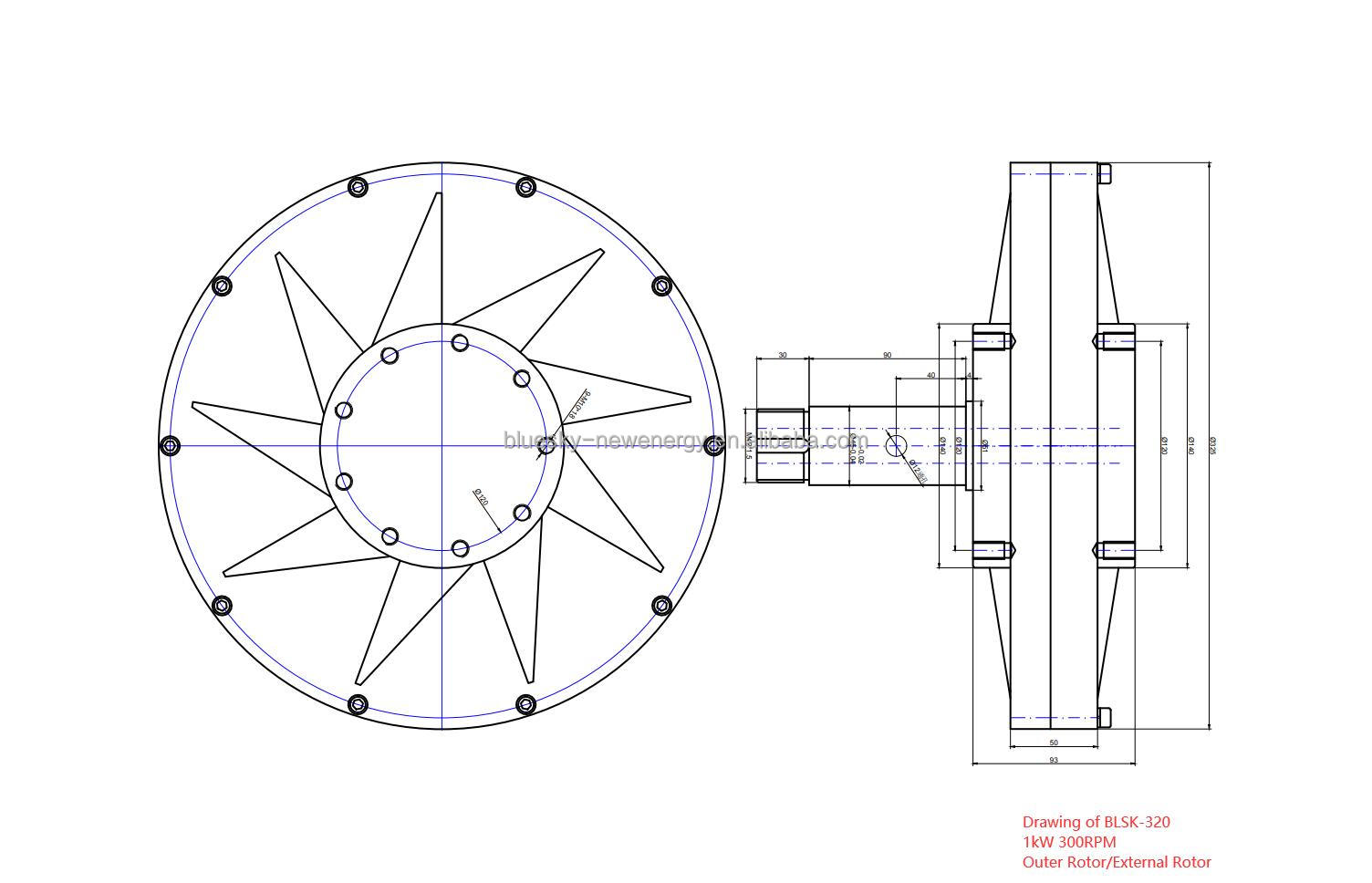

BLSK-320	500W 200 rpm	24Vac-220Vac	<0.1 Nm	27 Nm	>90%
		1kW 300 rpm	48Vac-220Vac	<0.1 Nm	36 Nm	>90%
		2kW 550RPM	48Vac-220Vac	<0.1 Nm	39 Nm	>90%
BLSK-380	1kW 180 rpm	48Vac-220Vac	<0.1 Nm	61 Nm	>88%
BLSK-380		2kW 300 rpm	48Vac-220Vac	<0.1 Nm	71 Nm	>90%
BLSK-400	3kW 150 rpm	48Vac-220Vac	<0.1 Nm	73 Nm	>88%
BLSK-400		2kW 250 rpm	48Vac-400Vac	<0.1 Nm	212 Nm	>90%
BLSK-450	3 kW 250 rpm	48Vac-400Vac	<0.1 Nm	127 Nm	>90%
		1 kW 100 rpm	48Vac-220Vac	<0.1 Nm	109 Nm	>88%
		2kW 180 rpm	48Vac-400Vac	<0.1 Nm	121 Nm	>90%
BLSK-550	2kW 120RPM	48Vac-400Vac	<1 Nm	182 Nm	>88%
		3kW 180 rpm	48Vac-400Vac	<1 Nm	182 Nm	>90%
		5 kW 250 rpm	220Vac-400Vac	<1 Nm	212 Nm	>90%
BLSK-620	3kW 100 rpm	48Vac-400Vac	<1 Nm	328 Nm	>88%
		5 kW 150 rpm	220Vac-400Vac	<1 Nm	364 Nm	>90%
		10kW 300 rpm	220Vac-400Vac	<1 Nm	364 Nm	>90%
BLSK-700	5kW 100RPM	220Vac-400Vac	<1 Nm	530 Nm	>88%
		7.5kW 150 rpm	220Vac-400Vac	<1 Nm	530 Nm	>90%
		10kW 200 rpm	220Vac-400Vac	<1 Nm	530 Nm	>90%
BLSK-770	10kW 150RPM	220Vac-400Vac	<1 Nm	707 Nm	>90%
BLSK-770		10kW 100RPM	220Vac-400Vac	<1 Nm	1061 Nm	>90%

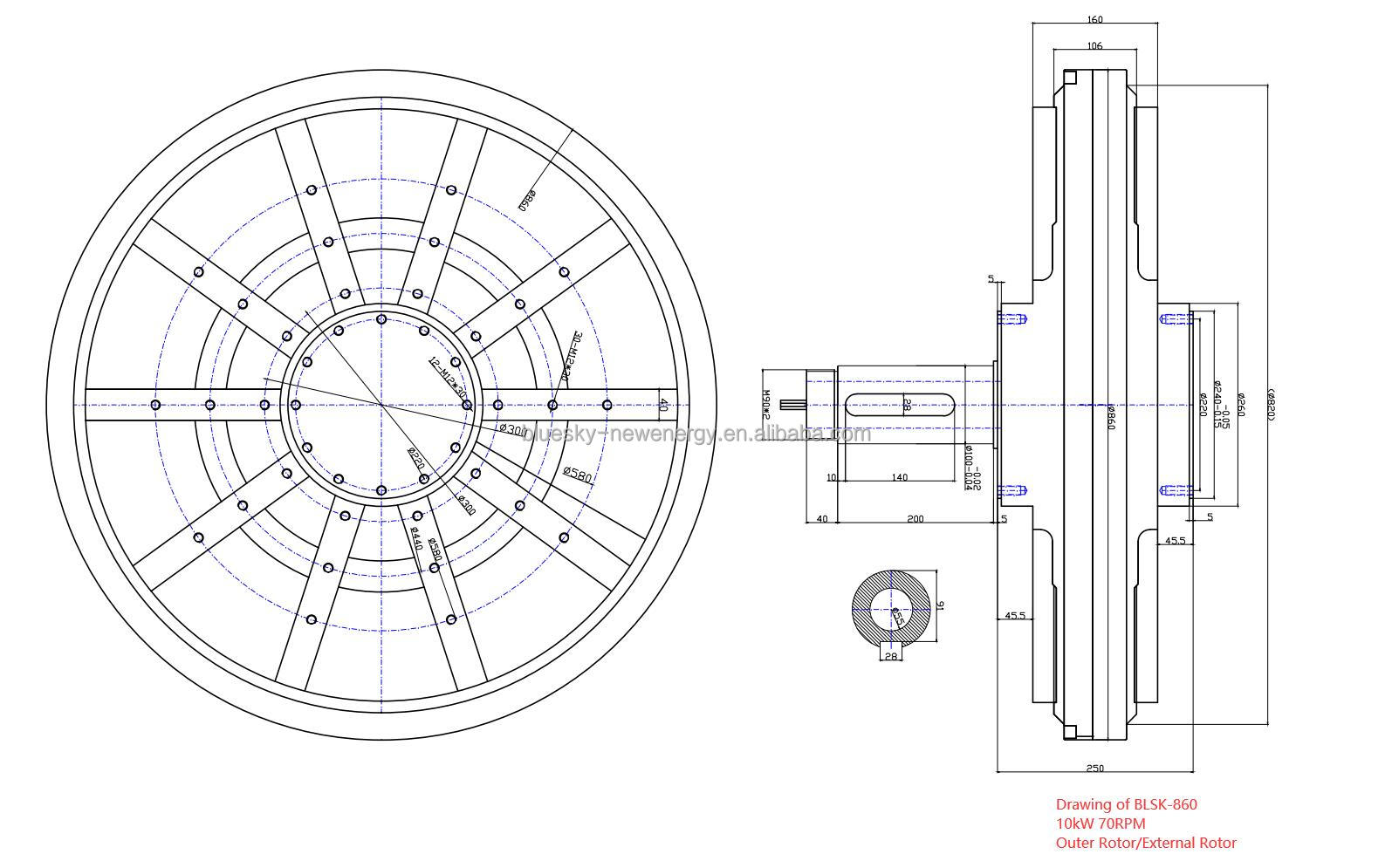

BLSK-860	10kW 70RPM	220Vac-450Vac	<1 Nm	1516 Nm	>90%
BLSK-1100	20kW 60RPM	380Vac-450Vac	<1 Nm	3537 Nm	>90%
		25 kW 80 rpm	380Vac-450Vac	<1 Nm	3316 Nm	>90%
		50kW 250RPM	380Vac-450Vac	<1 Nm	2122 Nm	>90%
		65 kW 210 rpm	380Vac-450Vac	<1 Nm	3284 Nm	>90%
The above are regular models only. We can also customize according to your needs, please contact our sales for details.
