AFPMG 1kW 5kW 10kW Axial Flux Ironless Disk Permanent Magnet Generator

Supplier: Qingdao Bluesky New Energy Co., Ltd.
Region: Shandong, China
Contact: Ms Jenner J.
Price: $200.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

brand:	BLSK	Supply capacity:	3000 units per year
frequency:	20Hz-50Hz	rated power:	200W-100kW
Operation method:	Outer and Inner Rotors	Shaft material:	steel
Winding method:	yes	Starting torque:	0.03Nm~1Nm
Rated speed:	60RPM-500RPM	Stator material:	Coreless
shell material:	aluminum alloy	Package preview:
payment terms:	wire transfer	Rotor material:	Rare earth permanent magnet
Origin:	Shandong China	Rated voltage:	12-440V
speed:	100rpm-500rpm	Leakage class:	<20mA

Product Description

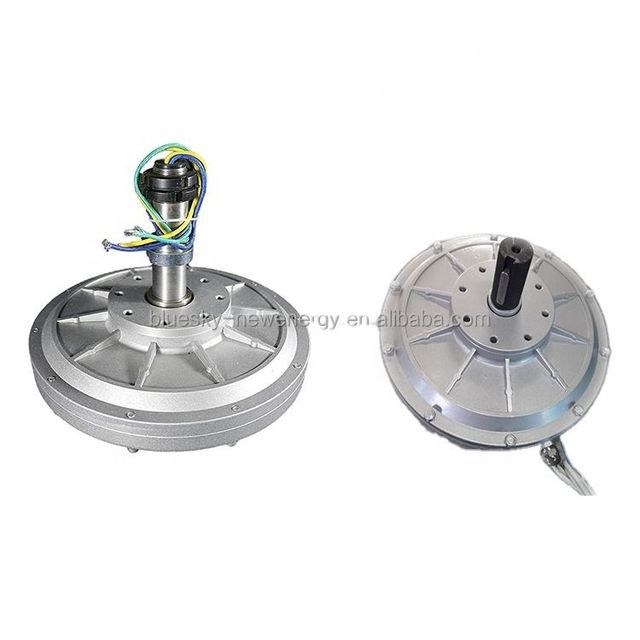

outer rotor

The outer rotor is a coreless disc axial flux permanent magnet generator, the shaft is fixed, the generator rotates through the casing to generate electricity, and the three-phase line is drawn from the shaft.

inner rotor

Inner rotor coreless disk axial flux permanent magnet generator, the casing is fixed, the generator generates electricity through the rotation of the shaft, and the three-phase line is drawn out from the casing.

Ironless Disc Axial Flux Permanent Magnet Generator (AFPMG) has basically the same efficiency and performance whether it is an outer rotor or an inner rotor, but it operates in a different way. Different designs for customers,We can extend the shaft of the generator to the other endto suit customer's design.

Specification

Model (casing diameter)	rated power Rated speed	Optional rated voltage range	starting torque	Rated torque	efficiency (full load)
BLSK-200	50W 200 rpm	8Vac-48Vac	<0.03 Nm	2.7 Nm	90%~94%
BLSK-220	100W 200RPM	8Vac-48Vac	<0.03 Nm	5.5 Nm
BLSK-260	200W 200RPM	8Vac-48Vac	<0.03 Nm	11 Nm
BLSK-320	500W 200 rpm	24Vac-220Vac	<0.1 Nm	27 Nm
BLSK-320	1kW 300 rpm	48Vac-220Vac	<0.1 Nm	36 Nm
BLSK-380	1kW 180 rpm	48Vac-220Vac	<0.1 Nm	61 Nm
BLSK-400	1kW 150 rpm	48Vac-220Vac	<0.1 Nm	73 Nm
BLSK-450	1 kW 100 rpm	48Vac-220Vac	<0.1 Nm	109 Nm
BLSK-450	2kW 180 rpm	48Vac-400Vac	<0.1 Nm	121 Nm
BLSK-550	2kW 120RPM	48Vac-400Vac	<1 Nm	182 Nm
BLSK-550	3kW 180 rpm	48Vac-400Vac	<1 Nm	182 Nm
BLSK-620	3kW 100 rpm	48Vac-400Vac	<1 Nm	328 Nm
BLSK-620	5 kW 150 rpm	110Vac-440Vac	<1 Nm	364 Nm
BLSK-620	10kW 300 rpm	220Vac-440Vac	<1 Nm	364 Nm
BLSK-700	5kW 100RPM	110Vac-440Vac	<1 Nm	546 Nm
BLSK-770	10kW 100RPM	220Vac-440Vac	<1 Nm	1050 Nm
BLSK-860	20kW 150RPM	380Vac-440Vac	<1 Nm	1457 Nm
The above are regular models only. We can also customize according to your needs, please contact our sales for details.

3D Construction Drawings

product display
