Package preview: | frequency: | 50 Hz | |
Warranty: | 10 years | speed: | 12 m/s |
Sales unit: | single product | is_customized: | Yes |
Rated voltage: | 24/48V | Certification: | CE RoHS |
The output voltage: | 24V/48V | Origin: | Jiangsu |
Cut-in wind speed: | 2.5m/s | Start wind speed: | 1.3 m/s |
custom made: | Yes | brand: | take over |
Single package size: | 67X43X45 cm | Gross weight per piece: | 41.000 kg |
Packaging Details: | 400*410*540mm carton 170*150*1120mm carton |

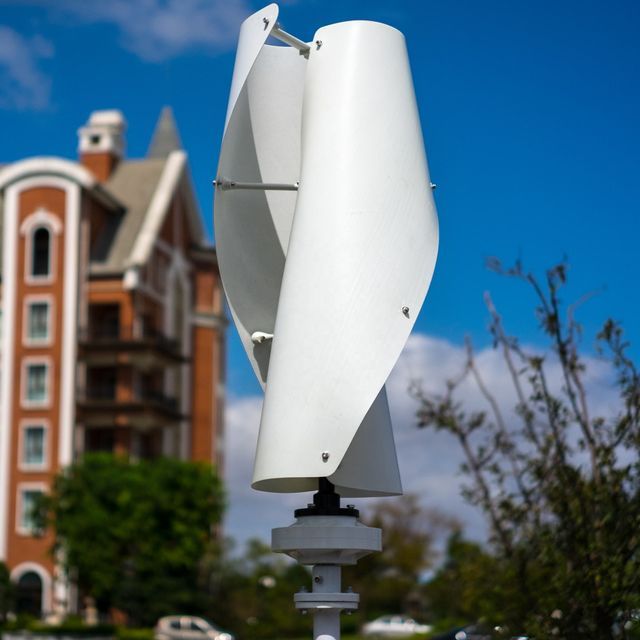

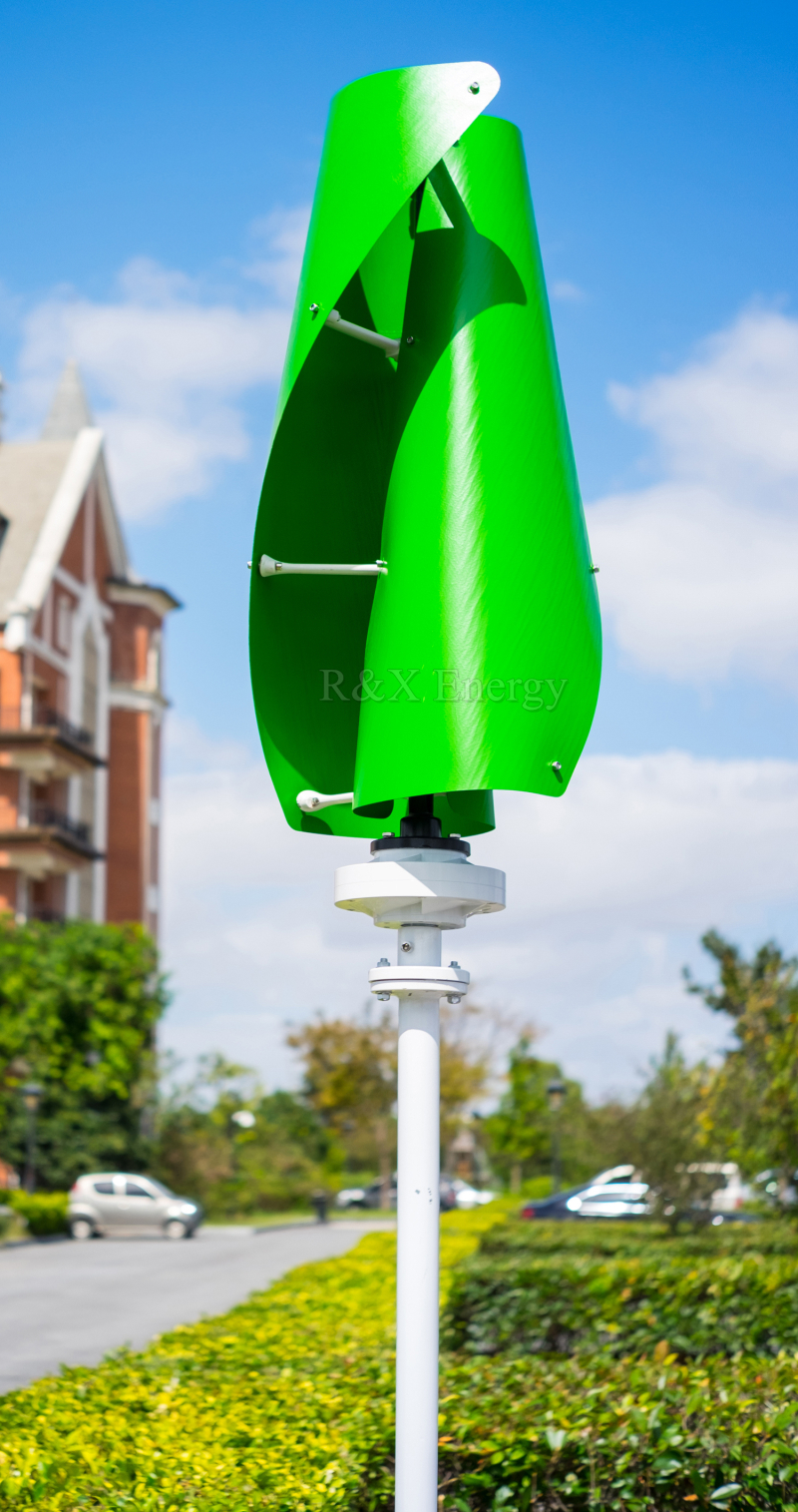

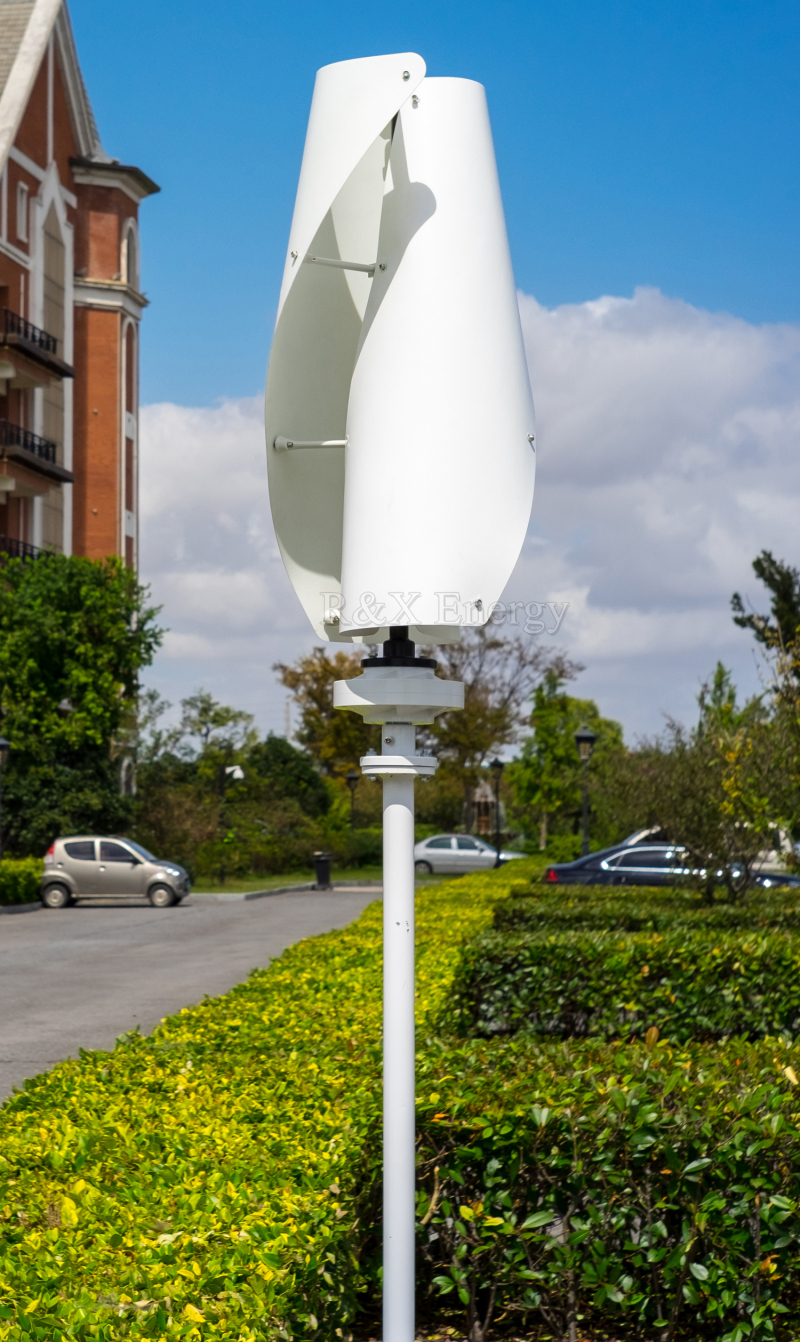

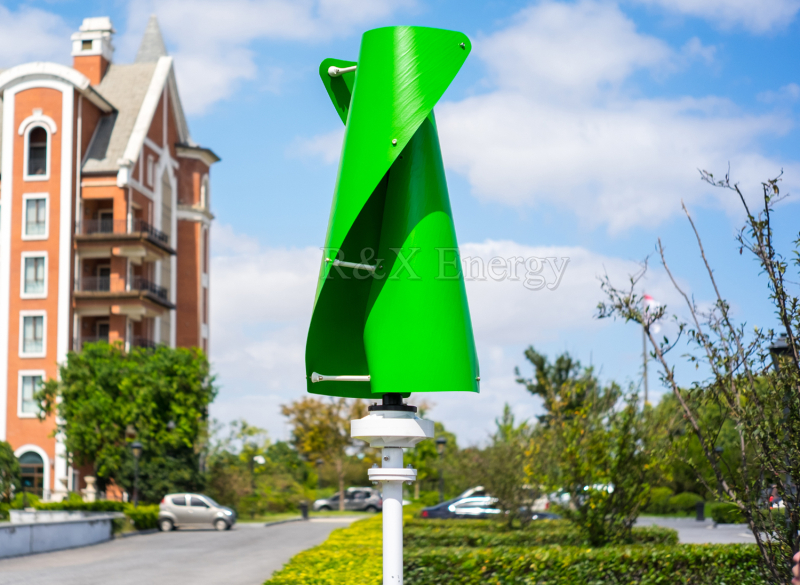

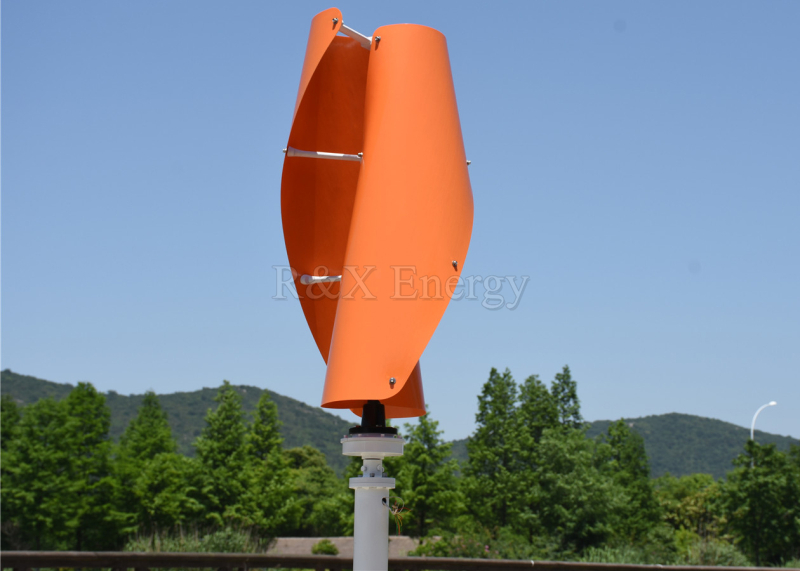

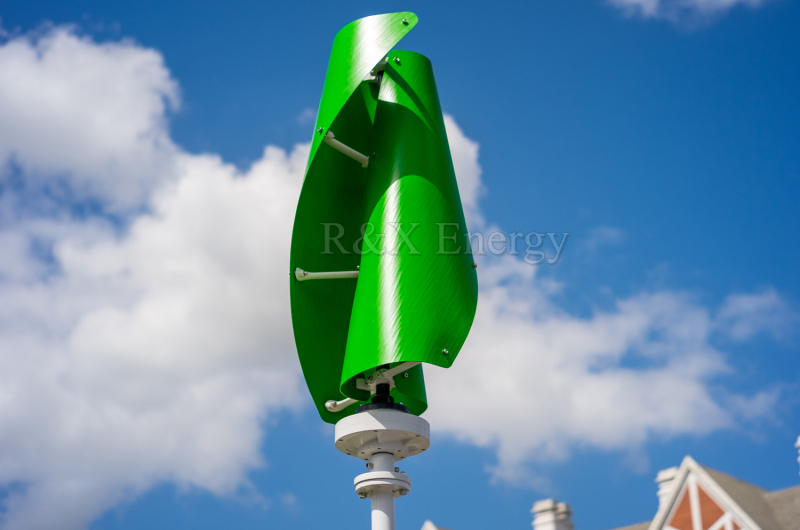

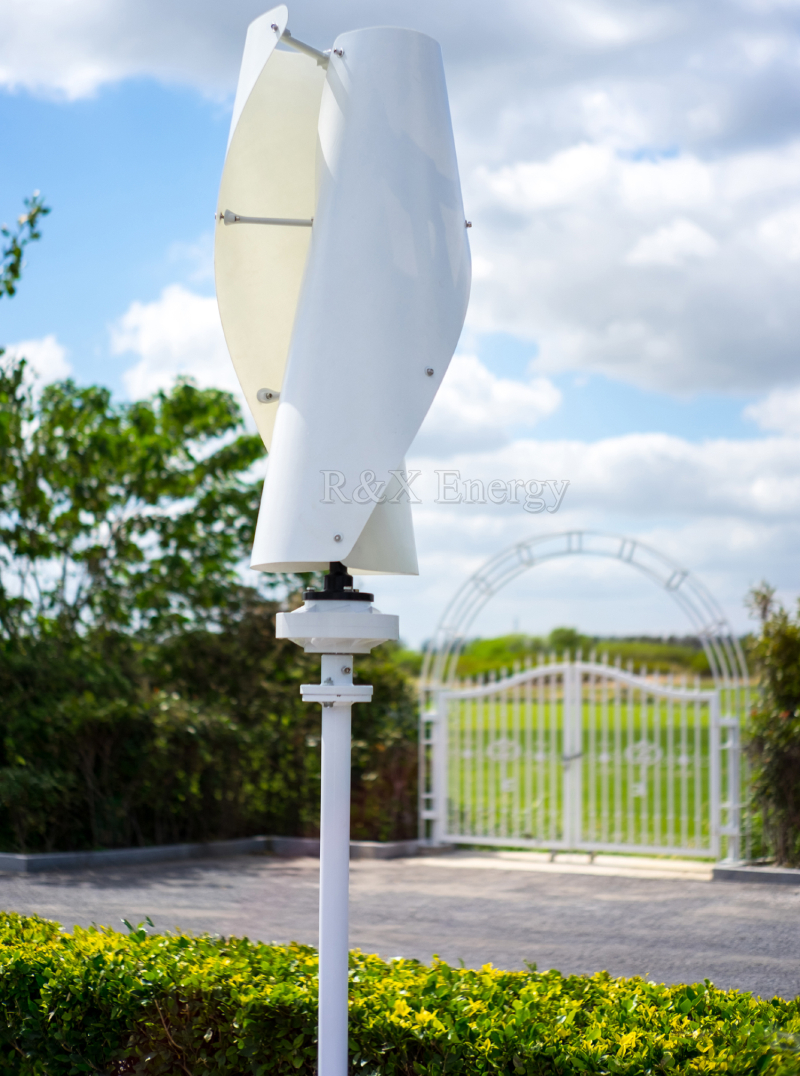

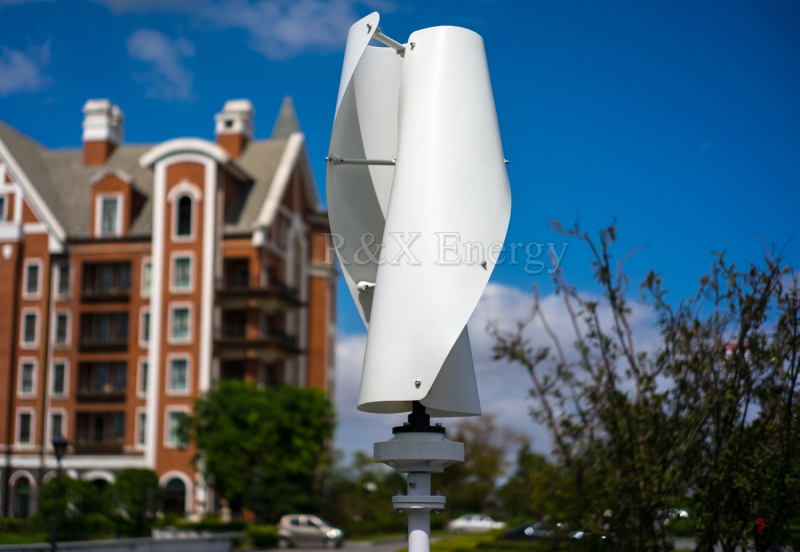

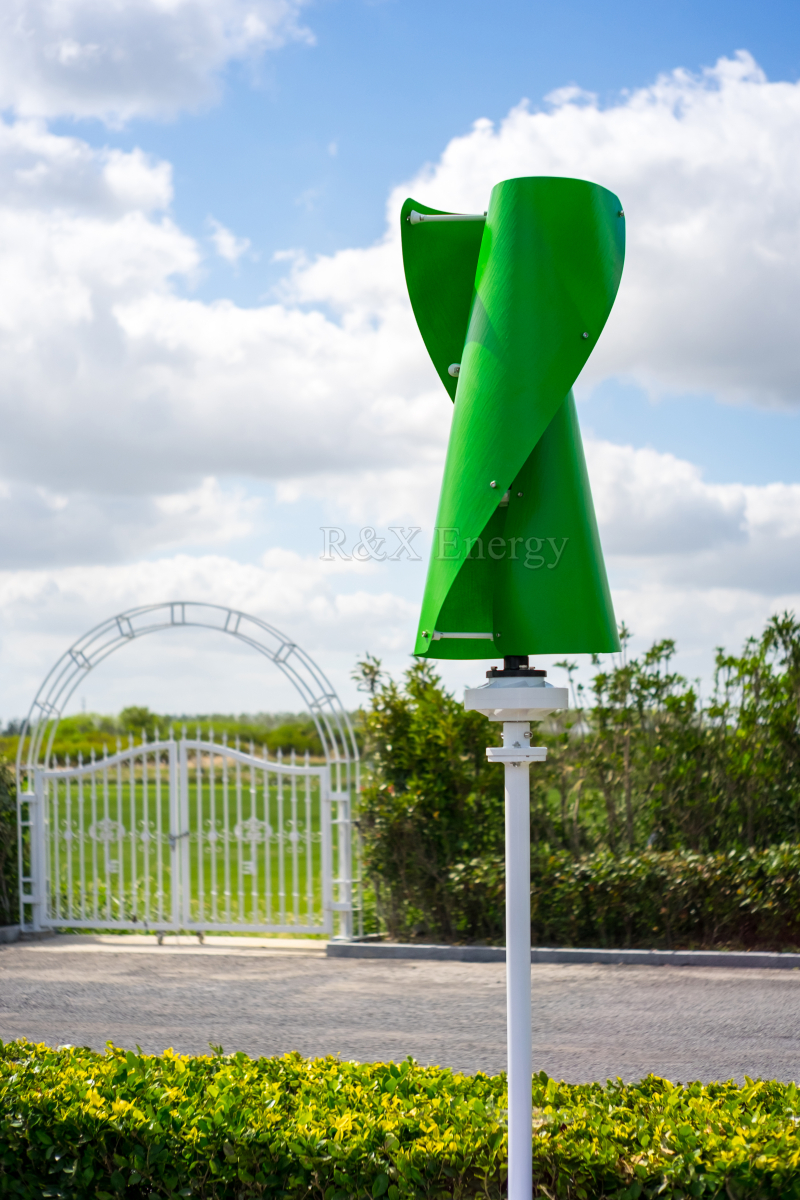

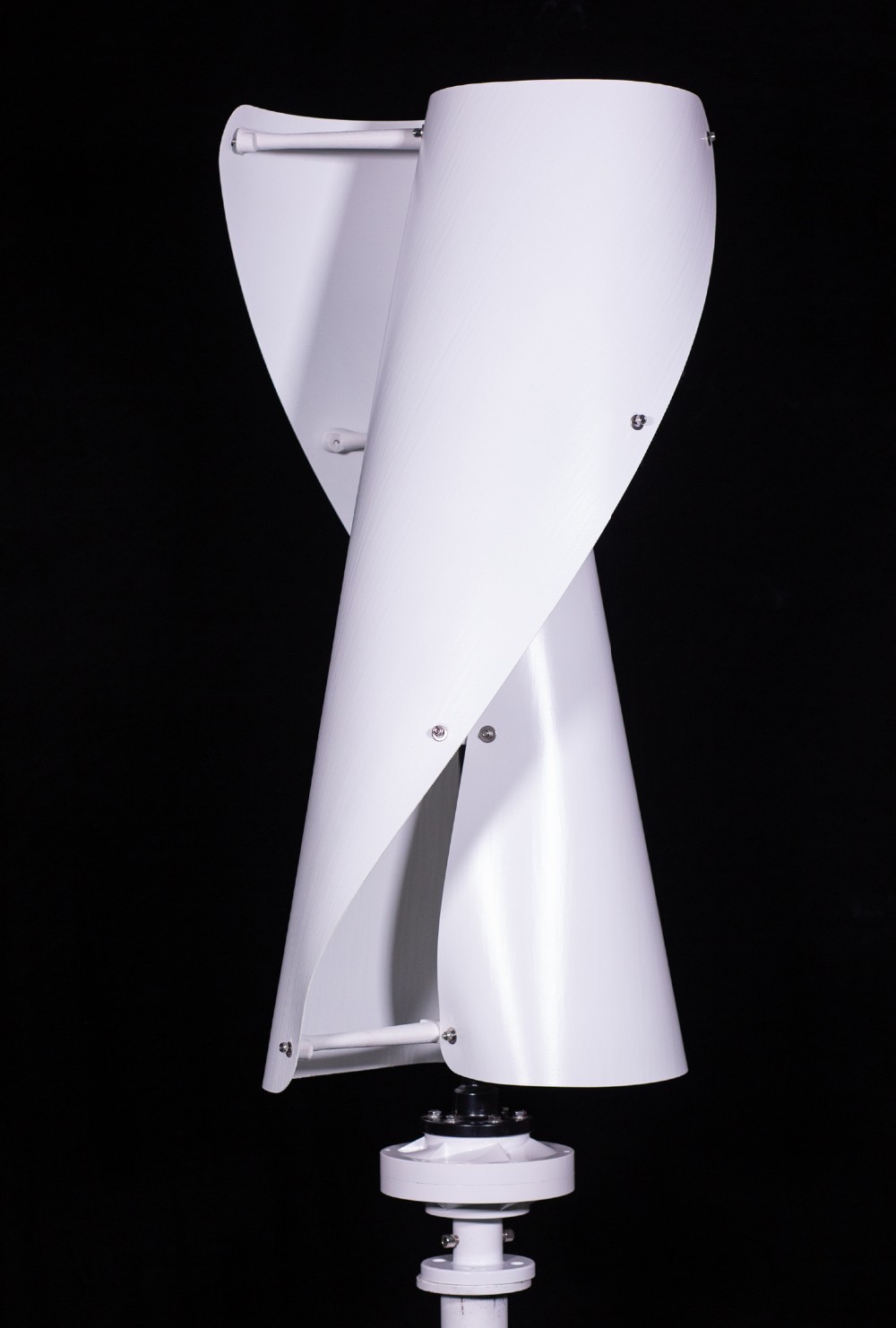

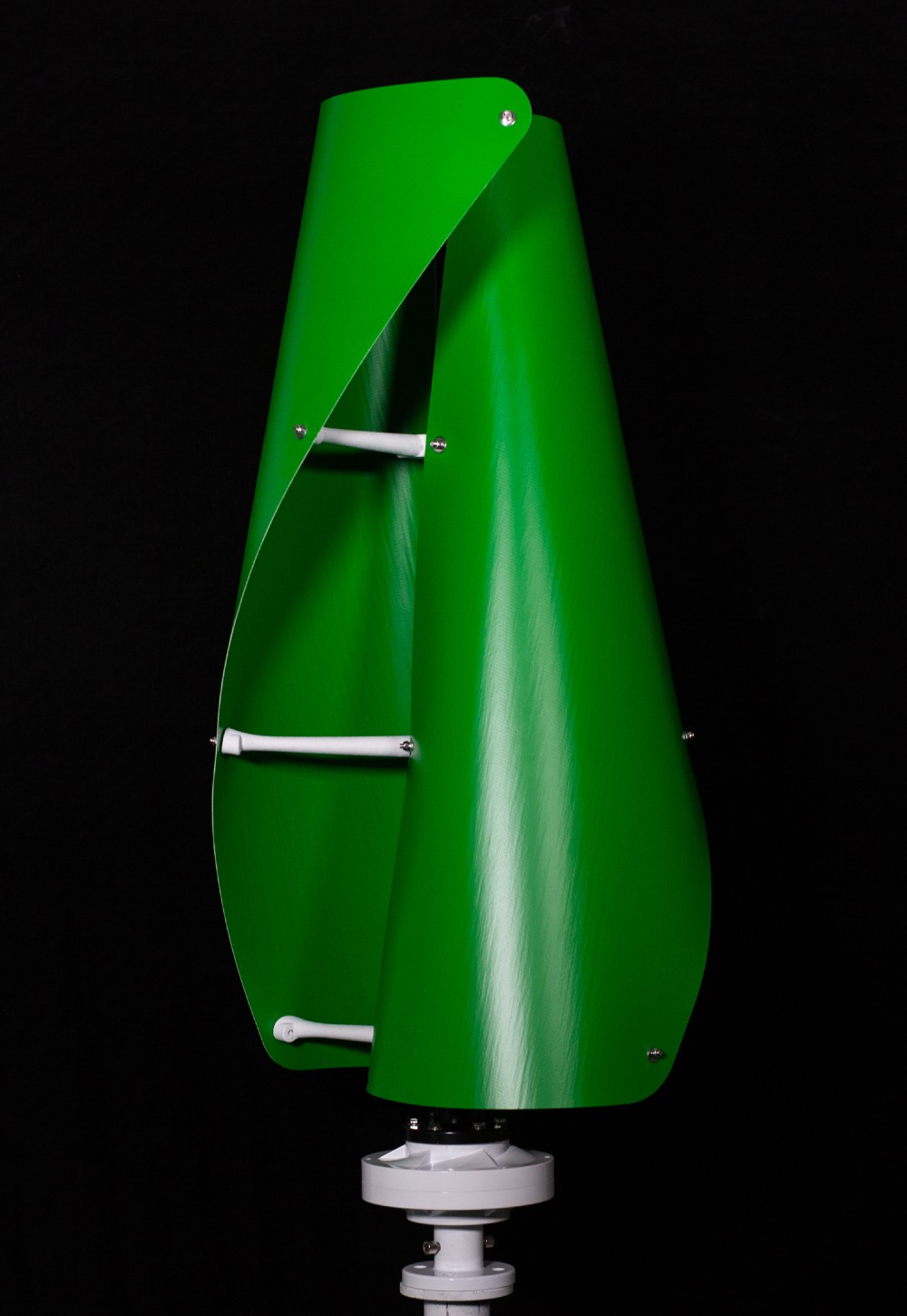

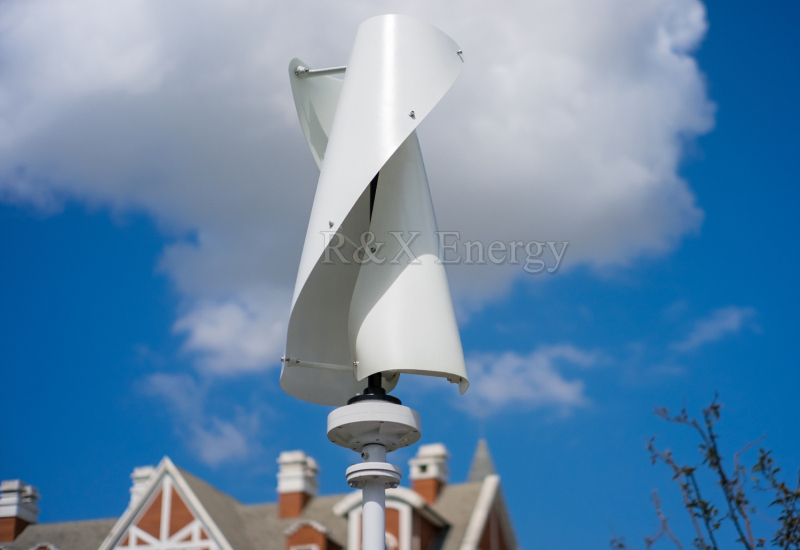

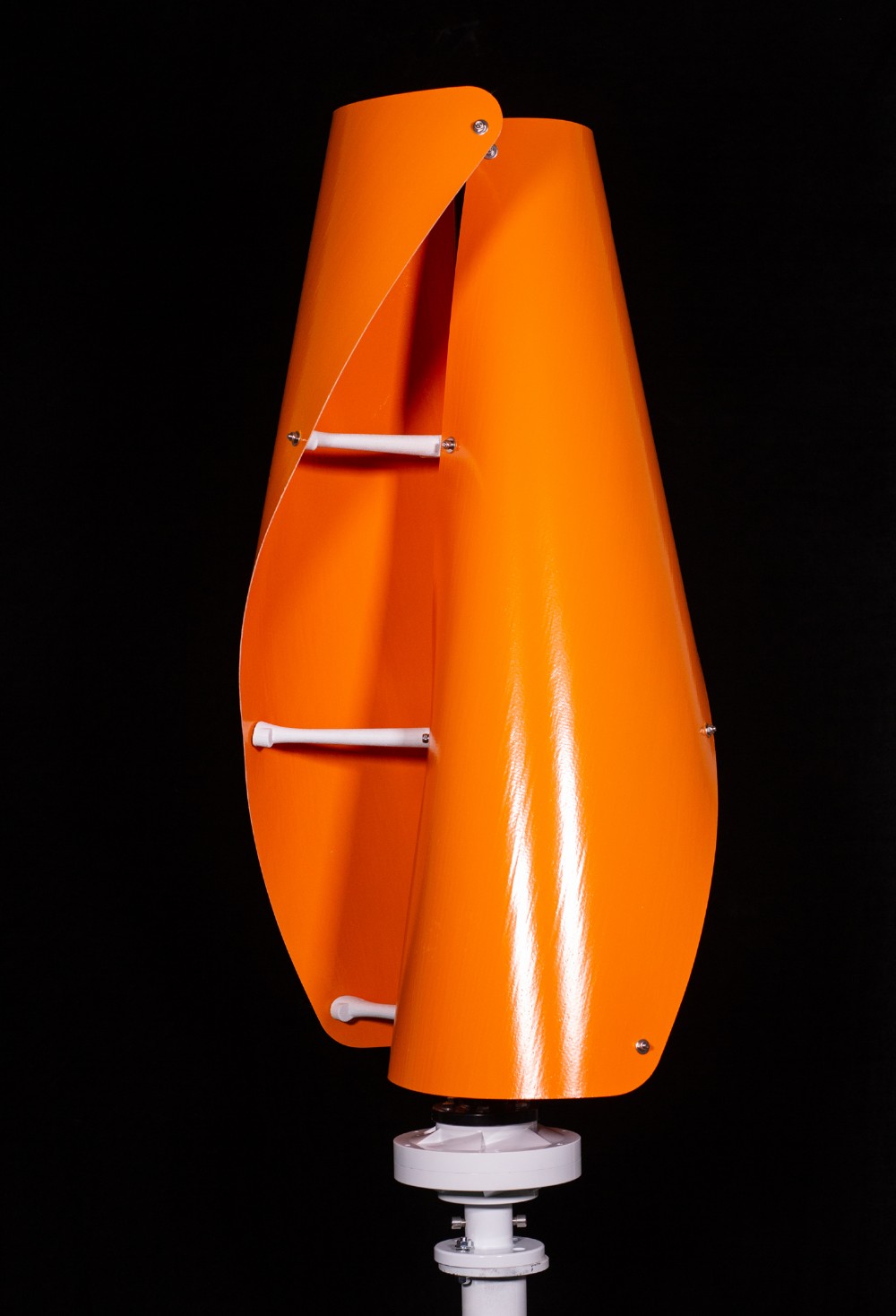

product name | vertical axis wind turbine | ||||||
Start wind speed(m/s) | 1.3 m/s | ||||||
Cut-in wind speed (m/s) | 2.5m/s | ||||||
Rated wind speed (m/s) | 12 m/s | ||||||
Safe wind speed (m/s) | Maximum wind speed: ≤40m/s | ||||||
Instantaneous maximum wind speed ≤45m/s | |||||||
Rated voltage (DC) | 24V to 220VAC | ||||||
Rated power (W) | 1000W | 2000w | 5000W | 10000W | |||
Maximum power (W) | 1100W | 2120w | 5150W | 10200W | |||
Number of blades | 2 | ||||||

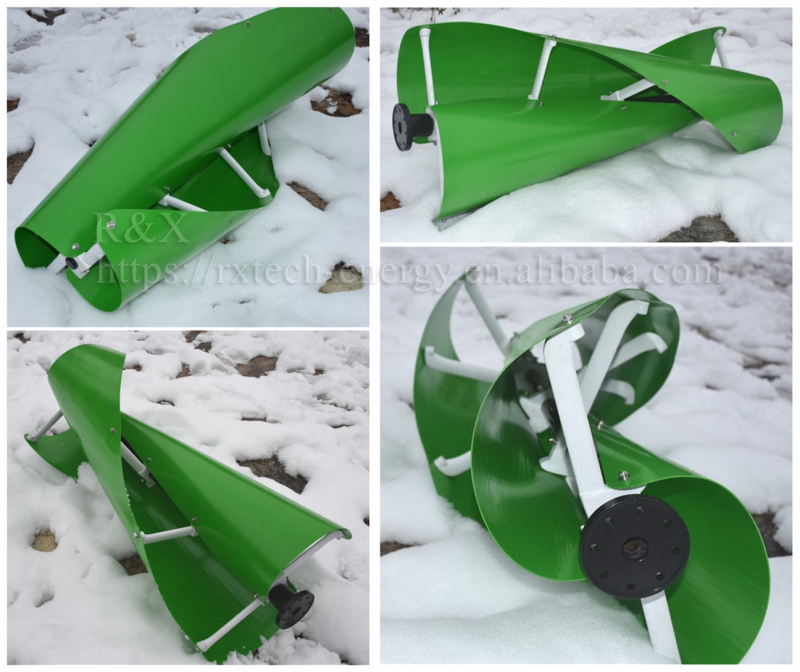

Blade material | glass/basalt | ||||||
dynamo | Three-phase permanent magnetic levitation motor | ||||||
Control System | electromagnet | ||||||
Installation height (m) | 7~12m (9m) | ||||||
Generator Protection Class | IP54 | ||||||
Working temperature | Vertical axis -25~+45℃ | ||||||
Working temperature | Controller -10~+45℃ | ||||||
Frequency conversion 0~+40℃ | |||||||
working environment humidity | Vertical axis≤90% | ||||||
Controller and inverter ≤80% | |||||||
high | ≤4500 meters | ||||||
overspeed protection | Electromagnetic brake | ||||||
overload protection | Electromagnetic brake unloading device |
