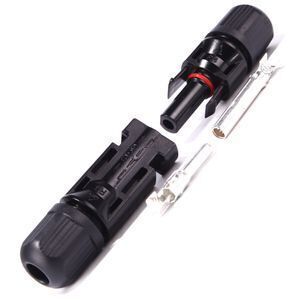

MC4 PV Connector Fit For Solar Panel System

Product details
Selling Units:Single item;Single gross weight:0.023 KG;
Application:Solar System Connection;Quality Warranty:25 Years;
Standard:DIN V VDE V 0126-5/05.08;Gender:Male&Female;
Package Type:50 pcs/Bag ;1000 Pairs/Carton;Place of Origin:Jiangsu China (Mainland);
Certificate:TUV;Delivery Detail:0 days after payment;
Single package size:10X10X5 cm;Model Number:R4;
Type:Adapter;Brand Name:R&X;
Protection Class:IP68;

MC4 PV connector IP68



Sample Purchase online:Click here











*Photovoltaic cable coupler.

*Due to highly robustness,UV-Resistance,the touch protection a high grade connection is guaranteed for 25 years.

*Acc.to DIN V VDE V 0126-3/12.06,UL1703 standard.



Technical Data of Solar Connector:

Type:R4

Electrical Features:

Rated Current

25A(2.5/4mm2),30A(4/6mm2)

Withstanding Voltage

1000V DC(TUV),600V(UL)

Contact Resistance

≤0.3mΩ

Protection Class

Class II

Mechanical Features:

Temperature Range

-40 oC~+90oC

Protection Degree

IP2X,unmated;IP68,mated

Wire Size Range

2.5/4/6mm2(14AWG,12AWG,10AWG)

Unmating Force

200 Newton

Material Features:

Insulation Material

PPO/PA

Contact Material

Copper,silver plated

Flame Class

UL94-V0 or UL94-5VA



Advantages of Solar Connector:

•Simple,quick,safe and effective filed assembly

• Develop independently,innovative design,have independent intellectual property rights,adaptive to MC4 connector directly

•High mechanical endurance

•High current and voltage carrying:30A,1000DC

•Low transition resistance

•Innovative sealed,waterproof,dust resistance design:IP68

•Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application

•Approved by TUV



Assembly instructions for connector of PV-ST04C/...Especially



•During self assembly ,parts and tools other those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

•For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled

•The end product must provided protection from electric shock

•Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted

•Disconnected connectors should be protected from dirt and water with sealing caps.

•Plugged parts are watertight IP68

+

Touch Protection,mated/unmated IP68/IP2X



Rated current 25A(2.5/4mm2)

30A(4/6mm2)

Amblient temperature -40°c ~85°c







Roted voltage 1000V

Safety class ll



+

Type

Crimping ranges



mm2

AWG

PV-SN04C/F-1

2.5/4

14/12

PV-SN04C/M-1

2.5/4

14/12



PV-SN04C/F-2

4/6

12/10

PV-SN04C/M-2

4/6

12/10



Assemble the cable and connector

(Picture 1&2)

Push the crimped contact into the socket resp.Plug insulator until it engages .

Pull lightly on the lead to check that the metal part has engaged.

Screw on the cable gland ,hand-light,with the tools PV-STX,tightening torque about:2.2Nm.



Plugging

(Picture3)

Mount the connector together until they engage.

Check correct engagement by Pulling on the coupling.



Unplugging

(Picture 4&5)

Compress the two snap-in springs by hand or with PV-STX tool and separate the coupling

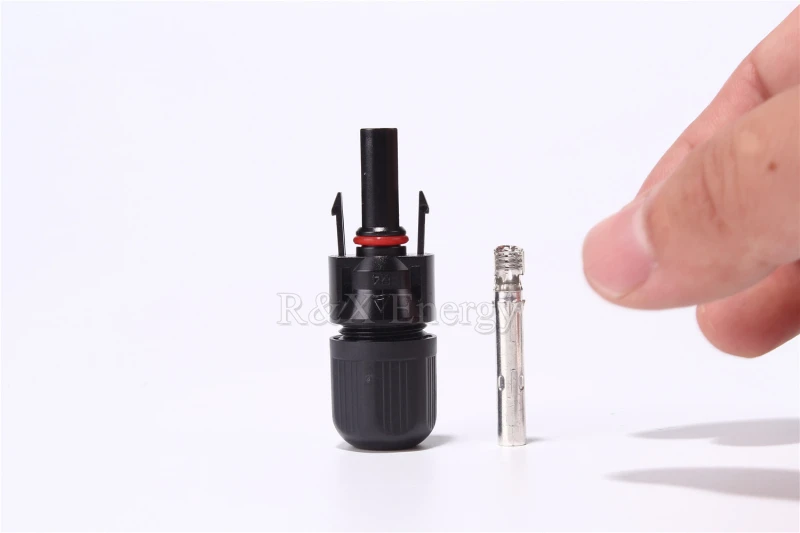

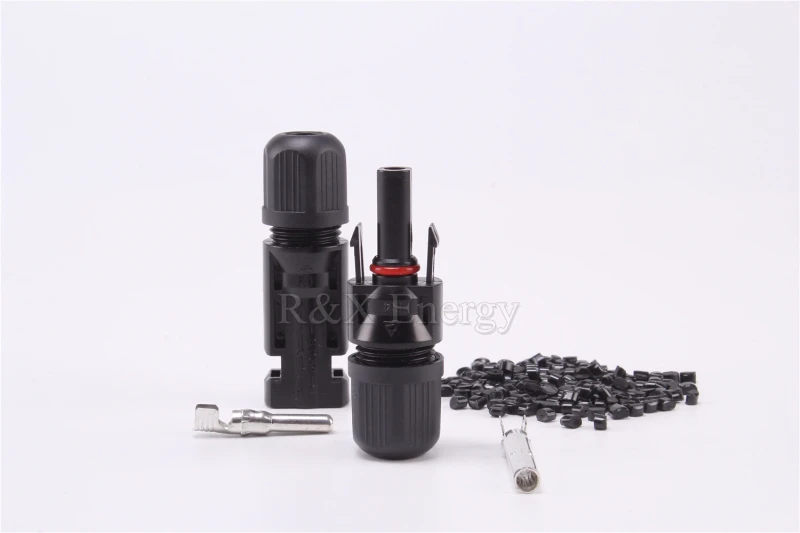

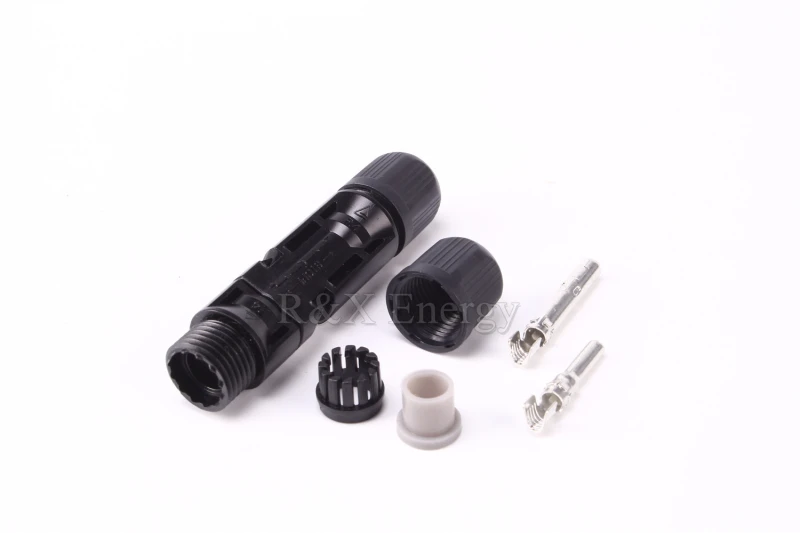

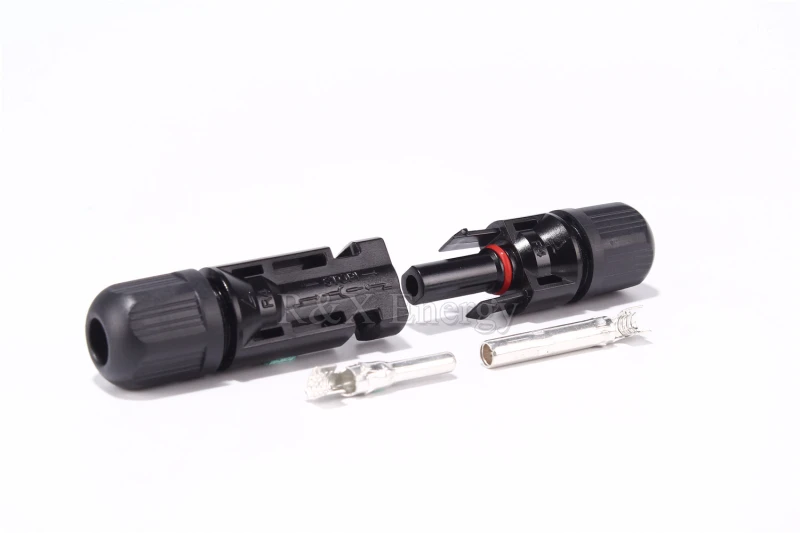

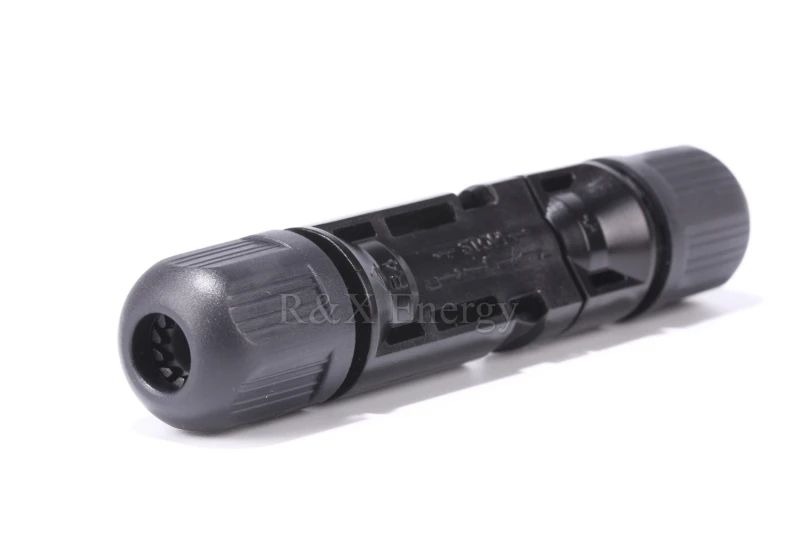

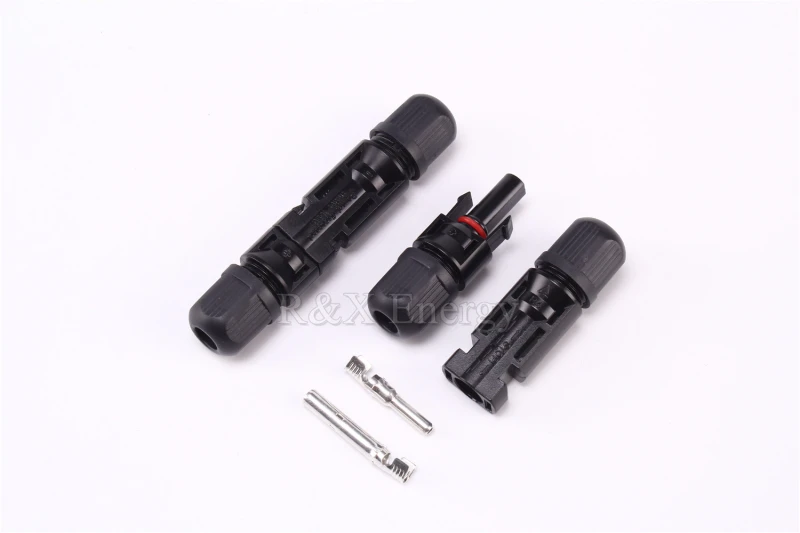

Product Pictures

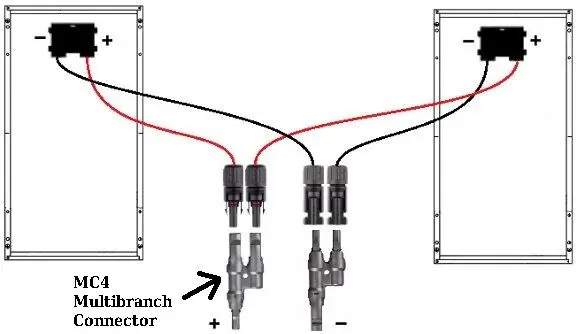

Application of series PV-Cable plugs and PV-T branch
