The Redefining MC 4 Pairs/bag Connector Solar For Solar Energy Systems

Supplier: Nantong R&x Energy Technology Co., Ltd.
Region: Jiangsu, China
Contact: Ms Shelly Zhou
Price: $0.25 / >=50 pairs
Min. Order: 50 pairs

Click here to contact

Product details

Brand of raw material:	SABIC Innovative Plastics;	Packaging Detail:	100pairs/bag;
Quality Warranty:	25 Years;	Certificate:	TUV;
Selling Units:	Single item;	Single gross weight:	0.022 KG;
Package Preview:	;	Material:	PC;
Place of Origin:	Jiangsu China;	Single package size:	10X2X1.5 cm;
Model Number:	R4;	Pins:	2P;
Gender:	Male&Female;	Application:	Solar System Connection;
Brand Name:	R&X;	Type:	ADAPTER;

Product Description

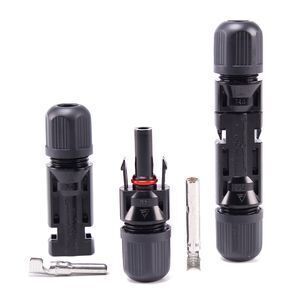

*Photovoltaic cable coupler.

*Due to highly robustness,UV-Resistance,the touch protection a high grade connection is guaranteed for 25 years.

*Acc.to DIN V VDE V 0126-3/12.06,UL1703 standard.

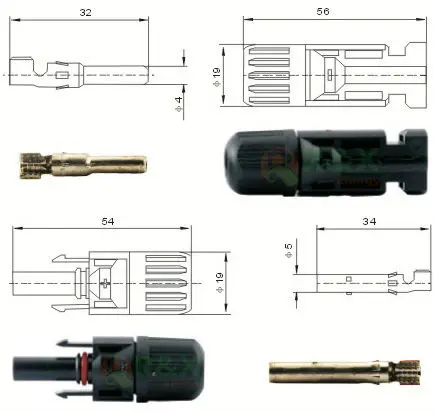

Technical Data of Solar Connector:

Type:R4
Electrical Features:
Rated Current	22A(2.5mm²), 35A(4mm²),40A(6mm²)
Withstanding Voltage	1500V DC(IEC),1000V/1500V DC(UL)
Contact Resistance	≤0.3mΩ
Protection Class	Class II
Mechanical Features:
Temperature Range	-40 ºC~+90ºC
Protection Degree	IP2X,unmated;IP68,mated
Wire Size Range	2.5/4/6mm²(14AWG,12AWG,10AWG)
Unmating Force	200 Newton
Material Features:
Insulation Material	PC
Contact Material	Copper,Tin plated
Flame Class	UL94-V0 or UL94-5VA

Advantages of Solar Connector:

•Simple,quick,safe and effective filed assembly

• Develop independently,innovative design,have independent intellectual property rights,adaptive to solar connector directly

•High mechanical endurance

•Low transition resistance

•Innovative sealed,waterproof,dust resistance design:IP68

•Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application

•Approved by TUV

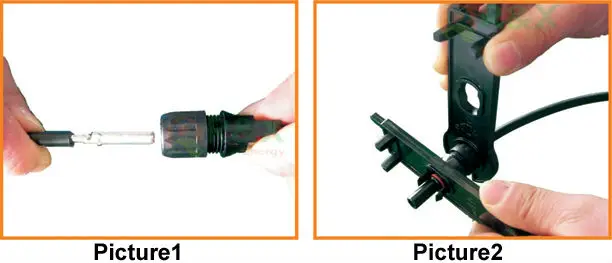

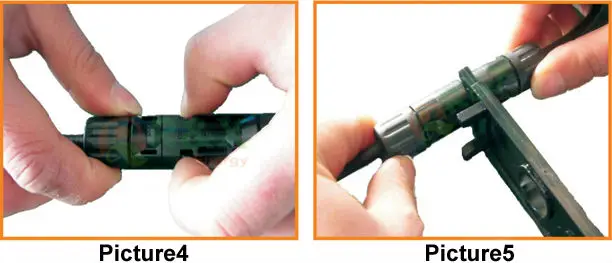

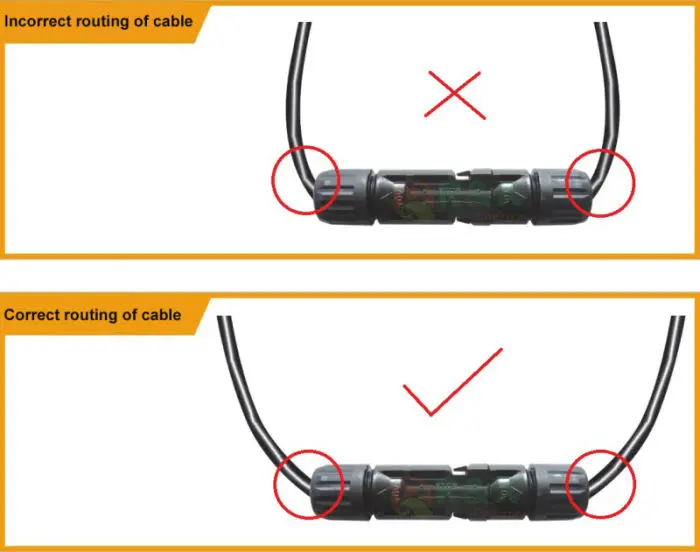

Assembly instructions for connector of PV-R4C/...Especially

•During self assembly ,parts and tools other those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

•For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled

•The end product must provided protection from electric shock

•Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted

•Disconnected connectors should be protected from dirt and water with sealing caps.

•Plugged parts are watertight IP68

Touch Protection,mated/unmated IP68/IP2X	Rated Current 22A(2.5mm2) ,35A(4mm2) ,40A(6mm2)
Amblient temperature -40°c ~85°c	Roted voltage 1500V DC
Amblient temperature -40°c ~85°c	Safety class ll

Type	Crimping Ranges
	mm²	AWG
PV-R4C/F-1	2.5/4.0	14/12
PV-R4C/M-1	2.5/4.0	14/12
PV-R4C/F-2	4.0/6.0	12/10
PV-R4C/M-2	4.0/6.0	12/10
