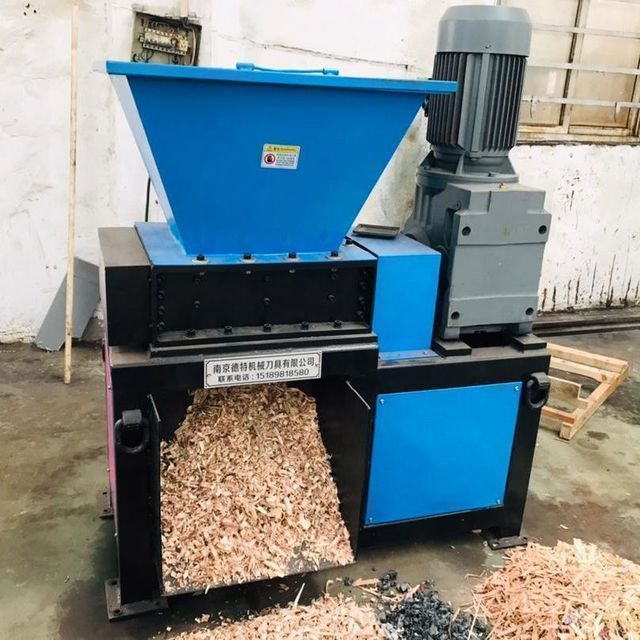

Automatic Plastic Shredder Industrial Heavy Duty Single Shaft Steel Shredder Wood Shredder

  • Supplier: Nanjing Dete Machine Tool Co., Ltd.
  • Region: Jiangsu, China
  • Contact: Mr amalia
  • Price: $1600.00 / 1 - 4 sets
    $1500.00 / 5 - 9 sets
    $1300.00 / >=10 sets
  • Min. Order: 1 set
Product details
Supply capacity:3000 sets per yearplace of origin; place of origin:Nanjing, Jiangsu Province, China
Applicable industries:Hotels, Clothing Stores, Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction, Energy and Mining, Food and Beverage Stores, Other, Advertising companyMarketing Type:New Products 2022
port:Shanghai, NingboPlastic Type:PVC,PET,ABS,PP/PE,PE,PP,PMMA,PA,PS
Dimensions (L*W*H):custom madeMain selling points:easy to operate
Type of machine:plastic shredderfeature:Efficient, safe and long life
brand:detbrand:det
use:waste plastic shreddersize:customer drawing
Warranty:motor 1 yearDrive mode:gear
Showroom location:PakistanPackaging Details:1. Multiple layers of plastic wrap and cardboard protect the plastic recycling machine from dust and moisture. 2. Plastic packing straps are used to fix the packaging film and the machine, and are also used to fix the machine inside the container. 3. When choosing LCL, air freight or international express, use wooden case as outer packing and spare parts. 4. An excellent logistics team ensures the safe delivery of the shredder to the location designated by the customer.
Mechanical test report:ifProduction capacity (kg/hour):100 - 2500 kg/h
Maximum production capacity (kg/h):2500Material:Metal
Video shipment inspection:ifState of health:new
Package:wooden boxCore component warranty:1 year
Voltage:custom madeAfter warranty service:Video technical support
Shaft design:doubleAfter-sales service:online support
Weight (ton):6.8Package preview:
Key words:shredder shredderpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Core components:motor
Product Description
Shredder Product Advantages:
1. The knife holder and blade on the rotor are detachable, which is convenient for cleaning, maintenance and maintenance;
2. Each moving knife has 4 cutting edges, which can be rotated 90° for continued use after wear;
3. The main shaft is driven by a gear reducer, with stable operation, low noise and large torque;
4. The PLC program control system is adopted, which can automatically reverse and make the machine run smoothly;
5. The box body is tempered after welding to eliminate welding stress;
6. The installation position of the moving knife is precisely processed by the machining center to ensure that the gap between the moving knife and the fixed knife is the same;
7. The moving knife holder is embedded in the knife shaft with high-strength screws. It can prevent the phenomenon of knife drop caused by long-term vibration of welding type.
8. It is easy to transport after tearing, which can reduce transportation costs and improve transportation efficiency, which is convenient and fast
Secondary processing.
show details

shredder blade

Forged shredder blades,

Annealing heat treatment, tempering heat treatment

Wire cutting fine grinding preservation.

Shredder drive

Shredder gearbox adopts steel plate

welding, high precision, good contact, low

Low noise and long service life.

drive part

Shredder transmission parts adopt

coupling links, reduce vibration, protect

Main shaft and reducer, no power loss.

shredder motor

Shredder adopts copper core motor

to reduce energy consumption and have long-term

service life.
Types of Shredded Items
