Maximum production capacity (kg/h): | 500 | Mechanical test report: | if |
Dimensions (L*W*H): | 900*500*1250 | Applicable industries: | Hotel, clothing store, building material store, manufacturing plant, machinery repair shop, food and beverage factory, farm, restaurant, household, retail, food store, printing shop, construction, energy and mining, food and beverage store, advertising agency, other |
capacity: | 400-500kg/hour | Type of machine: | paper shredder |
Plastic Type: | PVC, PET, ABS, PP/PE, PE, PP, PC, PMMA, PA, PS | Key words: | Strong Plastic Crusher |
Packaging Details: | We use wooden box packing, very safe packing | Health status: | new |
engine: | 1 motor | Supply capacity: | 30 sets per month |
port: | Shanghai Port/Ningbo Port | use: | waste plastic shredder |
After-sales service provided: | Video Technical Support | Voltage: | 380V220V/customized, 220V/380V |
Production capacity (kg/hour): | 400 - 500 kg/h | color: | custom color |
Weight (ton): | 0.8 | Package preview: | |
Warranty: | 2 years | payment terms: | L/C, Western Union, T/T, MoneyGram |
Core component warranty: | 2 years | Origin: | China, Jiangsu, China |
Power (kW): | 3 | Video outbound inspection: | if |

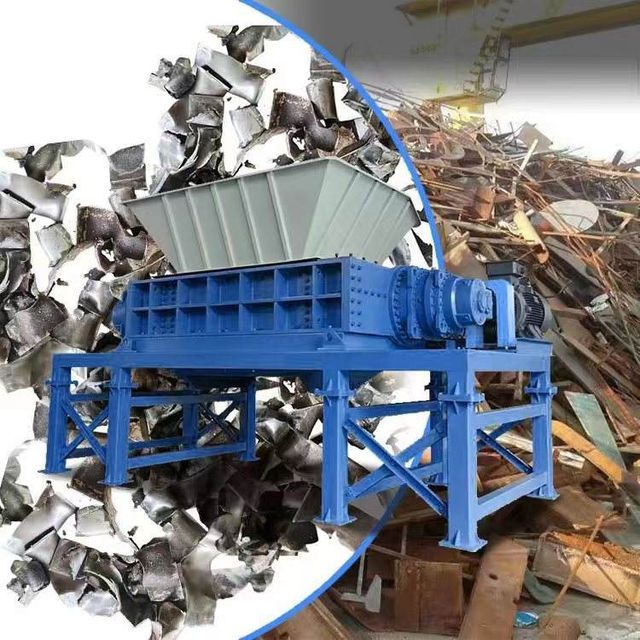

brand: | Hanxin | Name: | Double Shaft Shredder |
Finished goods: | small plastic waste | Main selling points: | High security level |
MOQ: | 1 | Core components: | Pressure vessels, motors, bearings, gears, PLCs, pumps, engines, gearboxes |
Showroom location: | not any |
Model | 180 | 300 | 400 | 500 | |||
engine | 1.5KW | 3 kW | 4 kW | 7.5 kW | |||

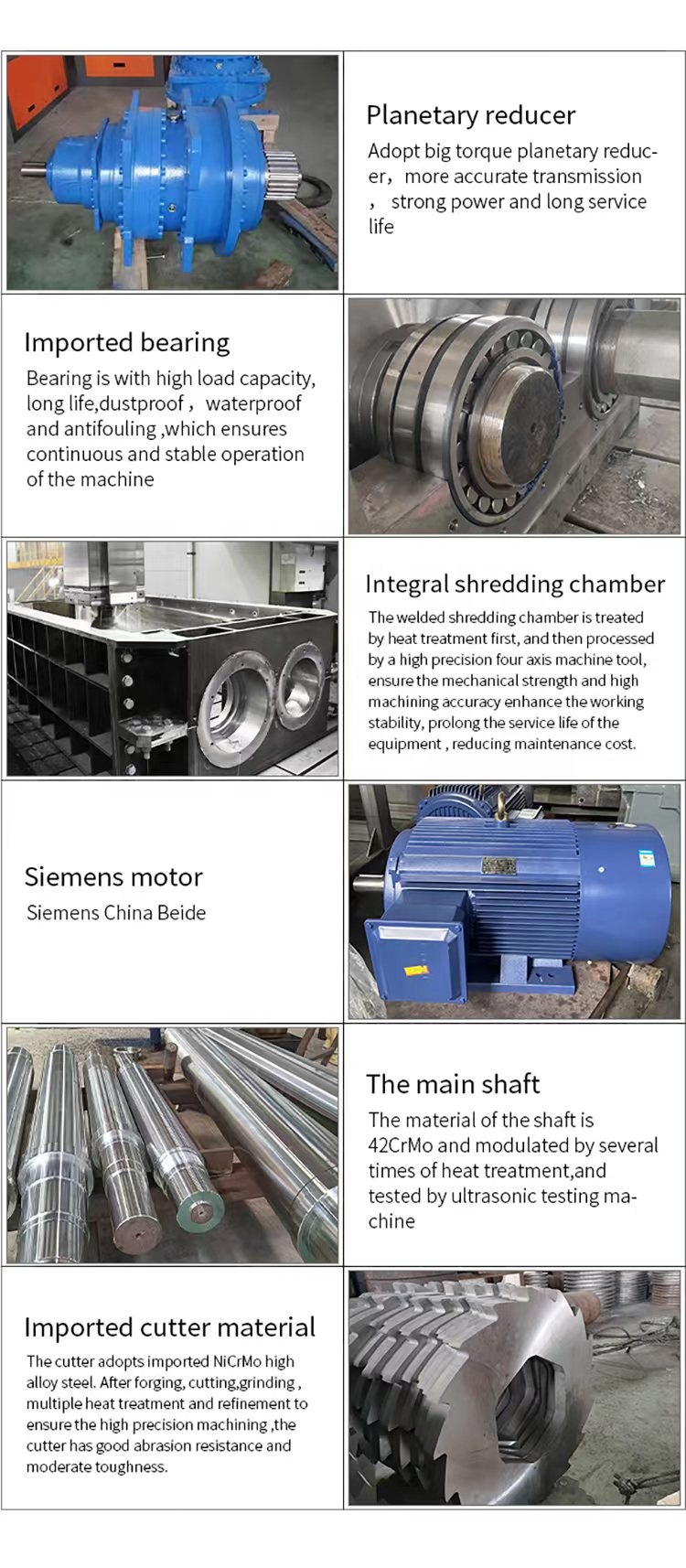

reducer | JL1#-16 | JL2#-16 | JL3#-12 | JL4#-15 | |||
input speed | 16 rpm | 16 rpm | 12 rpm | 15 rpm | |||
Spindle diameter(mm) | Φ35 | Φ50 | Φ60 | Φ70 | |||
Blade size(mm) | Φ90*8 | Φ180*12 | Φ180*15 | Φ200*20 | |||
Number of blades | 21 pieces | 24 pieces | 26 pieces | 24 pieces | |||
Dimensions (mm) (L*W*H) | 1350*650*1200 | 1100*650*1350 | 1160*600*1450 | 1350*700*1600 | |||
machine weight | 120 kg | 500 kg | 600 kg | 750 kg | |||
application | Light metal products, plastic products, food waste, wood, paper, etc. |
