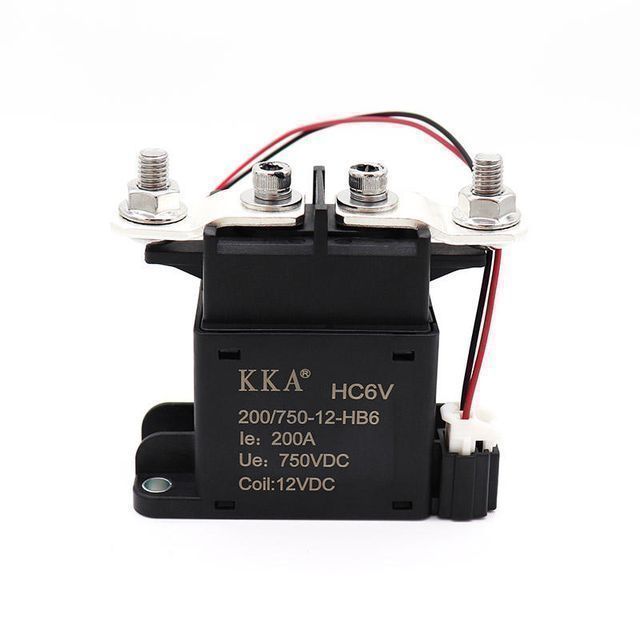

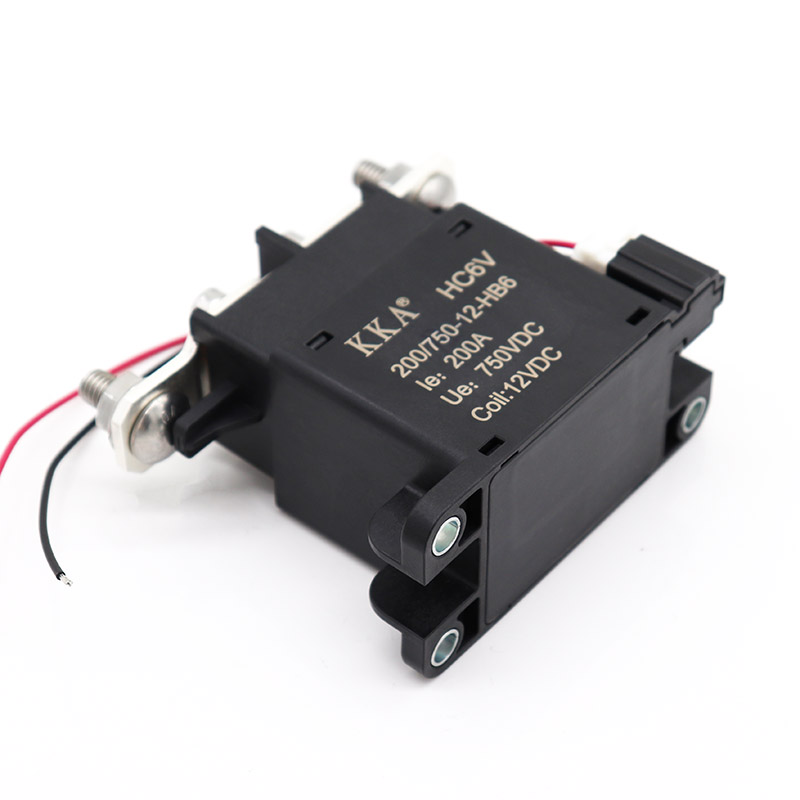

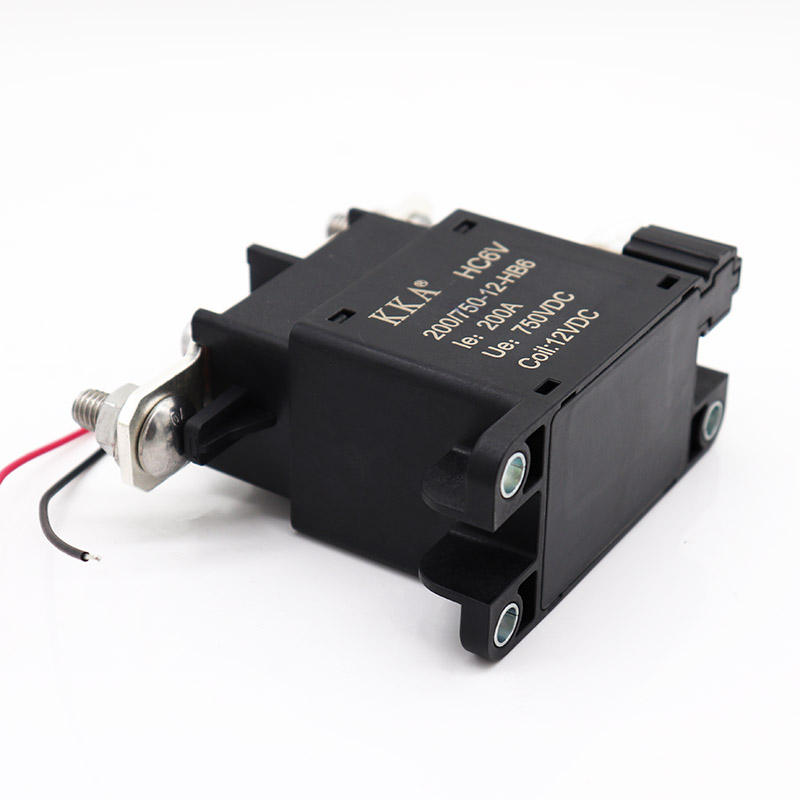

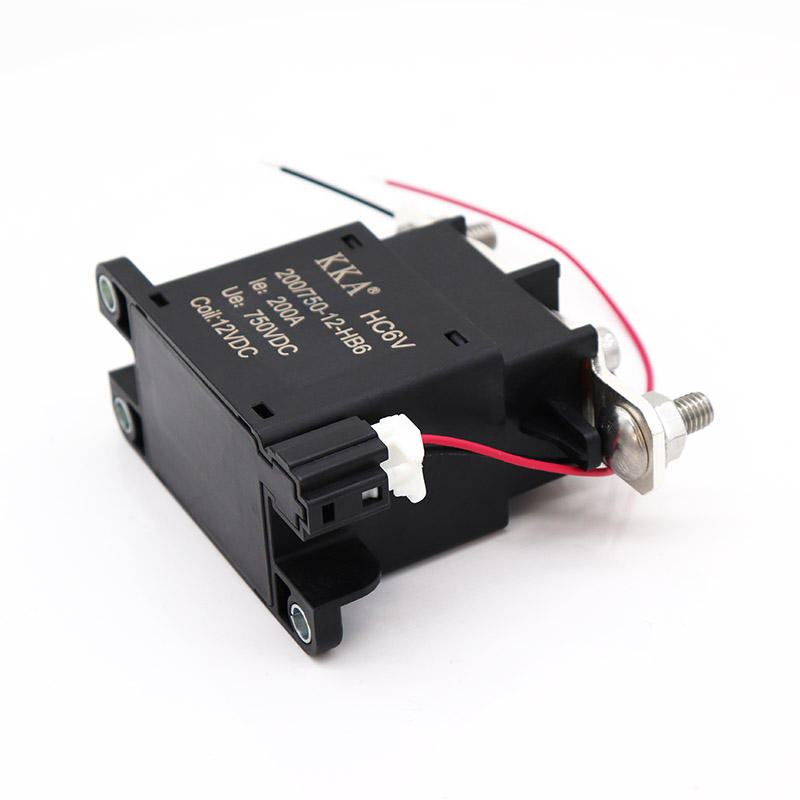

12V/24V 200A High Voltage DC Automotive Relay, Magnetic Arc Quenching Relay for EV Electrical System, DC Devices

Supplier: Zhejiang KKA Electrics Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Haohao Wei
Price: $39.00 / 1 - 99 pieces
$35.00 / 100 - 999 pieces
$31.50 / >=1000 pieces
Min. Order: 1 piece

Click here to contact

Product details

feature:	Magnetic arc extinguishing	port:	Ningbo Port/Wenzhou Port/Yiwu Port
Voltage:	12V/24V	Coil release voltage (VDC):	≥1V/2V
car brand:	common	Supply capacity:	1000 pieces per day
Coil pull-in voltage (VDC):	≤9V/18V	Original serial number:	KKA-HC5V-200-750
Warranty:	1 year	Rated current:	200A,200A
model:	KKA-HC5V-200-750	Packaging Details:	1/box
weight:	593 grams	payment terms:	L/C, D/P, T/T
Contact list:	1 hour	Short-time current:	300A (30 minutes) 1600A (10 seconds)
brand:	KKA	Origin:	Zhejiang, China

feature

● Rated -50A (75A-30min)

● Contacts are sealed in ceramic housing

● RoHS, CE certification

● Magnetic arc extinguishing

● High voltage DC cut off

● Small size, light weight, safer

● Customizable

application

● Battery charging system

●High Power DC Equipment

● Industrial equipment

● New energy vehicle device

contact rating
Contact list	1 hour
rated current	200A
maximum. switching voltage	750VDC
short-time current load	300A-30min 1600A-10s

Coil Rating
Q	12V/24V
Pick up voltage.	≤9VDC/18VDC
Release the voltage.	≥1VDC/2VDC

Q1: Wonder if you accept small orders?
A1: Don't worry. Please feel free to contact us. In order to get more orders and provide more convenience to our customers, we accept small orders.

Q2: Can you send the product to my country?
A2: Sure. If you don't have your own forwarder, we can help you.

Q3: Can you do OEM for me?
A3: We accept all OEM orders, just contact us and give me your design. We will offer you a reasonable price and make samples for you.

Q4: What is your payment terms?
A4: By T/T, L/C at sight, 30% deposit in advance, balance 70% before shipment.

Q5: How long is your production lead time?
A5: It depends on the product and order quantity. Usually, it takes us 15 days for an order with MOQ quantity.

Q6: When can I get the quotation?
A6: We usually quote you within 24 hours after we get your inquiry. If you need a quotation urgently. Please call us or tell us in your mail so that we will regard your inquiry priority.
