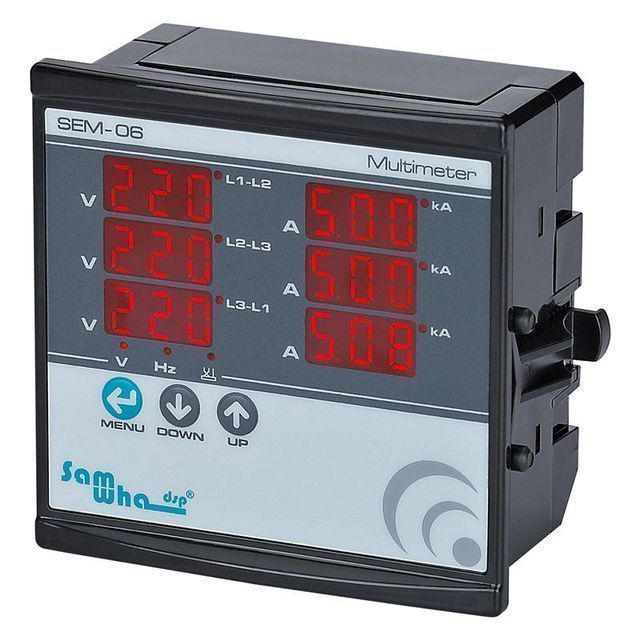

Samwha-dsp Sem-06 Multimeter Digital Panel Meter Mini Digital Measuring Device

Supplier: Zhejiang Hannuo Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr cheung
Price: $12.00 / 2 - 49 pieces
$11.50 / >=50 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Display type:	numbers only	measurement accuracy:	±%1
payment terms:	L/C, D/P, T/T	Origin:	Zhejiang, China
Operating power:	<6VA	Measuring range:	1V - 500V AC
Working voltage (Un):	140V - 270V AC	Operating temperature:	-20°C - +55°C, -20...+50°C
Panel hole size:	91x91mm	brand:	Sanhe-dsp (OEM ODM)
working frequency:	50/60 Hz	product name:	multimeter
aspect:	96*96	exhibit:	(3 digits) 6x displays + 9 LEDs
model:	SEM-06	Connection Type:	plug-in terminal
Function:	Volt (LL) (LN), ampere, frequency, phase sequence display

Product Description

General

The SEM-06 multimeter is designed to display three-phase current, voltage and frequency.

Purpose and working principle

Connect according to the diagram. Connect the current transformers before connecting the charge to the system. The current transformer does not detect the previously connected voltage. Apply a maximum current input of 5 A. Once the device is powered, press the menu button. Press the Up-Down buttons to enter the current value you are using, to save it press the Menu button again. If the current transformer value is over 1000/5, make sure you can see the kA LED. Under normal working conditions, when the current value exceeds 1000A, the KA light belonging to this phase is on. You can observe the current values of the system through the second display group on the right side of the screen. You can see the phase-to-phase and phase-to-neutral frequencies in the first set of displays. The led lights up when the voltage value (V) is displayed. When the up button is pressed, the phase-phase range can be seen. You can see the LEDs on the phase-to-phase when the phase-to-phase value is displayed. When you press the up button, you can see the frequency value and the Hz indicator lights up. Phase sequence: If the phase sequence is reversed, you can see (x) led occurs in the first display group.

maintain

Turn off the device and disconnect it. Clean the trunk of the device with a cotton swab. Do not use any conductors or chemicals that may damage the device. Make sure the equipment is working properly after cleaning.

warn

Please use the device according to the instruction manual. Do not use the device in a wet environment. Include a switch and circuit breaker in the assembly. Place switches and circuit breakers near the equipment where operators can easily reach them. Mark the switch and circuit breaker as the device release connection.

Specification
Working voltage (Un)	140V - 270V AC
working frequency	50/60 Hz
Working power	<6VA
Operating temperature	-20°C......+55°C
Voltage measurement range	1V - 500V AC
Measuring range	5/5A - 9995/5A (100mA-5A)
measurement accuracy	±%1
exhibit	(3 digits) 6x displays + 9 LEDs
Connection Type	plug-in terminal
Cable diameter	1.5 square millimeters
weight	maximum. 325 grams.
Panel hole size	91x91mm
Install	front panel
working altitude	<2000 meters
