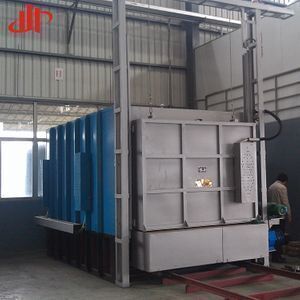

Promotional big trolley type stress relieving annealing industrial furnace

Product details
Voltage:380V;Condition:New;
Packaging Detail:The container size: 20'GP:5800mm(L)x2300mm(W)x2360mm(H) 40'GP:11800mm(L)x2300mm(W)x2360mm(H) 40'HC:11800mm(L)x2300mm(W)x2680mm(H);Payment Terms:L/C,T/T;
Supply Ability:200 Unit/Units per Year;Port:Shanghai or Ningbo;
Type:Resistance Furnace;Power(W):45KW-900KW;
After-sales Service Provided:Engineers available to service machinery overseas;Warranty:1 Year;
Certification:ISO9001:2008;Dimension(L*W*H):1200*600*500;
Brand Name:QF;Weight:customized;
Usage:Heat Treatment Furnace;Place of Origin:Zhejiang China (Mainland);



Model

Rated power

Phase number

Voltage

Rated temperature

Chamber size

(mm)

RT2-45-9

45KW

3

380V

950℃

1200*600*500

RT2-75-9

75KW

3

380V

950℃

1800*600*500

RT2-120-9

120KW

3

380V

950℃

2000*600*600

RT2-180-9

180KW

3

380V

950℃

2400*1100*800

RT2-220-9

220KW

3

380V

950℃

2600*1200*1000

RT2-260-9

260KW

3

380V

950℃3000*1500*1100

RT2-280-9

 280KW3380V950℃3000*1700*1200
 RT2-320-9 320KW3 380V950℃3200*1800*1300
RT2-400-9 400KW3 380V950℃4000*2000*1500
RT2-500-9 500KW3 380V950℃5000*2000*1200

RT2-500-9

500KW

3 380V950℃6000*1500*1200

RT2-600-9

600KW

3 380V950℃6000*2000*1500

RT2-900-9

900KW

3 380V950℃10000*2000*1500

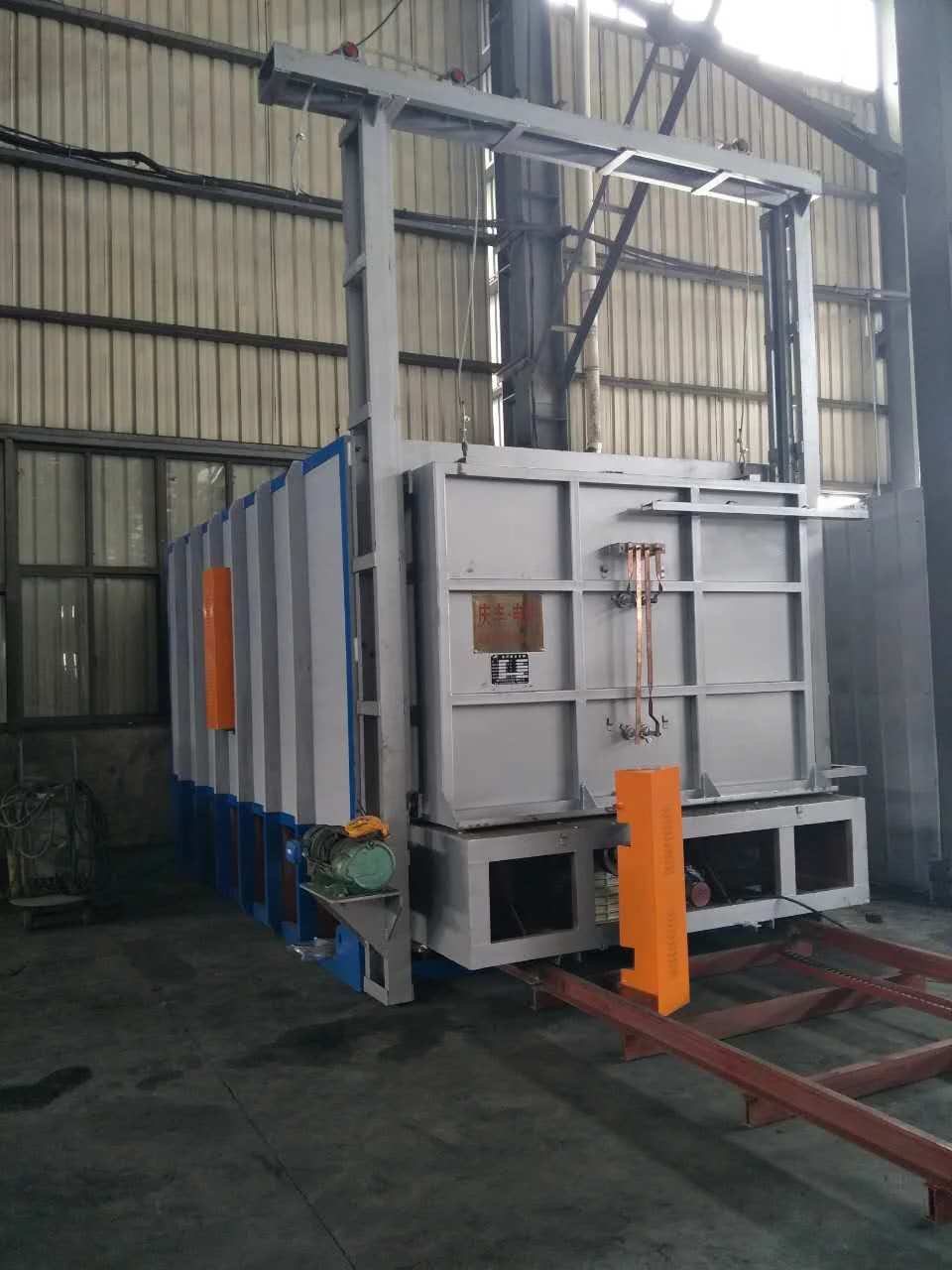

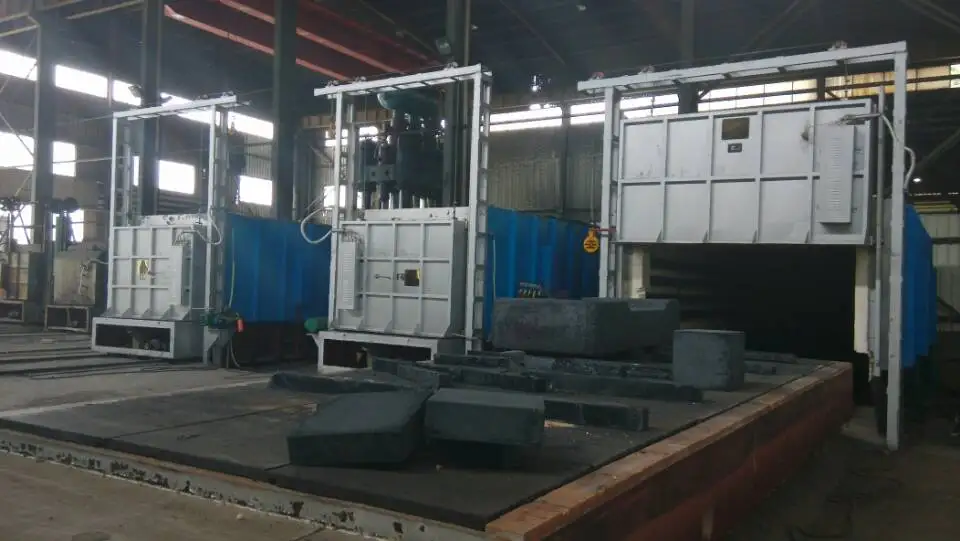

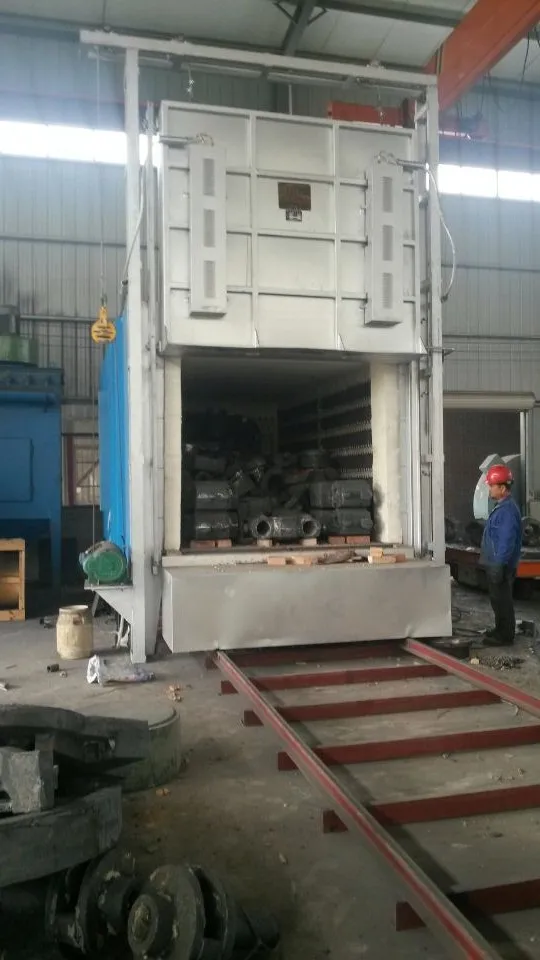

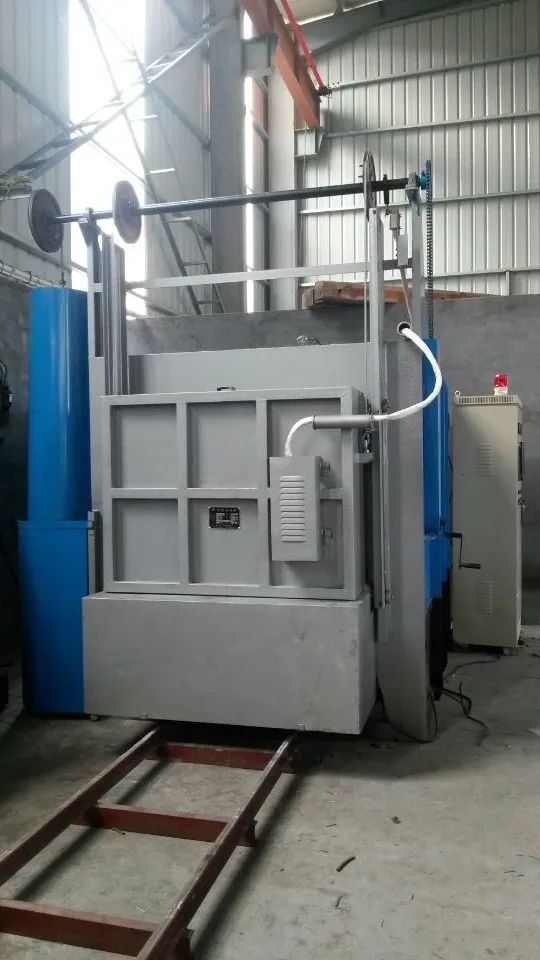

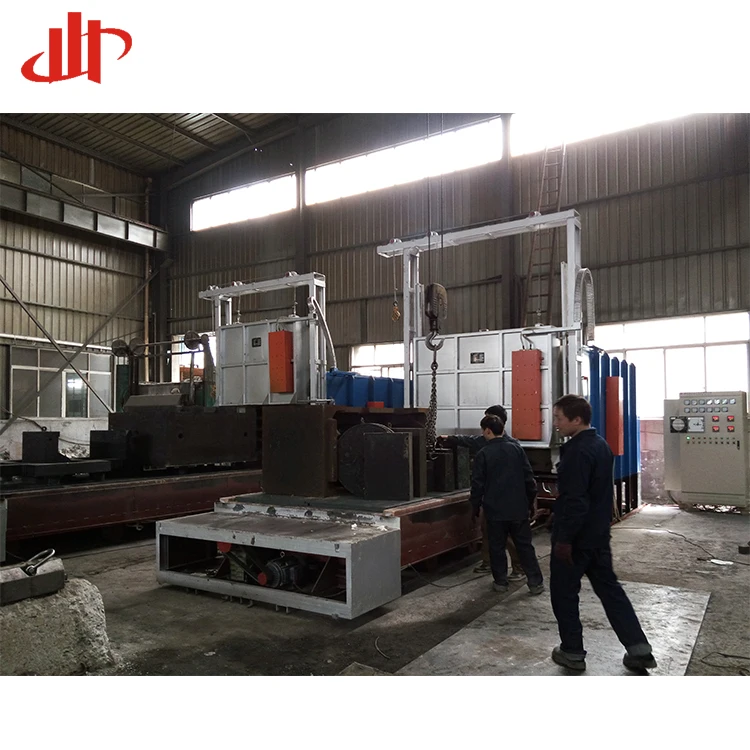

Bogie hearth type annealing furnace

Application:

This equipment is a periodic type heat treatment furnace, which can be used for heating, quenching and annealing of general metal parts.

Production Description:

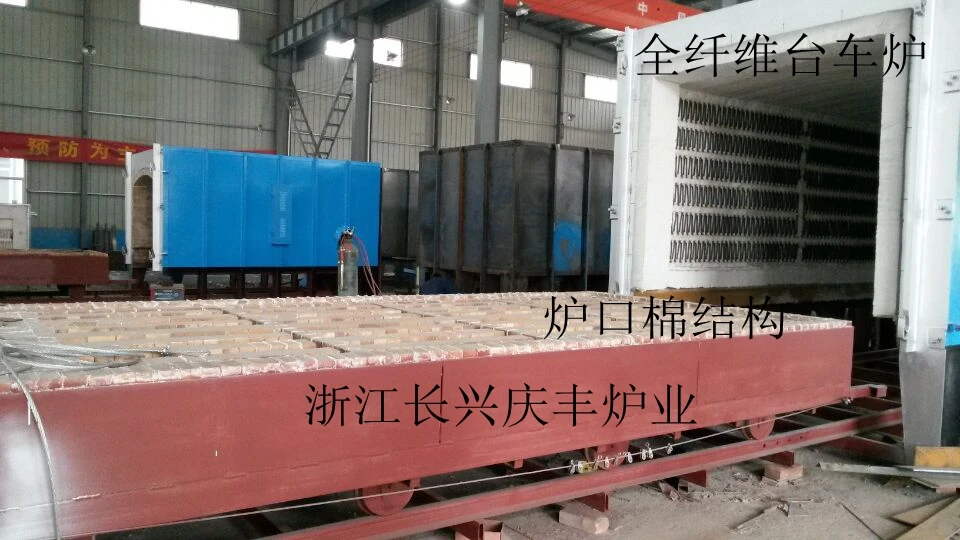

1)Basic properties:whole fiber bogie hearth furnace must ensure that the temperature rise, average temperature and heat preservation performance is good, the safety of lifting and drop of the oven door as wll as the furnace, because electric heating furnace is usually a intermittent furnace. The temperature of furnace often rise and fall, in the process the speed of stove rises and cools is restricted by the furnace lining, it caused by the heating cycle extended, work efficiency is low, at the same time firebrick absorb or release a large amount of heat, waste heat, to the furnace thermal efficiency is reduced, waste of energy because there are more than disadvantages brick structure, so the ceramic fiber production of heating furnace to overcome the disadvantages of the brick structure, it has the advantages of heating up fast, the service life is long and the less energy consumption. In recent years, the heating furnace from brick furnace into fiber furnace is increasing, especially in the continuous casting and rolling heating furnace, trolley heating furnace, bell type furnace and so on are widely used in the heating furnace lining, wining the user's consistent high praise.

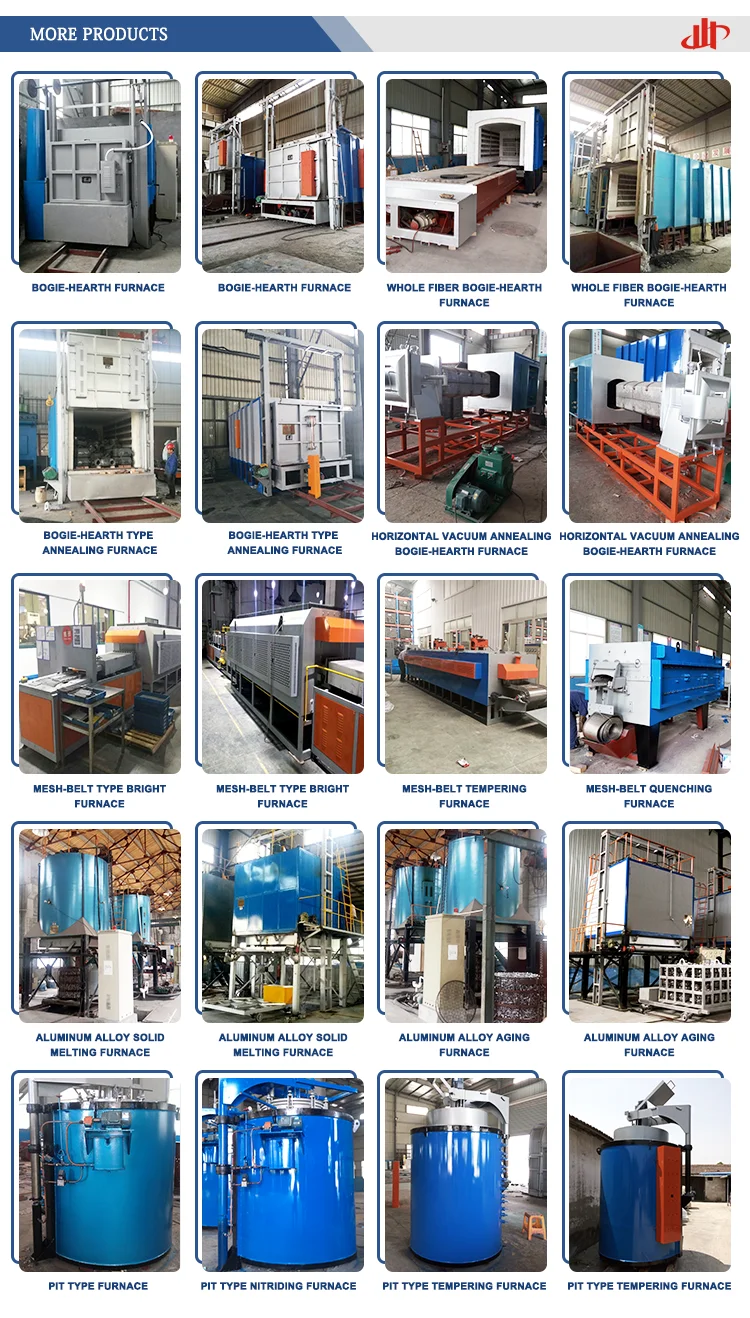

More Products

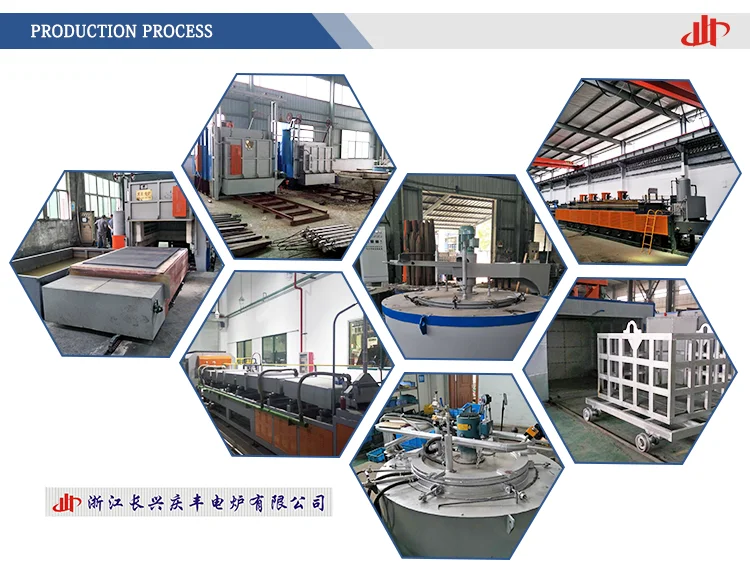

Production Process

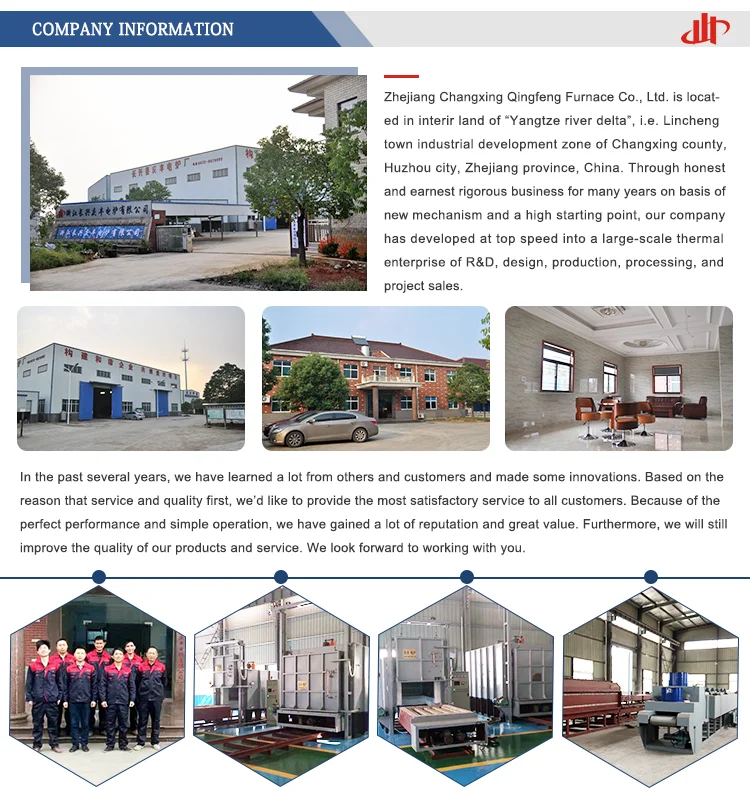

Company Information

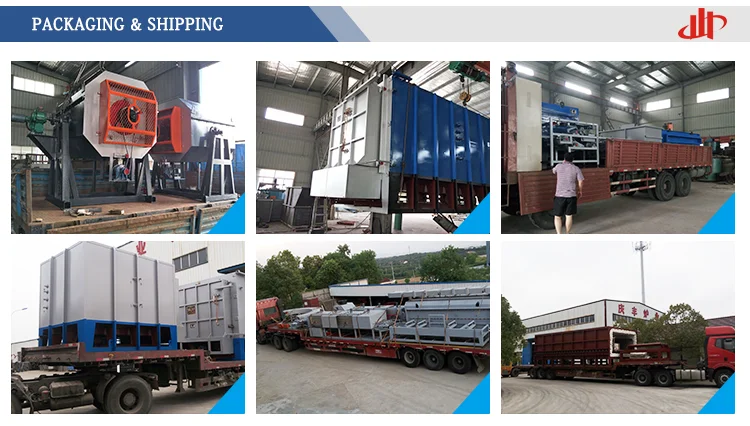

Packaging & Shipping
