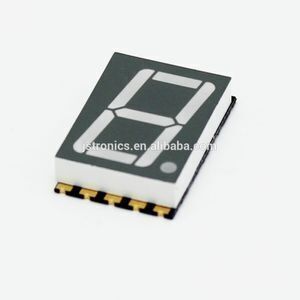

0.2" 0.28" 0.3" 0.39" 0.4" 0.56" inch single digit smd 7 segment led display

Click here to contact
Product details
Model Number:JSS-5612AB 7 segment smd display;Delivery Detail:10-30days;
name:0.56" inch single digit smd 7 segment led display;Port:ningbo or shanghai;
Place of Origin:Zhejiang China (Mainland);Supply Ability:10000 Piece/Pieces per Day fine packing of smd 7 segment;
segment color:white diffused;emitting color:red,yellow,green,blue,etc;
Display Function:Graphics;Payment Terms:T/T,Western Union;
display size:19*12.5*3.75mm;OEM:Yes;
Pixels:15mm;Brand Name:JSTRONIC 7 segment smd display;
digit height:0.56 inch;Tube Chip Color:Full Color;
polarity:common anode or common cathode;Packaging Detail:0.56" inch single digit smd 7 segment led display:EPE+ carton;
Usage:Indoor;Screen Dimension:19*12.5*3.75mm;
surface color:grey surface;

0.2" 0.28" 0.3" 0.39" 0.4" 0.56" inch single digit smd 7 segment led display

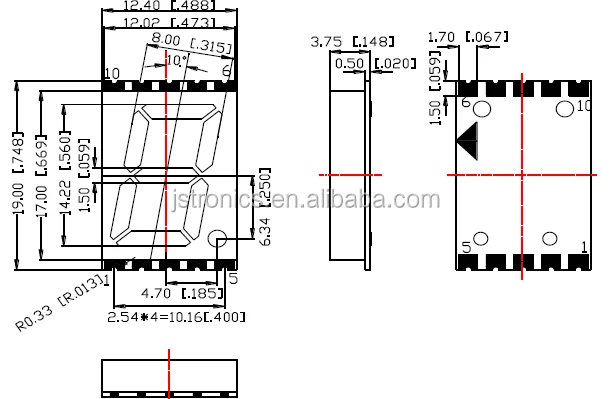

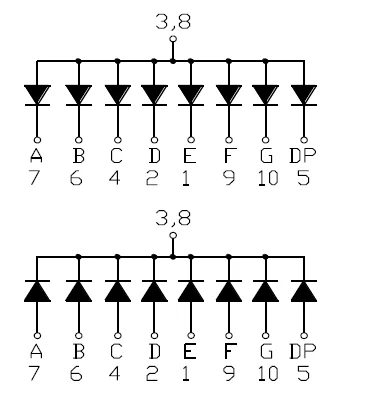

0.56 inch 7 segment smd led display dimension and circuit



Product Description

  *Ultra segment intensity

  *Wide viewing angle

  *Range of colors

  *Gray or black face White segment

  *RoHS compliant

 *0.56 inch 7 segment smd display



0.2 0.28 0.3 0.39 0.4 0.56 inch single digit 7-segment smd led display

Electro/Optical Characteristics If=20mA Ta=25 C

Part Number

EMITTED COLOR

Peak

Wavelength

(mn)

Vf(V)

Iv(mcd)

Common Cathode

Common Anode

Type

Max

Min

Typ

JSS-5612AUR

JSS-5612BUR

AlGaInP/GaAs Super red

630

2.0

2.5

10

20

JSS-5612AUE

JSS-5612BUE

AlGaInP/GaAs Ultra red

625

2.0

2.5

40

80

JSS-5612AUA

JSS-5612BUA

AlGaInP/GaAs Ultra Amber

605

2.0

2.5

40

60

JSS-5612AUY

JSS-5612BUY

AlGaInP/GaAs Ultra Yellow

590

2.0

2.5

40

60

JSS-5612AUG

JSS-5612BUG

AlGaInP/GaAs Yellow Green

574

2.0

2.5

10

15

JSS-5612APG

JSS-5612BPG

InGaN/Sic Pure Green

525

3.2

3.8

150

200

JSS-5612AUB

JSS-5612BUB

InGaN/Sic Ultra Blue

470

3.2

3.8

40

50

JSS-5612AUW

JSS-5612BUW

InGaN/Sic Ultra White

x-0.31/y-0.31

3.2

3.8

200

400

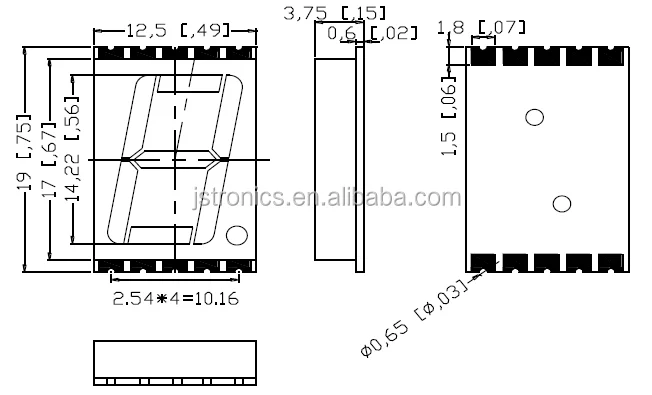

Note: If 5612 layout don't meet your requirements, it also have below 5611 type for choose

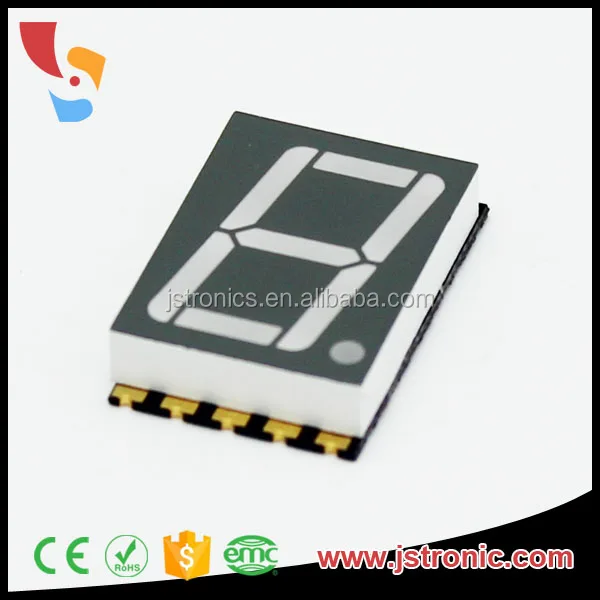

 Products detailed picture

1.We can supply all kinds of SMD 7 segment led display from 0.20inch to 0.80inch

    Digit number:1,2,3 and 4 digits

2.We can offer both 7 segment and 14 segment SMD led display

3.Avaliable color:red,yellow,green,blue,white etc

4.Face color:Grey

5.Lens color:white diffused

Related Products













Applications:



FAQ

 1. How to shipping ?



(1) Normally , it will be shiped out by DHL UPS TNT express or other express for the weight is not too heave and box size is small .



(2) it will be shipping out by air or sea once the weight and size is huge enough.



(3) the shpping way from our clients' advise.



2.what will be the types of payment?



The payment we can accept are T/T transaction,Paypal,Western Union,etc.



3.Could you please send me the samples for comfirm the quality?



Of course ,We can provide some free samples for our clients comfirm the quality.







Our main is to help customer reach their goals.We are making great efforts to achieve their win-win situation and sincerely welcome you to join us.

Welcome to visit our factory.

For more details or free samples testing,please"send"now
