Water clear addressable 4 pins dip 5mm flat top rgb led

Click here to contact
Product details
Max. Forward Current:20mA;Supply Ability:10000000 Piece/Pieces per Month fine packing of 5mm flat top rgb led;
Place of Origin:Zhejiang China (Mainland);Packaging Detail:Water clear addressable 4 pins dip 5mm flat top rgb led:1000pcs per bag;
Type:5mm round;brand name:Jstronic;
light color:RGB;Model Number:rgb 5mm led;
Max. Forward Voltage:1.7-3.4V;Brand Name:JSTRONIC;
Package Type:Through Hole;Application:indicator display;
Max. Reverse Voltage:5V;Wavelength:620nm+460nm+520nm;
Port:ningbo or shanghai;Delivery Detail:10days,according to order;
intensity:500-1000mcd;name:Water clear addressable 4 pins dip 5mm flat top rgb led;
Payment Terms:T/T,Western Union;body color:Water clear;
Max. Reverse Current:50uA;Type:LED;

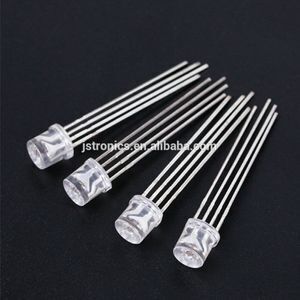

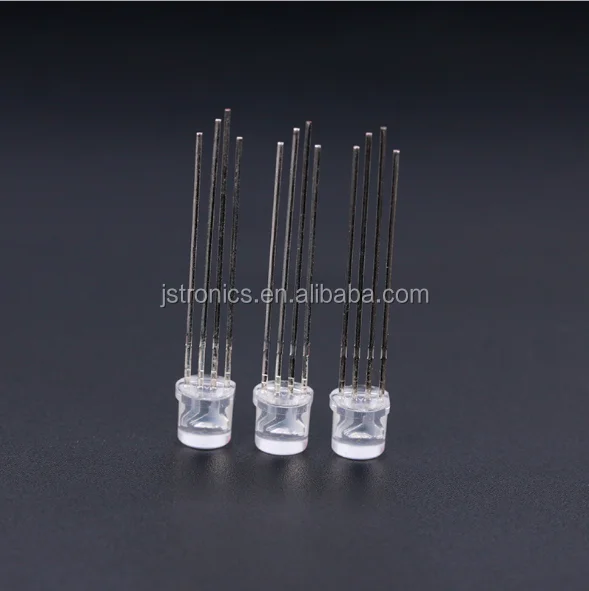

Water clear addressable 4 pins dip 5mm flat top rgb led



Product Description

5mm RGB led diode

super bright for display and sign

Long life solid state reliability

RoHs compliant.



5mm RGB Flat top led diode

Main LED diode characteristics

Part No.

Emitted Color

Lens Color

Wavlength

(nm)

IV(mcd)@IF=20mA

Voltage

(V)

Angle

(deg)

JSL-534RGBC

RGB

Wate Clear/White diffused

620-625/

460-470/520-525



200-500/

200-500/500-1000



1.8-2.3/

2.8-3.3/2.8-3.3

120









LED DIODES

1. We provide 3mm LED, 4.8mm LED, 5mm LED, 8mm LED, 10mm LED, Flux LED.

2.Chip material: InGaN. AlGaIn

3. Emitting color: White, Red, Yellow, Pure Green, yellow green ,Blue, Amber, Orange.

4.Lens color: Water clear, color transparent, color diffused, white diffused

5. Available Wavelength: 470nm, 525nm, 585nm, 610nm, 630nm, 640nm(Tolerance of measurement of peak Wavelength 5.0nm)

6.Available Temperature color: 3300K, 6500K,7000~8000K

7.Application: Lighting, Upholster, Project Building, Display, Traffic Light, etc.

8. Available Angle: 20 degree, 30degree, 40degree, 45degree, 70degree, 110degree

9.Superior performance in outdoor/indoor environment

10.The sample delivery time: Within 3-5days; The order delivery time: Within 7~15days upon payment done



Dominant Wavelength

Red: 640nm to 645nm

Hight bright red: 620nm to 625nm

Blue: 460nm to 475nm

Pure green: 515nm to 525nm

Yellow: 585nm to 595NM

Amber: 600nm to 605nm



Forwarder Voltage:
Red / Yellow / Yellow Green: 1.8-2.1V

Blue / Pure Green / White: 3.0~3.6V



Packaging & Shipping



Related Products









Factory view:



Ningbo Junsheng Electronics  Co., Ltd. was founded in 2008. We are specialized in

high quality LED Light source and LED components including research, development, production and marketing. We also provide LED Lighting Solution and OEM service to help customer making high cost perfomance products.

Product range including LED Display,LED dot matrix LED DIP,LED SMD and High power LEDs etc.

Jstronic will work with you to fullfill your requirements strive to meet your targets.











Our main is to help customer reach their goals.We are making great efforts to achieve their win-win situation and sincerely welcome you to join us.

Welcome to visit our factory.

For more details or free samples testing,please"send"now
