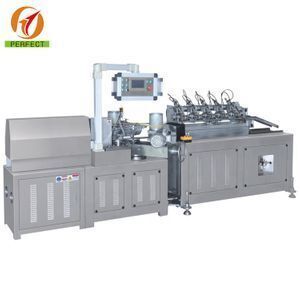

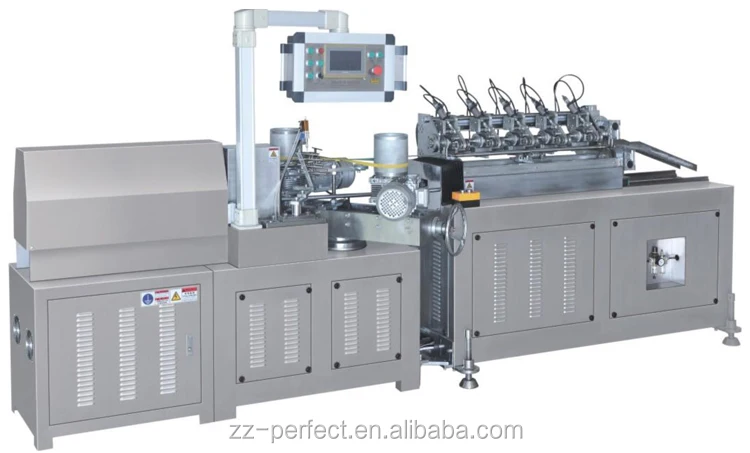

High speed paper drinking straw machine for making straw

Product details
Name:High speed paper drinking straw machine for making straw;Winding Speed:30-40 meters/min;
Blade:5 Groups;Straw Diameter:5-10mm;
Weight:2000 KG;Port:Any port in China;
Power(W):4KW;Voltage:380V,3PHASE,60HZ;
Condition:New;Winding Head:2 Or 4 Head;
After-sales Service Provided:Engineers available to service machinery overseas;Brand Name:FECT;
Cutting Type:Online-Automatic;Material:Paper , Glue;
Application:Paper drinking straw making, cutting;Dimension(L*W*H):5600x1600x1750mm;
Working Time:24hour;Supply Ability:20 Set/Sets per Month High speed paper drinking straw machine for making straw;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade Assurance;Warranty:1 Year;
Place of Origin:Henan China (Mainland);Certification:CE ISO;
Packaging Detail:Wooden Case / High speed paper drinking straw machine for making straw;Applicable Industries:Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Motor:Frequency , Inverter Control;

High speed paper drinking straw machine  for making straw

Inner Diameter: 5-12mm

Paper Roll: 2-3 Plies

Thickness: 0.3-1mm

Cutting length: 130 mm (min)

Product Description

This High speed paper drinking straw machine  for making straw, included paper unwinding, gluing, twisting, cutting, conveying and collecting units(optional),  equipped with muti round knife to cut off paper drink straw on line. It is suitable for making 5-12mm outer diameter paper drink straw.

♦Application♦

This High speed paper drinking straw machine  for making straw is used for making various kinds of paper drinking straw.



♦Technical parameters♦

Number of roller

1-4 layer

Tube diameter

5-12 mm

Tube wall-thickness

0.3-1 mm

Cutting Length

130mm(min)

Cutter

5 sets

Operator

1-2 person

Winding speed

0-60m/min

Speed control

stepless frequency speed adjustment

Working Air Pressure

0.6Mpa

Power

380V/3Phase/50Hz7kw

Measurement

5600*1600*1750mm

Working Space

8000mm * 5000mm*2000mm

Weight

2000kgs





♦Features♦

1.Adopting PLC man machine interface, stepless frequency speed adjustment, pc circuit control board

2. Cutting unit is multi-round cutter controlled by servo motor, synchronous tracing and cutting.

3. Automatically cut, automatically fall pipe, automatically change speed and revert;

4. Round knife cutting, incision more smooth, performance more stable;

5. With online multi-cut blades, no need secondary cutting, save labor and time.

6. Stainless steel gluing box, with polyurethane scraper and high carbon steel plastic knife, durable in use;

7. Machine supply of lubricant automatically.

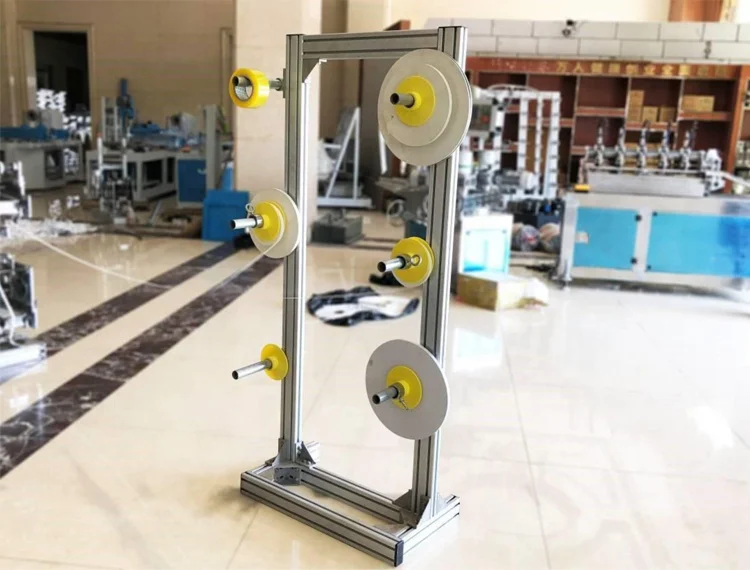

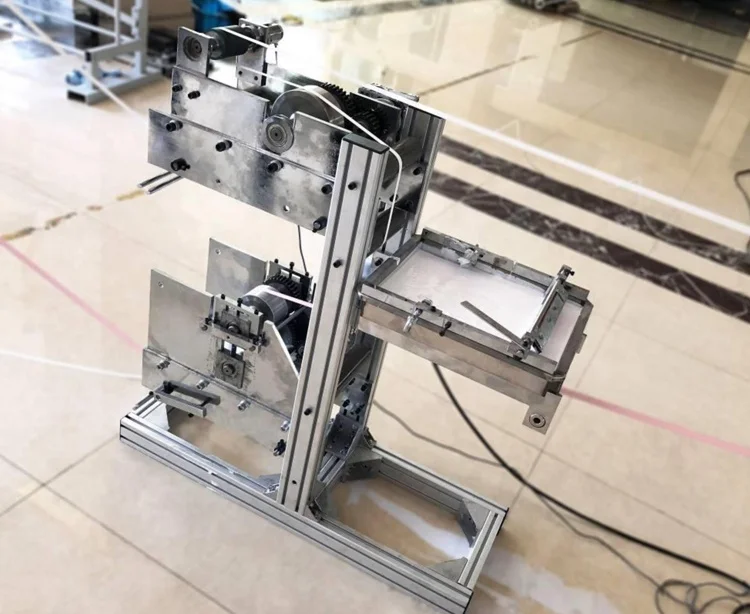

♦Detail pictures♦





Paper drinking straw packing machine

Paper cup punching machine

Paper cup printing machine



Other paper cup making machine:



Paper cup punching machinePaper cup forming machine
950 Paper cup bowl box creasing and die cutting machine
Packaging & Shipping
Package detailWooden case/ paper straw machine make drinking straw
Package size 39m×18m×2.2m
Gross weight 3500kg

Our Services

1. Pre-Sales Service

2.  After-Sales Service

3.Package & Delivery

* Inquiry and consulting support.

* Sample testing support.
* View our Factory.

* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.



Our service team will pack goods under export standard, and prepare delivery in time as agreement.







Technical Support

Our service team will give you 24 hours support, and technical guidance by email, telephone, what's app and fax for regular maintenance and support.

Company Information


Zhengzhou Perfect Company Ltd. is professional manufacturer of flexographic printing machine, drinking straw machine and die cutting creasing machine for more than 15 years.


We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!

FAQ

Q: Do you factory accept customized configuration?

A: Yes. About electric parts, you could choose SIEMENS, Schneider, Delta and etc. For the machine device, web guiding, vedio monitor, pneumatic-unwinding loader,elctric-rewinding unloader, slitting station ratary die cutting station, lamination and waste rewinding are optional. For the specific combination, pls contact us.



Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.



Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.


Q: What is the terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
