electric small fruit juice liquid pasteurizer machine

Product details
Warranty:12 months;Certification:SGS ISO9001;
Voltage:380v;Single gross weight:260 KG;
Capacity:20-150L/H;Power(W):17.5;
Condition:New;Delivery Detail:0 days after payment;
Brand Name:Genyond;Selling Units:Single item;
Weight:240kg;Dimension(L*W*H):1800mm*750mm*1900mm;
Application:Milk,soy milk;Material:Stainless steel 304;
Usage:Milk;After-sales Service Provided:Engineers available to service machinery overseas;
Feature:High Effeciency;Single volume:2 cm;
Processing Types:Pasteurizer;Our Name:electric small fruit juice liquid pasteurizer machine;
Package Type:Genyond electric small fruit juice liquid pasteurizer machine by wooden cases.;Place of Origin:Shanghai China (Mainland);
Product Description

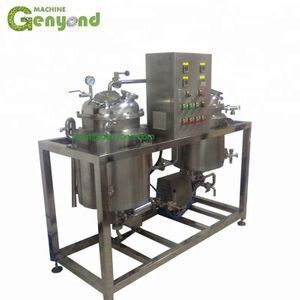

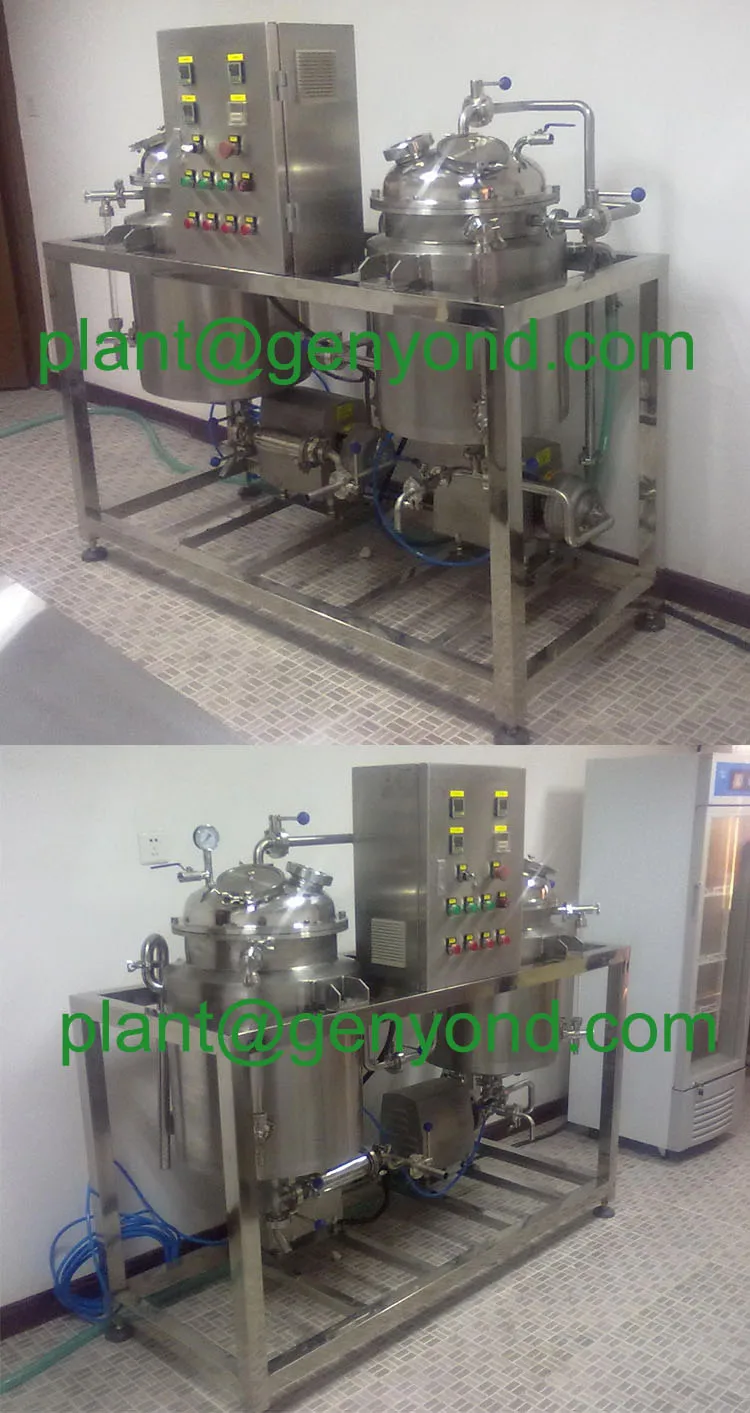

Genyond electric small fruit juice liquid pasteurizer machine



Scope of use

This equipment is widely used in raw milk, soy milk, bio pharmaceutical, bean products, liquid condiments and other materials to determine and update raw materials, product taste identification, color evaluation, stabilizer / emulsifier application, new product research and development and batch production of pasteurized milk products. This production pasteurizer is integrated with heating, sterilization, cooling and hot filling. It is an ideal set of equipment for small pasteurized milk enterprises in schools and communities.


Machine features

The sterilization temperature of the equipment can be set according to the requirements of pasteurization or high temperature sterilization. The equipment adopts casing sterilization, the area of heat transfer is large, the heat exchange rate is fast, and the sterilization temperature of the equipment can be adjusted at 62 degree C~85 C. All the equipment in contact with the product are made of SUS 304 stainless steel. The pipe washer and seal are made of polytetrafluoroethylene with food grade. The product line is connected to the DIN pipe connector. In the display output, the production pasteurizing machine is equipped with digital display temperature control system and timing sterilization control system, and can select the sterilization temperature and time as well as the clearance time of the pump cycle time according to the user's requirements. The equipment is a multi tank combined structure, which is very suitable for small batch and multi variety production.Genyond electric small fruit juice liquid pasteurizer machine
The equipment occupies an area of only 2 square meters, with a miniature superheater generator and no external steam generator or steam boiler. According to actual needs, the PID constant temperature control technology can be regulated in real time, so that the whole temperature zone temperature control is accurate, and the sterilization temperature control accuracy is + 1 degrees Celsius. The equipment has its own pipeline and tank cleaning circulating pump, which can automatically clean the sterilization pipes and valves. A built-in micro water heater. Built in PT100 temperature sensor. All closed structure with hygienic test.





Product details


Capacity (kg/h)20-150L per hour
MaterialStainless steel SUS304
Circulating milk pump power0.37KW, the cycle time can be timed
ApplicationMilk, soy milk, etc.
Pipeline filterfood grade stainless steel filter screen, filtration accuracy 120~300 mesh optional.
Heat transfer pipe diameter19mm
Cooling Water Consumption200-350L / H
Heat Exchange Area1.85 Cubic Metre
Germicidal Temperature75~90 Centigrade
KeywordsGenyond electric small fruit juice liquid pasteurizer machine
