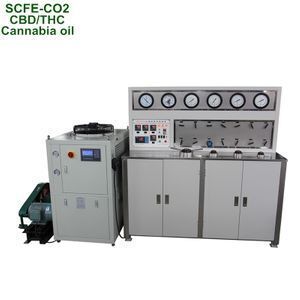

factory Supercritical CO2 extracting machine With Discount

Supplier: Shanghai Genyond Technology Co., Ltd.
Region: Shanghai, China
Contact: Mr Wakin Yond
Price: $25000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Feature2:	solvent and extracted substances is separation easily;	After-sales Service Provided:	Engineers available to service machinery overseas;
Product Name:	Super Critical CO2 Extraction;	Type:	Extractor;
Extraction kettle:	0.5L/1L/2L/5L/50Mpa and more;	suitable for:	heat sensitive compound;
Separation kettle:	0.3-10L/30 Mpa,50-100L/16-22 Mpa;	Place of Origin:	China (Mainland);
Supply Ability:	10000 Set/Sets per Year;	Type:	New chemical separation technology;
Used:	CO2 as the solvent;	Application:	Powder;
Packaging Detail:	Super Critical CO2 Extraction Machine 1)Wooden case or container packing directly 2)According to clients' request;	extraction temperature:	the highest working temperature is 85C;;
Payment Terms:	L/C,T/T,Western Union;	CO2:	Food grade≥99.5%;
Brand Name:	Genyond;	Feature1:	larger dissolvability against substances;
Port:	Shanghai port;

Product Description

factory Supercritical CO2 extracting machine With Discount

CO2 extraction is suitable for extraction of fat-soluble and heat sensitive substances with high boiling point, and is suitable for fine seperation of different components.

Super Critical CO2 Extraction

The Super Critical fluid technology is a new-type separation technology in modern chemical seperation.The Super Critical extaction takes CO2 as the solvent.As CO2 fluid under Super Critical state has larger density and dielectric constant,large dissolvability against substances,which can change abruptly when pressure and temperature chnage therefore it has not only the selection of dissolvability against some substances,the separation of the solvent with the extracted substances is also easily.The super critial CO2 extraction is specially suitable for extraction of fat-soluble and heat sensitive substances with high boiling point,and is suitable for fine separation of different components,i.e.Super Critical fine distillation.

Take CO2 as the solvent to make extraction and purification upon a lot of products such as biological products,foodstuff and medicines.

Main Introduction :

This device usually be used for material extraction under the high pressure and suitable temperature (solid or fluid), Changing conditions in the separator to parse out dissolved substances in order to achieve the purpose of separation. The device is mainly composed of : extractionkettle, Separate kettle, CO2 high-pressure pump, entrainer pump, cooling system, CO2 basin, exergy transfer system, purification system, flowmeter, temperature-controlled system, safety protection device and so on. Attached device and the system can meet the needs of the main system of supercritical extraction and flow chart of requirements

Commonly, Supercritical fluid extraction device adopts CO2 as the extracting media. The advantages as follows:

1) Convenient in operation. Can be used widely.

2) With an excellent optional function. Extracts can be gained optionally by controlling the pressure and temperature.

3) Low operation temperature. Can be extracted near to the room temperature, especially fit for the extracting of thermo-sensitive elements. The possibility of oxidation when contact with oxygen and reaction when meet rays are eliminated. The natural flavor of the extracts can be kept.

4) Extracting media and extracts can be separated easily. No leftover of CO2 on the extracts after extracting operation.

5) CO2 is a nontoxic, flavorless, noncombustible and cheap compound and can be recycle used.

Type	Specification	Pressure	Combined type
SFE120-50-01	1L	50MPa	one extracting pot-two separating pot
SFE120-50-02	2L	50MPa	one extracting pot-two separating pot

SFE121-50-01	1L	50MPa	one extracting pot-two separating pots-one column
SFE121-50-02	2L	50MPa	one extracting pot-two separating pots-one column
SFE121-50-05	5L	50MPa	one extracting pot-two separating pots-one column
SFE121-40-10	10L	50MPa	one extracting pot-two separating pots-one column
SFE121-40-24	24L	50MPa	one extracting pot-two separating pots-one column

SFE221-50-06	5+1L	50MPa	two extracting pot-two separating pots-one column
SFE221-40-11	10+1L	50MPa	two extracting pot-two separating pots-one column
SFE221-40-20	10+10L	50MPa	two extracting pot-two separating pots-one column
SFE221-50-48	24+24L	50MPa	two extracting pot-two separating pots-one column
SFE221-40-200	100L+100L	50MPa	two extracting pot-two separating pots-one column

SFE420-50-96	(24+24)*2L	50MPa	four extracting pot-two separating pot
SFE420-40-200	(50+50)*2L	50MPa	four extracting pot-two separating pot

Super Critical CO2 Fluid Extraction Application

Application of the Super Critical CO2 Fluid:

APPLICATION	TYPE OF DESXRIPTION
Agriculture Food	Extraction of pesticides and soil contaminants. Separation of fats and contaminats, flavors.
Pharmaceutical	Extraction of active components, preparation of natual products, viamins.
Cosmetic	Extraction of fragrances and oils.
Laundry	Dry cleaning of garments.
Mechanical	Degreasing parts, precision cleaning of high-value componets.
A wide range of industries for the extraction of natural products for the food additives(such as ginger, large bolt, cinnamon, anise, hops, pepper, cumin,etc.), drugs(such as artemisia annua vegerarian, magnolia, angelia, etc.), health care(such as sea buckthorn, samara, pomegranate, lycopene, etc.)

Some utilized reasources

Seabuckthorn fruit oil,wheat embryo oil,medlar seed oil, grape seed oil,oidiophore oil of glossy ganoderma,kiwifruit oil,seed oil of job’s tears,walnut oil.seed oil of forest frog,fish oil,pine pollen oil,cauliflower oil

Arteannuin,sundrops oil,angelica sinensis oil,chuanxiong rhizome oil,clove oil,atractylis oil,zedoary turmeric oil,dahurian angelica oil,cinnamon leafoil,zedoary turmeric oil,dahurian angelica oil,cinnammonleaf oil,ginkgo oil.netmeg oil,menthence,schisandra oil,plantain seed oil,radix buple chrysanthemum oil,Salvia miltiorrhiza extract,herba Andrographis extract,curcuma oil pigment,lycopin,bee glue,antibiotics precipitation,Rhizoma Alismatis oil,yolk powder phospholipid,cortex magnoliae.officinalis extract,olibanum extract,natural caffeine,Srcandra hainanensis extract,cyperus oil,maloicacid,houttuynia cordata oil

Gingerol,pepper haematochrome,dried tiny shrimp haematochrome,zanthoxylum oil,allspice oil resin,onion root oil,garlic oil,hops extract,tobacco leaves essencial oil

About us

GENYOND MACHINERY INDUSTRIAL GROUP

is a group company which is speciallizing in extraction machine design, production and installation. Our head office is in Shanghai, China. It has 6 factories in China. Shanghai genyond technology Co., Ltd, Shanghai juyuan machinery Co. Ltd, Jiangsu zhangjiagang Jierong machinery Co., Ltd, Jiangsu Jiangyin fengyue machinery Co., Ltd, Zhejiang jouyond machinery Co.,Ltd and 4 subsidiaries.
Our main produce is extraction machine, YOU ARE WELCOME TO VISIT OUR COMPANY AND FACTORIES.

Certifications

FAQ

What material can you process with this machine?

Our CO2 extract machine is widely used in extracting hemp oil, wheat embryo oil,fish oil,tobacco essential oil,Arteannuin,Sundrops oil,Gingerol,Pepper haematochrome,Hops extract etc.

Does the CO2 can be reused?

YES. CO2 can be used in circulation.

When could you send the engineers for installation?

We could send our engineer within 10 days after the machines reach your workshop. Our engineers will install machines and train your worker of Operation and maintenance.

How long does it take to produce the machine once I place my order ?

The Supercritical CO2 extract machine’ process flow is complex.Generally it takes about 60 workdays to Produce.We are responsible for the quality of machine our customers.Every procedure and details has to be inspected strictly.

Do you accept L/C?

Yes, we do L/C through One touch service company which belong to ALIBABA GROUP.
