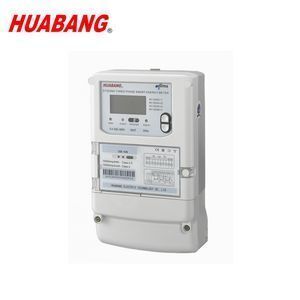

Three phase four wire DLMS multifunction wireless communication smart GPRS energy meter

INTRODUCTION

Three phase active electronic kilowatt-hour meter is designed for electricity utilities residential to measure 50/60 Hz active energy consumption, the meter developed by microelectronic technology and special large-scale integrated circuits, processing by SMT technology. The Meter is adopt high reliable and long-life electric components, hi-overload, no need re-calibrate for long term operation.

TECHNICAL SPECIFICATION ( Basic Function )

♦ Installation: Front board three fixed installation

♦ Meter cover: ABS anti flaming with transparent window

♦ Meter base: ABS anti flaming

♦ Terminal Cover: ABS anti flaming

♦ Display: LCD display 6+2 digits

♦ Standard configuration one port of pulse output passive (polarity)

♦ Forward active energy and reverse active energy measurement

♦ Meter accuracy comply with international standard IEC62053-21 & IEC62052-11

 Function

1. Communicate RS485 Modbus RTU protocol, baud rate: 1200~9600bps

    DLMS protocol of GPRS wireless communication

2. Communication infrared IEC62056-21 Or DLT645-2007 (Clinet need to buy HHU)

3. More display function for smart meter:

 Voltage (V); Current (A); Frequency ( Hz ); Active Power (kW); Reactive Power (Kvar), Power factor (COS)

 Active Energy (kWh), Reactive Energy (Kvarh), Time, Date, Multi Tariff, or etc, please contact sales

Multi Tariff Energy Meter

1. History: 12 months Readable by RS485, and 3 month display on screen

2. Real time clock and date, able to resetting via RS485 wire or Infrared by HHU

 3. Time-of-use, 4 Tariff, 8 Time Zone, 12 Segments

 4. Battery: It is equipped with build-in lithium battery, which could be use for at least 10years.

Multi Function have all function of Multi tariff meter, Extra reactive energy consumption and power

Dimension:

 (Current transformer connection)
