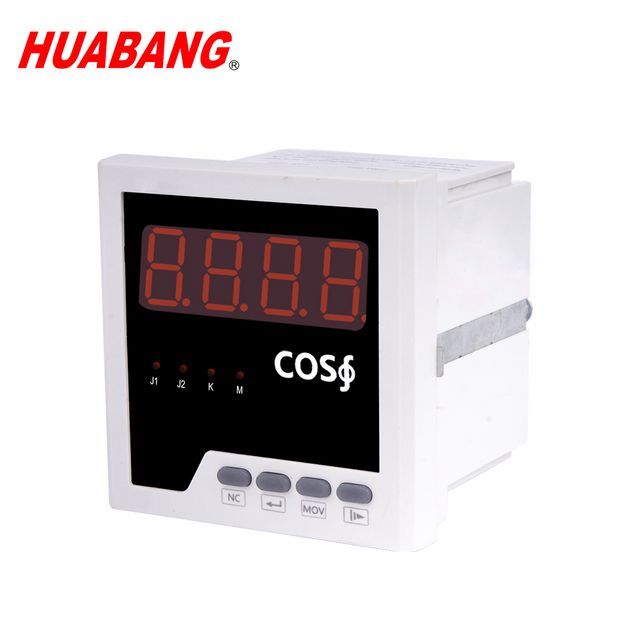

96x96 Single Phase Electricity Meter Intelligent Digital Panel Power Factor Meter

Supplier: Huabang Electric Technology Co., Ltd.
Region: Zhejiang, China
Contact: Mr Jason huang
Price: $1.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Product Name:	Panel Meter	Payment Terms:	T/T, Western Union, MoneyGram
Packaging Details:	Each product comes with a white carton and export outer box, suitable for air and sea export	aspect:	96x96 mm
port:	Ningbo	Mounting hole size:	91x91mm, 88x88mm
usage:	Power factor measurement	measure:	Single-phase power factor
Operating Temperature:	10~55	power supply:	AC 220V
Accuracy level:	0.5%	color:	White
Certificate:	ISO9001 CE ROHS LVD	model:	PD668PF
Optional:	RS484 bus	exhibit:	LED Intelligent Digital
Brand Name:	Winbond	Supply Ability:	50000 pieces per month
Measuring current range:	0	Name:	Digital voltmeter
Origin:	China	Measuring voltage range:	0

Company Information

Digital Panel Meters

standard

IEC62053-22:2003 0.2S and 0.5S class static AC active energy meters
IEC62053-23:2003 Class 2.0 Static AC Reactive Energy Meter
GB/T13850-1998 AC power conversion to analog or digital signal power measurement transmitter
IEC61010-1 Safety of electrical equipment for measurement and control - Part 1
IEC61000-2-11 Electromagnetic Compatibility (EMC)
IEC60068-2-30 Environmental Test

Overview

The instrument is widely used in voltage regulators, distribution cabinets, distribution boxes, and all power substation equipment. It can also realize a series of multi-functional digital instruments controlled by computer networking.
The multifunctional power meter can accurately measure all common power parameters of single-phase power system: single-phase voltage, single-phase current, active power, reactive power, power factor, power frequency, reactive power, reactive energy, and has communication interface and power pulse output function. It adopts MODBUS-RTU communication protocol, and can realize LED, LCD display and remote RS-485 digital communication.
They have the advantages of easy installation, simple wiring, easy maintenance, large engineering volume, on-site programmable input parameters, etc., and can complete networking communication with industrial PLCs and industrial computers.

Different Models of Digital Panel Meters

PD668U Digital Voltmeter Single or Three-Phase Measurement of Equipment Voltage

PD668I digital ammeter single-phase and three-phase measurement equipment current

PD668W digital power meter single-phase and three-phase measuring equipment active power

PD668V Digital Reactive Power Meter measures reactive power of equipment in one or three phases

PD668F digital frequency meter is used to measure the power grid frequency

PD668PF digital COS meter is used to measure the power factor of equipment

Power meter function can program the current transformer ratio and can expand some excellent functions such as digital input, relay output, analog output, communication, with multiple panel sizes (48*48, 72*72, 96*96, 96*48, 120*120)

This product is equipped with a high-brightness LED, the communication protocol is MODBUS-RTU, and it is easy to install, simple to wire, and easy to maintain.

Technical specifications

network	Single phase or three phase
Rated current	AC5A or DC 75mV with shunt
Rated voltage	0-500VAC or 0-100VDC
overload	Permanent: 1.2 times; Temporary: 2 times/10 seconds
accuracy	Level 0.5
frequency	45-65 Hz
Operating range	AC220V or SMPS: AC/DC 80~270V
Power consumption	≤5VA
communicate	RS-485, MODBUS-RTU protocol
Operating temperature	-10~+55℃

Voltage	0.2%
Current	0.2%
Active Power	0.5%
Reactive power	0.5%
Real-time power	0.5%
Active Energy	0.5 level/1.0 level
Reactive energy	Level 1.0
Power Factor	0.5%
frequency	0.2%
