Huazheng Electric Volkswagen Electric Three-phase Portable Power Quality Analyzer

Supplier: Huazheng Electric Manufacturing (baoding) Co., Ltd.
Region: Hebei, China
Contact: Ms Julia Jin
Price: $299.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Details:	HS code: 9030339000; carton packaging; CE ISO IEC standard	volume:	320240130(mm)
energy consumption:	≤ 3VA	Operating temperature:	-10℃～+40℃
Voltage measurement range:	0~400V, automatic	port:	Tianjin/Shanghai/Qingdao/Ningbo/Shenzhen/Hong Kong/Power Quality Analyzer
Supply capacity:	800 sets/month power quality analyzer	Current and Power Accuracy:	±0.5%

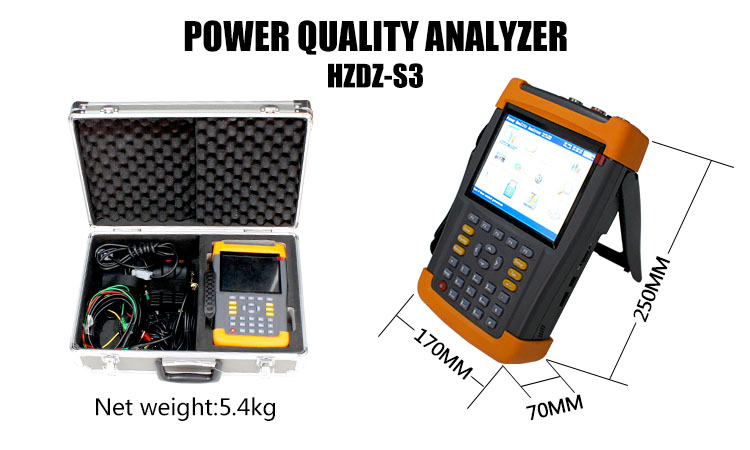

aspect:	/	model:	HZDZ-S3
The maximum working time of the battery:	less than 10 hours	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Current measurement range:	5A~2000A (optional)	Operating temperature:	/
power supply:	AC100~240V, 45Hz-55Hz	Name:	Power Quality Analyzer
Measuring current range:	/	brand:	Huazheng
Measuring voltage range:	/	Accuracy class:	/
Origin:	Hebei china	form:	portable

Popular Electrical Three-Phase Portable Power Quality Analyzers

Product Description

Popular Electrical Three-Phase Portable Power Quality Analyzers

HZ three-phase power analyzer, 150A solar power analyzer is a high-precision testing instrument, which can be used to test problems such as grid waveform distortion, voltage fluctuation and flicker, harmonic content and three-phase power quality imbalance.

Popular Electrical Three-Phase Portable Power Quality Analyzers Technical Parameters:

Input data:

Voltage: 0-400V

Current: (clamp type) 5A/25A

100A/500A 400A/2000A

Phase angle test range: 0~359.99°

Frequency test range: 45~55Hz

Voltage channel: Ua Ub Uc three channels

Current channel: Ia Ib Ic three channels

accuracy:

(1) Voltage: ±0.2% Frequency: ±0.01Hz

Current/Power: ±0.5% Phase: ±0.2
