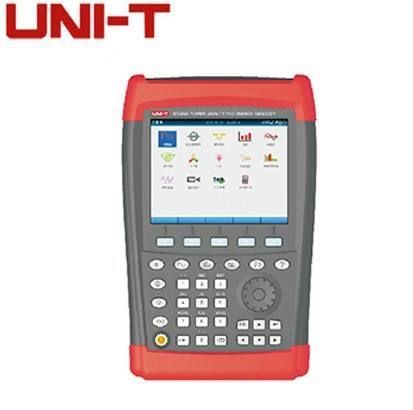

Three-phase power quality analyzer UT285A

Supplier: Huazheng Electric Manufacturing (baoding) Co., Ltd.
Region: Hebei, China
Contact: Ms Julia Jin
Price: $866.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Origin:	Hebei china	Measuring voltage range:	/
Voltage imbalance:	0~50%	arms:	3000A
brand:	Hua Zheng	harmonic:	0~50 times
Operating temperature:	/	frequency:	45~65Hz
Valid values:	0.1~1000V	Accuracy class:	/
Current imbalance:	0~50%	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
Supply capacity:	300 power quality analyzers per month	Interharmonics:	0~50 times
strength:	9000KW	Name:	Power Analyzer
Phase angle:	0~359.99°	port:	Tianjin
aspect:	/	Measuring current range:	/
Packaging Details:	Packing of unit power analyzer: wooden box	model:	UT285A

Three-phase power quality analyzer UT285A

Product Description

Three-phase power quality analyzer UT285A features:

1. The analyzer is easy to set up;
2. Scope mode to judge whether the Analyzer is connected correctly;
3. Power Quality Profile mode, to have a general understanding of the power quality of the power system;
4. Other measurement functions, such as dips and swells, harmonics, flicker, unbalance, surge current, power and energy, etc., fully comply with IEC61000 series standards;
5. Use the analyzer for on-site manual testing or automatic online testing;
6. Use the supporting AccupoView software to analyze the power quality on the PC;
7,85~400V wide range power supply, built-in large capacity battery;
8. Kensington lock to prevent the analyzer from being stolen.

Three-phase power quality analyzer UT285Ascope:

Specification
Model	UT285A
scope	scope	accuracy	solve
effective value	0.1~1000V	0.1%	0.1 volts
arms	3000A	1% (10~100% in)	0.01A
strength	9000KW	1%	0.1W
frequency	45~65Hz	0.01 Hz	0.001 Hz
phase angle	0~359.99°	±0.1°	0.01°
harmonic	0~50 times	one type	0.01V
Interharmonic	0~50 times	one type	0.01V
voltage imbalance	0~50%	0.2%	0.01%
current imbalance	0~50%	1%	0.01%
flashing	0.00~20.00	5%	0.01
swelling and interruption	0.0~200%	0.1V	0.01V
general characteristics
strength	Lithium battery 7.4V 3000mAh
Product color	red and gray
Product Weight	1950 grams
Product Size	263mm×168mm×60mm
Standard accessories	Battery, flexible current probe × 4
Standard Individual Packaging	Gift box, English manual
