High quality professional LS-110 3P3W 2500kW 4000/5A 380V wide angle analog kilowatt panel power meter

Click here to contact
Product details
model:LS-110Operating temperature:-20 degrees-+50 degrees
Place of origin:Jiangsu, ChinaPointer color:Black
port:Shanghai or NingboPanel opening:Diameter 103mm
brand:KDSI can also do OEMaspect:110*110
Packaging details:Standard export carton 12PCS/CARTONMeasuring current range:4000/5A
Supply capacity:10,000 pieces per monthlevel of accuracy:1.5
payment terms:L/C, Western Union, T/T, PayPalMeasuring voltage range:380V
product name:LS-110 3P3W 2500kW 4000/5A 380V wide-angle analog kilowatt panel power meter
product description

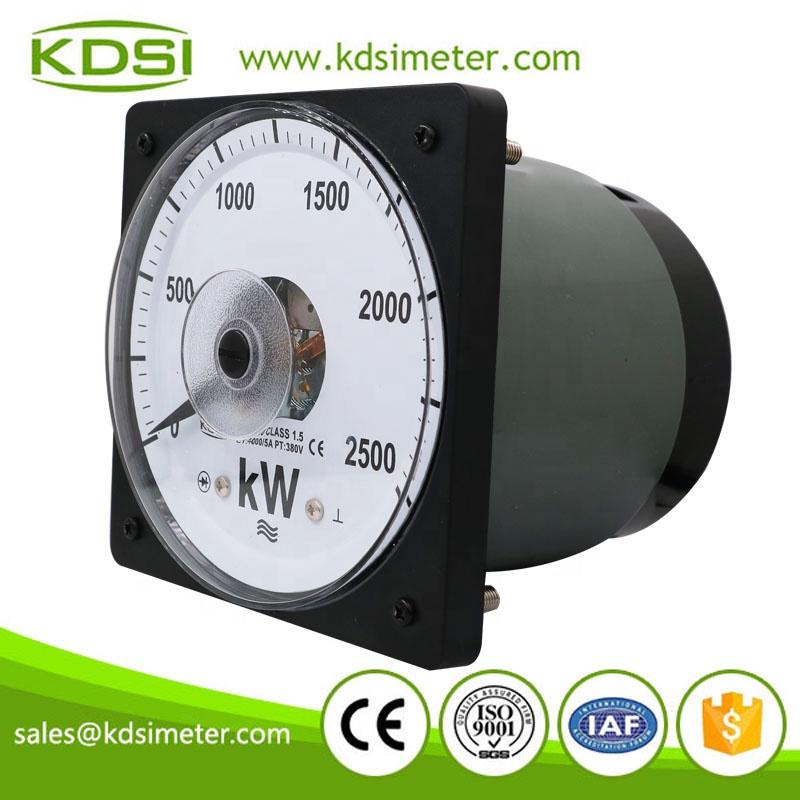

High quality professional LS-110 3P3W 2500kW 4000/5A 380V wide angle analog kilowatt panel power meter
This wattmeter is three phase 3 wire. CT: 4000/5A voltage 380V, dial shows 0-2500kW
Function overview
work:
Acrylic resin cover, plastic meter body, bakelite terminal board. Two stud mounting.

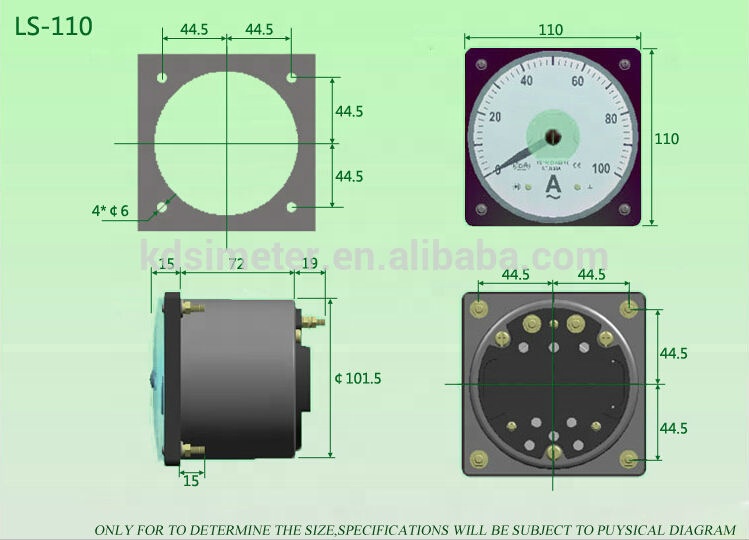

Front frame:
110x110mm
Panel opening:
Diameter 103mm
Full scale deflection:
240 degrees


Right elevation
left elevation

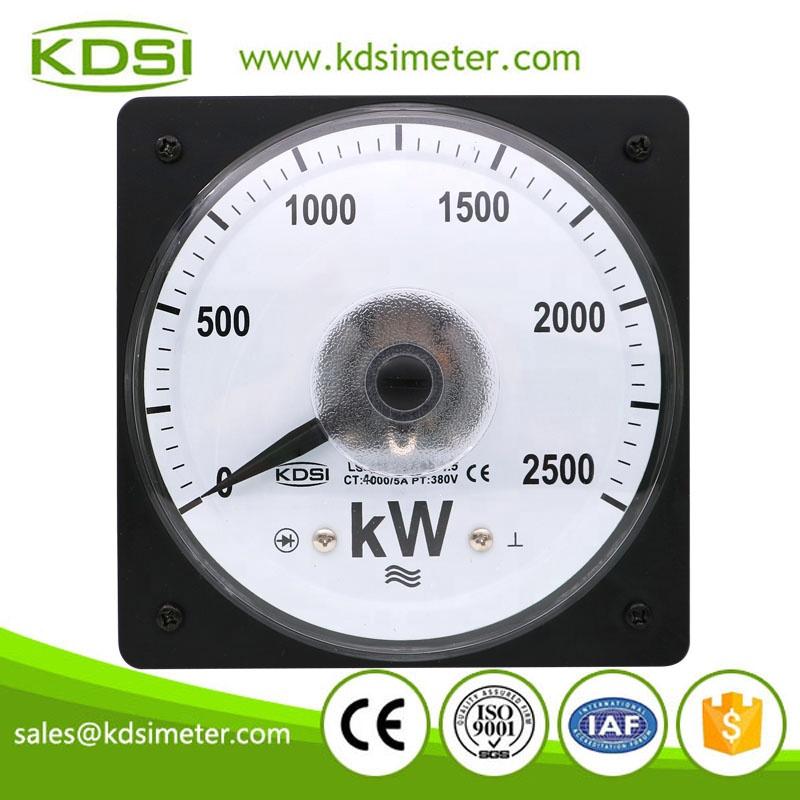

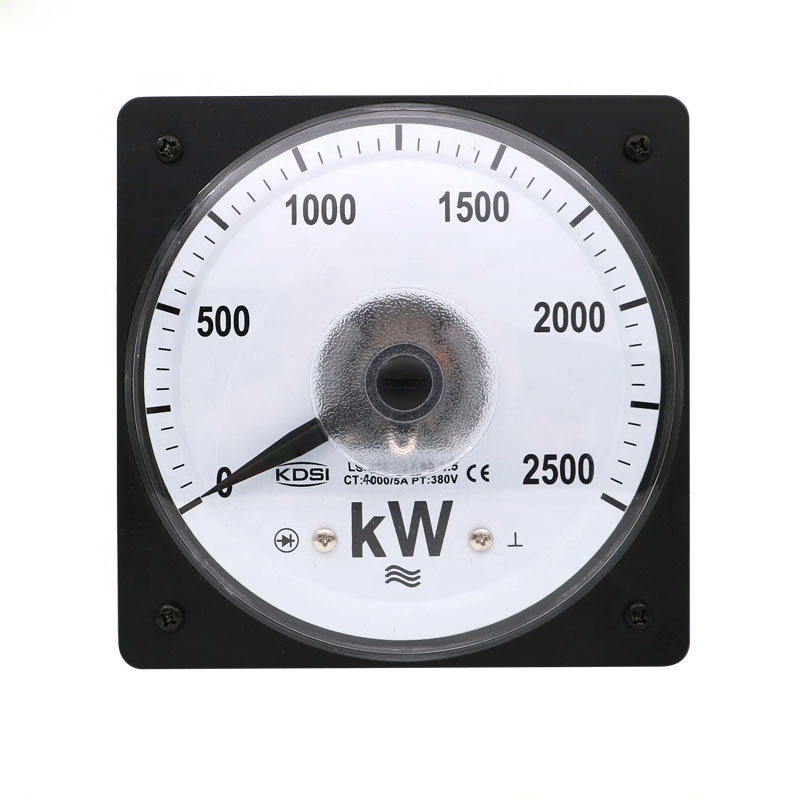

Front view
product specifications
No
thing
data
1
CT
4000/5A
2
Voltage
380V
3
Dial display
0-2500kW
Certification
CE and ISO certificates
