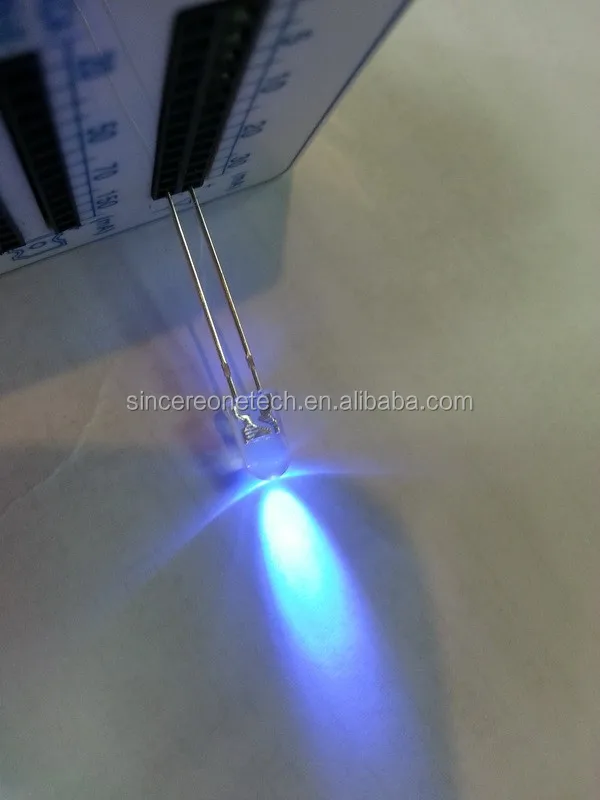

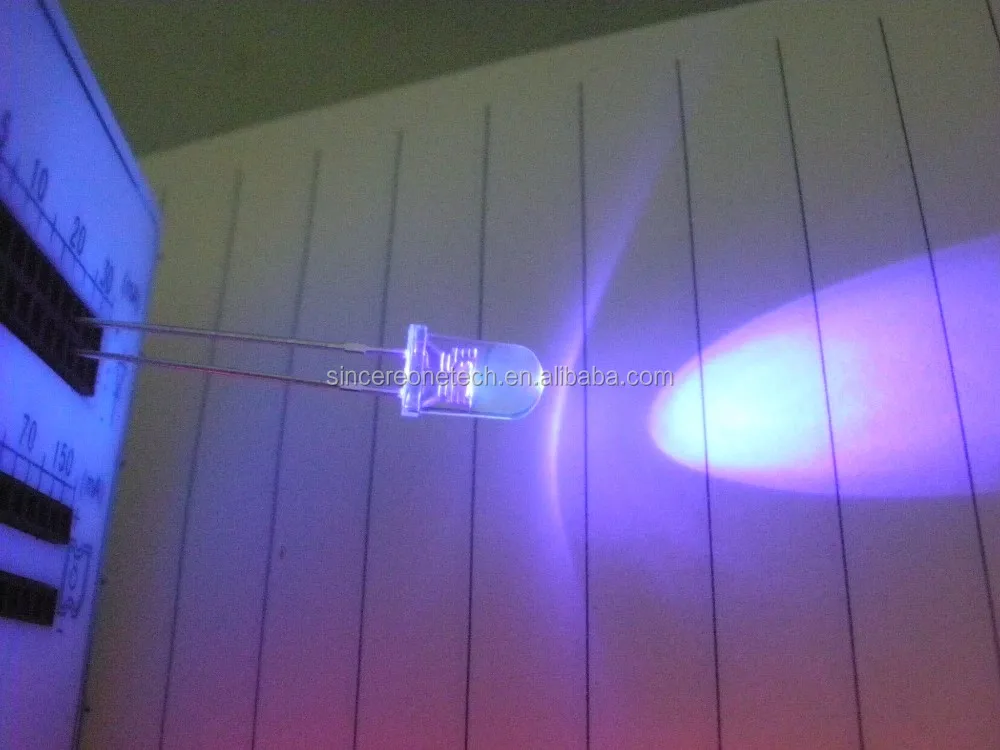

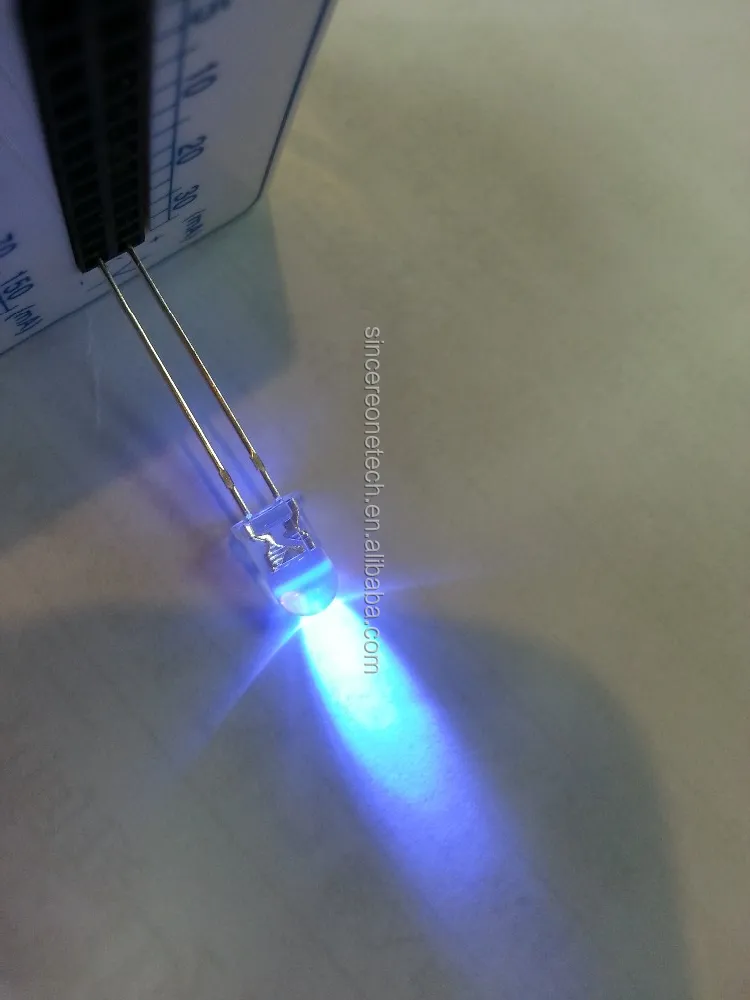

Viewing angle: | 25 degree | Shipping Details: | Shipped within 3 days after payment |
type: | to lead | type of packaging: | surface mount |
Operating temperature: | -40 - 85 | maximum. reverse current: | 5uA |
Packaging Details: | 5mm real uv 365nm led, packed in poly bag | Supply capacity: | 100000 pieces per day |
brightness: | 2000-3000mcd | Lens Color: | clear water |
Voltage: | 3.5.-4.0v | maximum. Forward Voltage: | 4V |
maximum. Forward current: | 20mA, 20mA | shape: | 5mm round |
strength: | 0.1W | model: | 5mm UV 365nm |
payment terms: | T/T, Western Union, MoneyGram, PayPal | brand: | Packaging / OEM |
maximum. Reverse voltage: | 5v,5v | port: | Hong Kong/Shenzhen |
Origin: | Guangdong, China | Luminous color: | 5mm UV lamp |
Specification:

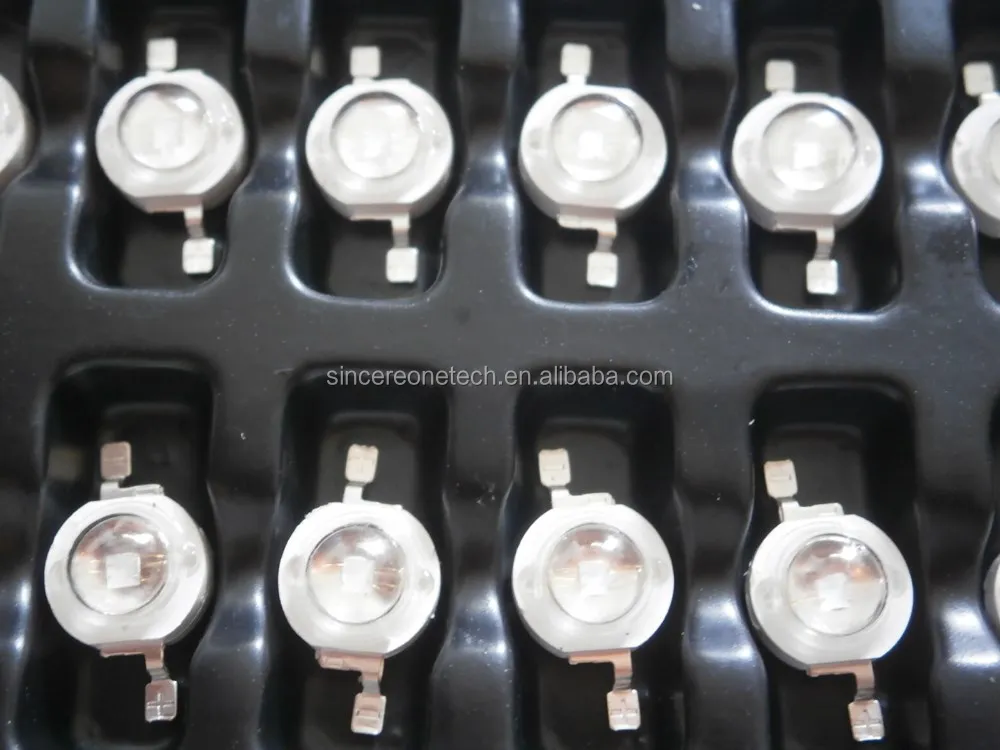

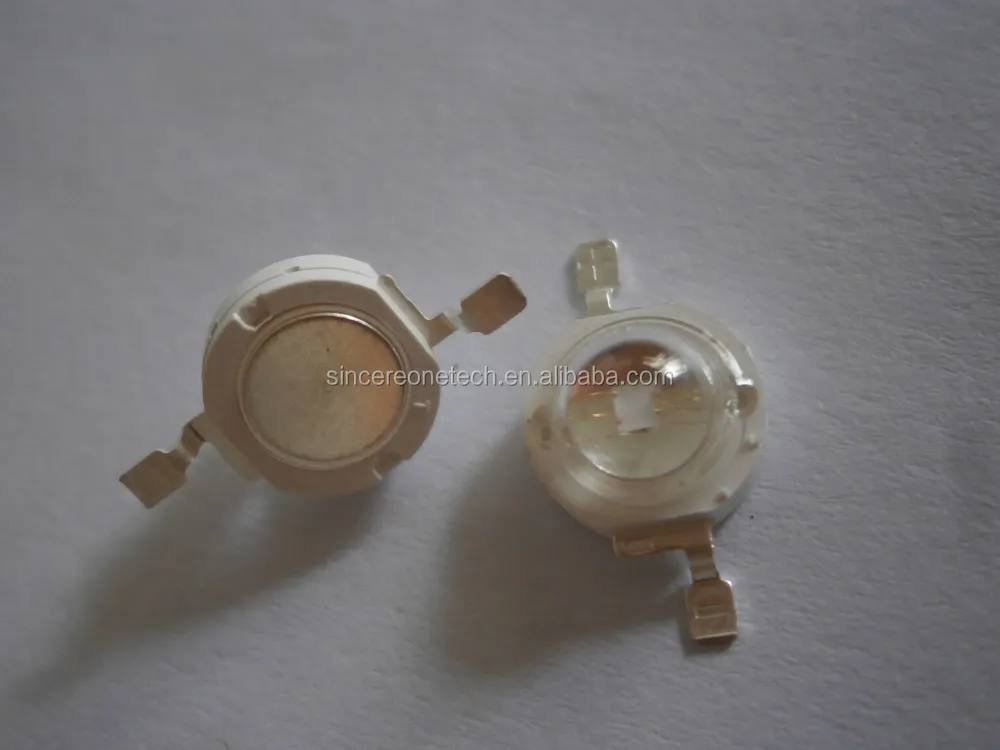

1. 1w high power led 365nm
2. 3.5-4.0vdc, 30-60mW power consumption
3. 120-degree viewing angle
4. Real 375-380nm UV lamp
5, 5mm uv led lamp wavelength from 365nm to 400nm usually in stock fast delivery

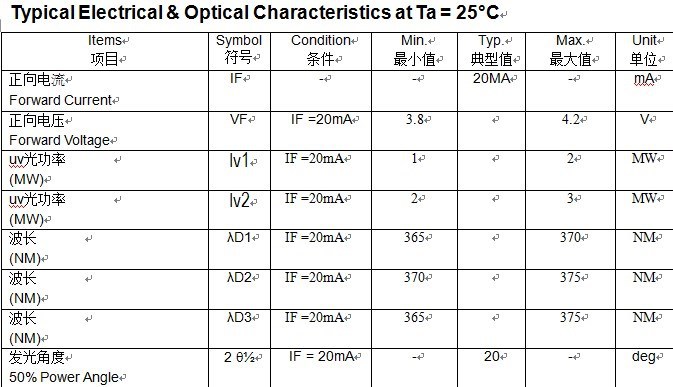

Part Number | Working current | Forward Voltage | wavelength | light output | Viewing angle | glow color |
SO-UV365W10 | 350mA | 3.5-4.4v | 365-370nm | 10-30 mW | 120 degrees | ultraviolet rays |
SO-UV370W10 | 350mA | 3.5-4.4v | 370-375nm | 20-80 mW | 120 degrees | ultraviolet rays |
SO-UV375W20/30/40/80 | 350mA | 3.5-4.2v | 375-385nm | 20-80 mW | 120 degrees | ultraviolet rays |
SO-UV380W20/30/40 | 350mA | 3.5-4.4v | 380-385nm | 20-60 mW | 120 degrees | ultraviolet light |
SO-UV385W40 /60/80 | 350mA | 3.5-4.4v | 385-390nm | 40-90 mW | 120 degrees | ultraviolet rays |
SO-UV390W60/60/80 | 350mA | 3.5-4.4v | 390-395nm | 40-90 mW | 120 degrees | ultraviolet rays |
SO-UV415W90 | 350mA | 3.5-4.4v | 415-420nm | 90-100 mW | 120 degrees | ultraviolet light |
UV LED Applications:
notes:
1) Do not look directly into the UV LEDs or look through the optical system! UV-blocking glass is recommended to keep the light out of your eyes.
2) Do not touch the UV lamp with bare hands! It is recommended to wear a wrist strap or anti-static gloves when handling LEDs.
3) Do not apply any bending stress to the lens of the UV lamp.
4) Banknote detection system, water purification system, medical equipment, leak detection system, etc...
Professional UV led factory, serving you with the best price, very stable quality and fast delivery.
Different models are welcome to inquire~
3mm round led pink transparent lens high brightness 2000-3000mcd factory wholesale
Features of factory produced led diodes:
1. We provide 3mm LED, 4.8mm LED, 5mm LED, 8mm LED, 10mm LED, Flux LED.
2. Chip material: InGaN. aluminum nitride
3. Emitting color: white, red, yellow, pure green, yellow green, blue, amber, orange.
4. Lens color: water clear, color transparent, color diffusion, white diffusion
5. Available wavelengths: 470nm, 525nm, 585nm, 610nm, 630nm, 640nm (peak wavelength measurement tolerance 5.0nm)
6. Available color temperature: 3300K, 6500K, 7000~8000K
7. Applications: lighting, decoration, engineering construction, display, traffic lights, etc.
8. Available angles: 20 degrees, 30 degrees, 40 degrees, 45 degrees, 60 degrees...
9. Forward voltage: 1.8-3.6V. Forward current: 20mA
10. Excellent performance in outdoor/indoor environment
11. Sample delivery time: within 2-3 days; order delivery time: within 7~15 days after payment is completed
12. All products are exported to the United States, Canada, Australia, the United Kingdom, Malaysia, Germany, Greece, Indonesia, etc.
13. Payment term: 100% TT in advance, Western Union and Paypal can be used
14. No pollution effect, low power consumption, low forward voltage
15. Energy saving, service life over 50,000 hours.
LED product application:
1. Indoor lighting: spotlights, light bulbs, ceiling lights, track lights
2. Portable lighting: flashlight
3.led traffic lights
4. Decorative lighting: light strings, billboards
5. Electronic applications: indicator lights, equipment lighting
6. Automotive lighting: decorative lights, tail lights, high-position brake lights
size | 3mm, 5mm, 8mm, SMD5050, SMD5730, SMD5630, SMD3528, SMD2835, etc. |
shape | Round, Flat, Straw Hat, Oval, Super Flux, SMD, High Power, etc. |
glow color | Red, yellow, blue, green, white, warm white, two-color, full-color, RGB flash, etc. |
diode pin | 2pins, 3pins |
Beam angle | 15, 20, 30, 45, 60, 80, 120 degrees (15°~180°) |
wavelength | Available in different wavelengths |
Forward Voltage | 1.8-2.4V for red, yellow, chartreuse, orange. |
2.6-3.6V white, blue, green, pink | |
forward current | 15~20mA, 350mA, 700mA |
lens color | Water clarity, dispersion, color penetration |
certified | ROHS, ISO9001:2000, ISO14001, EN62471, LM-80 certification |
light intensity | Elective |
Package | Inner layer: anti-static bag |
Outside: standard carton |
There are usually large stocks of dip and smd leds for wholesale business, you are welcome to make an inquiry with us anytime.
3mm Red LED, 3mm Blue LED, 3mm Green LED, 3mm Yellow LED, 3mm White LED, 3mm Amber LED, 3mm Blinking LED…
5mm Red LED, 5mm Blue LED, 5mm Green LED, 5mm Yellow LED, 5mm White LED, 5mm Amber LED, 5mm Blinking LED....
10mm Red LED, 10mm Blue LED, 10mm Green LED, 10mm Yellow LED, 10mm White LED, 10mm Amber LED, 10mm Blinking LED…
smd from 0603, 0805, 1206, 3528, 5050, 2835, 5630, 335...
High power led from 0.5W, 1W, 3W....
Water transparent lens, diffused, round, oval led, stawhat led, special shape with different wavelength and brightness..
For any demand for LED components, please contact us today.
