Original luoyang YTO PY165C-2 motor grader for sale

Supplier: Luoyang Chunqiu Imp/Exp Trading Co., Ltd.
Region: Henan, China
Contact: Ms Tree Cui
Price: $55000.00 /set
Min. Order: 1 set

Click here to contact

Product details

pull pin devices:	Standard hydraulic;	Place of Origin:	Henan China (Mainland);
color:	yellow or others you required;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
structure:	large turnover hood;	tires:	6pcs;
Port:	qingdao/shanghai/tianjin;	After-sales Service Provided:	Engineers available to service machinery overseas;
battery:	Sweden;	axle brand:	Feicheng or Hengzheng;
Certification:	ce;	cooling syste:	Unique;
Supply Ability:	100 Set/Sets per Month motor grader;	Dimension(LWH):	858527903340mm;
Reverse Speed(km/h):	24.8;	Packaging Detail:	1set of motor grader could be packed into one 40HQ after assembly; motor grader spare parts by plywood box;
roll-disk device:	maintenance-free;	power:	220hp;
Warranty:	1 Year;	engine:	diesel;
Condition:	New;	Brand Name:	YTO/LUOYANG/SINOMACH;
Forward Speed(km/h):	36.8;

Original brand new YTO motor grader

We have motor graders 125kw, 132kw, 140kw, 158kw, with cummins or shangchai engine, operating mass 11ton, 15ton, 16ton, 16.9ton, front dozer blade and rear ripper are optional.

1.machine designated area

2.parts warehouse

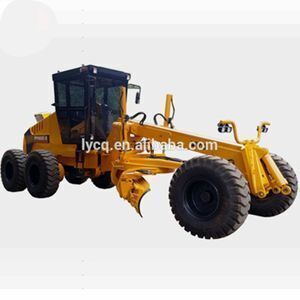

1.motor grader photos

2.Cabin detail

3.Disassembe photos

PY220C-2/180D-2/180C-2/165C-2 Self-propelled articulated motor grader

Self-propelled articulated motor grader is suitable for large-scale land leveling in foundation constructions. It can be used for ditching, grading, slope scraping, bulldozing, ripping, virgin land scarifying and snow-removing etc., which is modernized construction equipment of multi-functions and high-efficiency for high-class highway, railway, airport, harbors, dams, industrial ground and farmland.
Main components such as diesel engine, hydraulic pumps, multiply control valve, dividing valve and differentials are made from international advanced companies.
Whole engine hood and spacious operator's cab for good visibility within 1m×1m distance, ease to maintain and operate.
Torque converter and power-shift gearbox is operated electro-hydraulically, all the instruments and warning lights are indicated
on the liquid-crystal screen digitally with flexible and light operations.
Steering system with center articulated joint and tilt-able front wheels, together with oscillating balance case enhance the maneuverability of machine.
Braking system with single-circuit accumulator brake control, caliper disc brake and mechanical parking brake for more safety and reliability.

Model		PY165C-2	PY180C-2	PY180D-2	PY220C-2
Operating mass	kg	15000	16000	16000	16900
Front axle load	kg	4150	5150	5150	5820
Rear axle load	kg	10850	10850	10850	11080
Max.forward speed	km/h	40.4	38.2	38.2	36.8
Max.backward speed	km/h	25.7	24.4	24.4	24.8
Speed gear number		F6/R3	F6/R3	F6/R3	F6/R3
Hydraulic system pressure	Mpa	18	18	18	18
Blade lengthxheight	mm	3660×610	3960×610	3965×610	3965×610
Front/rear wheeltrack	mm	2150/2340	2150/2340	2150/2340	2150/2340
Wheelbase	mm	6062	6362	6362	6362
Engine model	mm	6BTA5.9-C170	6BTA5.9-C180	D6114	6BTA5.9-C215
Engine power	kW	125	132	140	158
Overall dimensions	mm	8285×2790×3340	8585×2790×3340	8585×2790×3340	8585×2790×3340
