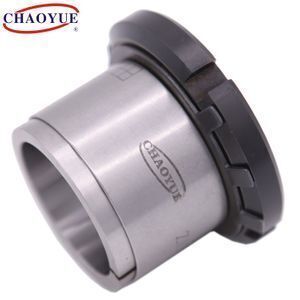

Z19B wing lock expansion bushing shaft locking device

Product details
Useage:Replace single keyway and spline;Torque range:64KN.m~1360KN.m;
Width:30mm~52mm;Type:Locking Assemblies;
Supply Ability:500 Piece/Pieces per Month;Port:Qingdao,Tianjin;
Outer diameter:25mm~70mm;Place of Origin:Shaanxi China (Mainland);
Weight:0.08kg-0.42kg(customized);Applicable Industries:Transmission part;
Application:Nc machine tools,printing machinery;Inner diameter:14mm~60mm;
Packaging Detail:corrugated box, carton box,;Brand Name:CHAOYUE;
Product name:Z19B Top quality expansion bushing shaft locking device;Material:45#;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;

Z19B wing lock expansion bushing shaft locking device

Product Description





Description:

Type Z19B is a keyless shaft power lock. It  can replace single keyway and spline ,in order to realize the connection between machinery parts (such as gear wheel,flywheel) and shafts,so the loading can be transmitted.Through the function of high strength of bolt when locking device is working,enormous strengh of tight holding power between hub, inner loop and shaft are produced.When bearing the weight and loading depend on connection power between locking device and machinery and additional frictional torce to transmission torsion or power on shaft.





Parameter of Z19B Top quality expansion bushing shaft locking device



DIMENSION



Bolt



Rated Load

Pressure

on shaft

Pf

N/mm2

Pressure

on hub

Pf'

N/mm2

Torque of

tighten

locking-bolt

MA

N·m

Weight

[Kg]

d

 D

EH

B

d1

Axial
Force
Ft [kN]

Torque
Mt
[kN·m]

14
15
16
17
18
25
25
25
25
30
32
32
32
32
32
30
30
30
32
32
20
20
20
20
20
M20x1
M20x1
M20x1
M22x1
M22x1
9.1
9.1
9.1
9.1
9.1
64
70
73
80
83
85
80
75
70
65
45
45
45
45
40
95
95
95
95
95
0.08
0.08
0.07
0.07
0.12
19
20
22
24
25
30
30
35
35
35
38
38
45
45
45
32
32
36
36
36
20
20
25
25
25
M25x1.5
M25x1.5
M30x1.5
M30x1.5
M30x1.5
11
11
14.5
14.5
14.5
105
112
163
178
185
75
70
70
65
60
45
45
45
45
45
160
160
220
220
220
0.11
0.1
0.17
0.15
0.14
28
30
32
32
35
40
40
42
45
45
52
52
55
58
58
42
42
44
44
44
30
30
30
30
30
M35x1.5
M35x1.5
M36x1.5
M40x1.5
M40x1.5
14.5
17.5
21.5
21.5
21.5
250
270
350
350
390
55
50
60
60
55
40
40
45
45
45
340
340
340
480
480
0.22
0.19
0.2
0.27
0.22
38
40
45
48
50
50
50
55
60
60
65
65
70
75
75
45
45
46
46
46
30
30
30
30
30
M45x1.5
M45x1.5
M50x1.5
M55x2
M55x2
26
26
30
35
35
500
520
680
840
880
60
60
60
60
60
45
50
50
50
50
680
680
870
970
970
0.3
0.25
0.29
0.37
0.32
55
60
65
70
80
85
46
52
30
30
M60x2
M65x2
37.5
45
1030
1360
60
65
50
55
1100
1300
0.34
0.42



Company Information



Our Advantages

Certifications



Packaging & Shipping



FAQ



Q: Are you factory or trading company ?

A : Xianyang CHAOYUE Clutch Co., Ltd was founded in 1999. We are a professional locking assembly & clutch manufacture with 20 years' experance of R&D.



Q: How to get price ?

A: Kindly info us with the product type and we will quote you ASAP.



    If you are not sure about these details , pls just tell us :

    Inner diameter is       mm, outer diameter is       mm, width is       mm, torque range is        kN·m,



Q:  What's the MOQ ?

A:   The minimum order quantity for most of our product is 1 pcs.
