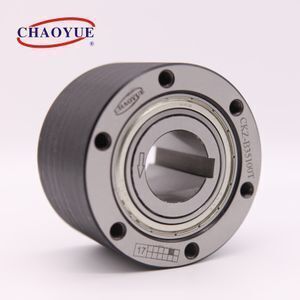

CKZ-B low speed bearing supported sprag oneway cam clutch for packaging mining machine

Supplier: Xianyang Chaoyue Clutch Co., Ltd.
Region: Shaanxi, China
Contact: Mr Shiyu Z
Price: $90.00 / >=3 pieces
Min. Order: 3 pieces

Click here to contact

Product details

Port:	Qingdao,Tianjin;	Precision Rating:	IT6;
Brand Name:	CHAOYUE;	Place of Origin:	Shaanxi, China;
Type:	Sprag clutch;	Inner diameter:	25 ~ 80 mm;
Service:	OEM Customized Services;	Model Number:	CKZ-B;
Hardness HRC:	58 ~ 62;	Package:	carton, wooden case;
Width:	50 ~ 112mm;	Product name:	low speed bearing supported sprag oneway cam clutch for packaging;
Outer diameter:	90 ~ 300 mm;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Torque range:	276 ~ 1830 N.m;	Content of raw materials:	GCr15;
Packaging Detail:	1 CKZ-B low speed bearing supported sprag oneway cam clutch for packaging mining machine use 1 carton, wooden case;	Applicable Industries:	Energy & Mining,packaging machine;
Supply Ability:	1000 Piece/Pieces per Month;	Application:	Printing and packaging machinery, metallurgical machinery;
Seals Type:	Sealed;

CKZ-B low speed bearing supported sprag oneway cam clutch for packaging mining machine

Product Description

Description:

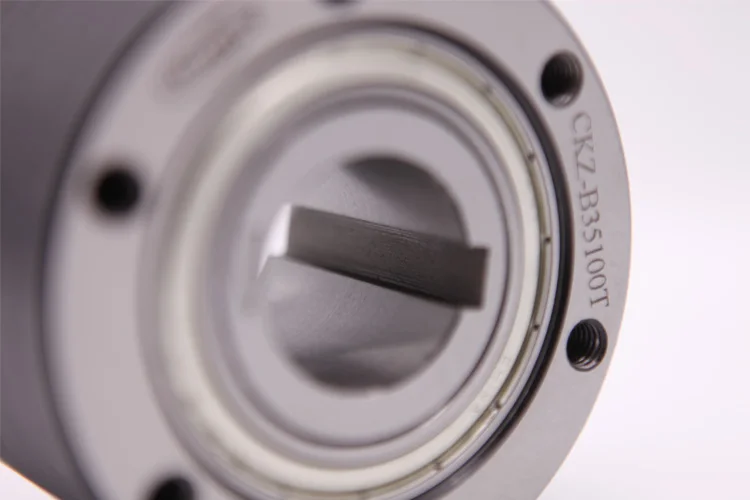

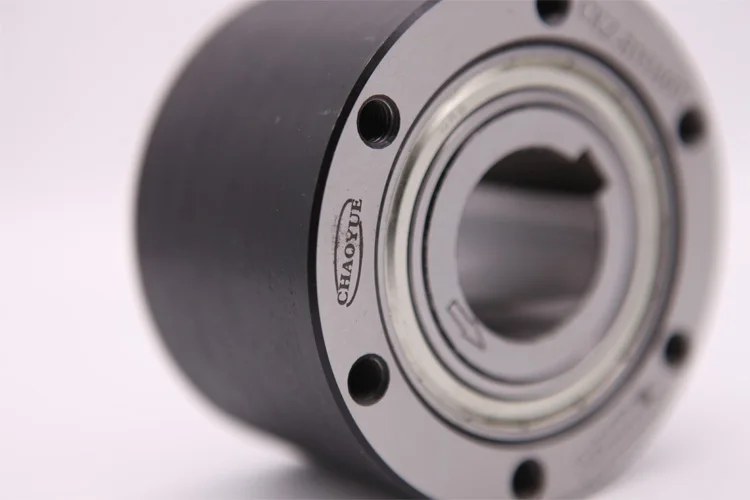

Type CKZ-B is a sealed, self contained, sprag type freewheel, bearing supported using two ball bearings. Unit is delivered oil or grease Iubricated according to the type.

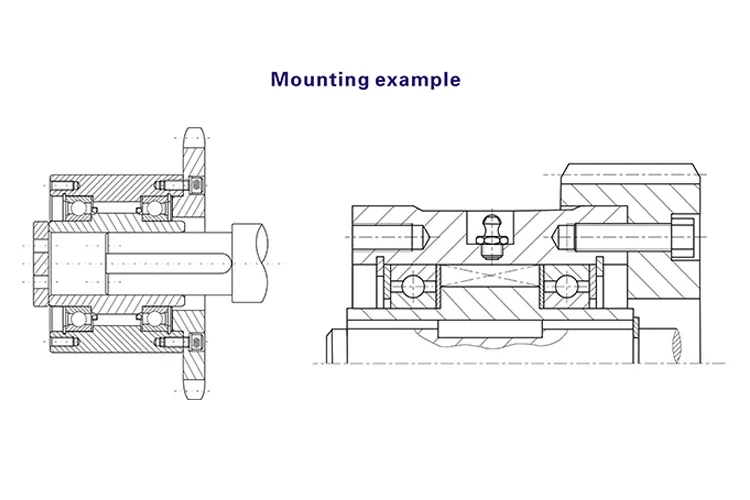

The inner race is keyed to the shaft, the outer race has a positive h7 tolerance to give a press fit in housing to H7 and it is screwed to the bond.

This type extensive used in machinery of packing, trahie, metallurgy, mine and so on, to realize backstop or overrunning in dual drives.

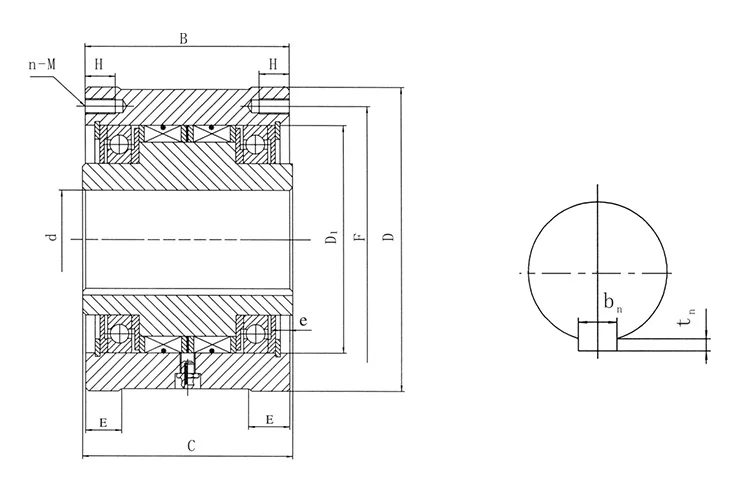

TYPE	RATED TORQUE [N·m]	OVERRUNNING SPEEDS [r/min]		DIMENSION											WEIGHT [kg]
		OVERRUNNING SPEEDS [r/min]		OUTER RACE							INNER RACE
		INNER RACE	OUTER RACE	D [h7]	D₁ [J6]	B	F	n-M	E	H	d [H7]	C	b_n×t_n	e
CKZ-B25110	404	700	300	110	80	68	95	6-M8	15	20	25	70	10×3.3	3.5	3.98
CKZ-B35130	825	560	250	130	85	85	100	6-M10	15	25	35	87	10×3.3	6.8	7.01
CKZ-B45150	1464	490	200	150	110	90	130	6-M10	20	25	45	92	14×3.8	3.8	9.69
CKZ-B50165	1830	420	150	165	120	95	145	6-M12	20	25	50	97	14×3.8	4.5	12.36
CKZ-B50180	2990	420	150	180	125	106	160	6-M12	20	25	50	108	16×3.8	5.3	16.51
CKZ-B60200	3494	350	120	200	150	115	180	6-M12	25	25	60	117	20×4.9	6.8	22.02
CKZ-B70240	4920	350	120	240	180	122	210	6-M14	25	30	70	124	22×5.4	4.8	34.65
CKZ-B75260	5760	280	100	260	200	130	230	6-M16	25	35	75	132	22×5.4	4.5	42.38
CKZ-B80300	7500	280	100	300	230	136	265	6-M18	25	35	80	138	22×5.4	6.3	57.17
CKZ-B25100	400	750	350	100	75	80	88	6-M8	10	16	25	82	8×3.3	9.3	2.62
CKZ-B28105	400	700	300	105	80	68	90	6-M8	15	16	28	70	10×3.3	4.5	2.75
CKZ-B3090	276	800	380	90	65	49	75	6-M6	10	15	30	50	8×2.0	3.3	4.86
CKZ-B3290	380	800	380	90	65	60	80	8-M6	10	16	32	60	10×3.7	4.0	4.32
CKZ-B30110	404	700	300	110	80	68	95	6-M8	15	16	30	70	10×3.3	3.8	3.91
CKZ-B32125	1021	560	250	125	95	90	110	8-M8	15	12	32	92	10×3.3	4.8	6.53
CKZ-B35115	800	700	300	115	72	78	95	6-Φ11	15		35	78	10×3.3	7.3	4.63
CKZ-B40125	800	600	300	125	95	76	110	6-M8	15	18	40	80	12×3.3	6.3	5.60
CKZ-B45190	2150	380	130	190	130	86	160	4-Φ14	20		45	86	14×3.8	2.8	17.5
CKZ-B55155	1735	490	200	155	125	100	140	8-M8	20	20	55	102	16×4.3	9.3	10.96
CKZ-B55175	1800	420	150	175	125	79	155	6-M10	20	15	55	87	16×4.3	5.5	14.92
CKZ-B60180	3100	420	150	180	140	124	158	8-M10	25	20	60	128	18×4.4	6.8	17.25
CKZ-B65180	3100	420	150	180	140	122	158	8-M10	25	20	65	124	18×4.4	6.0	16.68
CKZ-B80160	1830	420	150	160	130	100	145	6-M8	25	20	80	112	22×5.4	6.8	11.42
