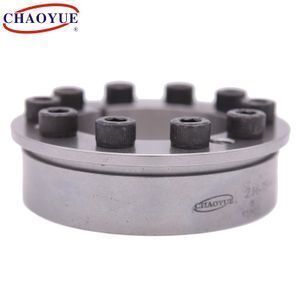

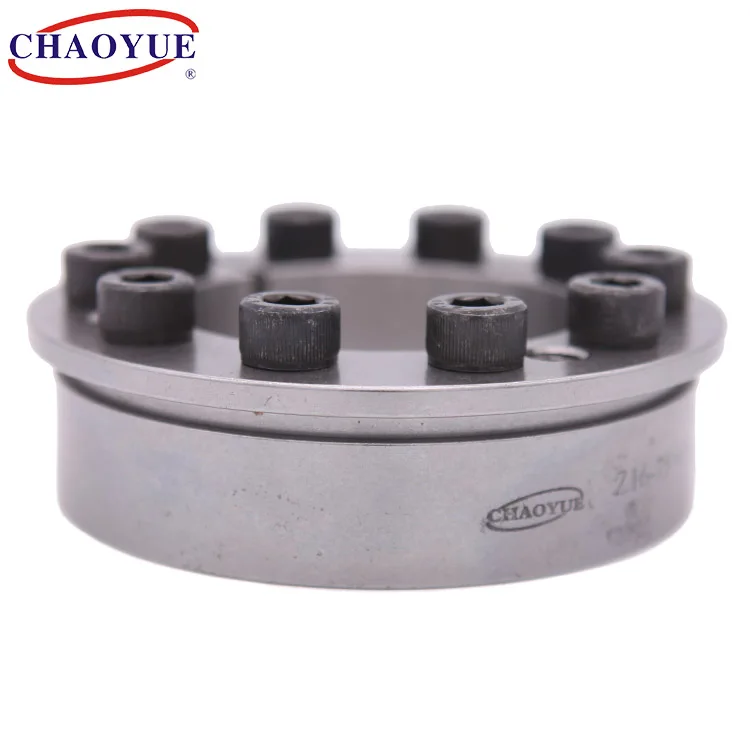

Z16 standard steel power lock

Supplier: Xianyang Chaoyue Clutch Co., Ltd.
Region: Shaanxi, China
Contact: Mr Shiyu Z
Price: $10.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Outer diameter:	47mm~710mm;	Useage:	replace single keyway and spline;
Weight:	0.26kg-104kg(customized);	Packaging Detail:	carton, wooden case;
Torque range:	0.28KN.m~964KN.m;	Place of Origin:	Shaanxi China (Mainland);
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Inner diameter:	20mm~600mm;
Width:	29mm~137mm;	Port:	Qingdao,Tianjin;
Supply Ability:	500 Piece/Pieces per Month Customized;	Product name:	Z16 standard steel power lock;
Brand Name:	CHAOYUE;	Type:	Locking Assemblies;
Application:	Printing and packaging machinery, food machinery, automation equipment;	Material:	45#;

Z16 standard steel power lock

Product Description

Description:

Type Z16 is a keyless shaft power lock. It can replace single keyway and spline ,in order to realize the connection between machinery parts (such as gear wheel,flywheel) and shafts,so the loading can be transmitted.Through the function of high strength of bolt when locking device is working,enormous strengh of tight holding power between hub, inner loop and shaft are produced.When bearing the weight and loading depend on connection power between locking device and machinery and additional frictional torce to transmission torsion or power on shaft.

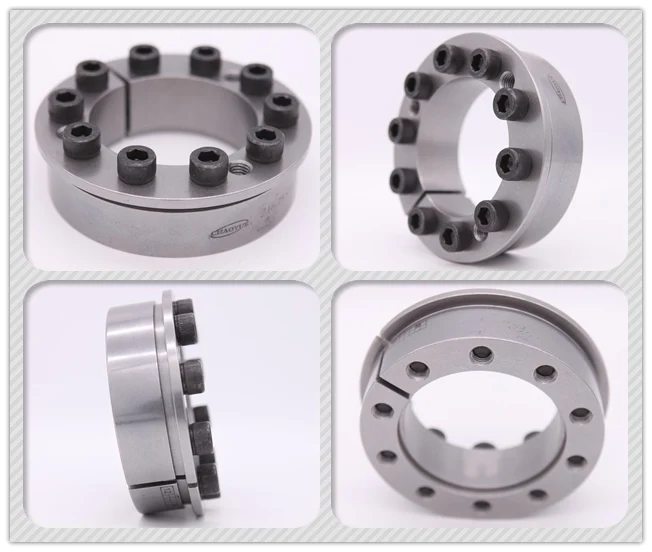

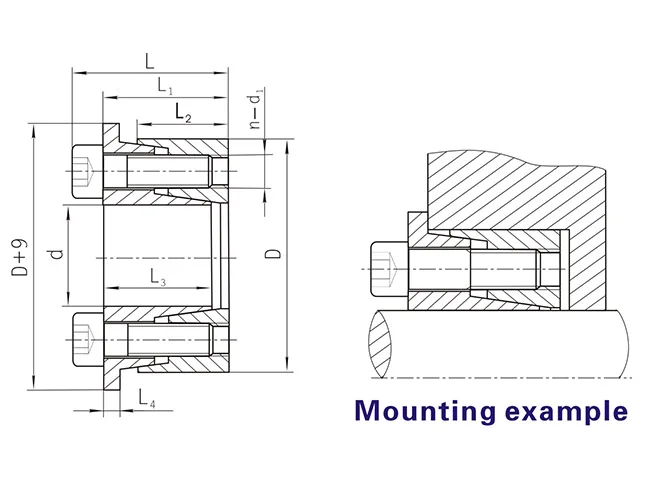

Parameter of Z16 standard steel power lock

DIMENSION							Bolt		Rated Load		Pressure on shaft P_f N/mm²	Pressure on hub P_f' N/mm²	Torque of tighten locking-bolt M_A N·m	Weight [Kg]
d	D	L	L₁	L₂	L₃	L₄	d₁	n	Torque M_t [kN·m]	Axial Force F_t [kN]	Pressure on shaft P_f N/mm²	Pressure on hub P_f' N/mm²	Torque of tighten locking-bolt M_A N·m	Weight [Kg]
20 22 24 25 28	47 47 50 50 55	29 29 29 29 29	23 23 23 23 23	17 17 17 17 17	20 20 20 20 20	3 3 3 3 3	M6 M6 M6 M6 M6	6 6 6 6 8	0.28 0.31 0.34 0.35 0.52	28 28 28 28 37	185 168 154 148 176	92 92 87 87 105	17 17 17 17 17	0.26 0.25 0.28 0.30 0.32
