payment terms: | L/C, T/T, Western Union | Machine classification: | VSI gravel sand making machine |
Certification: | ISO CE SGS | Output size: | 2-15mm |
Key words: | sand making machine | application: | Cobblestone, granite, basalt, etc. |
Applicable industries: | Manufacturing plants, construction, energy and mining | strength: | 55-200KW |
Warranty: | 2 years | Origin: | China Shanghai |
After-sales service provided: | Online support, free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, video technical support | weight: | depending on model |
quality: | Advanced technology | spinning speed: | 1700-1890 |
Supply capacity: | 80 sets per month | Voltage: | 110-380V |
capacity: | 160-440 tons/hour | maximum. Feed size: | 200-1020mm |
Dimensions (L*W*H): | depending on model | Main selling points: | high accuracy |
Health status: | new | Spare parts supply: | Any time |
brand: | SA | Material texture: | High manganese steel |
Gypsum sand making machine Gypsum sand making machine is a newly developed high-efficiency crushed stone sand making machine, which has a number of national patent technologies. This machine adopts many years of research and development experience and technical concepts. The machine has the characteristics of high efficiency and energy saving, long service life and wide application range, which will help the large-scale sand production line to gradually scale up and concentrate production, so as to meet the country's requirements for environmental protection and productivity.

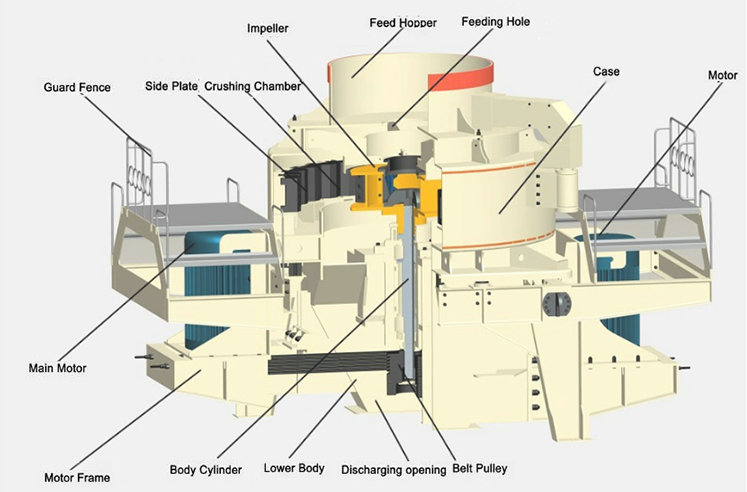

Sand making machine working principle
The sand making machine price lets the material fall into the crusher, where it is divided into two parts. One part enters the high-speed impeller of the machine, and the other part bypasses the impeller. Under the action of centrifugal force, the two parts of materials quickly collide and crush to form a vortex, collide and rub against each other, and the finished product flows out from the bottom of the machine to obtain the product required by the user. Product size after vibrating screen screening.
The sand making machine has high efficiency and low consumption, and it is designed after years of painstaking research on mechanical mining equipment. Vertical shaft impact crusher is widely used in various minerals, cement, hard ore, bauxite, emery grains, glass raw materials, machine-made sand, stone materials and various metallurgical slags, especially emery, sintered bauxite, magnesite, etc. It is very hard and corrosion-resistant in material. Sand making machines are more productive than other types of crushers.
Model | Center & Side Feed | feed center | soft material | hard material | Speed (rev/min) | Power (kW) | motor model | Machine size (mm) |
Capacity (tons/hour) | Maximum feed rate(mm) | |||||||
VSI7611 | 120-180 | 60-90 | 35 | 30 | 1700-1890 | 4-55×2 | Y250M-4/55 | 4100×2250×2258 |
VSI8518 | 200-260 | 100-130 | 40 | 35 | 1520-1690 | 4-90×2 | Y280M-4/90 | 4140×2280×2425 |
VSI9526 | 300-380 | 150-190 | 45 | 40 | 1360-1510 | 4-132×2 | Y315M-4/132 | 4560×2450×2780 |
VSI1140 | 450-520 | 225-260 | 50 | 45 | 1180-1310 | 4-200×2 | Y315L2-4/200 | 5100×2690×3200 |
