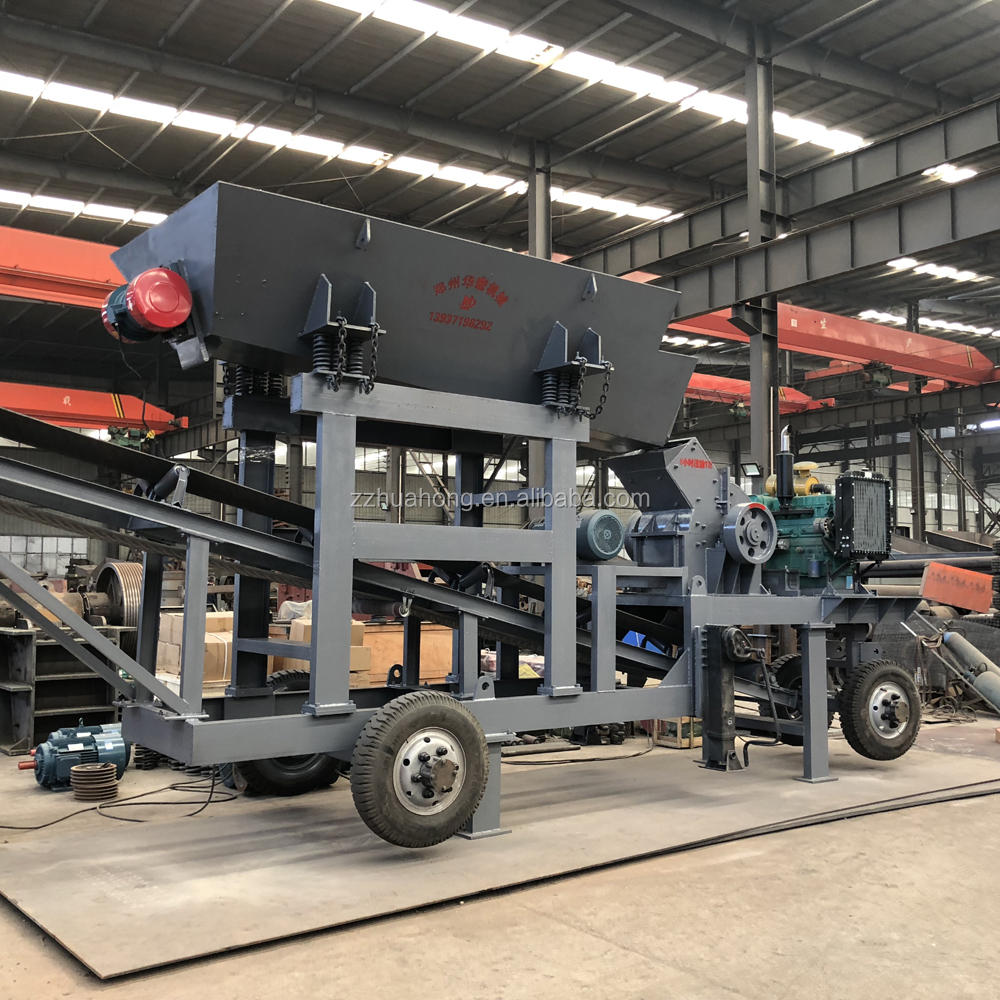

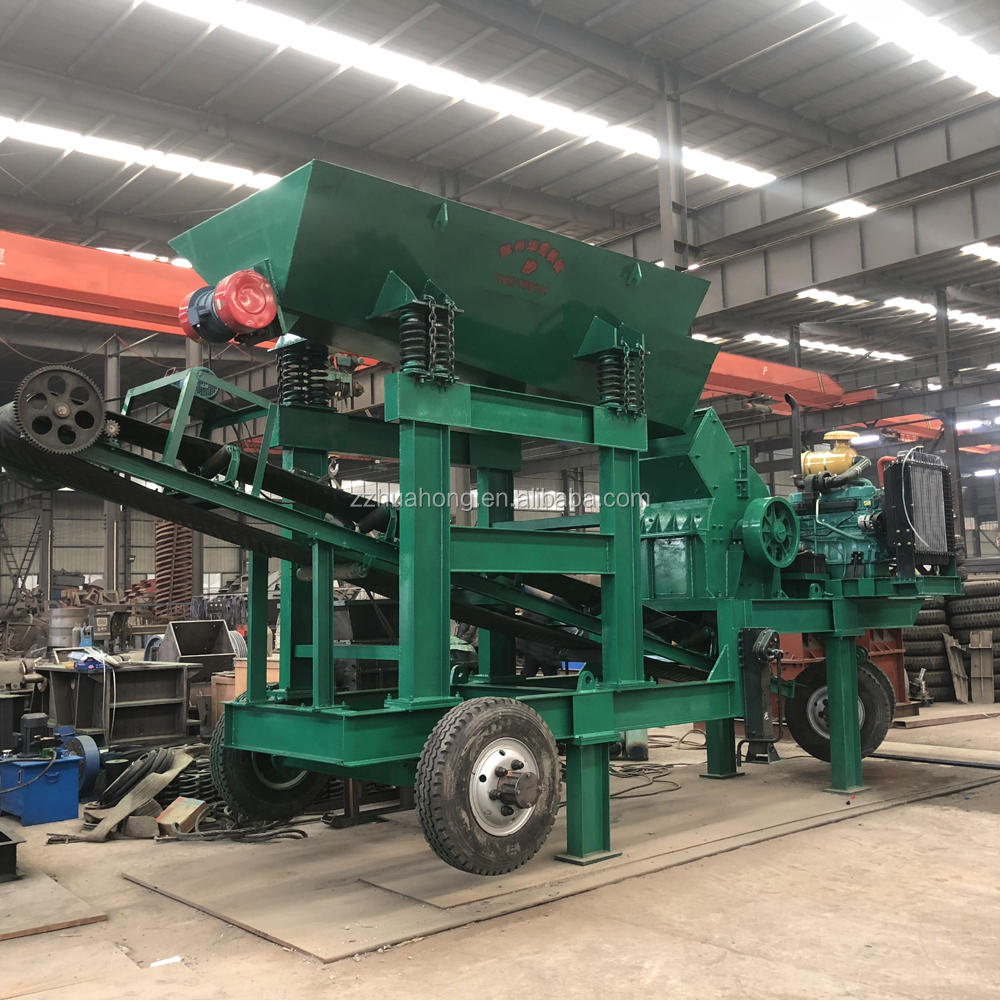

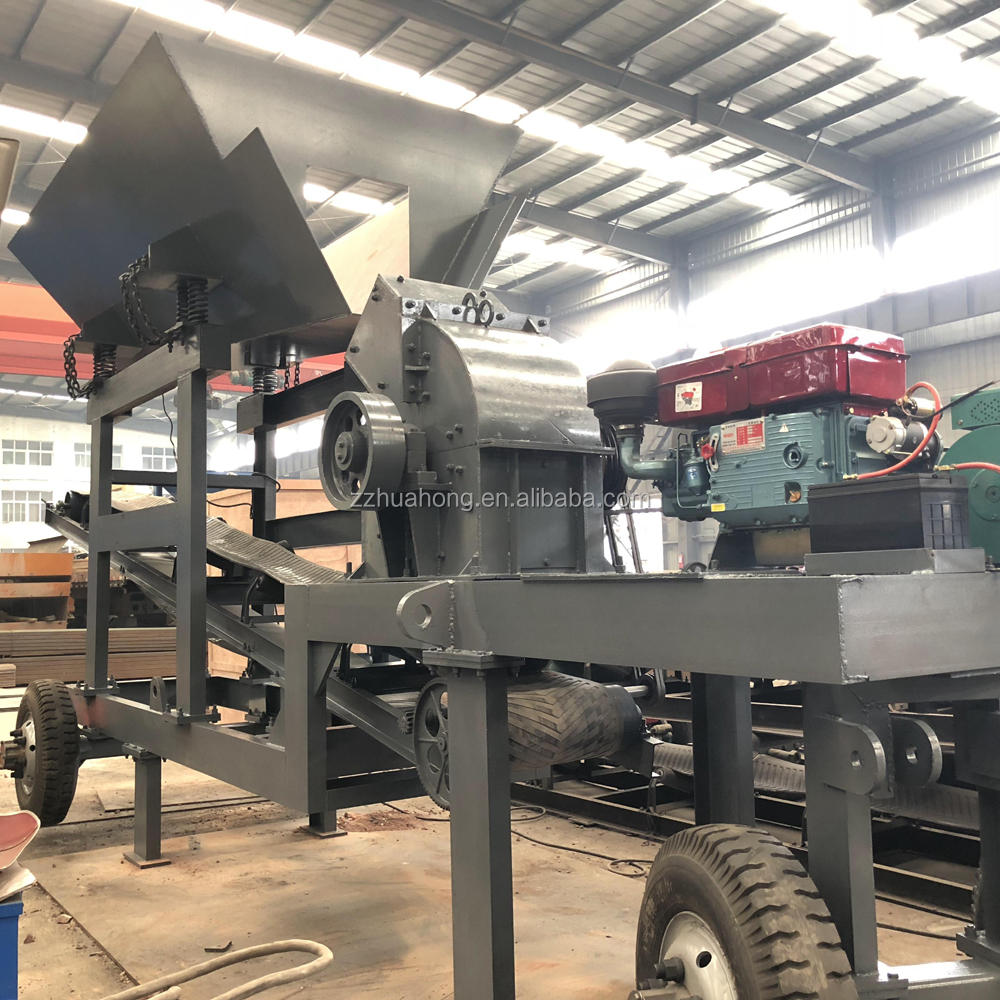

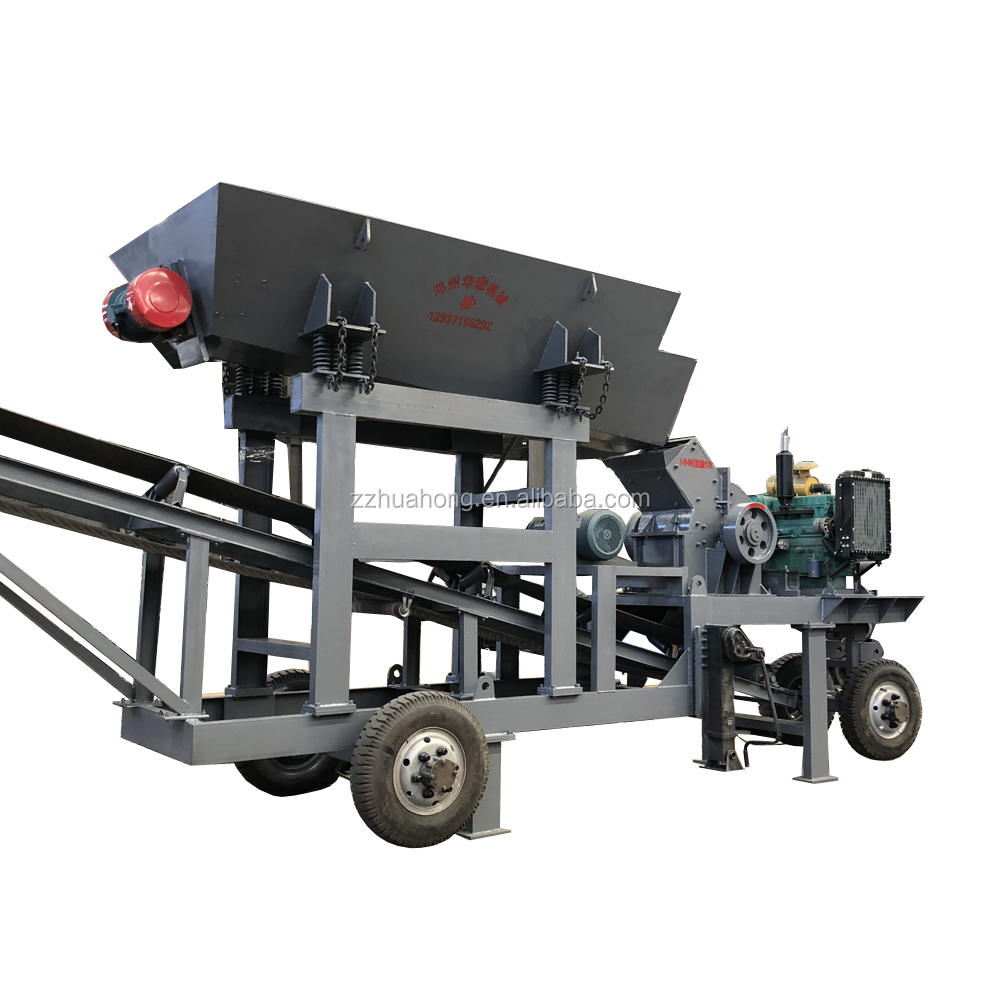

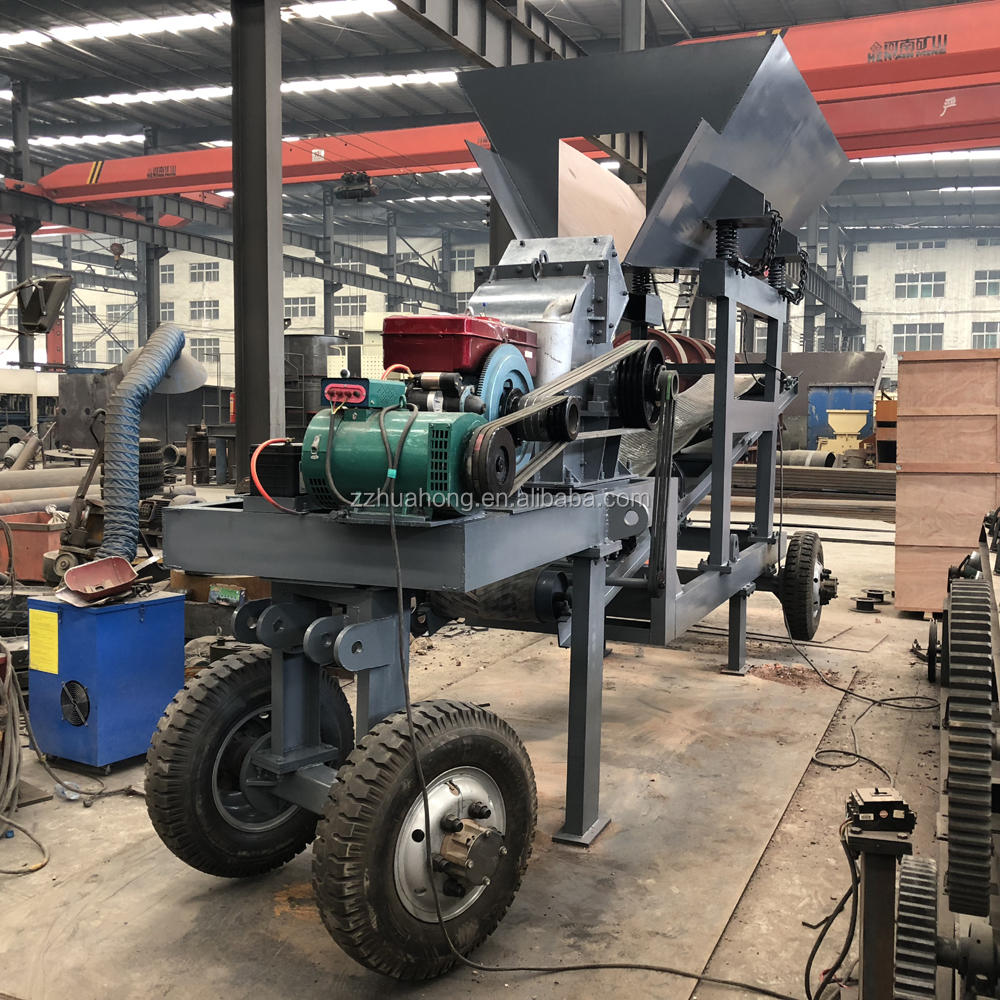

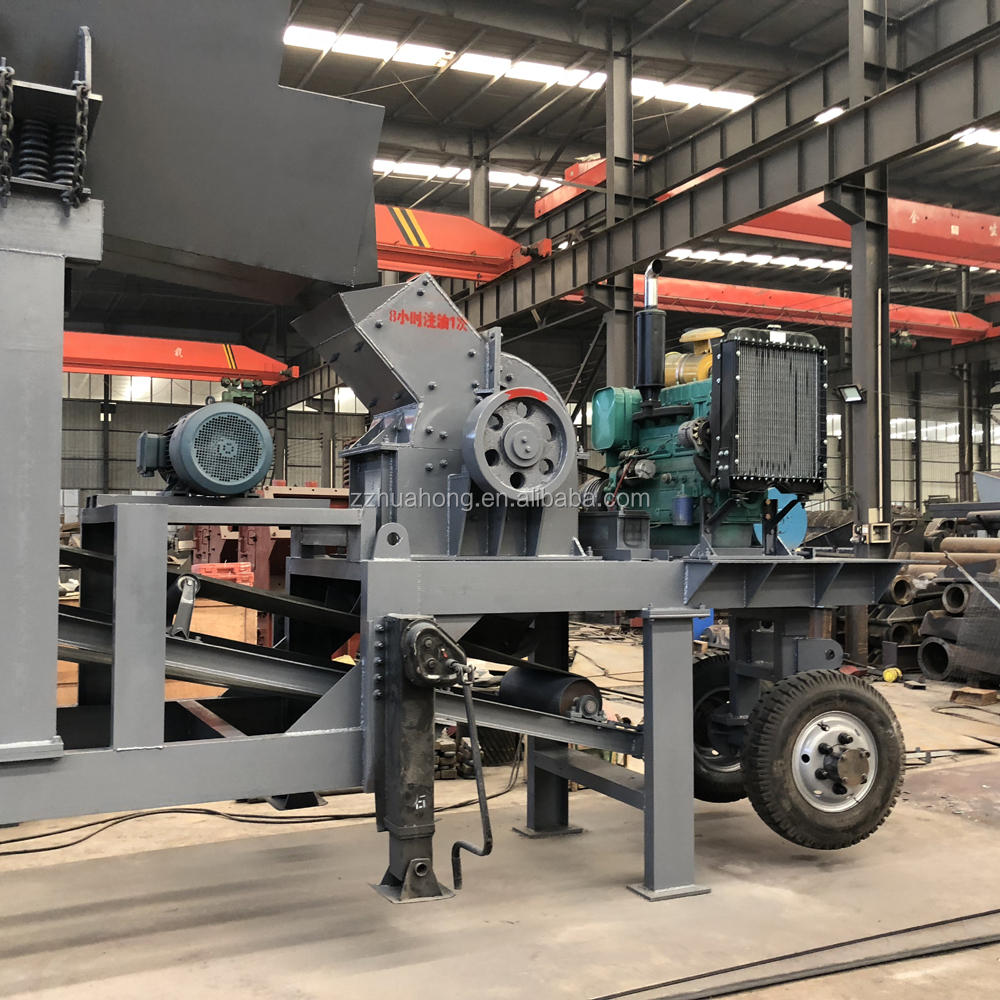

Simple sand making sand line crusher hammer crusher mobile

Supplier: Zhengzhou Huahong Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Mr hong hua
Price: $3200.00 / 1 - 19 sets
$1000.00 / >=20 sets
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 year	Voltage:	220V/380V, 50HZ/60HZ
brand:	Hua Hong	Applicable industries:	Building material stores, machinery repair shops, manufacturing plants, home use, construction, energy and mining
Core components:	PLC, bearing	Core component warranty:	1 year
Dimensions (LWH):	to be determined	Marketing Type:	New Products 2020
strength:	5.5-180KW	weight:	1500 kg
port:	Qingdao	Main selling points:	long lasting
Origin:	Henan, China	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram
After warranty service:	Video Technical Support	Mechanical test report:	if
Health status:	new	Showroom location:	not any
Packaging Details:	Wooden Case (LCL) Export Standard Container (FCL)	Supply capacity:	200 sets per month
Video shipment inspection:	if

Product Description

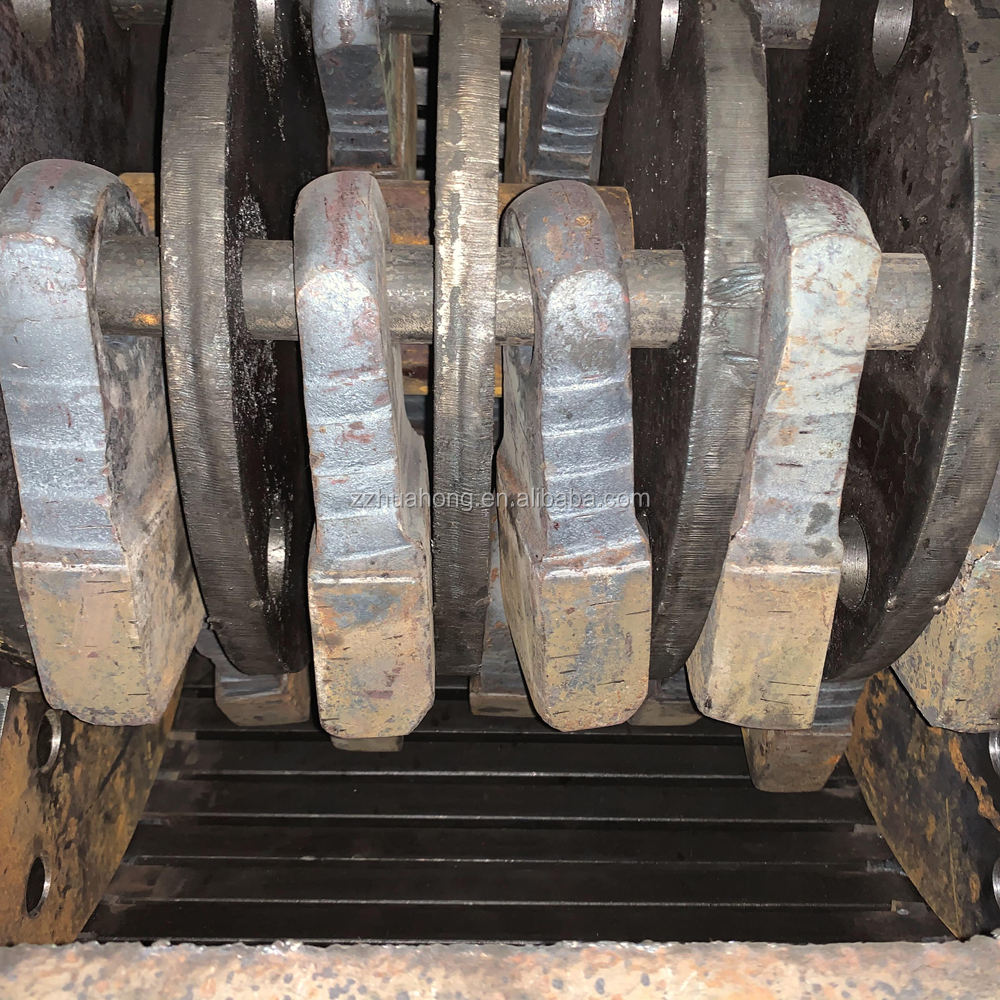

The main working part of all types of hammer mills is the rotor with hammers. The rotor consists of a main shaft, discs, hinge pins and hammers. There is a sieve plate under the rotor. The motor drives the rotor to rotate at high speed. When the material enters the crushing cavity, it is crushed by the rotating hammer, and the crushed products that reach the required particle size are discharged from the sieve plate to become the final product, and the larger products are brought back to the crushing area for crushing. are re-shredded until they reach the desired size.

Features of Hammer Crusher
Use effect description

The hammer crusher is suitable for crushing limestone, slag, coke, coal and other medium hardness materials in cement.
Chemical industry, electric power, metallurgy and other industrial sectors. It has the advantages of simple structure and large crushing capacity
Large crushing ratio, high production efficiency, both dry and wet crushing, the hammer crusher can adjust the grate gap according to needs
According to the requirements of users, the size of the material can be changed to meet the different needs of different users.

Size Information

Specifications and technical parameters

Model	Feed size (mm)	Discharge diameter(mm)	Capacity (t/h)	Motor power (kw)	Weight (tons)
PCΦ400x300	≤100	≤10	5-10	11	0.8
PCΦ600×400	≤120	≤15	10-22	18.5	1.5
PCΦ800x600	≤150	≤15	18-40 years old	55	3.1
PCΦ1000x800	≤200	≤15	25-50	75	7.9
PCΦ1000x1000	≤200	≤20	30-55	132	8.6
