CE certified rock mine tunnel large capacity crawler slag loader/wheel loader

Supplier: Zhengzhou Huahong Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Mr hong hua
Price: $55000.00 / 1 - 19 sets
$12000.00 / >=20 sets
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	not any	Other names:	tunnel excavator
Warranty:	1 year, 1.5 years	application:	ore, mine, road
brand:	bonus	port:	Qingdao.
Packaging Details:	FCL (1 set will be packed into one 20ft container)	Package preview:
Core components:	PLC, engine	Mechanical test report:	if
payment terms:	L/C, Western Union, D/P, D/A, T/T, Money Gram, Cash	After-sales service provided:	Engineers available to repair machinery overseas
type:	crawler	Health status:	new
brand:	bonus	load capacity:	60 tons-80/hour
Marketing Type:	2020 New Products	Weight (kg):	1000
Core component warranty:	1 year	product name:	Hydraulic slag removal machine
Supply capacity:	100 small tunnel slag removal machines per month	Applicable industries:	Building material stores, manufacturing plants, energy and mining
Origin:	Henan, China	Install:	under the guidance of engineers
Video outbound inspection:	if

Product Description

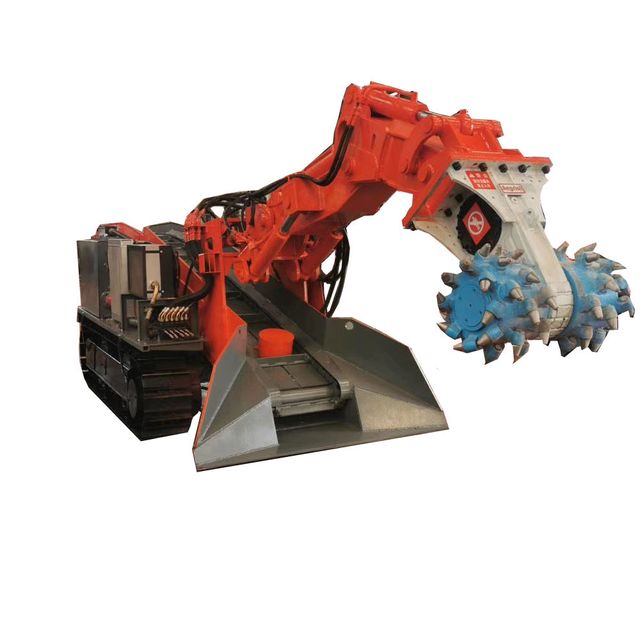

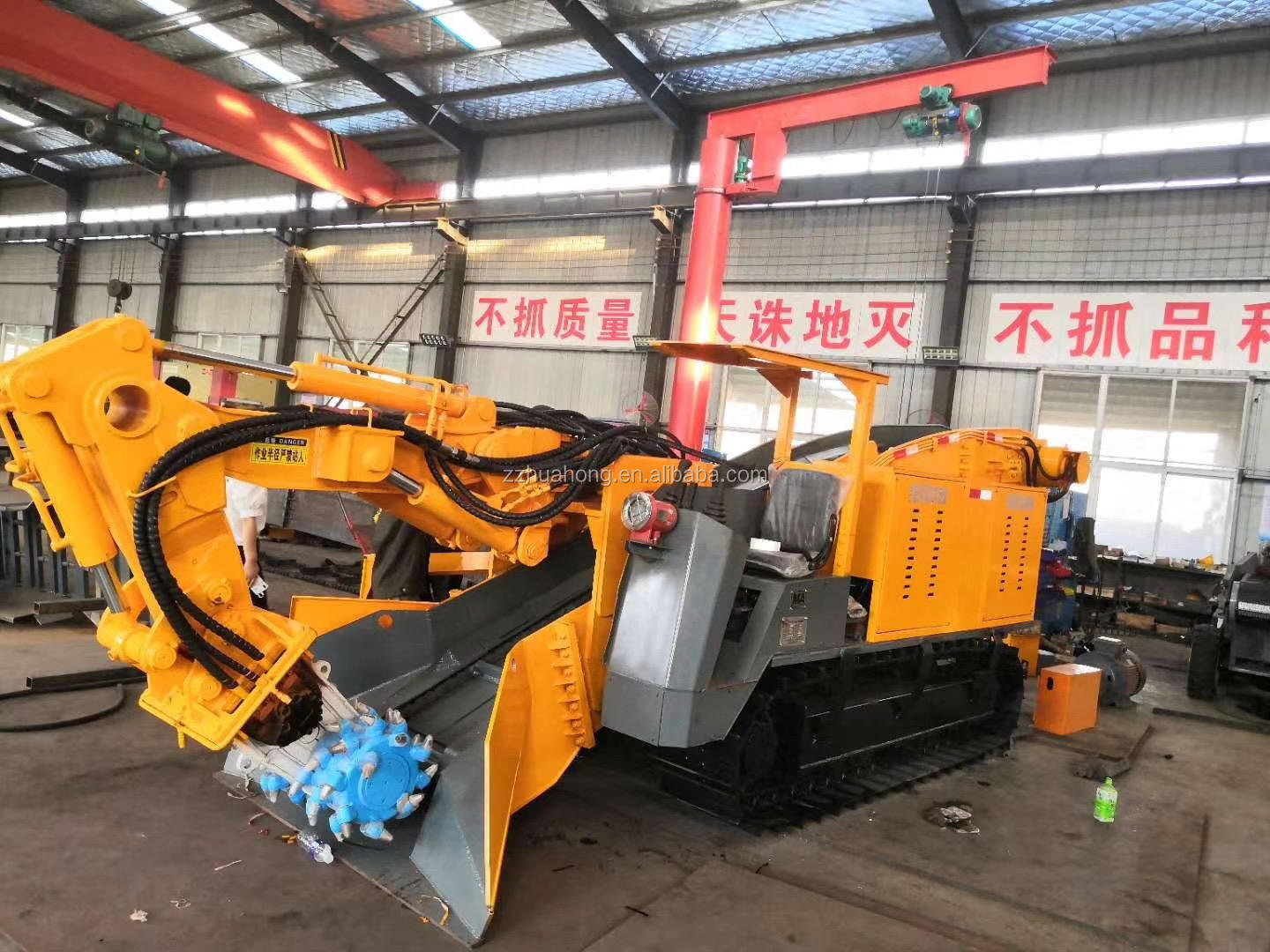

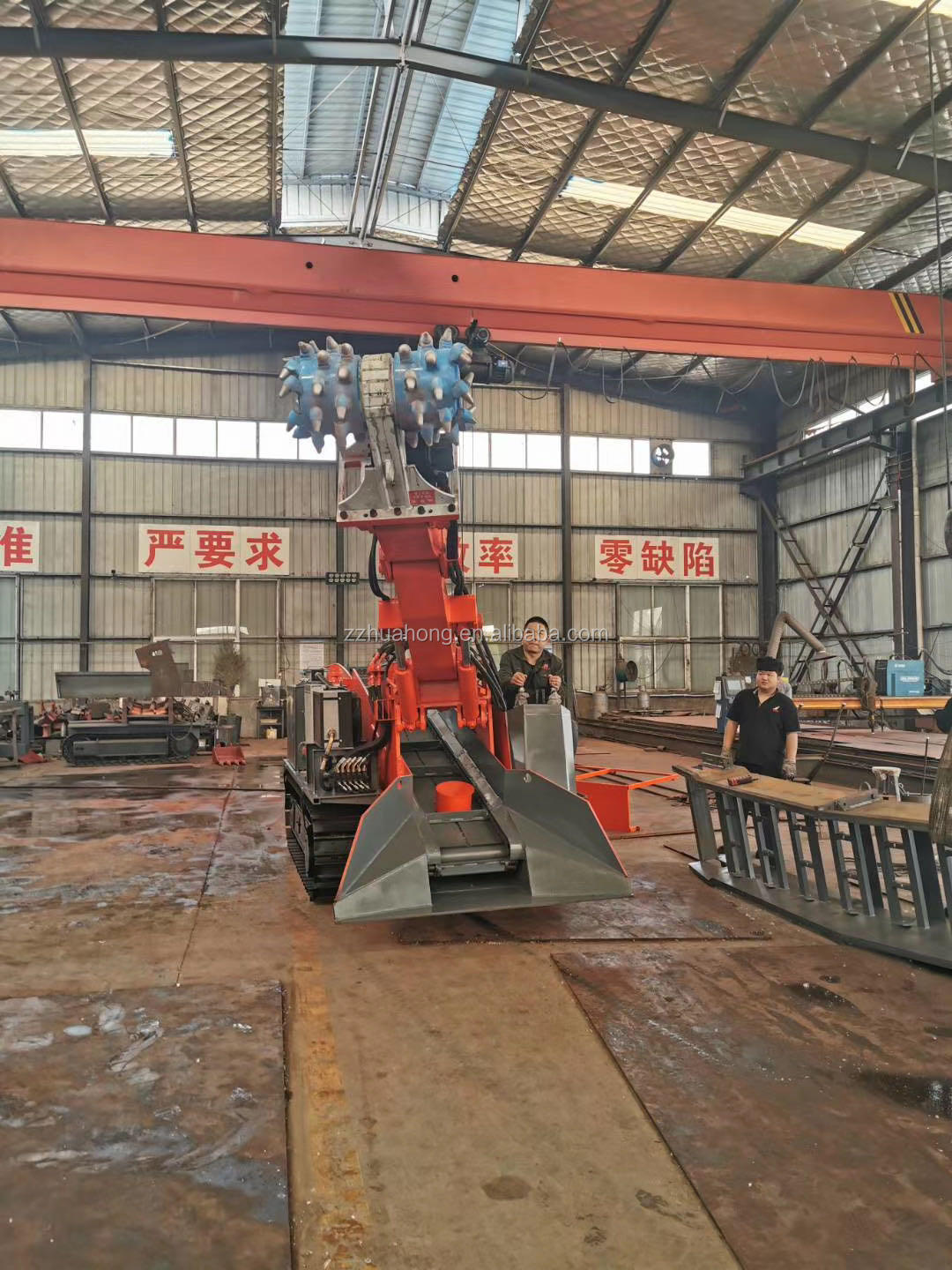

Tracked slag loaders/tunnel excavators:

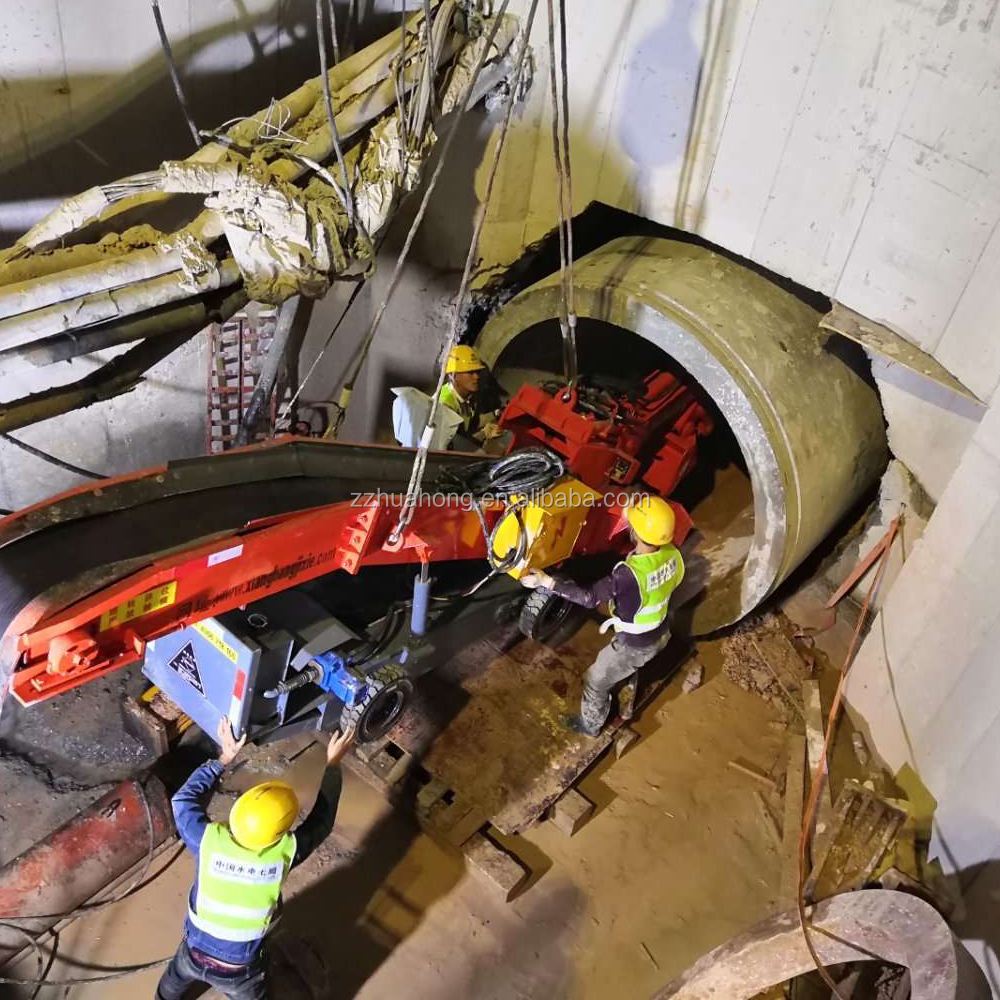

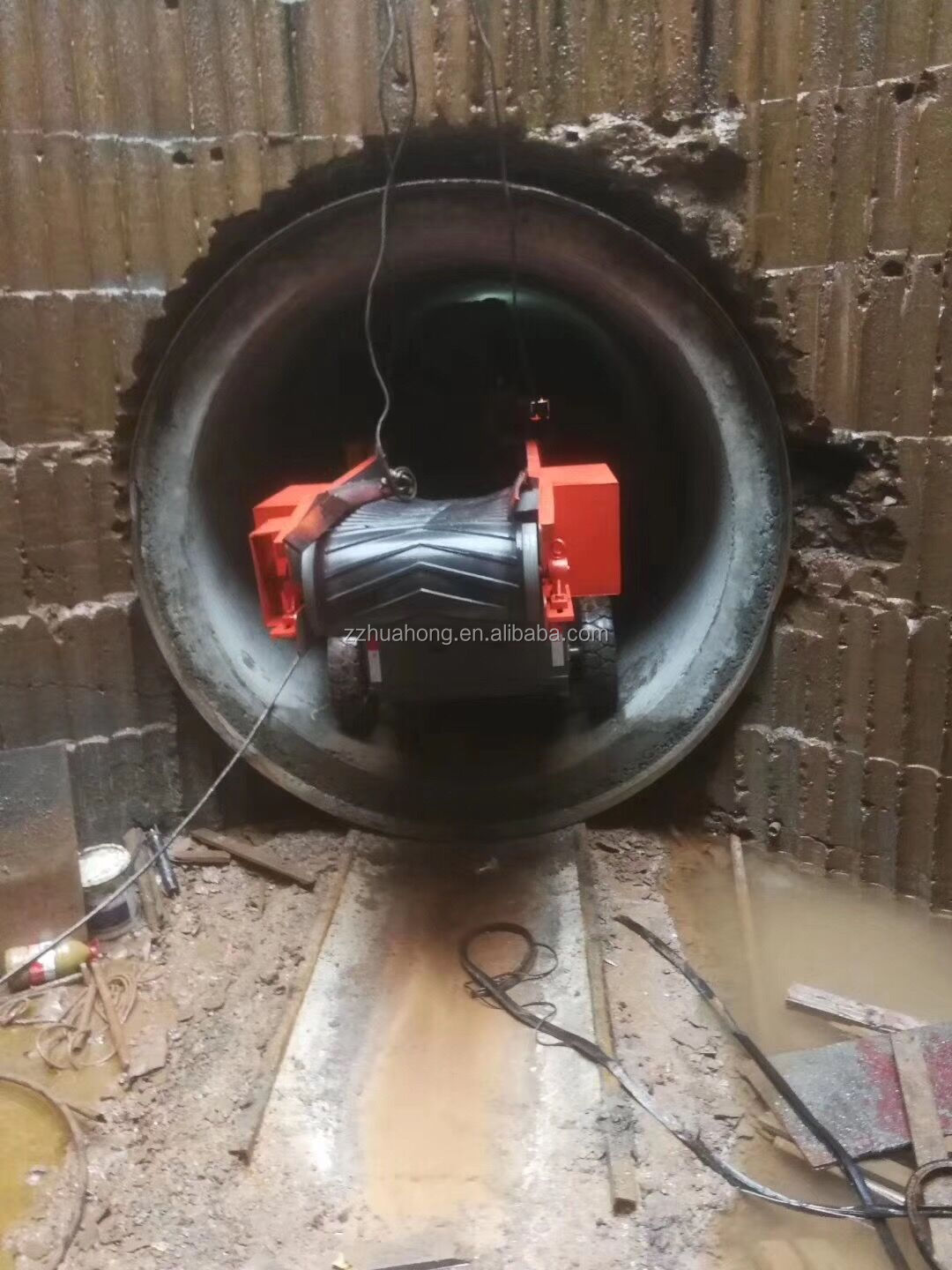

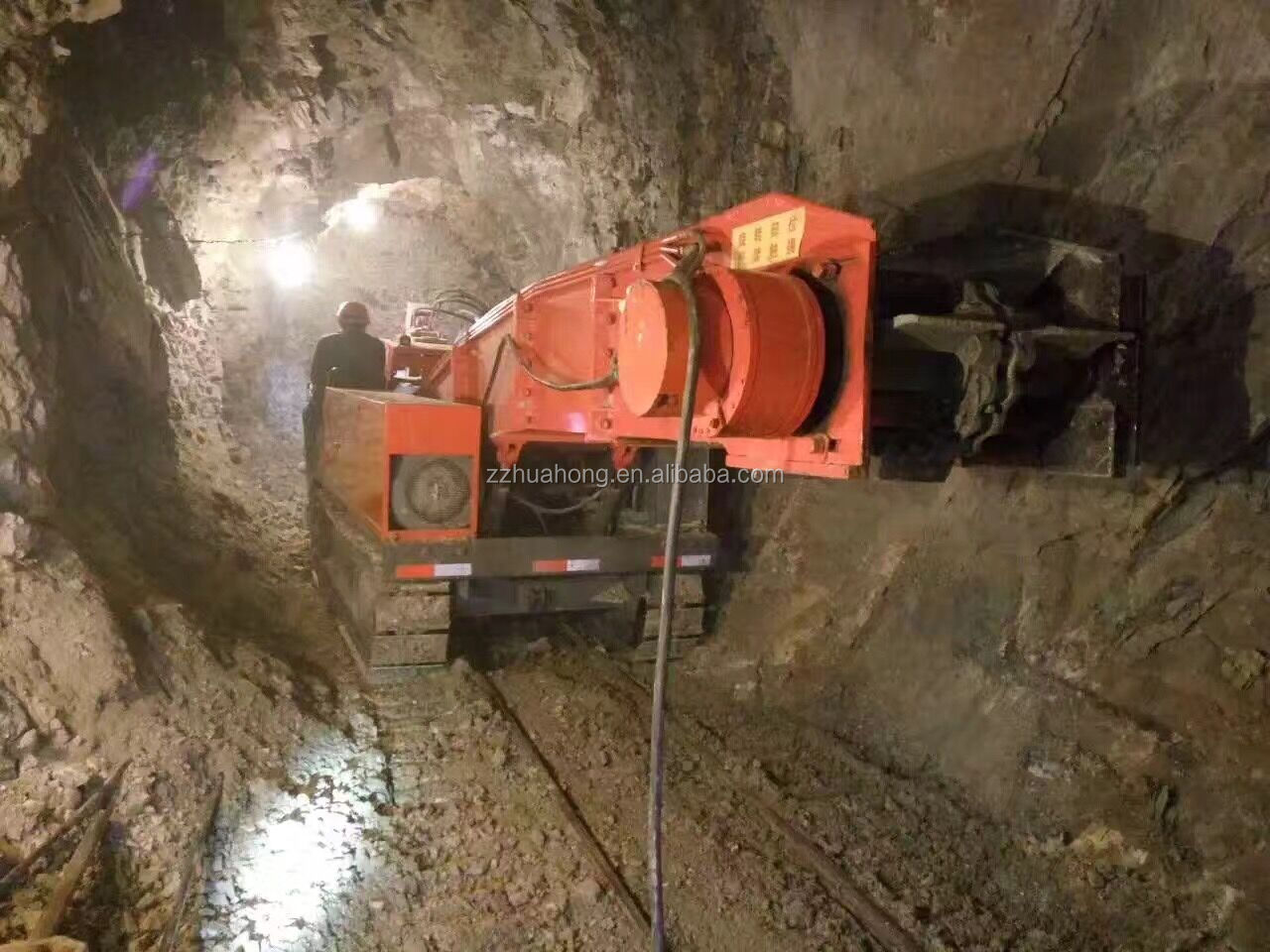

The slag remover is a high-efficiency tunnel loader for continuous production. It is mainly used for loading operations in railway tunnel construction, diversion tunnels, and national defense tunnels. More than 4X4 meters can be used for medium lanes or large lanes. The main action of our company's crawler slag removal machine is controlled by the pilot valve. The operation is simple, stable and without impact. Reliable capability and convenient maintenance. The machine has hydraulic systems such as air cooling, seat, cab, electric refueling, etc., and has alarm systems such as stroke overrun, high oil temperature, oil blockage, motor overload, etc., and has excellent humanized design. These can reduce the labor intensity of workers. The driver operates the machine safely, easily and comfortably. This crawler type slag loader is specially designed for steep roadways.

Tunnel boring machine features:

The machine is composed of excavating device, traveling device, slewing device and conveying device. Collect and transport functions in one. The dual power system is used for diesel power in or in tunnel applications. The full hydraulic device can effectively reduce small holes, lack of air, etc., and has the characteristics of safety, environmental protection and high efficiency. It is an indispensable advanced mining and slag discharge equipment for mining and tunneling, and a substitute for labor and other machinery.

Advantages of tunnel boring machines:

The machine's two power systems can independently complete the five functions of walking, harvesting, transportation, loading and finishing. It drives the wheels through the hydraulic motor, reducer, transmission shaft, and then reducer. The hydraulic motor has three working modes: forward, backward, and automatic braking; the mining collection function is completed by the robot, which has mining, loading, and unloading functions. Function, the arm can rotate up, down, left and right, the mining control is controlled by full hydraulic pressure, operated by 6 handles, each handle controls two actions, a total of twelve actions, this technology integrates the operation of large excavators , improved and easy to use. The conveying and loading functions are completed by the conveying system, and the conveying device is controlled by hydraulic cylinders. At the same time, the contact surface of the conveying device is more tightly connected with the ore, more stable, and can be combined with bulk materials for leveling. The conveyor belt width is 750-810mm, and it adopts full hydraulic transmission.

Technical parameters of ZWY80/37L slag removal machine
^{Driving speed (km/h):}	0.63±5%km/h
Loading m3/h	80
^{Minimum ground clearance (mm):}	200
^{Working pressure (Mpa):}	≤20mpa
^{Arm Angle (°):}	±73
^{Rated power (kW):}	37
^{Maximum material (mm) per size:}	650600500mm
Adaptive Tunnel Gradient	≤25°
^{Dimensions (mm):}	450015001200
^{Total weight (kg):}	6500
Discharge height	1400-1600 mm
^{Mineria distance (mm):}	1500
^{Depth of discharge (mm):}	7000
^{Digging distance (mm):}	1800 (extendable)
Digging width(mm)	2800
Excavation height mm	2100
Rail width mm:	900
Shipping Condition Dimensions	550015501650 mm
Dimensions in working state	700015502000 mm
Scraper chain speed:	0.5m/s
