Hot sale 4x4 diesel mini truck 6 tons mine underground dump truck mine dump truck for sale

Supplier: Zhengzhou Kepai Mechanical Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Eve Lu
Price: $16000.00 / 1 - 9 sets
$15000.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

Package preview:		Applicable industries:	Farms, construction, energy and mining
Marketing Type:	New Products 2022	place of origin; place of origin:	China
Video shipment inspection:	if	port:	Qingdao/Shanghai
Mechanical test report:	if	Weight (kg):	4500
brand:	Capai	Showroom location:	Philippines, Thailand, Tanzania
Core components:	Engines, Transmissions, Pumps	Warranty:	6 months
Core component warranty:	1 year	payment terms:	L/C, Western Union, D/A, T/T
Supply capacity:	120 units per month

Product Description

MDT series 4-45 tons mining dump trucks are mainly used in underground mines, aboveground pits and mining areas, muddy roads, tunnel construction, building construction, swamps, river beaches, deserts, paddy fields, tropical rain forests, ice and snow, etc.

The truck is certified to mine safety standards. It has the characteristics of large traction, good climbing performance and strong transportation capacity.

The truck is small in size and suitable for working in narrow mine tunnels. Exhaust gas treatment is a water filter purifier to reduce air pollution when working underground.

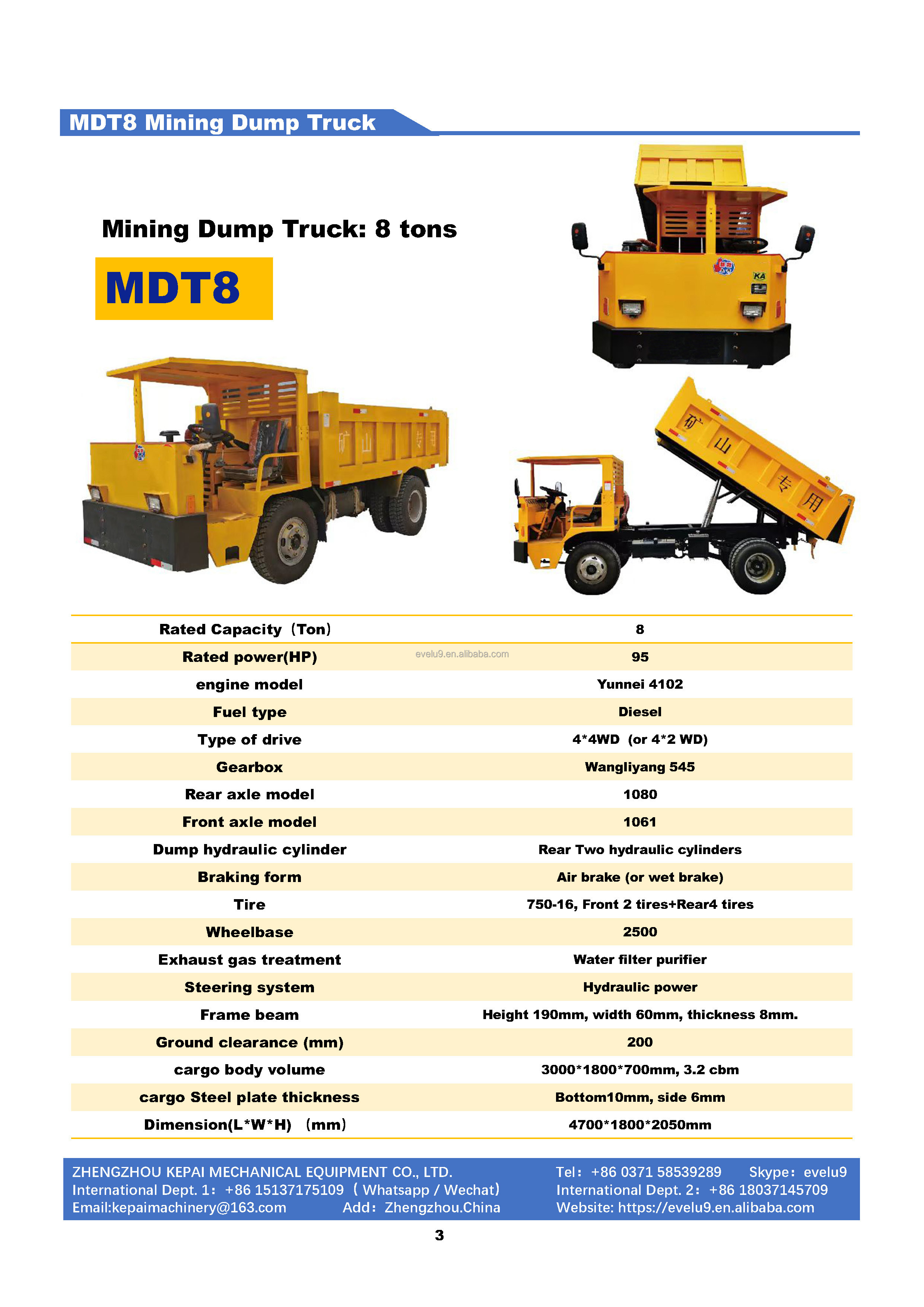

Model	MDT6	MDT8	MDT10	MDT12
Rated Capacity(Ton)	6	8	10	12
Rated power (HP)	63	95	110	110
engine model	Yunnei 490	Yunnei 4102	Yunnei 4102	Yunnei 4102
fuel type	diesel engine	diesel engine	diesel engine	diesel engine
drive type	44WD (or 42WD)	44WD (or 42WD)	44WD (or 42WD)	44WD (or 42WD)
brake form	Air brakes (or wet brakes)	Air brakes (or wet brakes)	Air brakes (or wet brakes)	Air brakes (or wet brakes)
fetal	700-16,front2 tires + 4 rear tires	750-16,front2 tires + 4 rear tires	750-16,front2 tires + 4 rear tires	825-16,front2 tires + 4 rear tires
wheelbase	2280	2500	2600	2650
cargo volume	27001650550mm, 2.2 cubic meters	30001800700mm, 3.2 cubic meters	33001800700mm, 4 cubic meters	34002100700mm, 4.8 cubic meters
Cargo steel plate thickness	8mm bottom, 6mm side	10mm bottom, 6mm side	10mm bottom, 6mm side	10mm bottom, 6mm side
*Dimensions (LWH)*(mm)	435016501950mm	470018002050mm	500018002050mm	520021002050mm

Model	MDT16	MDT20	MDT25A	MDT25B
Rated capacity (tons)	16	20	25	25
Rated power (HP)	160	210	290	290
engine model	Yuchai 4108	Yuchai 210	Yuchai 290	Yuchai 290
fuel type	diesel engine	diesel engine	diesel engine	diesel engine
drive type	44WD (or 42WD)	4*2 full drive	4*2 full drive	6*4 full drive
brake form	Air brake (wet brake)	air brake	air brake	air brake
fetal	900-20, 2 front 2 tires + rear 4 tires	1000-20, the first 2 tires + the rear 4 tires	1000-20, the first 2 tires + the rear 4 tires	1100-20, 2 front tires + 48 rear tires
wheelbase	3000	3200	3500	3650
Ground clearance (mm)	255	325	325	325
cargo volume	36002200750mm, 6 cubic meters	360023001000mm, 8 cubic meters	460024001100mm, 11 cubic meters	470024001000mm, 11 cubic meters
Cargo steel plate thickness	10mm bottom, 8mm side	12mm bottom, 8mm side	12mm bottom, 8mm side	12mm bottom, 8mm side
Dimensions (LWH) (mm)	560023002150mm	610024502400mm	680024002400mm	780024502700mm
