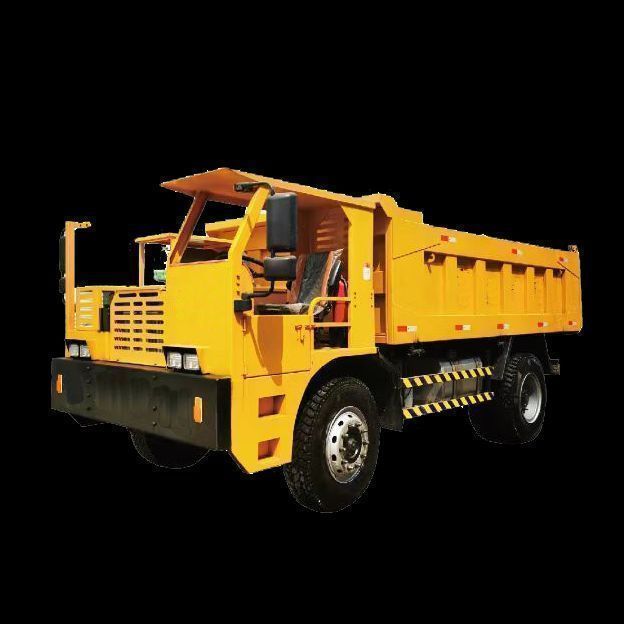

12 Ton Mini Multipurpose Mining 4WD Truck 4x4 Hydraulic Diesel Truck For Sale

Supplier: Zhengzhou Kepai Mechanical Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Eve Lu
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Showroom location:	Philippines, Thailand, Tanzania	Video external inspection:	if
Supply capacity:	120 units per month	Marketing Type:	New Products 2022
Applicable industries:	Farm, Construction, Energy & Mining	Weight (kg):	4500
brand:	Kapai	Mechanical test report:	if
payment terms:	L/C,Western Union,D/A,T/T	place of origin; place of origin:	China
Packaging Preview:		Warranty:	6 months
Core components:	Engine, Transmission, Pump	Core Components Warranty:	1 year
port:	Qingdao/Shanghai

Product Description

MDT series 4-45 ton mining dump trucks are mainly used in underground mines, above-ground mines and mining areas, muddy roads, tunnel construction, building construction, swamps, river beaches, deserts, rice fields, tropical rain forests, ice and snow, etc.

The truck is certified to mine safety standards. It has the characteristics of large traction, good climbing performance and strong transportation capacity.

The truck is small in size and suitable for working in narrow mine tunnels. Waste gas treatment is a water filter purifier that reduces air pollution when working in underground mines.

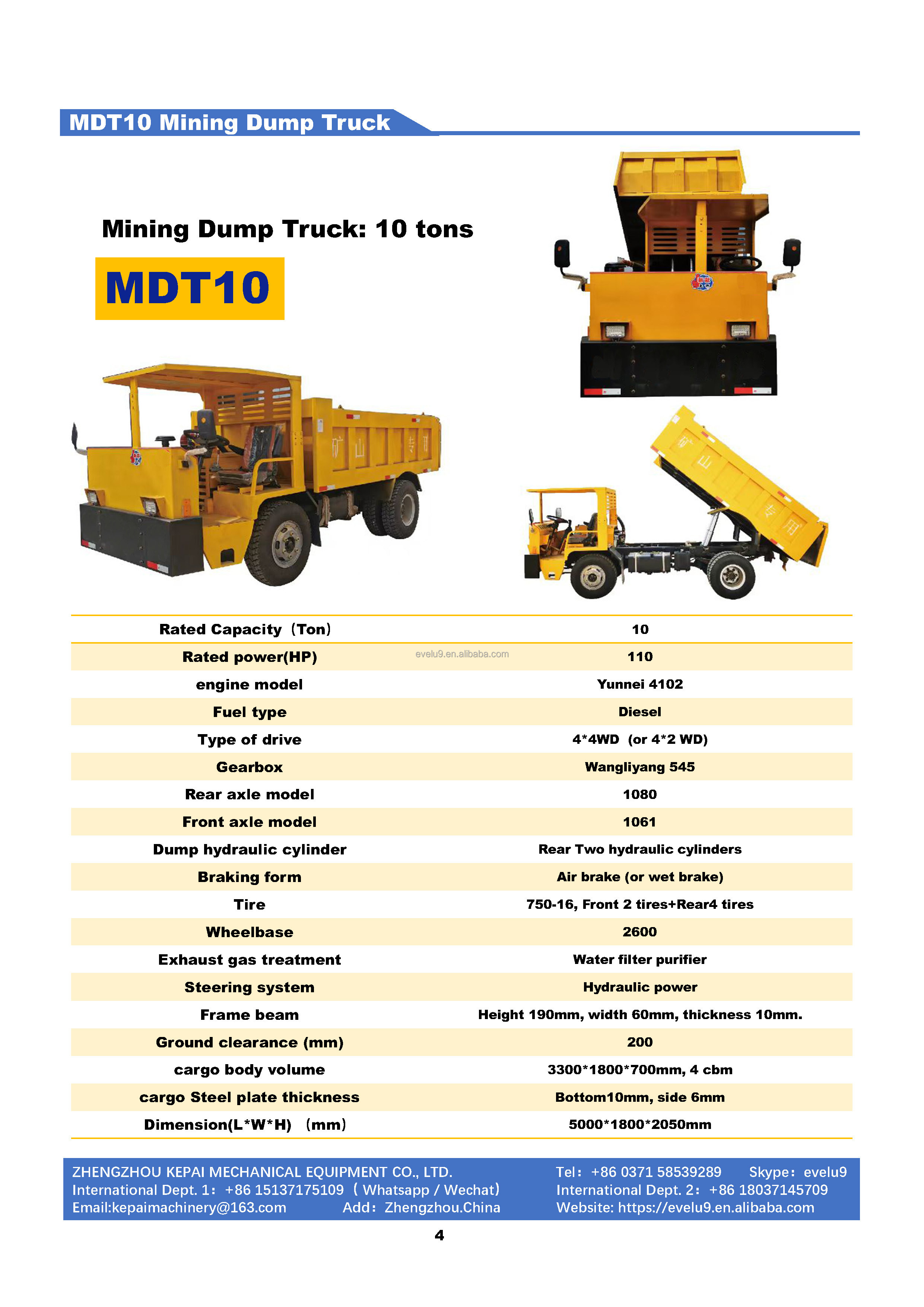

Model	MDT6	MDT8	MDT10	MDT12
Rated Capacity(Ton)	6	8	10	12
Rated power (HP)	63	95	110	110
engine model	Yunnei 490	Yunnei 4102	Yunnei 4102	Yunnei 4102
Type of gasoline	diesel engine	diesel engine	diesel engine	diesel engine
drive type	44WD (or 42WD)	44WD (or 42WD)	44WD (or 42WD)	44WD (or 42WD)
Brake form	Air Brake (or Wet Brake)	Air Brake (or Wet Brake)	Air Brake (or Wet Brake)	Air Brake (or Wet Brake)
fetal	700-16,front2 tires + rear 4 tires	750-16,front2 tires + rear 4 tires	750-16,front2 tires + rear 4 tires	825-16,front2 tires + rear 4 tires
wheelbase	2280	2500	2600	2650
Cargo volume	27001650550mm, 2.2 cubic meters	30001800700mm, 3.2 cubic meters	33001800700mm, 4 cubic meters	34002100700mm, 4.8 cubic meters
Cargo steel plate thickness	Bottom 8mm, side 6mm	10mm bottom, 6mm side	10mm bottom, 6mm side	10mm bottom, 6mm side
*Size (LWH)*(mm)	435016501950mm	470018002050mm	500018002050mm	520021002050mm

Model	MDT16	MDT20	MDT25A	MDT25B
Rated capacity (tons)	16	20	25	25
Rated power (HP)	160	210	290	290
engine model	Yuchai 4108	Yuchai 210	Yuchai 290	Yuchai 290
Type of gasoline	diesel engine	diesel engine	diesel engine	diesel engine
drive type	44WD (or 42WD)	4*2WD	4*2WD	6*4WD
Brake form	Air Brake (Wet Brake)	air brake	air brake	air brake
fetal	900-20, 2 front 2 tires + rear 4 tires	1000-20, front 2 tires + rear 4 tires	1000-20, front 2 tires + rear 4 tires	1100-20, front 2 tires + rear 48 tires
wheelbase	3000	3200	3500	3650
Ground clearance (mm)	255	325	325	325
Cargo volume	36002200750mm, 6 cubic meters	360023001000mm, 8 cubic meters	460024001100mm, 11 cubic meters	470024001000mm, 11 cubic meters
Cargo steel plate thickness	10mm bottom, 8mm side	12mm bottom, 8mm side	12mm bottom, 8mm side	12mm bottom, 8mm side
Dimensions (LWH) (mm)	560023002150mm	610024502400mm	680024002400mm	780024502700mm
